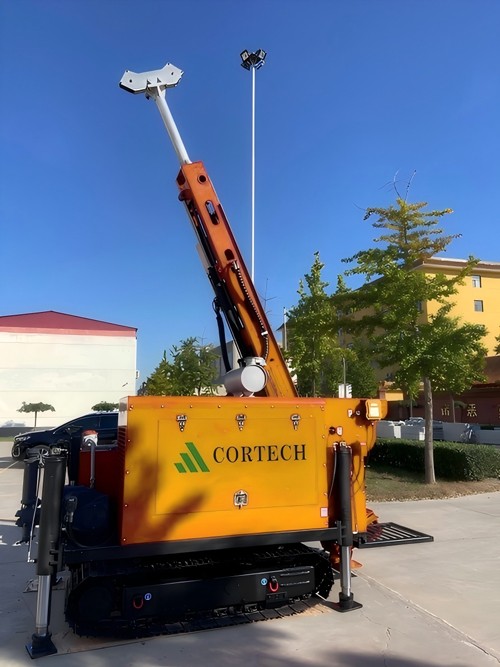

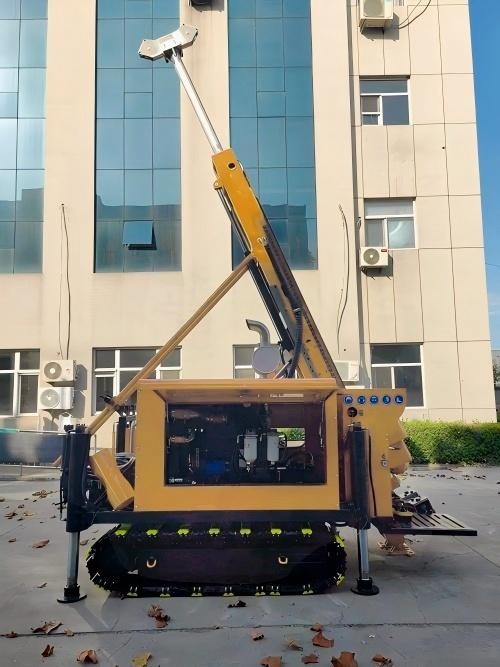

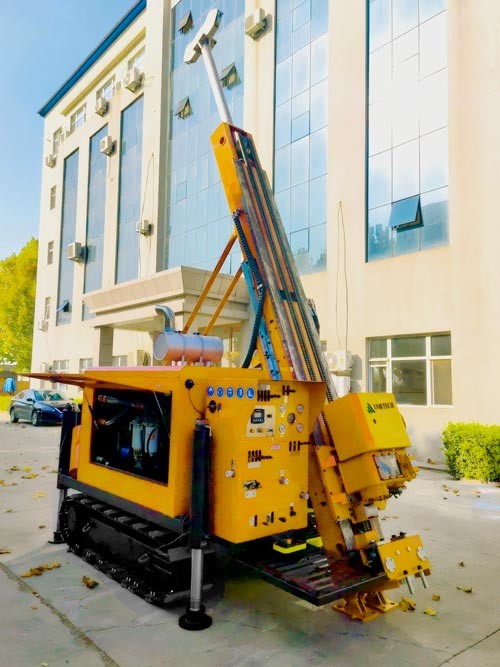

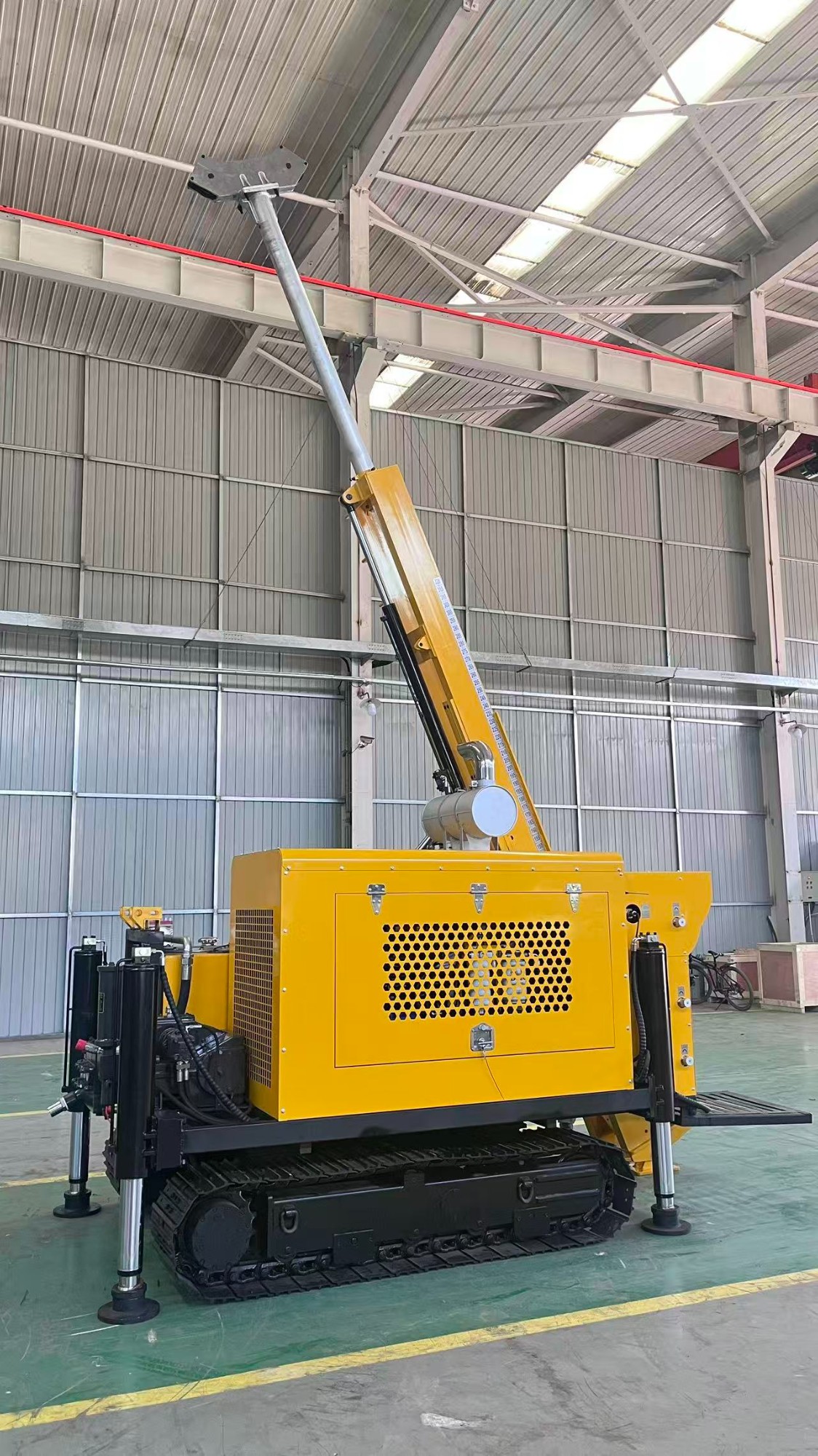

Features:
● Crawler design, hydraulic drive for all machine functions, the equipment is operated by remote control and hydraulic handle (pilot controlled electro-hydraulic ratio) for walking, ensure personnel safety during equipment movement.
● Side sliding chuck drive drill head, quickly release the hole position for core extraction operation, higher safety and operational efficiency.
● The chuck clamping adopts nitrogen gas spring to ensure long -term release and clamping operation.
● The chain double speed mechanism ensures that the equipment has a travel distance of 3200mm, reducing the weight of the equipment.
● Cummins 4-cylinder diesel engine meets emission standards and reduces air pollution.
● Aluminum alloy mast, lightweight, easy to install and disassemble.
● The compact body structure facilitates the relocation of equipment on narrow and steep roads.
● The unique design of the hydraulic system adopts load sensitive control for the main and auxiliary systems, and a large number of imported threaded plug-in valve groups are used, with high integration, simple system, and high efficiency.
After Sales Service
Our expert service engineer team is globally available, 24/7.
Note
Rigs are available with different mounting options and diesel or electric drive options. Please contact sales@cortechdrilling.com for more information.
Technical Specifications
|
Drilling Capacity |
|
|
Diameter of Drill Rod |
B,N,H,P |
|
Drilling Depth |
1,000m 800m 500m 300m |
|
Drill Head |
|
|
Drive Mode |
Danfoss Hydraulic Motor |
|
Drill Head Side Sliding |
Hydraulic Drive |
|
Transmission Gear Box Speed |
Manual 3rd gear 1100rpm |
|
Torque |
2500Nm |
|
Through-Hole Diameter |
95mm |
|
Engine |
|
|
Model |
Cummins QSB3.9 |
|
Rated Power |
93KW@2200rpm |
|
Control System |
ECM |
|
Hydraulic System |
|
|
Rated Working Pressure |
28Mpa |
|
Cooling Method |
Water-Cooling |
|
Main and Auxiliary Pumps |
Danfoss |
|
Main Hydraulic Valve |
Taiwan Oil Power |
|
Mast |
|
|
Lifting Method |
Hydraulic Cylinder |
|
Drilling Angle |
40-90° |
|
Push Force |
2500kg |
|
Pull Force |
8000kg |
|
Feed Stroke |
3200mm |
|
Total Length |
5.5m |
|
Core Picking Winch |
|
|
Drive Mode |
Hydraulic Motor |
|
Boosting Power |
1100kg (Empty Drum) |
|
Increase Speed |
110m/min |
|
Wire Rope |
6mm*850m |
|
Mud Pump |
|
|
Model |
BW160/10 |
|
Maximum Pressure |
10Mpa |
|
Maximum Flow Rate |
160L/min |
|
Foot Clamp |
|
|
Opening and Closing Form |
Hydraulic Clamping, Release |
|
Maximum Through-Hole Diameter of Gripper |
125mm |
|
Steel Track |
|
|
Climbing Angle |
30° |
|
Walking Speed |
4.5km/h |
|
Control Form |
Remote Control, Hydraulic Handle Control |
|
Mud Mixer |
|
|
Maximum Torque |
60Nm |
|
Maximum Speed |
2000rpm |
|
Dimensions and Weight |
|
|
Transport Size |
5500*1800*2400mm |
|
Gross Weight |
5800kg |
