CSD1300D(Hybrid)

Category： Crawler Track& Skid Mounted Rig

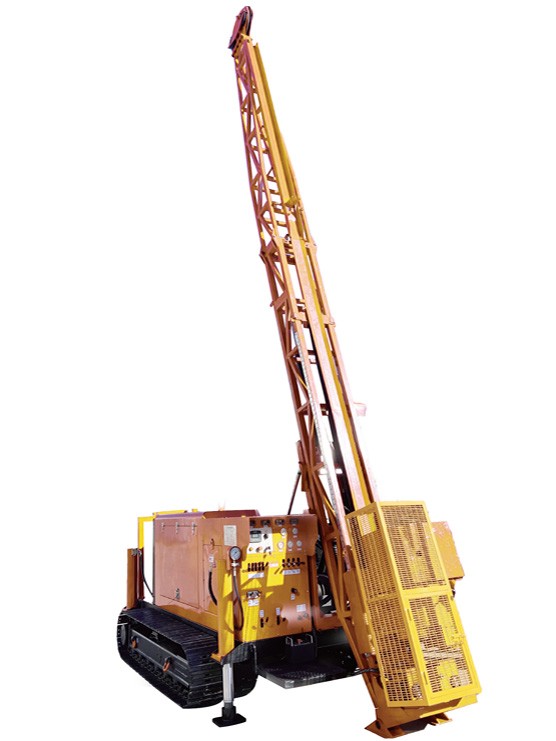

Product description：The diamond rope coring drilling rig is designed specifically for surface coring operations,the tracked design facilitates equipment relocation.
INQUIRY EMAIL

The diamond rope coring drilling rig is designed specifically for surface coring operations,the tracked design facilitates equipment relocation,this type of drilling rig adopts the current international mainstream hydraulic components (hydraulic pump, motor, hydraulic valve, etc.) to ensure the service life and stable working performance of the equipment,multiple functional designs are more conducive to improving device safety,improve the efficiency of drilling operations.

1 、Crawler chassis facilitates equipment relocation;

2、Wireless remote control walking and hydraulic handle (pilot control electro-hydraulic ratio) ensure the safety of operators;

3、Side sliding chuck power head, quickly vacating the hole position for core extraction and drilling operations, with higher safety and operational efficiency;

4、The chuck clamping adopts nitrogen gas spring to ensure long-term release and clamping operation;

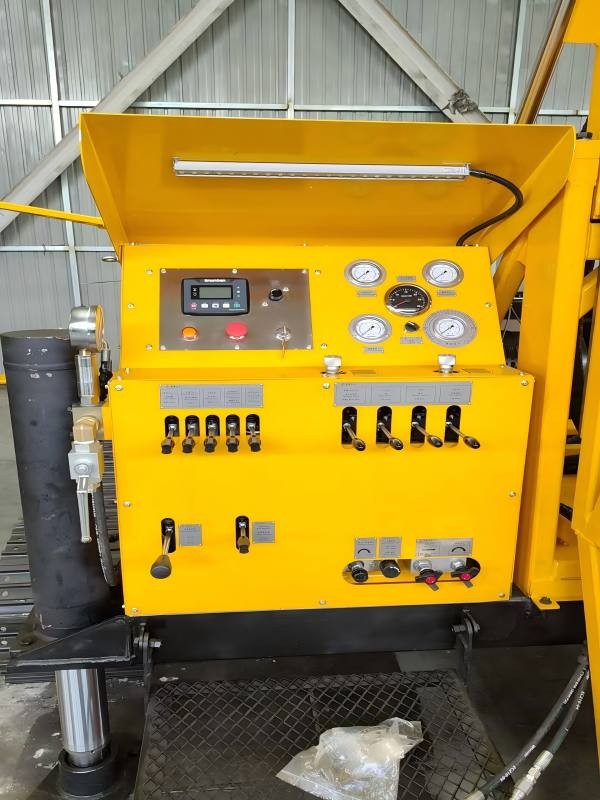

5、The auxiliary console is convenient for tower lifting/lowering operations;

6、Cummins 6-cylinder diesel engine meets emission standards and reduces air pollution.

7、 The unique design of the hydraulic system adopts load sensitive control for the main and auxiliary systems, and a large number of imported threaded plug-in valve groups are used, with high integration, simple system, and high efficiency.

Technical Parameter:

Drilling Capacity
Diameter of Drill Rod	N,H,P
Drilling Depth	1,300m 800m 500m
Engine Power
Model	Cummins QSB5.9-C180
Power	133KW
Engine Rpm	2,200
Air Cooling	Turbo Charged
Electric motor	55KW + 18.5KW
Hydraulic System
Rated Pressure	27 Mpa, Air Cooling
Main Valve	HAWE
Hyd Pumps	Danfoss
Sliding Chuck Head
Max Torque	4,279Nm
Max Rotation	1,200rpm
Feed Stroke	3,300mm
Max Pull	100KN
Max Push	40KN
Drilling Angle	45-90°
Rotation Motor	Rexroth
Main Winch
Max Pull	68KN(bare drum)
Pulling Speed	35m/min
Rope Diameter	16mm
Rope Length	30m
Wireline Winch
Max Pull	11KN(bare drum)
Pulling Speed	110m/min
Rope Diameter	6mm
Rope Length	1,200m
Mast
Length	10m
Drilling Angle	-90°-90°
Dump Length	1.1m
Foot Clamp
Rods Applied	BQ,NQ,HQ,PQ Etc
Mud Pump
Model	BW160/10
Max Pressure	10Mpa
Max Flow	160L/min
Crawler Move
Control Mode	Wireless Remote Control and Hyd Lever Control as Spare
Max Angle	30°
Max Speed	2KM/H
Dimensions & Weight
Dimensions in Transportation	5,100x2,300x2,800mm
Gross Weight	8,500KG
