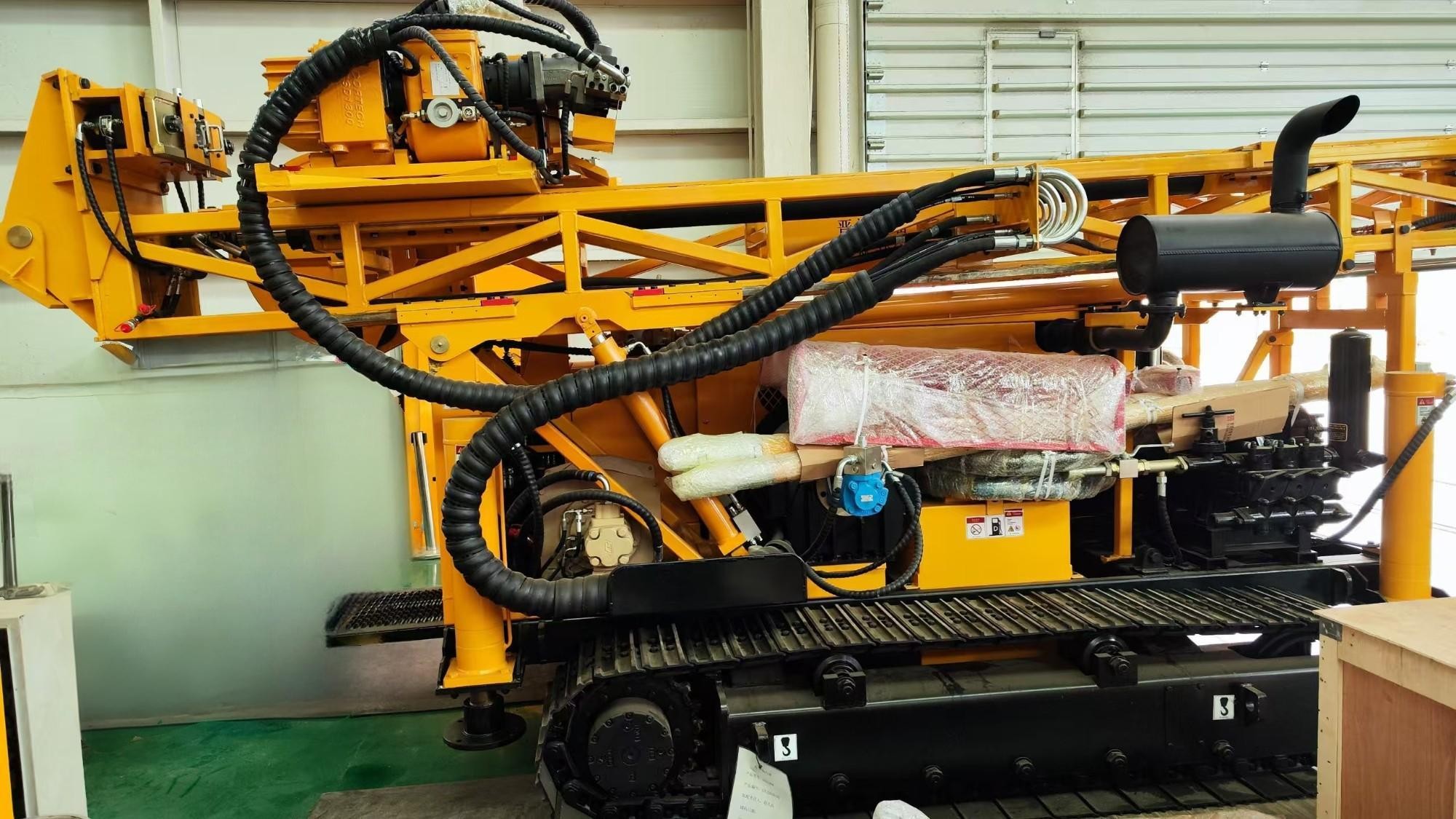

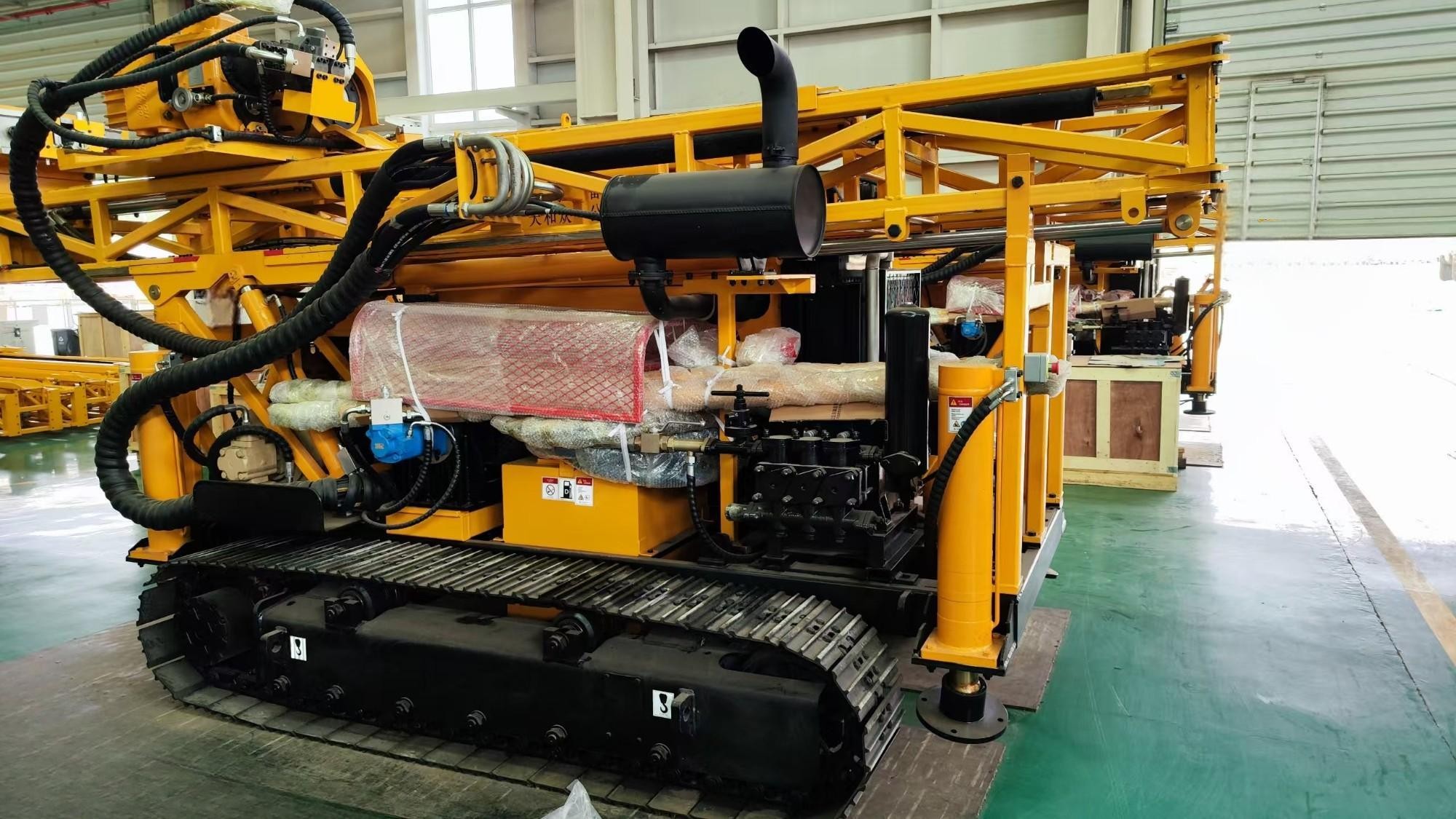

CSD1300L Diamond Core Drilling Rig




Features

Crawler track mounted

4 speeds gear box

Big chuck diameter up to 117mm

Stroke of drill head 3.5m suitable for 3m length rods

Mast has dump function

Mast folding design minimizes transportation dimensions

Independent hydraulic leveling jacks;

Accurate control of feed pressure;

Floating head protects the rod threads during make up and break out;

Real time display of drilling data on the control panel gauges;

Hydraulically controlled mud pump flow at the rig control panel;

Premium hydraulic components of European/US origin;

Powerful main winch of US origin

Wire line winch with automatic rope spooler.

After sales service


Our expert service engineer team is globally available, 24/7.

Note

Rigs are available with different mounting options and diesel or electric drive options. Please contact sales@cortechdrilling.com for more information.

Technical Parameter

Drilling Capacity

Dia of Drill Rod

         B, N, H, P

Drilling Depth

         1,300m    1,000m   700m  400m

Engine

Model

         Cummins 6BTA-5.9

Type

         Turbo Charge

Power

         132KW

RPM

         2,500rpm

Drill Head

Max Torque

         4,257Nm

Max Rotation

         1,182rpm

Feed Stroke

         3,500mm

Max Inside Diameter

         117mm

Pull/Push

         120KN/50KN

Main Winch

Max Pull

          68KN

Pulling Speed

        28m/min

Rope Diameter

16mm

Rope Length

          30m

Wireline Winch

Max Pull

11KN(bare drum)

Pulling Speed

          120m/min

Rope Diameter

          6.6mm

Rope Length

          1,500m

Mast

Length

         10m

Drilling Angle

         45°-90°

Dump Length

          1.1m

Foot Clamp

Drill Rod

           B, N, H, P

Travelling Capacity

                           Max Climbing Angel

           30°

                           Max. Travelling Speed

           2km/h

Transporting Dimensions

L*W*H

            5,100×2,350×2,600mm

Total Weight

 Total Weight

            8.5t
