CSD2600L(Hybrid）

Category： Hybrid Coring Rig

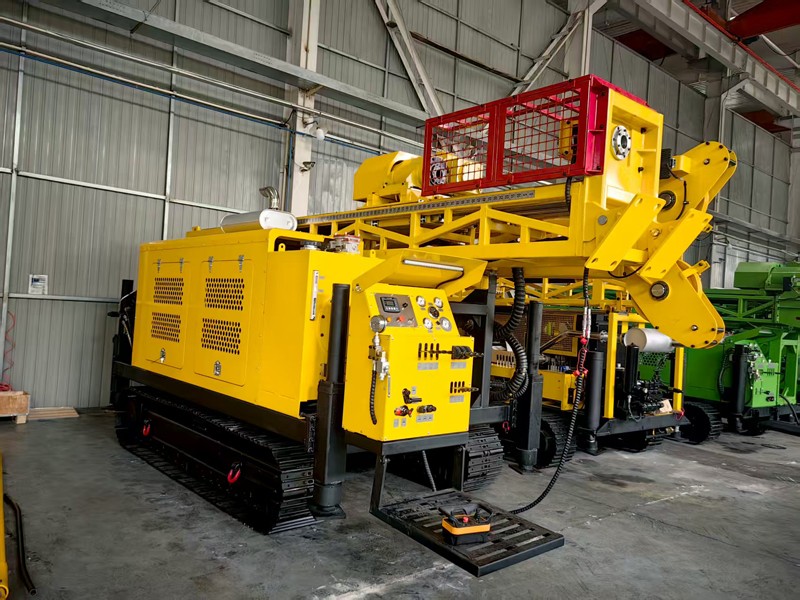

Product description：The diamond rope coring drilling rig is designed specifically for surface coring operations, with a track type design that facilitates equipment relocation
INQUIRY EMAIL

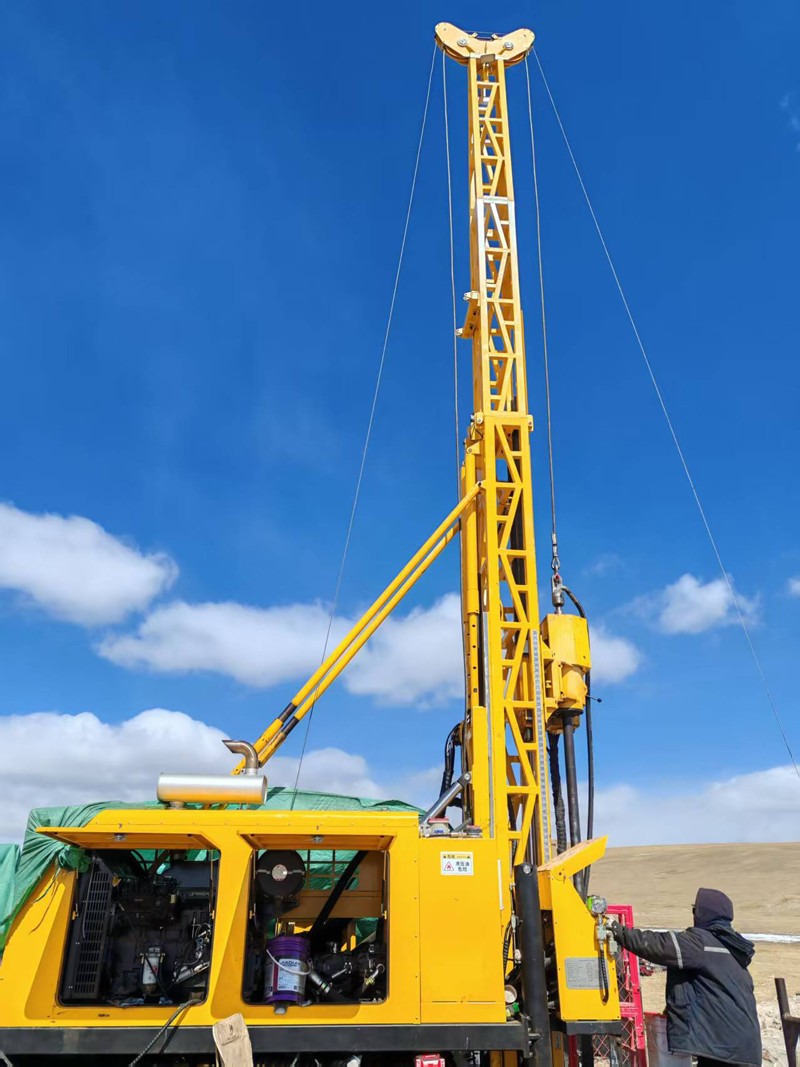

The diamond rope coring drilling rig is designed specifically for surface coring operations, with a track type design that facilitates equipment relocation. This type of drilling rig uses internationally mainstream hydraulic components (hydraulic pumps, motors, hydraulic valves, etc.) to ensure the service life and stable working performance of the equipment. Multiple functional designs are more conducive to improving equipment safety and drilling efficiency.

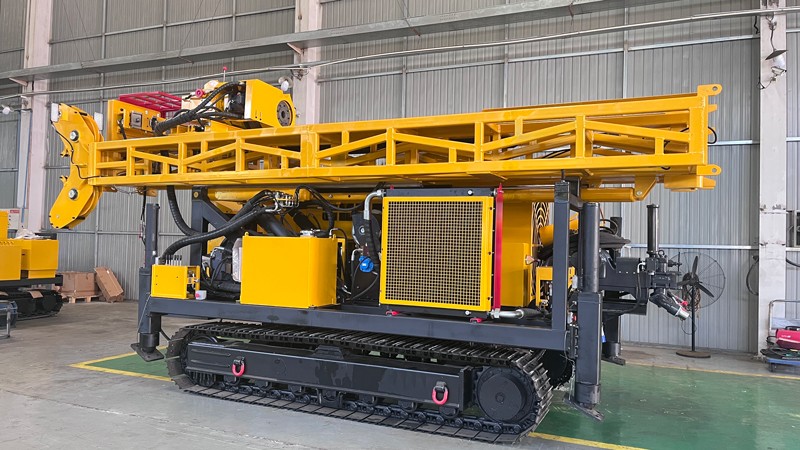

1 、Crawler chassis facilitates equipment relocation;

2、Wireless remote control walking and hydraulic handle (pilot control electro-hydraulic ratio) ensure the safety of operators;

3、Side sliding chuck power head, quickly vacating the hole position for core extraction and drilling operations, with higher safety and operational efficiency;

4、The chuck clamping adopts nitrogen gas spring to ensure long-term release and clamping operation;

5、The auxiliary console is convenient for tower lifting/lowering operations;

6、Cummins 6-cylinder diesel engine meets emission standards and reduces air pollution.

7、 The unique design of the hydraulic system adopts load sensitive control for the main and auxiliary systems, and a large number of imported threaded plug-in valve groups are used, with high integration, simple system, and high efficiency.

Technical Parameter:

Drilling Capacity
Diameter of Drill Rod	B,N,H,P
Drilling Depth	2,600m 2,200m 1,800m 1,000m
Engine Power
Model	Cummins QSC8.3-C260-30
Power	194KW
Engine Rpm	2,200
Air Cooling	Turbo Charged
Electric motor	130KW
Hydraulic System
Rated Pressure	31.5 mpa, Air Cooling
Main Valve	HAWE, SUN ,Hydra force
Hyd Pumps	Danfoss
Sliding Chuck Head
Max Torque	6,500Nm
Max Rotation	1,540rpm
Feed Stroke	3,300mm
Max Pull	254KN
Max Push	100KN
Drilling Angle	45-90°
Rotation Motor	Rexroth
Main Winch
Max Pull	20t(bare drum)
Pulling Speed	83m/min
Rope Diameter	22mm
Rope Length	36m
Wireline Winch
Max Pull	18KN(bare drum)
Pulling Speed	480m/min
Rope Diameter	8mm
Rope Length	2,200m

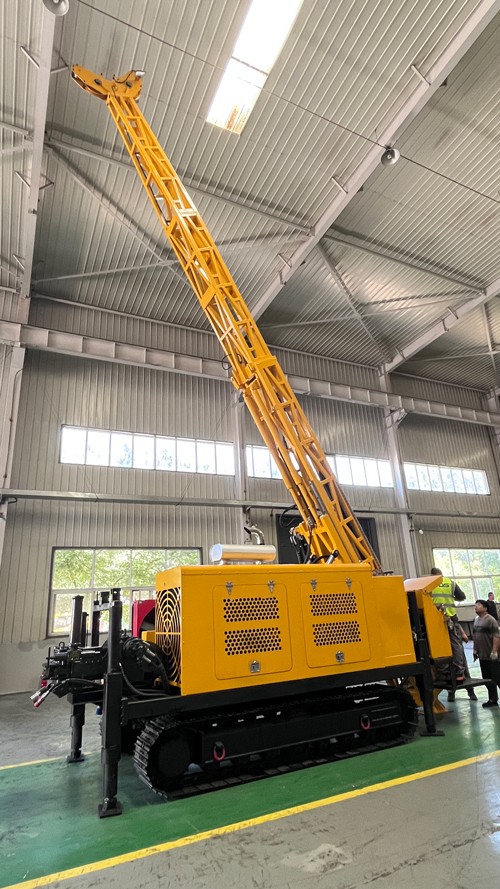

Mast
Length	12.7m
Drilling Angle	45-90°
Dump Length	1.3m
Rods Pulling	9m(max)
Foot Clamp
Rods Applied	BQ,NQ,HQ,PQ
Mud Pump
Model	BW400
Max Pressure	10Mpa
Max Flow	400L/min
Crawler Move
Control Mode	Wireless Remote Control and Hyd Lever Control as Spare
Max Angle	30°
Max Speed	3KM/H
Dimensions & Weight
Dimensions in Transportation	6,562.5x2,300x2,975mm
Gross Weight	15,000KG
