CSD3000L(Hybrid)

Category： Hybrid Coring Rig
Product description：The CSD3000L full hydraulic crawler surface core drill rig is a high-performance drilling machine developed by CORTECH for solid mineral exploration.
INQUIRY EMAIL

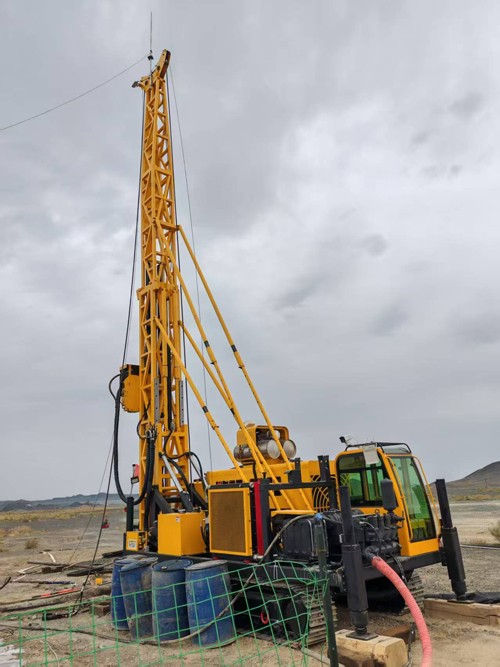

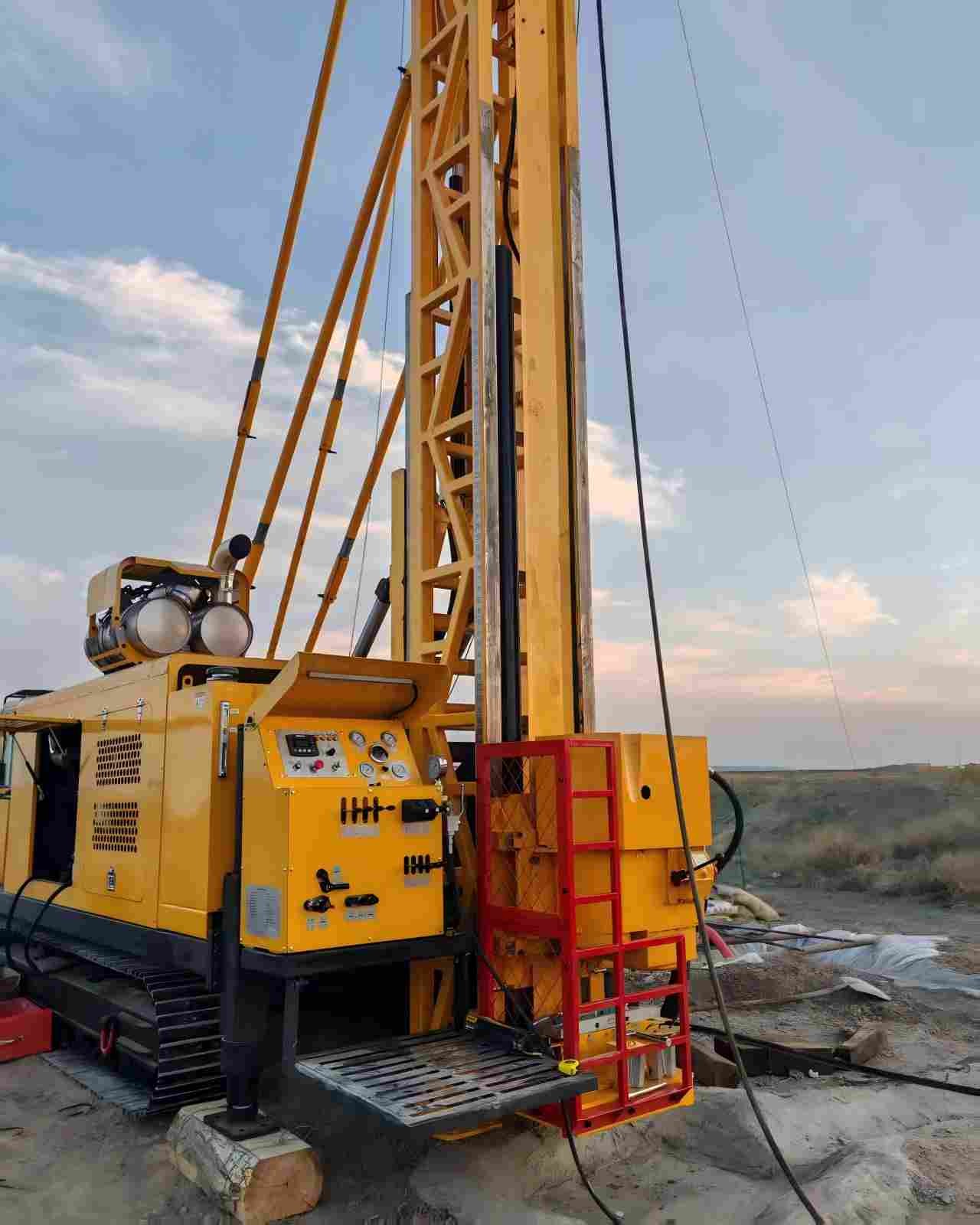

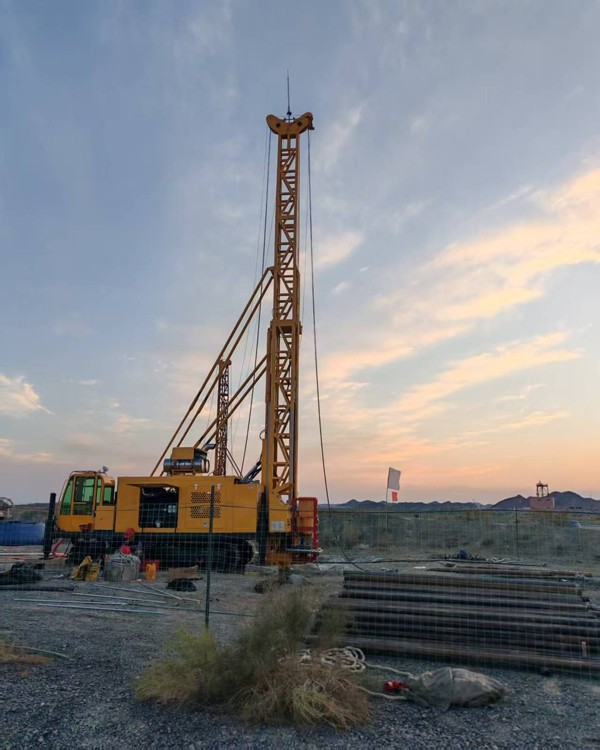

The CSD3000L full hydraulic crawler surface core drill rig is a high-performance drilling machine developed by CORTECH for solid mineral exploration. Integrating hydraulic drive, intelligent control, and modular design, it is compatible with advanced technologies such as diamond wireline coring, significantly improving core recovery rates and operating efficiency in complex formations. Its high-speed, precise control, long feed stroke, and full hydraulic drive system meet the demands of a variety of demanding working conditions, making it an ideal choice for geological exploration and mineral development.

1. Efficient and Intelligent Operation

• Equipped with an intelligent control system and wireless remote control, it provides convenient and safe operation.

• The side-sliding chuck driven drill head design allows for quick hole clearance, significantly improving coring and drilling efficiency.

• The nitrogen spring clamping device ensures long-term stable chuck operation and reduces maintenance frequency.

2. Powerful Power and Environmental Compatibility

• Equipped with a Cummins QSB diesel engine (China III emission standard), it offers powerful power and low carbon footprint.

• Internationally mainstream hydraulic components (pumps, motors, and valve blocks) ensure long-term, high-load operational reliability.

3. Flexible Adaptability to Complex Working Conditions

• The hydraulically controlled, self-propelled crawler chassis allows for easy relocation and adaptability to rugged terrain.

• The sliding mast, main and wireline winches, and orifice-clamping device optimize the drilling process and reduce labor intensity.

4. Safe and Humanized Design

• The auxiliary operating console independently controls the mast lift and lowering for operations that are more efficient.

• Multiple functional safety features, including hydraulic overload protection and emergency braking, ensure the safety of personnel and equipment.

Technical Parameter:

Drilling Capacity
Diameter of Drill Rod	N,H,P
Drilling Depth	2,500m 1,800m 1,000m
Engine Power
Model	Cummins 6LTAA8.9-C325
Power	239KW
Engine Rpm	2,200
Air Cooling	Turbo Charged
Electric motor	160KW
Hydraulic System
Rated Pressure	31.5 mpa, Air Cooling
Main Valve	HAWE, SUN, Hydra force
Hyd Pumps	Danfoss
Sliding Chuck Head
Max Torque	9,700Nm
Max Rotation	1,500rpm
Feed Stroke	3,300mm
Max Pull	310KN
Max Push	125KN
Drilling Angle	45-90°
Rotation Motor	Rexroth
Main Winch
Max Pull	210KN(bare drum)
Pulling Speed	83m/min
Rope Diameter	22mm
Rope Length	42m
Wireline Winch
Max Pull	25KN(bare drum)
Pulling Speed	480m/min
Rope Diameter	8mm
Rope Length	2,500m
Mast
Length	12.7m
Drilling Angle	45-90°
Dump Length	1.7m
Rods Pulling	9m(max)
Foot Clamp
Rods Applied	BQ,NQ,HQ,PQ
Mud Pump
Model	BW400
Max Pressure	10Mpa
Max Flow	400L/min
Crawler Move
Control Mode	Wireless Remote Control and Hyd Lever Control as Spare
Max Angle	30°
Max Speed	3KM/H
Dimensions & Weight
Dimensions in Transportation	7,700x2,300x3,240mm
Gross Weight	17,500KG
