As an engineer who has spent years specifying and operating diamond core surface drilling rigs for mineral exploration, I know that choosing the wrong rig type can easily add weeks and thousands of dollars to a project. To avoid this, you need a clear, practical way to classify drilling rigs based on how they work, where they work, and what they are designed to achieve. [jkdrilling]
In this guide, I will walk you through the main rig classification methods we use in the field and in CORTECH's engineering office when we design and recommend hydraulic core drilling rigs for clients worldwide. [youtube]
A drilling rig is a machine used to drill boreholes or wells in rock and soil for purposes such as mineral exploration, geological investigation, water wells, oil and gas, and geothermal projects. Beyond simply "making a hole," the rig must control penetration rate, borehole stability, core recovery, safety, and overall cost per meter. [scribd]
From a practical engineering perspective, rig classification matters because it helps you quickly answer three questions:
- What geology and depth is this rig suited for? [pilebuck]
- What power, mobility, and support systems are required on site? [svesoiltools]
- Can it deliver the core quality or borehole diameter that the project specification demands? [openjicareport.jica.go]
When we design and manufacture full‑hydraulic rope core drilling rigs, we always map each model to these classification dimensions so that buyers can self‑select the right platform before they even talk to our engineers. [konstructdigital]

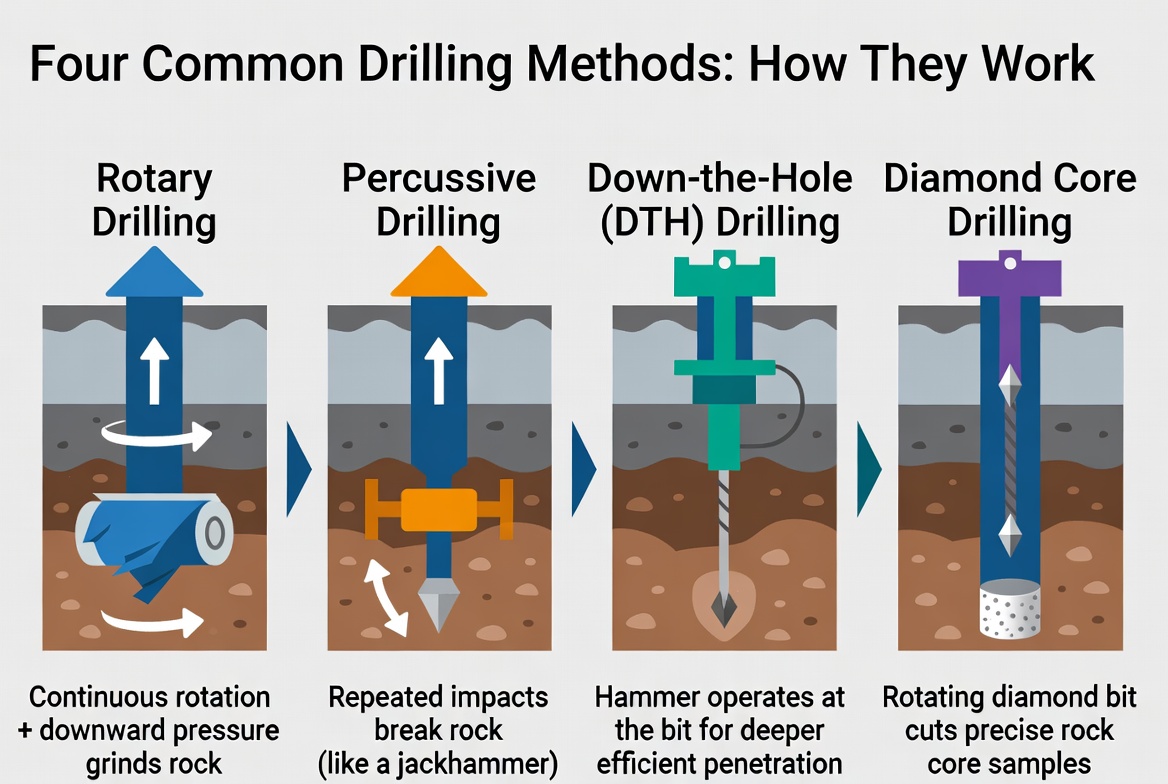

The drilling method is usually the first and most important way to classify rigs, because it directly affects penetration mechanism, energy transfer, and bit selection. [sinodrills]
Common drilling methods include:
- Rotary drilling rigs – break rock through continuous rotation and weight on bit; widely used in water wells, oil and gas, and large‑diameter blast holes. [cadrillers]
- Percussive (impact) drilling rigs – break rock by high‑frequency hammering; typically used in hard rock and smaller diameters. [pilebuck]
- Rotary‑percussive and down‑the‑hole (DTH) rigs – combine rotation with a hammer placed at or near the bottom of the hole for efficient energy transfer in hard formations. [prime-rigs]

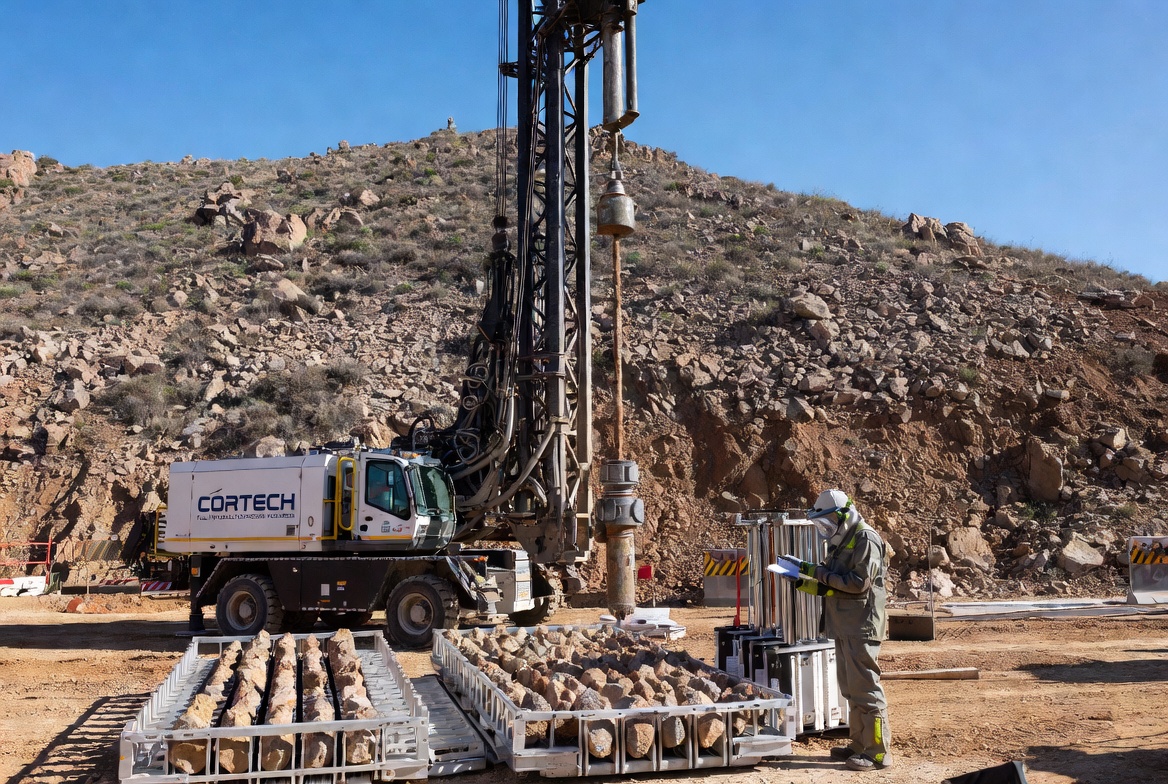

- Core drilling rigs – designed for coring, using diamond or other bits to cut an annulus and recover a continuous core sample for geological logging. [gasiteinvestigation.co]
For mineral exploration, diamond core drilling rigs provide the most reliable structural and grade information, which is why our CORTECH rigs focus on full‑hydraulic core drilling technology. [youtube]

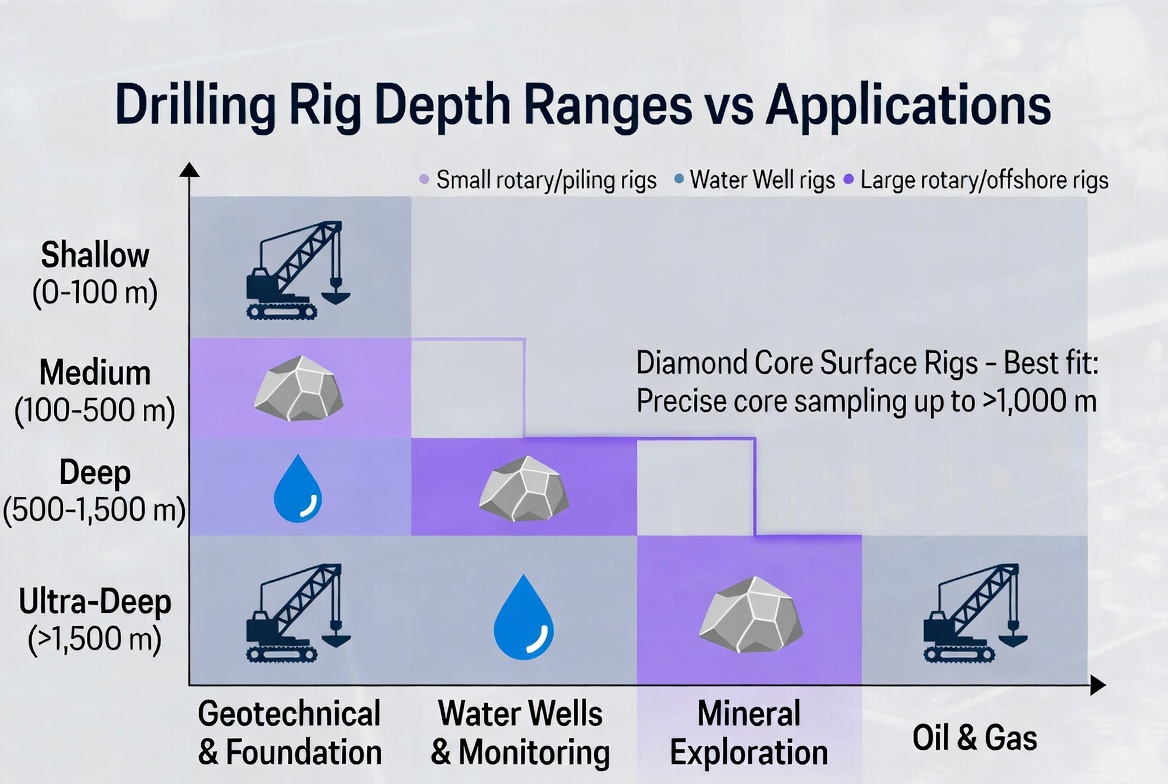

Rigs are also classified by the nominal depth range they can safely and efficiently achieve, usually defined for a standard drill pipe diameter. [svesoiltools]
Typical categories include:
- Shallow‑well rigs – up to roughly 1 500 m (common for many water wells and near‑surface exploration). [jkdrilling]
- Medium‑deep rigs – approximately 1 500–4 000 m. [jkdrilling]
- Deep‑well rigs – approximately 4 000–7 000 m. [jkdrilling]
- Ultra‑deep‑well rigs – more than 7 000 m, usually for major oil and gas projects. [jkdrilling]
From a design point of view, higher depth ratings require:
- Greater hook load capacity and stronger mast structures. [openjicareport.jica.go]
- More powerful hoisting systems and top drives or rotary tables. [svesoiltools]
- More robust circulation systems to manage fluids, cuttings, and borehole cleaning. [openjicareport.jica.go]
When we specify a core surface rig, we often derate the theoretical maximum depth to account for difficult ground, deviation control, and safety margins, giving customers a realistic working range rather than just a marketing number. [konstructdigital]
Modern drilling rigs are driven by different power systems, and this is another standard classification used by designers and contractors. [drillingtrackparts]
The main categories are:
- Diesel‑engine drive rigs
- Ideal for remote sites with limited grid access. [drillingtrackparts]
- Offer robust torque and are straightforward to maintain on site.
- AC‑electric drive rigs
- Use grid power or large generators to drive electric motors. [drillingtrackparts]
- Provide stable power, fine speed control, and are common in developed regions or permanent pads.
- DC motor‑drive rigs and hybrid systems
- Used where precise speed regulation and torque control are critical. [svesoiltools]
- Increasingly combined with variable‑frequency drives and energy‑efficient hydraulic systems to reduce fuel consumption.
At CORTECH, we pair full‑hydraulic control systems with carefully matched diesel or electric powerpacks, so operators get smooth, high‑precision coring control with lower energy loss and better safety margins. [youtube]
Mobility is essential for planning logistics, relocation time, and total cost of ownership, so rigs are also classified by how they are mounted and moved. [gillrockdrill]
Common mounting types include:
- Truck‑mounted rigs – fast highway moves, ideal for scattered shallow or medium‑depth projects. [ranchenggroup]
- Crawler‑mounted rigs – superior off‑road capability and stability on rough terrain. [ranchenggroup]
- Skid‑mounted rigs – optimized for pad drilling, offshore platforms, or locations where heavy equipment can move skids between well centers. [svesoiltools]
- Trailer or modular rigs – flexible deployment where road access is limited and components must be transported separately.
For surface mineral exploration, crawler and skid configurations are common, while some core surface drill rigs are also containerized or modular to simplify international shipping and rapid set‑up. [gillrockdrill]
A more user‑oriented way to classify rigs is by application and hole type, which is how many buyers think about equipment. [prime-rigs]
Examples include:
- Mineral exploration rigs (core and reverse circulation) – focus on core or chip sample quality, deviation control, and cost per meter. [gillrockdrill]
- Water‑well drilling rigs – prioritize diameter, penetration rate, and reliability over detailed geological core recovery. [ranchenggroup]
- Oil and gas rigs – engineered for ultra‑deep and high‑pressure conditions, with complex hoisting, mud, and control systems. [svesoiltools]
- Geotechnical and site‑investigation rigs – optimized for a wide range of sampling and in‑situ testing methods in urban or constrained sites. [gasiteinvestigation.co]
- Blast‑hole and mining production rigs – designed for large‑diameter, high‑productivity drilling to support blasting operations. [prime-rigs]
Our core surface diamond drilling rigs sit firmly in the mineral exploration and geotechnical category, but we engineer them to integrate easily with standard sampling tools and data‑logging workflows used by international exploration teams. [konstructdigital]
| Rig type | Drilling method | Typical depth range | Main applications | Notes |
|---|---|---|---|---|
| Diamond core surface rig | Rotary core drilling | Shallow to medium‑deep | Mineral exploration, geotechnical cores | High‑quality core recovery. openjicareport.jica.go |
| Rotary water‑well rig | Rotary or rotary‑percussive | Shallow to medium‑deep | Water wells, geothermal | Emphasis on diameter and ROP. ranchenggroup |
| DTH blast‑hole rig | Rotary‑percussive (DTH) | Shallow to medium | Open‑pit mining blast holes | Efficient in hard rock. pilebuck |
| Oil and gas land rig | Rotary drilling | Deep to ultra‑deep | Oil and gas production wells | Complex hoisting and mud systems. svesoiltools |
| Site‑investigation rig | Rotary, core, auger, DTH | Shallow | Geotechnical, environmental sampling | High flexibility, compact footprint. gasiteinvestigation.co |

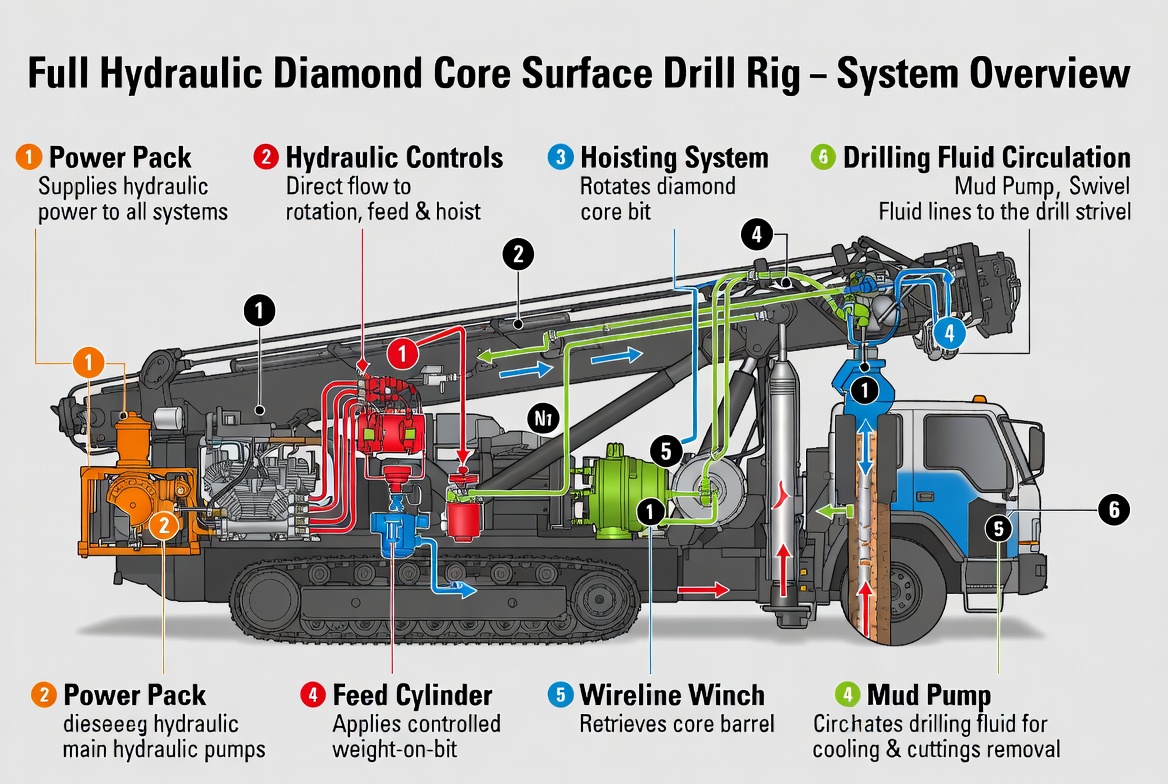

Regardless of type, most modern drilling rigs share several fundamental systems, which are another way engineers mentally classify and compare platforms. [openjicareport.jica.go]
- Power drive system – diesel engines, electric motors, or hybrids that supply power to all other systems. [drillingtrackparts]
- Hoisting system – mast, drawworks, winches, wireline, and hydraulic cylinders for raising, lowering, and handling drill string and casing. [openjicareport.jica.go]
- Rotating system – rotary head, top drive, or rotary table that transmits torque to the drill string. [openjicareport.jica.go]
- Drilling fluid circulation system – pumps, mud tanks, hoses, and solids control equipment that cool the bit, transport cuttings, and stabilize the borehole. [pilebuck]
- Control system – hydraulic valves, electronic controls, monitoring instruments, and safety interlocks that allow precise and safe operation. [svesoiltools]
In CORTECH's full‑hydraulic core surface drills, we place a strong focus on integrating hoisting, rotation, and fluid systems through a centralized hydraulic and electronic control architecture so operators can make fine adjustments from a safe, ergonomic position. [formulawritesolutions]
From a classification standpoint, a modern CORTECH core surface drilling rig generally falls into the following categories:
- Drilling method: rotary diamond core drilling (often with wireline retrieval). [gasiteinvestigation.co]
- Depth: shallow to medium‑deep exploration holes, depending on model and drill string configuration. [openjicareport.jica.go]
- Power system: full‑hydraulic operation driven by diesel or diesel‑electric powerpacks. [youtube]
- Mobility: usually crawler or skid‑mounted for flexible use in rugged exploration areas. [ranchenggroup]
- Application: mineral exploration, geological mapping, and geotechnical investigation requiring continuous core. [gillrockdrill]
In practice, exploration teams select these rigs when they need high core recovery, accurate structural data, and stable performance in variable ground, from weathered cover to hard crystalline rock. Our engineering team then fine‑tunes mast height, winch capacity, hydraulic system layout, and core barrel compatibility to match each project's target depth and geology. [konstructdigital]
As both a manufacturer and an application engineer, I recommend the following five‑step process when classifying and selecting a rig:
1. Define the drilling objective
- Exploration core, water production, geotechnical testing, or blast holes. [pilebuck]
2. Confirm depth and diameter requirements
- Specify target depth, hole size, and whether continuous core is required. [jkdrilling]
3. Assess geological and site conditions
- Rock hardness, fracture frequency, groundwater, access, climate, and environmental constraints. [gasiteinvestigation.co]
4. Select appropriate drilling method and mobility
- Choose between rotary, percussive, rotary‑percussive, and core drilling; then decide on truck, crawler, or skid mounting. [ranchenggroup]
5. Match power and control systems to performance and safety needs
- Decide on diesel or electric power; evaluate hoisting and rotation capacity, hydraulic control sophistication, and available safety features. [drillingtrackparts]
This structured approach mirrors how our own engineers at CORTECH guide clients from an initial project description to a specific core surface drill model and optional configurations. [konstructdigital]
From field feedback and customer projects, there are several mistakes we see repeatedly:
- Over‑focusing on maximum depth rating – ignoring ground conditions and deviation control can lead to unrealistic expectations and under‑performing rigs. [jkdrilling]
- Under‑estimating mobility requirements – choosing a truck‑mounted rig for extremely rough or steep terrain can raise mobilization costs and risk downtime. [ranchenggroup]
- Neglecting core quality – picking a rig optimized for penetration rate but not core recovery undermines the value of exploration data. [gillrockdrill]
- Ignoring operator ergonomics and safety systems – inefficient layouts, poor access, and limited safety interlocks quickly reduce productivity and increase incident risk. [formulawritesolutions]
By classifying rigs holistically—rather than just by one top‑line specification—owners can extend rig life, reduce non‑productive time, and improve overall project economics. [uplify]
If you are planning a new exploration, geotechnical, or drilling campaign and are not sure which core surface drill configuration you need, our engineering team can help you translate your geology, depth, and access constraints into a precise rig specification. [konstructdigital]
Share your project details—target depth, formation, location, and core requirements—and we will recommend a full‑hydraulic core drilling solution, complete with tooling and optional automation packages, that balances safety, performance, and cost per meter for your conditions. [youtube]
1. What is the most important factor when classifying drilling rigs?
The primary factor is usually the drilling method, because it determines how energy is delivered to the bit and which formations the rig can handle efficiently. [sinodrills]
2. How do core drilling rigs differ from standard rotary rigs?
Core drilling rigs are engineered specifically to cut an annulus and recover a continuous core using diamond or similar bits, while standard rotary rigs often focus on creating full‑bore holes for production or casing without continuous core recovery. [gasiteinvestigation.co]
3. Why are full‑hydraulic core surface drills popular in mineral exploration?
Full‑hydraulic systems provide smooth, precise control of feed, rotation, and hoisting, which improves core recovery, bit life, and operator safety in variable ground conditions typical of exploration projects. [youtube]
4. Can one drilling rig type cover both water wells and mineral exploration?
Some rigs can be configured for both, but water‑well rigs prioritize hole diameter and rate of penetration, while exploration core rigs prioritize core quality and deviation control, so there are trade‑offs in any "dual‑purpose" solution. [ranchenggroup]
5. How often should rig classification and selection be reviewed on long projects?
For multi‑year programs, it is good practice to review rig type and configuration at least annually or when ground conditions, target depth, or safety standards change, to ensure the equipment still matches operational requirements. [pageoptimizer]
