As a geotechnical engineer who has spent years on remote exploration sites, I've seen how the right hydraulic core drill rig can transform a difficult project into a predictable, profitable operation. In this expert guide, I'll walk through what truly makes a powerful, versatile hydraulic drill rig for geotechnical exploration and how modern full hydraulic diamond CORE SURFACE DRILL systems from CORTECH help you drill safer, faster, and with higher core recovery. [youtube]
On paper, many rigs claim high power and flexibility, but in the field "powerful and versatile" has a very specific meaning. For geotechnical and exploration professionals, a hydraulic drill rig must handle changing geology, limited access sites, and tight project schedules without sacrificing sample quality. [geoprobe]
Key performance pillars include: [youtube]
- High pullback and push force for deep or tight formations.
- Stable torque output for consistent rotation in variable rock.
- Reliable hydraulic systems with precise control of feed, rotation, and hoisting.
- Efficient mobility (tracked platforms or compact footprints) for moving between boreholes quickly.
- Compatibility with wireline diamond coring for high core recovery and fast rod handling. [mgwa]
From an operator's standpoint, a truly versatile rig is one that can switch between geotechnical, environmental, and exploration tasks in a single day with minimal changeover. That means one machine can drill standard geotech boreholes, collect high‑quality diamond core, and complete structural or contamination investigations without mobilizing separate rigs. [geoprobe]
Geotechnical projects have become more demanding as infrastructure, mining, and tunneling projects push into harder ground and more complex geology. Traditional mechanical or partially hydraulic rigs often struggle to maintain penetration rate and sample quality under these conditions. [geoprobe]
Full hydraulic CORE SURFACE DRILL rigs address these pain points by providing: [cortechdrilling]
- Smooth, controllable feed force to minimize core breakage and improve recovery.
- High‑torque power heads that stay stable even in fractured or abrasive formations. [youtube]
- Efficient wireline systems, cutting non‑productive time associated with tripping rods. [mgwa]
- Better ergonomics and safety compared to older cable or purely mechanical systems. [mgwa]
In my own projects, upgrading from older rigs to modern full hydraulic diamond rigs reduced non‑productive time per borehole by hours, particularly on deep holes and multihole programs in remote areas. Over a full campaign, these gains translated directly into lower cost per meter and more reliable project timelines. [youtube]

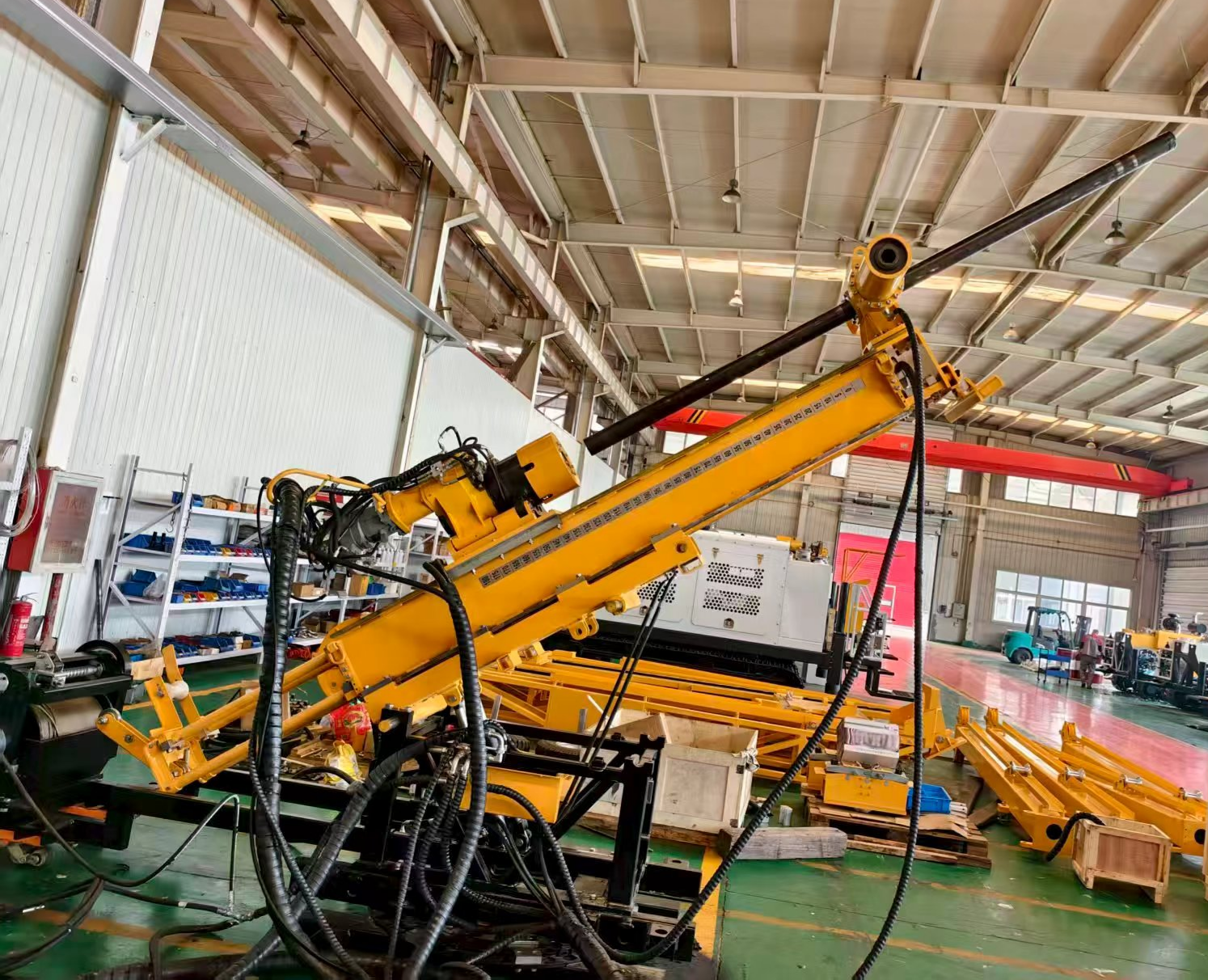

A high‑performance hydraulic diamond core drill rig is more than just a power head on a crawler. It is a carefully engineered system designed to extract intact rock core while maintaining productivity and safety standards. [mgwa]
- Custom high‑torque power head: Top‑drive design with torque up to 9,700 N·m on some CORTECH full hydraulic models, allowing stable rotation under heavy loads and in deep holes. [youtube]
- Feed and pullback system: Hydraulic cylinders or feed rails provide controlled penetration and rapid retraction. This is critical for minimizing bit damage and optimizing penetration rate. [mgwa]
- Wireline core barrel system: Allows retrieval of the core via an inner tube without tripping the entire rod string, dramatically reducing downtime. [mgwa]
- Crawler or skid chassis: Track‑mounted platforms—like those used in CORTECH CORE SURFACE DRILL rigs—improve access in rough terrain and enable quick relocation between boreholes. [youtube]
- Control panel and safety systems: Centralized, ergonomic controls with emergency shut‑offs, guarding, and hydraulic safety features support safer operation and easier training for new crews. [youtube]
Exploration and geotechnical teams often aim for 95%+ core recovery to ensure that structural, lithological, and geomechanical data are reliable. Full hydraulic rigs with precise feed control and optimized diamond tooling make reaching this recovery level standard practice rather than an exception. [mgwa]
CORTECH is a specialized manufacturer focused on full hydraulic diamond core drilling rigs, including a broad range of CORE SURFACE DRILL models for surface exploration and geotechnical work. Established as a private high‑tech enterprise, CORTECH combines modern hydraulic engineering with a global service network tailored to exploration and construction contractors.
Flagship CORE SURFACE DRILL models include:
- COREMASTER 1800X (former CSD1800X) – A surface diamond core rig designed specifically for core drilling, mounted on a crawler to simplify movement on difficult ground.
- COREMASTER 1300L (former CSD1300L) – A ground‑surface diamond drilling rig focused on flexibility for mid‑depth exploration and geotechnical projects.
- COREMASTER 500L (former CSD500L) – A compact track‑mounted surface coring rig ideal for projects where access is restricted or where shorter drill programs are frequent.
- COREMASTER 2200L / 2500L / 1000L – Higher‑capacity full hydraulic crawler rigs for deep mineral exploration and demanding geotechnical programs.
Each model leverages modular design to reduce logistics and field assembly time, while maintaining CE certification and adherence to ISO 9001 quality standards. For contractors, this combination translates directly into reduced mobilization costs, smoother cross‑border compliance, and more standardized training.
Field feedback from exploration and geotechnical teams consistently highlights three areas where full hydraulic CORE SURFACE rigs deliver value: productivity, sample quality, and safety. [geoprobe]
- Mineral exploration: Wireline diamond coring to several hundred meters or more for base metals, gold, and other deposits, with high recovery for structural analysis. [mgwa]
- Geotechnical investigations: Boreholes for roadways, buildings, tunnels, dams, and levees, where consistent core quality supports accurate design parameters. [geoprobe]
- Slope and foundation stability studies: Core drilling combined with in‑situ testing for rock slopes, highwalls, and deep foundations. [geoprobe]
- Infrastructure and tunneling: Pre‑tunneling investigations and support design where core data is essential for understanding rock mass behavior. [geoprobe]
Operators report that crawler‑mounted surface rigs, such as the COREMASTER series, significantly reduce time spent winching and repositioning equipment, especially on uneven terrain or in remote exploration camps. This directly impacts cost per meter and enables crews to complete more holes within the same schedule window. [geoprobe]
Choosing the right CORE SURFACE DRILL often comes down to depth requirements, access conditions, and budget. The table below summarizes typical positioning of key models based on publicly available information and typical industry use cases. [geoprobe]
| Model | Mounting type | Typical use case | Key advantages |
|---|---|---|---|
| COREMASTER 500L | Crawler | Short‑to‑mid‑depth surface geotech & exploration in tight access areas. youtube | Compact footprint, easy relocation, lower logistics cost. youtube |
| COREMASTER 1000L | Crawler | Mid‑depth surface coring where frequent relocations are required. youtube | Compact body, improved relocation on uneven ground. youtube |
| COREMASTER 1300L | Surface rig | General surface diamond drilling for mixed geotechnical and exploration programs. youtube | Versatile all‑rounder for contractors with diverse projects. youtube |
| COREMASTER 1800X | Crawler | Deeper exploration and demanding core recovery in challenging geology. youtube | Higher performance power head, track mobility, advanced hydraulics. youtube |
| COREMASTER 2200L/2500L | Crawler | Deep mineral exploration and large‑scale programs. youtube | High‑performance full hydraulic system for long‑term campaigns. youtube |
From a project manager's perspective, having these options under one brand simplifies fleet standardization and spare parts management while keeping operator training consistent across models. [youtube]
Drawing on both manufacturer information and modern drilling best practices, several design strengths stand out in CORTECH's full hydraulic rigs. [mgwa]
- Advanced hydraulic technology: Full hydraulic transmission ensures smooth control and robust power delivery, essential when drilling through alternating hard and soft layers. [mgwa]
- Modular, serviceable design: Modular structure and accessible components reduce downtime during maintenance or component replacement. [youtube]
- Precision manufacturing and QC: CORTECH emphasizes fully automated production lines, precision testing tools, and full‑cycle quality control aligned with ISO 9001 and CE standards. [youtube]
- Experienced engineering team: Veteran engineers and experienced technicians provide custom solutions and handle complex drilling challenges, which is key when adapting rigs for unique geology or climate. [youtube]
- Flexible production capacity: The ability to handle both mass production and custom small batches allows contractors to specify rigs that align closely with their project portfolio. [youtube]
For operators and owners, these strengths translate into rigs that are easier to keep in service, more adaptable to specialized campaigns, and better supported throughout their lifecycle. [youtube]
If you are planning a new geotechnical exploration or mineral exploration program, selecting the right hydraulic core rig should follow a structured evaluation. [mgwa]
1. Define target depth and hole size
- Determine maximum depth and core diameter based on project requirements and regulatory standards. [mgwa]
- Align these with rig capability ranges (for example, moving from a mid‑range COREMASTER model to a higher‑capacity 2200L or 2500L for deeper holes). [youtube]
2. Assess ground conditions and access
- Evaluate terrain, climate, and geology: soft overburden vs. hard rock, mountainous areas vs. flat ground. [geoprobe]
- Select crawler‑mounted models when sites involve steep slopes, muddy conditions, or limited access roads. [youtube]
3. Evaluate power head and hydraulic system
- Prioritize rigs with sufficient torque and pullback for the heaviest anticipated conditions. [mgwa]
- Verify that the hydraulic system supports consistent rotation and feed control at desired penetration rates. [mgwa]
4. Review support, parts, and service
- Ensure that the manufacturer provides 24/7 global after‑sales support and ready access to spare parts and core drilling tools. [youtube]
- For long‑term programs, confirm that training and remote support are available in the regions where you operate. [youtube]
5. Consider lifecycle cost per meter
- Look beyond upfront price to evaluate fuel efficiency, maintenance intervals, and downtime risk. [mgwa]
- Modern full hydraulic rigs often pay back their cost through higher daily meterage and more consistent core recovery. [mgwa]
Diamond core drilling with wireline retrieval has become the industry standard for deep exploration and high‑value geotechnical projects. In my experience, the move toward full hydraulic rigs with integrated wireline systems has reshaped how crews plan and execute drilling campaigns. [mgwa]
Key advantages include: [mgwa]
- Faster core retrieval: Eliminating full rod trips between runs saves significant time, especially at depth.
- Improved safety: Reducing manual rod handling lowers the risk of strain, dropped rods, and related injuries.
- Better data quality: Higher recovery and less disturbed core support more accurate structural and geotechnical logging.
Hydraulic rigs optimized for wireline systems, like CORTECH's CORE SURFACE DRILL platforms, help standardize these benefits across different project types and crew experience levels. [mgwa]
If you are planning your next geotechnical exploration or mineral exploration project, partnering with a specialized full hydraulic rig manufacturer can significantly reduce risk and improve project outcomes. CORTECH's range of CORE SURFACE DRILL rigs, supported by seasoned engineers and a global service network, is designed to deliver high core recovery, reliable performance, and strong safety standards across diverse geological conditions. [cortechdrilling]
To discuss your project requirements—whether you need a compact crawler rig for slope investigations or a high‑capacity surface rig for deep mineral exploration—you can contact CORTECH via their official website or dedicated sales channels for tailored recommendations. [cortechdrilling]
A hydraulic core drill rig is used to extract cylindrical rock samples (core) from subsurface formations for exploration and geotechnical analysis. These rigs support mineral resource estimation, foundation design, tunnel planning, and slope stability assessments by providing continuous core for structural and lithological logging. [geoprobe]
Full hydraulic CORE SURFACE rigs offer smoother control, higher efficiency, and better safety compared to older mechanical rigs. They allow precise feed and rotation control, more consistent core recovery, reduced manual rod handling, and improved mobility with crawler platforms. [mgwa]
CORTECH's COREMASTER series combines custom high‑torque power heads, crawler or compact surface configurations, and modular design optimized for surface coring. With CE certification, ISO‑aligned QC, and 24/7 global support, these rigs are engineered for reliable performance in geotechnical and exploration environments worldwide. [linkedin]
Choice depends on required depth, site access, and project scope. The 500L is ideal for compact, short‑to‑mid‑depth jobs, the 1300L suits general surface diamond drilling, and the 1800X targets deeper or more demanding geological conditions where additional torque and crawler mobility are essential. [youtube]
CORTECH offers end‑to‑end support, including custom rig design, installation, operator training, and 24/7 after‑sales service. Their full‑cycle quality control and flexible production capacity help ensure parts availability and long‑term reliability for exploration and geotechnical contractors. [linkedin]
