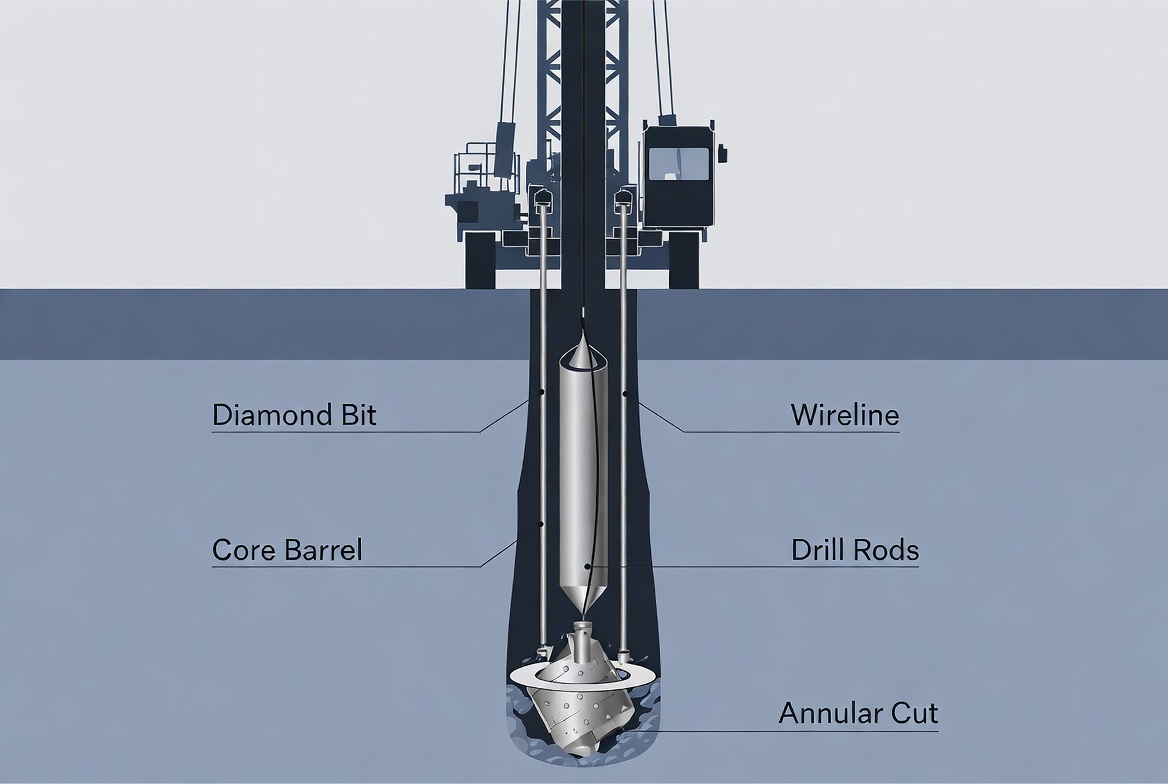

Diamond core drilling uses a hollow drill bit embedded with industrial diamonds that cuts an annular ring and recovers an intact cylindrical core of rock. [pilebuck]
Key characteristics: [cadrillers]
- Tooling: Diamond‑impregnated core bits, core barrels, wireline systems, and drill rods.
- Mechanism: Continuous rotation with controlled weight‑on‑bit and fluid circulation to cool and clean the bit.
- Output: High‑quality, continuous core suitable for geological, geotechnical, and metallurgical analysis.
- Typical depth: Efficient performance down to approximately 1,500–1,800 m in mineral exploration, depending on formation and rig capacity. [cadrillers]
Because diamonds are among the hardest known materials, diamond bits can grind through very hard, abrasive formations while maintaining reasonable penetration and tool life. [html.rhhz]

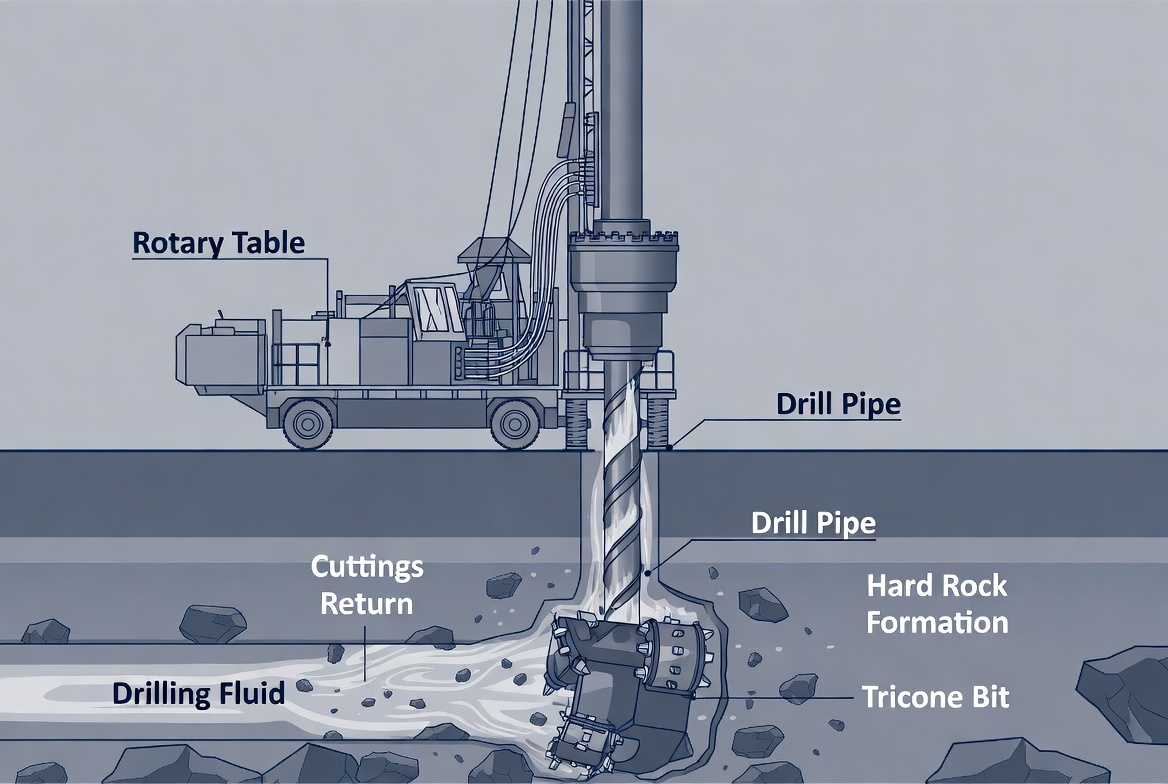

Rotary drilling removes rock by applying downforce and rotating a solid bit so that cutters grind or scrape the formation. [sunwardmining]
Key characteristics: [kwikcut.net]
- Tooling: Tricone bits, drag bits, or PDC bits connected to a drill string.
- Mechanism: Continuous rotation, often with drilling fluid or air for cuttings removal.
- Output: Penetration and cuttings returns, but usually no intact core.
- Typical use: Pre‑collars, water wells, large‑diameter blast holes, and softer to medium formations; in very hard rock, bit wear and replacement frequency rise sharply. [sunwardmining]
In hard rock, rotary drilling is often combined with percussive action (e.g., DTH hammer) to improve penetration, but it still cannot match diamond core drilling for sample quality. [pilebuck]
| Criterion | Diamond Core Drilling | Rotary Drilling |
|---|---|---|
| Sample type | Intact cylindrical core | Cuttings/chips only |
| Geological detail | Very high – preserves structures and contacts (linkedin) | Low–medium – structures largely destroyed (sunwardmining) |
| Depth capability in hard rock | Efficient to ~1,500–1,800 m with suitable rigs (cadrillers) | Technically deep, but with higher bit wear and cost (sunwardmining) |
| Precision of orebody model | Excellent – supports JORC/NI 43‑101 standards (linkedin) | Limited – typically used earlier‑stage or for non‑resource holes (linkedin) |
| Penetration rate | Slower, especially in abrasives (pilebuck) | Faster in softer and mixed formations (kwikcut.net) |
| Cost per meter | Higher direct cost (cadrillers) | Often lower per meter in softer rock (sunwardmining) |
| Best use case in hard rock | Advanced exploration, resource estimation, geotechnical holes (linkedin) | Pre‑collars, hydrogeology, large‑diameter infrastructure holes (sunwardmining) |
From a hard rock exploration standpoint, diamond core drilling is the benchmark when you must understand ore geometry and grade distribution with high confidence, while rotary drilling is a versatile, high‑production option for less data‑intensive holes. [linkedin]
Geologists choose diamond core drilling because it provides the most accurate and detailed information about subsurface geology. [prdrigs]
Key advantages: [linkedin]
- Direct observation of structures
- Preserves bedding, veining, faults, alteration, and mineralization style.
- Enables structural analysis (dip, strike, orientation of ore shoots).
- Reliable grade and metallurgical data
- Core can be cut and assayed for accurate metal grades.
- Larger, intact samples allow geotechnical, petrographic, and metallurgical tests essential for mine design and processing flowsheet development.
- High recovery and continuity
- Modern wireline core systems and optimized drilling parameters routinely deliver high core recovery, even in broken or complex terrain. [prdrigs]
Because of this, core data is the preferred basis for compliant resource estimates such as JORC and NI 43‑101 in advanced exploration and feasibility studies. [linkedin]
Rotary drilling remains attractive for several reasons: [kwikcut.net]
- High penetration rates in softer and moderately hard formations.
- Continuous operation with fewer interruptions for core retrieval. [kwikcut.net]
- Versatility: suitable for water wells, large‑diameter foundation holes, and pre‑collars before switching to core drilling at depth. [sunwardmining]
- Lower cost per meter in many non‑hard‑rock or early‑stage programs. [sunwardmining]
In extremely hard rock, pure rotary can suffer from: [pilebuck]
- Frequent bit changes.
- Higher energy consumption.
- Reduced penetration rates compared to methods specifically designed for hard rock (diamond or DTH).
This is why many mining operations use rotary methods for rapid overburden and weathered zone drilling, then change to diamond core drilling when they reach competent rock and target horizons. [pilebuck]
From the viewpoint of a drilling engineer or exploration manager, you can choose between diamond core drilling and rotary drilling using this five‑step framework:
- Geological model and resource estimation?
Prioritize diamond core drilling because of core continuity and structural data. [prdrigs]
- High‑speed production wells or early reconnaissance holes?
Consider rotary drilling or rotary‑percussive methods for speed and lower per‑meter costs. [kwikcut.net]
- Very hard or abrasive rock
- Diamond core drilling provides controlled penetration with durable bits designed for hard rock. [html.rhhz]
- In some very hard, massive formations, DTH hammer combined with rotary can also be effective, but you lose core. [sunwardmining]
- Mixed or softer formations
- Rotary drilling can exploit its higher penetration rates and lower tooling cost. [kwikcut.net]
- Deep, narrow‑diameter exploration holes
- Diamond core drilling is highly efficient and can reach depths around 1,500–1,800 m while still returning high‑quality samples. [cadrillers]
- Shallow or large‑diameter holes
- Rotary drilling often becomes more economical, especially for infrastructure, dewatering, or blast holes. [sunwardmining]
If your project must meet JORC, NI 43‑101, or similar codes, regulators and investors will expect core‑based data for advanced stages. [linkedin]
Diamond core drilling supports: [prdrigs]
- Detailed core logging (lithology, alteration, structures, RQD).
- Accurate sample intervals and QA/QC.
- Geotechnical and metallurgical test programs.
Rotary drilling alone rarely satisfies these needs in hard rock.
Experienced project managers look at total cost per useful decision, not just the drilling invoice.
- Rotary drilling may be cheaper per meter but deliver less reliable geological information, which can lead to costly misinterpretation of orebody geometry. [kwikcut.net]
- Diamond core drilling has higher upfront cost but reduces uncertainty, supports more accurate mine planning, and helps avoid expensive redesigns or failed pits. [linkedin]
As a manufacturer of full‑hydraulic wireline core drilling rigs and core tools, your perspective can add practical detail that most generic articles lack.
Modern diamond core bits are engineered by tailoring: [html.rhhz]
- Diamond grade and concentration to match rock hardness.
- Matrix hardness to balance wear and exposure of fresh diamonds.
- Waterways and crown design to enhance hydraulic cleaning and cooling.
Research in the diamond bit industry continues to focus on improving rock‑breaking efficiency, hydraulic efficiency, and mechanical efficiency through optimized cutting structures and PDC cutter technologies. [html.rhhz]
High‑quality drill rods and connections directly affect:
- Torque transmission and resistance to fatigue in deep, deviated holes.
- Hole stability and deviation control, especially in broken ground.
- Wireline handling efficiency, when rods and overshots are engineered as a system.
By emphasizing the durability and precision of your CORE DRILLING TOOL product line, you connect drilling performance directly to equipment design.
Industry experience shows a common pattern in successful hard rock projects:
1. Initial phase – rotary or RC drilling
- Objective: rapid reconnaissance and broad grade control.
- Result: basic understanding of mineralization, but limited structural control. [cadrillers]
2. Advanced phase – extensive diamond core drilling
- Objective: detailed orebody geometry, structural controls, and geotechnical data.
- Result: reliable 3D resource models suitable for JORC/NI 43‑101‑compliant reporting and mine design. [prdrigs]
3. Optimization phase – strategic mix
- Rotary methods continue for overburden, dewatering, and large‑diameter holes.
- Diamond core drilling concentrates on ore zones, deep step‑outs, and geotechnical holes around planned infrastructure. [linkedin]
This hybrid approach maximizes cost efficiency while still delivering the core data required for investment decisions.
In many civil and mining projects, core drilling is quieter and produces less vibration than traditional percussive methods, which can be critical near sensitive structures. [finecutusa]
For exploration camps in rugged terrain, modern compact hydraulic wireline core rigs also reduce:
- Site footprint and access track requirements.
- Fuel consumption compared with oversized rotary rigs.
From a user‑experience standpoint in the field:
- Wireline systems reduce manual rod handling, lowering injury risk. [prdrigs]
- Standardized core boxes and logging workflows improve data handling and crew productivity. [prdrigs]
From a manufacturer's and industry practitioner's perspective, the drilling method is only as effective as the tools and support behind it.

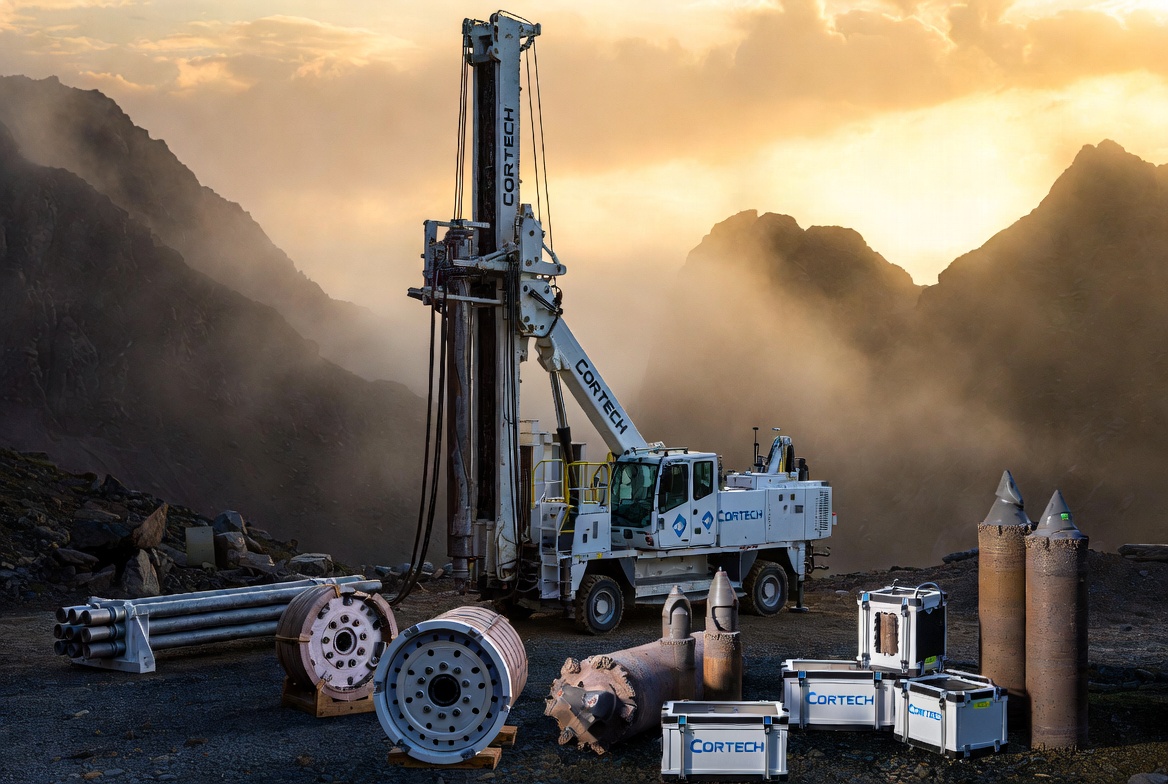

As a specialist in full‑hydraulic wireline diamond core drilling rigs and CORE DRILLING TOOLS (core bits, drill rods, and accessories), CORTECH focuses on:
- Rig–tool system design
- Matching rig torque, feed, and pump capacity with core bit and rod specifications for maximum hard rock penetration and bit life.
- Formation‑specific bit recommendations
- Selecting crown profiles, matrix hardness, and diamond grades optimized for your exact rock type and abrasiveness. [pilebuck]
- Performance‑driven rod strings and accessories
- Engineering drill rods, subs, and core barrels as a system to ensure reliable wireline operations and high core recovery in deep, deviated holes. [prdrigs]
In practice, the highest‑performing exploration programs use ongoing optimization:
- Monitoring bit wear patterns and penetration rates. [pilebuck]
- Adjusting drilling parameters (RPM, weight, fluid) per lithology. [cadrillers]
- Updating bit selection as the program moves from oxidized to fresh hard rock. [html.rhhz]
By combining expert engineering support with advanced tooling, CORTECH helps operators unlock the full value of diamond core drilling in hard rock while using rotary or other methods where they make sense.
If you are planning or upgrading a hard rock exploration program, the key is to align your drilling method with your data needs and rock conditions.
- Use rotary drilling where speed and low cost per meter matter more than core.
- Deploy diamond core drilling wherever you need high‑confidence geology, resource estimation, or geotechnical data.
To discuss your specific deposit, depth targets, and rock conditions—and to select the optimal combination of diamond core tools, drill rods, and rig configuration—we recommend you:
Contact CORTECH's engineering team for a customized hard rock drilling solution and tooling recommendation before you finalize your next drilling contract.
1. Is diamond core drilling always better than rotary drilling in hard rock?
Not always. Diamond core drilling is better when you need high‑quality geological and geotechnical data, but rotary drilling can still be attractive for shallow, large‑diameter, or low‑risk holes where speed matters more than core quality. [sunwardmining]
2. How much deeper can diamond drilling go compared to rotary in exploration?
In mineral exploration, diamond drilling commonly and efficiently reaches around 1,500–1,800 m, while many rotary or RC programs are kept shallower due to bit wear, cuttings quality, or cost. [cadrillers]
3. Can I start with rotary and switch to diamond core drilling later?
Yes. A common strategy is to use rotary or RC for early reconnaissance or pre‑collars, then transition to diamond core drilling in priority zones and at depth to support detailed resource models and mine design. [linkedin]
4. Which method is better for JORC or NI 43‑101 reporting?
Regulators and investors generally prefer diamond core data for advanced resource and reserve reporting because core enables accurate grade, structural, and geotechnical analysis. Rotary data alone is rarely sufficient in complex hard rock deposits. [linkedin]
5. What type of bits should I use for extremely hard rock?
In extremely hard, abrasive formations, industrial‑diamond‑impregnated core bits or advanced PDC designs are typically recommended, with matrix and diamond specifications tuned to formation hardness to balance penetration rate and bit life. [html.rhhz]
