When you spend your days on site watching drill strings turn, you quickly learn one truth: choosing the right mining drill bits and core drilling tools is the single biggest lever you have on penetration rate, core recovery, and total cost per meter. In this field‑tested guide, I'll walk you through how I select bits, rods, and wireline diamond tools for hydraulic core drilling rigs in real projects, so you can make better, data‑driven decisions for your own operations. [rankingbit]
In mining and exploration, many teams still treat drill bits as a consumable instead of a core performance component. The result is predictable: inconsistent penetration, unplanned downtime, and cost overruns that could have been avoided with smarter bit selection. When you systematically match bit type, crown design, and core drilling tools to the geology and rig, you can often reduce total drilling cost per meter by double‑digit percentages. [austms]
To put it plainly, your bit is the cutting brain of your system. Even a high‑end full‑hydraulic wireline diamond drilling rig will underperform if the bit is wrong for the formation, the bond is poorly matched, or the core barrel and rod string are not properly aligned. [accreditedtl]
In this guide we focus on how to choose mining drill bits, core drill bits, and complete core drilling tools (bits, drill rods, core barrels, and wireline tools) for mining and geological exploration. You'll learn how to: [sinodrills]
- Analyze rock formation and hardness before choosing a bit. [austms]
- Match drill bit type to drilling method (rotary, DTH, top hammer, and wireline diamond core drilling). [rankingbit]
- Select diamond core bits and full hydraulic wireline tools for deep core drilling. [eschsupply]
- Balance cost, penetration rate, and bit life with a simple framework. [jpt.spe]
- Avoid common selection mistakes that waste time and equipment. [rankingbit]
If you work with CORE DRILLING TOOL systems—diamond bits, drill rods, barrel assemblies, and full hydraulic wireline diamond drills—this article is written for you.
All expert bit selection starts with the geology, not your inventory. The single most important factor is the rock formation: its hardness, abrasiveness, fracturing, and the presence of faults or interbedded layers. [sinodrills]
Key questions I always ask before recommending a bit:
- Is the formation soft, medium, or hard, based on UCS and field experience? [sinodrills]
- Is it highly abrasive (quartz‑rich, hard sandstone, granite) or relatively non‑abrasive (limestone, shale)? [austms]
- Are there frequent fractures, clay seams, or broken zones that might affect core recovery? [concreteinsight]
For example, in soft to medium, less abrasive formations, chisel or blade‑type mining bits or softer‑bond diamond bits can deliver fast penetration. In very hard and abrasive rock, you will usually prioritize durable button or fixed‑cutter designs and harder diamond bonds to protect against premature wear. [rankingbit]
The same rock will require different bit choices depending on what you're trying to achieve. Target depth, hole diameter, and required core quality all influence bit and tool selection. [accreditedtl]
Define clearly:
- Desired hole diameter and tolerances
- Target depth and expected deviation
- Core recovery requirements (geotechnical vs simple exploration)
On a 1000‑meter wireline core hole, for instance, I will choose a crown geometry and core barrel configuration that prioritizes stable tracking, minimal deviation, and high core recovery over maximum instantaneous penetration. [dminingwell]
When choosing mining drill bits for conventional open‑pit or production drilling, you typically select among tricone, DTH button, and top hammer bits. [sinodrills]
- Tricone bits: Flexible across many formations, good for rotary drilling in varied conditions. [ddibits]
- DTH button bits: Excellent for deep, straight blast holes in hard and abrasive rock. [austms]
- Top hammer bits: High impact energy transfer, suited to smaller diameter production drilling and tunneling. [okbit]
Each style has its own sweet spot in terms of rock hardness and hole diameter, and the biggest mistake I see is operators reusing whatever worked at the last site without re‑evaluating the new geology. [rankingbit]
For exploration drilling and coring, diamond core bits combined with full hydraulic wireline systems are the standard. Compared with conventional non‑wireline systems, wireline core drilling enables faster retrieval, reduced non‑productive time, and safer operations—especially at depth. [eschsupply]
When selecting diamond core bits, focus on:
- Crown profile (e.g., flat, V‑ring, turbo): Influences fluid flow, cooling, and cutting action. [sinodrills]
- Diamond grade and concentration: Must match the hardness and abrasiveness of the rock. [sinodrills]
- Metal bond hardness: Softer bonds for hard, non‑abrasive formations; harder bonds for soft, abrasive formations. [sinodrills]
An experienced manufacturer can fine‑tune diamond grit and bond hardness to give you fast, clean cuts and long life in formations from soft limestone to ultra‑hard granite. [sinodrills]

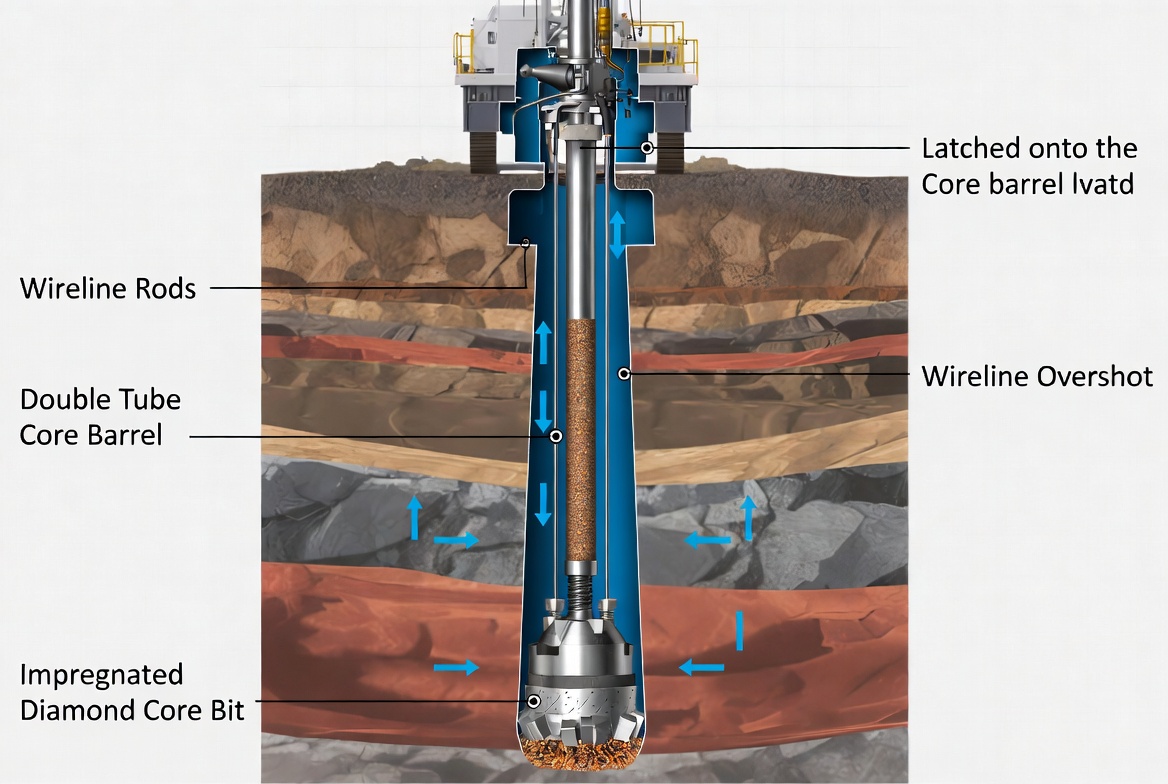

A high‑performance core drilling system is more than the bit. Drill rods, core barrels, adapters, and wireline components must all be compatible with the rig and the bit if you want stable, trouble‑free penetration. [accreditedtl]
When specifying core drilling tools, I check:
- Rod thread type, grade, and straightness tolerance
- Core barrel type (single, double, triple tube) depending on required core quality
- Wireline overshot and latching mechanism compatibility with the barrel
- Standpipe and circulation system capacity to deliver adequate coolant and remove cuttings
For fractured rock requiring high core recovery, double or triple‑tube barrels combined with an appropriate crown design can dramatically improve sample quality. [concreteinsight]
For full hydraulic wireline diamond drilling rigs, the rig's torque, RPM range, and feed system set the operating window for the bit. A mismatch—such as using a bit that demands higher weight on bit than the rig can safely deliver—leads to low penetration rate, chatter, and premature wear. [dminingwell]
Before finalizing tools, verify:
- Maximum torque and RPM at the spindle
- Available feed force and pullback
- Pump pressure and flow for adequate cooling
Matching bit design and size to rig capabilities is not just an efficiency issue; it's a safety and maintenance issue that protects your investment in the rig itself. [dminingwell]
From an engineering perspective, the best mining drill bit is not the fastest or the longest‑lasting—it's the one that delivers the lowest cost per meter over the life of the project. Chasing maximum penetration can increase vibration and deviation, while chasing extreme durability can slow drilling and increase labor and overhead costs. [jpt.spe]
To balance performance, I monitor:
- Penetration rate (m/h)
- Bit life (m drilled per bit)
- Non‑productive time due to bit changes and failures
- Total cost per meter including labor, fuel, and rig amortization
By tracking these KPIs, you can often justify a higher‑priced premium bit or wireline diamond tool if it meaningfully cuts NPT and total cost per meter. [jpt.spe]
Even the best bit will fail early if you run it hot, starved of coolant, or under excessive vibration. Good flushing removes cuttings, cools the bit, and stabilizes the drilling process. [eschsupply]
Best practices include:
- Maintaining proper flow rate and pressure according to bit manufacturer guidance
- Using clean water or approved drilling fluid to minimize recirculation of abrasive fines
- Ensuring the rig is properly anchored or fixed with a suitable drill stand to reduce movement and vibration [concreteinsight]
A stable core drill stand and consistent weight on bit help the bit cut smoothly, improving hole quality and extending tool life. [eschsupply]
The latest core drilling rigs increasingly integrate automation, sensors, and AI‑assisted control systems. These smart rigs monitor torque, pressure, vibration, and temperature in real time, automatically adjusting parameters to keep the bit in its optimal operating window. [gz-supplies]
Benefits include:
- Higher average penetration with fewer stalls and stick‑slip events
- Early prediction of bit wear and potential failures
- Better safety and reduced dependency on individual operator skill
If you operate hydraulic wireline diamond rigs, selecting bits whose recommended parameters align well with your rig's automated control ranges can unlock significant performance gains. [besdrill]
At the same time, advances in materials and custom manufacturing are reshaping how we specify mining drill bits and core drilling tools. Manufacturers can now fine‑tune diamond grit size, bond hardness, and segment geometry to match very specific formations, from highly abrasive quartzites to ultra‑hard igneous rocks. [gz-supplies]
This customization means you are no longer locked into generic "soft/medium/hard" formulations. Instead, you can work with your supplier to design a bit that optimizes:
- Cutting speed for your typical formation
- Bit life under your rig's typical RPM and load
- Core quality in fractured zones
In my experience, custom‑engineered bits coupled with a stable supplier relationship are one of the fastest ways to improve drilling economics on long‑term exploration programs. [sinodrills]

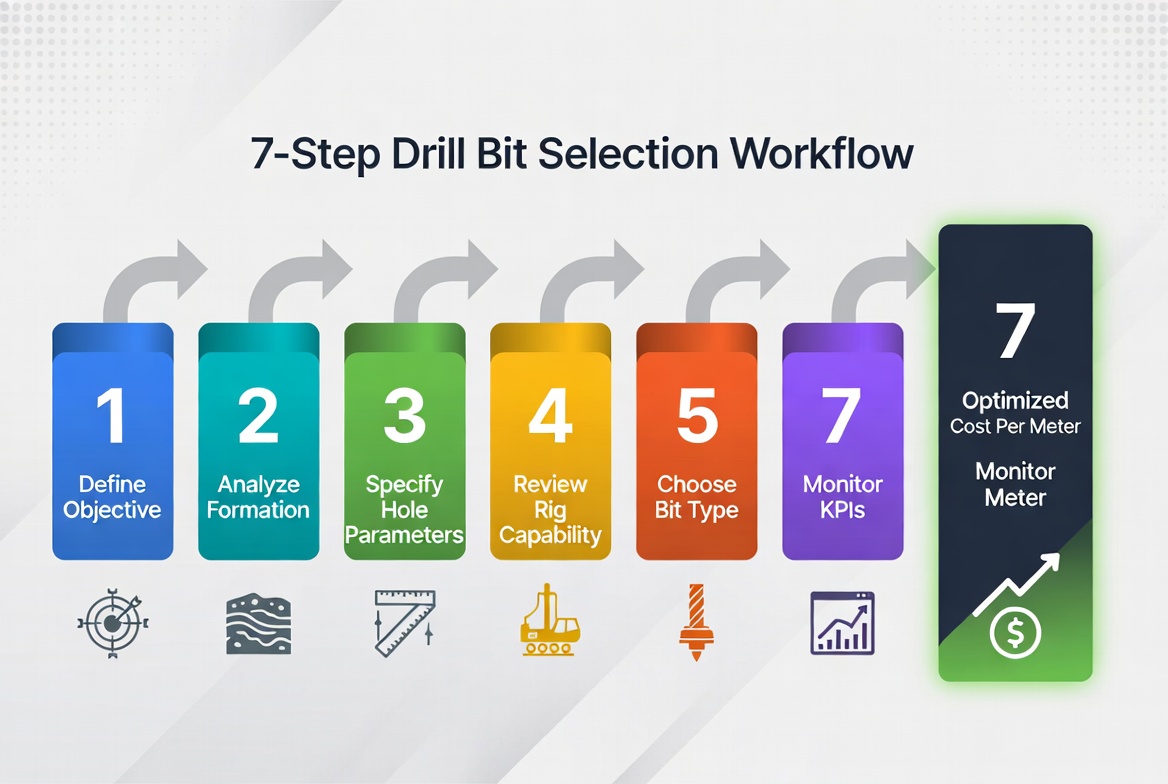

Below is the practical flow I use when recommending bits and core drilling tools for a new site.
1. Define drilling objective – Exploration core, production blasting, geotechnical, or in‑situ testing. [accreditedtl]
2. Characterize the formation – Hardness, abrasiveness, fracture pattern, water conditions, and expected change with depth. [austms]
3. Specify hole parameters – Diameter, depth, allowed deviation, and required core recovery. [accreditedtl]
4. Review rig capabilities – Torque, RPM, feed, pullback, and fluid system capacity. [dminingwell]
5. Select bit type and design – Rotary, DTH, top hammer, or diamond core; crown design, diamond grade, and bond hardness. [sinodrills]
6. Confirm tool string compatibility – Drill rods, core barrel, wireline tools, shanks, and adapters. [accreditedtl]
7. Plan monitoring and optimization – Track penetration rate, bit life, and cost per meter; adjust based on real data. [jpt.spe]
Running through this checklist each time forces you to base your choice on current conditions rather than habit or leftover inventory.
Below is a simple, illustrative configuration for a deep exploration core hole in hard, abrasive granite using a full hydraulic wireline diamond rig.
| Component | Recommended choice (example) | Rationale |
|---|---|---|
| Mining drill bit | Hard‑bond diamond core bit | Withstands abrasive granite, maintains crown integrity. (sinodrills) |
| Crown profile | Turbo or V‑ring | Improves flushing and cooling in deep holes. (eschsupply) |
| Drill rods | High‑strength wireline rods | Maintains straightness at depth, compatible threads. (accreditedtl) |
| Core barrel | Double or triple tube | Preserves core in fractured zones. (accreditedtl) |
| Wireline system | Matching overshot and latch | Enables fast core retrieval, reduces NPT. (accreditedtl) |
| Rig type | Full hydraulic wireline rig | Delivers controlled feed and RPM at depth. (dminingwell) |
In a real project, your supplier would adapt these choices to your exact geology, depth, and rig model.
From field audits and customer feedback, I see the same selection errors over and over again.
- Using one "favorite" bit everywhere – Ignoring local geology leads to low penetration and early failures. [rankingbit]
- Underspecifying core drilling tools – Cheap rods and barrels may bend, jam, or damage premium bits. [sinodrills]
- Skipping flushing and cooling checks – Poor fluid management burns crowns and erodes life. [concreteinsight]
- Not tracking cost per meter – Focusing only on unit bit price hides higher NPT and labor costs. [jpt.spe]
Avoiding these mistakes is often enough to unlock a step‑change in productivity without changing your rig.
Even with a good guide, there are situations where you should speak directly with a specialist:
- Complex multi‑layer formations or highly variable geology along the same hole
- Very deep wireline core drilling projects where small bit changes have big cost implications
- Projects requiring strict core quality and orientation for geotechnical design
If you're planning a new exploration campaign or upgrading rigs, it's worth partnering with a manufacturer focused on full hydraulic wireline diamond drilling and CORE DRILLING TOOL systems who can recommend integrated bits, rods, and wireline assemblies tailored to your geology and equipment. [sinodrills]
If you're evaluating new mining drill bits, core drill bits, or complete core drilling tools for a full hydraulic wireline diamond drilling fleet, now is the right time to review your selection criteria. Gather your recent drilling data—rock types, penetration rates, bit life, and cost per meter—and share it with an experienced engineering team so they can recommend optimized bit designs and tool strings for your rigs. [rankingbit]
The fastest path to better results is simple: stop guessing, start measuring, and work closely with a specialist manufacturer to customize mining drill bits and core drilling tools for your exact geology and rigs. That's how you achieve consistently higher penetration, better core recovery, and lower cost per meter on every project. [sinodrills]
Q1: What is the most important factor when choosing mining drill bits?
The most important factor is always the rock formation—its hardness, abrasiveness, and structure—because this determines the optimal bit type, crown design, and bond hardness. [austms]
Q2: How do I choose between tricone, DTH, and diamond core bits?
Tricone bits are versatile for rotary drilling in varied formations, DTH bits excel in hard, abrasive rock for blast holes, and diamond core bits are the best choice when you need high‑quality core samples for exploration and geotechnical work. [ddibits]
Q3: Why are full hydraulic wireline diamond rigs popular for deep exploration?
They enable fast, safe core retrieval via wireline, maintain stable control over feed and RPM at depth, and significantly reduce non‑productive time compared with conventional non‑wireline coring systems. [dminingwell]
Q4: How often should I review my bit selection strategy?
You should review bit performance and selection whenever you move to a new geological zone, change rigs or drilling parameters, or observe significant differences in penetration rate, bit life, or core quality. [jpt.spe]
Q5: Can custom‑engineered diamond bits really lower my drilling cost?
Yes. By tailoring diamond grit, bond hardness, and segment geometry to your actual formations and rig parameters, custom bits can deliver faster penetration, longer life, and better core quality, which together reduce total drilling cost per meter. [jpt.spe]
