Manufacturing drill rods for wireline core drilling is not just a machining job; it is a controlled metallurgical and engineering process that directly determines core recovery, rig uptime, and total cost per meter. From our experience as a dedicated manufacturer of CORE DRILLING TOOL systems and full hydraulic wireline diamond core drilling rigs, the drill rod is the "spine" of the entire coring system, linking your rig, core barrel, and bit into one reliable string. [sinodrills]
In this guide, we walk through how high‑performance drill rods are manufactured, what really matters at each stage, and how to evaluate rods for your own operations.
When you run deep wireline core drilling, drill rod quality directly affects safety, penetration speed, and the integrity of your core samples. A single failure underground can cost days of fishing and thousands of dollars in lost time. [epiroc.scene7]
High‑quality drill rods are engineered to:
- Deliver high torque and pull strength without bending or twisting. [boartlongyear]
- Maintain straightness for accurate borehole trajectory and better core orientation. [hardrockdrills]
- Provide leak‑free thread connections for effective mud circulation and cooling. [boartlongyear]
- Resist fatigue cracking over thousands of make‑and‑break cycles. [sinodrills]
For operators running full hydraulic core drilling rigs with wireline coring, the drill rod becomes a strategic asset, not a consumable. [hanfagroup]
The foundation of high‑quality drill rods is material selection, and this is where many lower‑cost products fail. [tuffrod]
Most high‑performance drill rods are made from premium alloy steels such as AISI 4140 or 4145H, which contain chromium and molybdenum to provide high tensile strength, toughness, and hardenability. Before production, each heat of steel should be tested for: [sinodrills]
- Chemical composition (C, Mn, Cr, Mo, etc.). [sinodrills]
- Cleanliness and inclusion content. [sinodrills]
- Uniform grain structure and internal soundness. [tuffrod]
As a manufacturer of CORE DRILLING TOOL systems, we reject any bar or tube that shows segregation, porosity, or non‑uniform hardness, because these defects become fatigue crack starters in the field. [boartlongyear]
Once the steel is approved, it is cut and prepared for machining. [bestonedrill]
Key operations typically include:
1. Saw cutting to length – Green tubes or bars are saw‑cut to precise lengths to allow for later upsetting, threading, and finishing tolerances. [tuffrod]
2. Initial straightening – Mechanical straightening ensures the bar meets a strict straightness tolerance before machining. [bestonedrill]
3. End cleaning and beveling – Ends are prepared for upset forging or welded tool joints, depending on the manufacturing route. [tuffrod]
This early straightening and preparation step is critical to ensure that the final drill rod runs true in high‑speed rotations on full hydraulic rigs. [hanfagroup]
Different manufacturers use different drill rod construction methods, especially for HDD and sonic rods, but the principles carry over to core drilling rods as well. [boartlongyear]
Common approaches include: [tuffrod]
- One‑piece forged rods – Ends are upset forged from the same parent tube, increasing wall thickness and strength at the connection.
- Inertia welded rods – Separate tool joints are inertia welded to the tube, offering high integrity joints when properly controlled.
- Press fit and welded – Tool joints are press‑fit and then welded to the tube, often used for specific HDD and sonic applications.
For sonic drill rods, for example, the ends are upset forged and then stress relieved and heat treated to balance strength and vibration resistance. [boartlongyear]
In core drilling applications, especially with high‑torque hydraulic rigs, our engineering preference is to maximize metallurgical continuity and minimize stress concentration at the joint, combined with controlled, repeatable heat treatment. [hanfagroup]

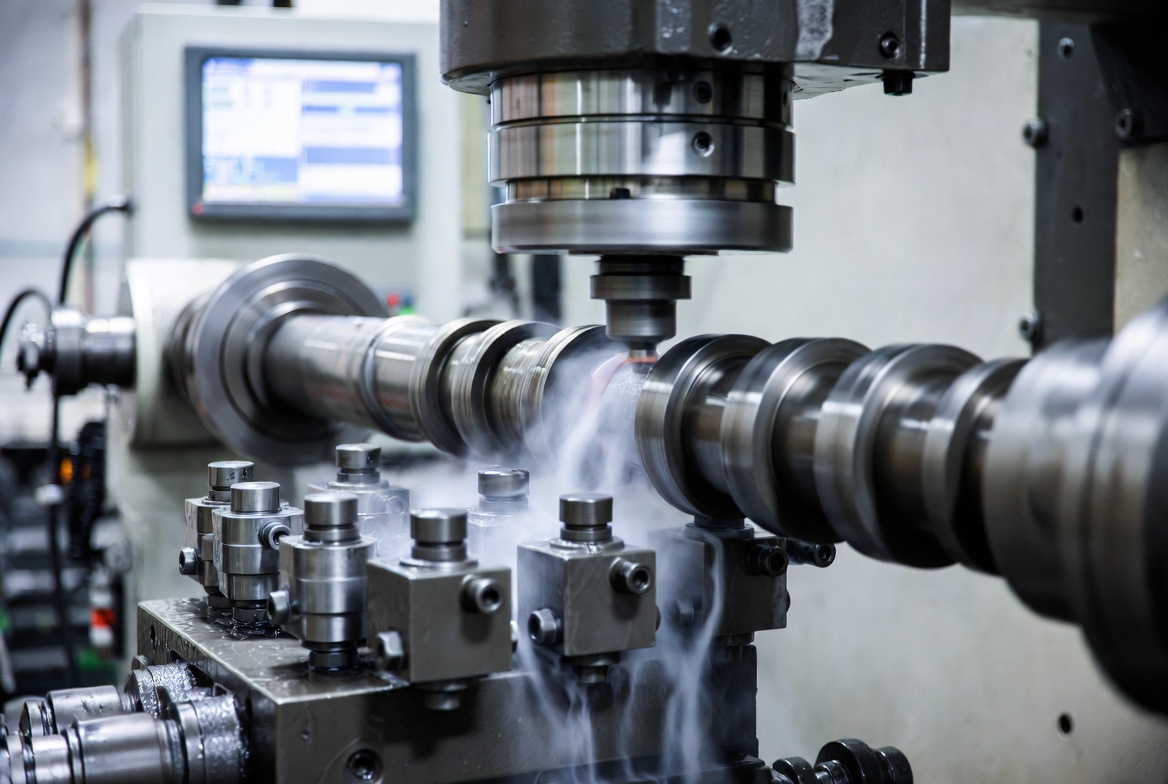

After forging or joining, the rod body goes through a series of precision machining operations to achieve strict dimensional requirements. [sinodrills]
Typical body machining steps:
- Turning – The outside diameter is turned to the specified size with tight tolerance and surface finish. [sinodrills]
- Boring (for hollow rods) – The internal diameter is bored to accurately control wall thickness. [sinodrills]
- Straightness corrections – Intermittent straightening keeps the rod within a narrow straightness tolerance over its entire length. [bestonedrill]
For wireline core drilling rods, tolerance is particularly important, because any eccentricity or ovality will increase vibration, accelerate thread wear, and impact core sample quality. [hardrockdrills]
If the rod body is the spine, the threaded connections are the joints that keep everything together. Poor thread machining is one of the most common causes of field failures. [boartlongyear]
High‑end drill rod threads require:
- Controlled thread profile (pin and box) with precise pitch and flank angles. [sinodrills]
- Tight gauge control for make‑up torque and leak‑tight connections. [boartlongyear]
- Smooth root radii and surface finish to reduce stress concentration. [sinodrills]

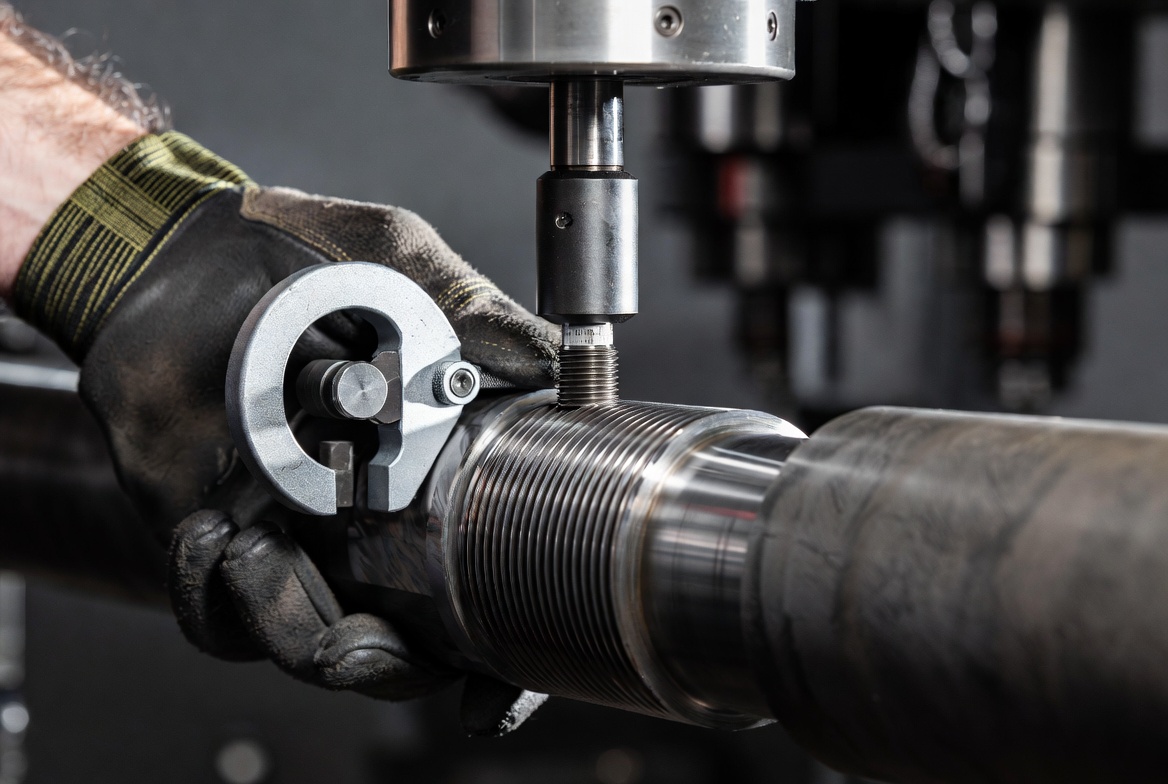

After machining, each thread is inspected for profile accuracy, dimensional fit, and surface defects. In some designs, pin and box ends receive localized heat treatment to increase wear resistance without making the entire rod brittle. [boartlongyear]

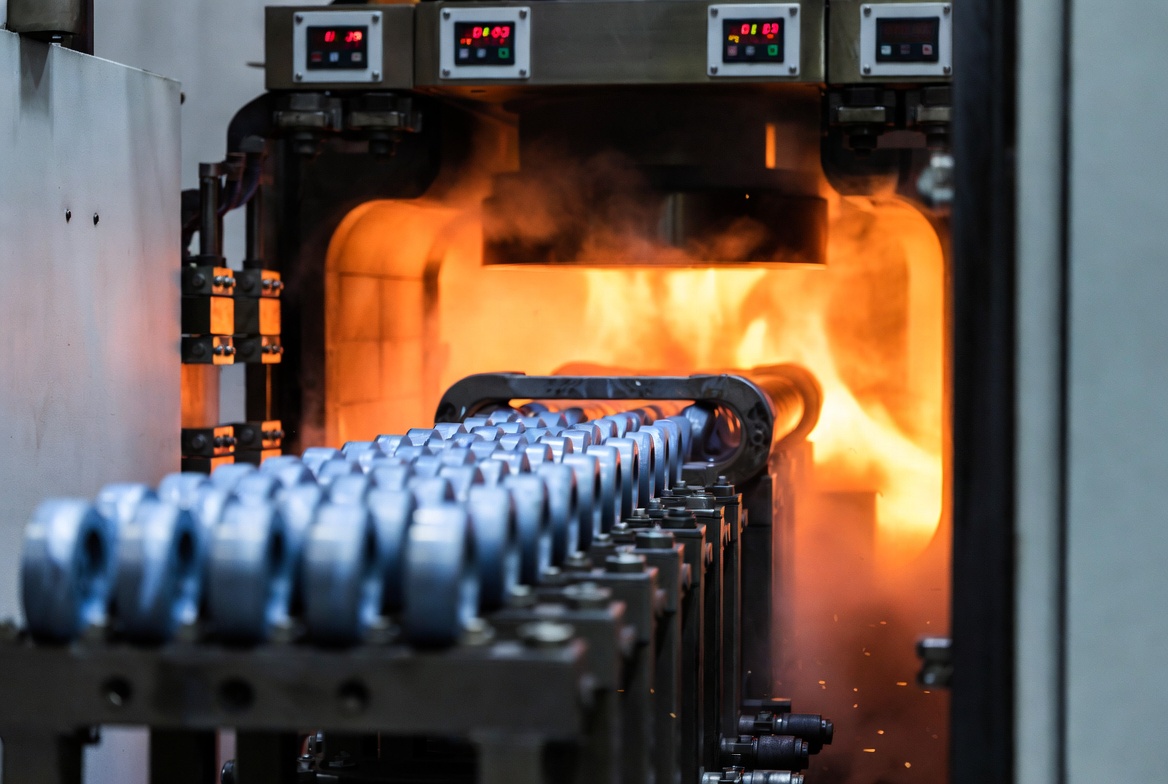

Heat treatment is where drill rods gain their final mechanical properties—strength, toughness, and fatigue resistance. [boartlongyear]
Typical heat treatment steps include: [boartlongyear]
- Quenching and tempering – Achieving a balanced hardness that resists wear but still allows some elasticity.
- Localized hardening – Strengthening critical areas like threads or upset ends.
- Stress relief – Heating and cooling the entire rod in a controlled way to remove internal stresses, especially after forging or welding.
Uniform hardness across the rod is crucial. Over‑hardened rods may crack; under‑hardened rods bend or wear prematurely. As a CORE DRILLING TOOL manufacturer, we validate each heat treatment batch by hardness testing along the rod and at the ends. [sinodrills]
Drill rods operate in mud, water, and sometimes chemically aggressive environments, so surface treatments help extend service life. [epiroc.scene7]
Common treatments include: [epiroc.scene7]
- Shot blasting or surface strengthening to refine surface condition.
- Anti‑corrosion coatings (such as protective oils, paints, or specialized coatings) to reduce rusting during storage and transportation.
- Marking and color coding for size, thread type, and manufacturing batch tracking.
Proper surface protection also supports better handling and stacking practices recommended by rod care guides from leading manufacturers. [epiroc.scene7]
High‑end drill rod manufacturing includes multi‑stage quality control rather than a single final inspection. [bestonedrill]
Typical quality checks:
- Material inspection – Chemical analysis and hardness checks on incoming steel. [sinodrills]
- Dimensional inspection – Diameter, length, wall thickness, and straightness measured along the entire rod. [bestonedrill]
- Thread inspection – Gauging of pin and box threads, visual inspection for burrs or damage. [sinodrills]
- Non‑destructive testing (NDT) – Magnetic particle inspection or ultrasonic testing to detect internal flaws. [boartlongyear]
- Mechanical tests (sample‑based) – Tensile, impact, and fatigue tests carried out on sample rods or coupons. [tuffrod]
This systematic approach ensures that every drill rod can withstand the loads and vibration imposed by modern wireline core drilling rigs. [hanfagroup]
To understand why this level of precision is required, it helps to see where drill rods sit in the wireline core drilling system. [hardrockdrills]

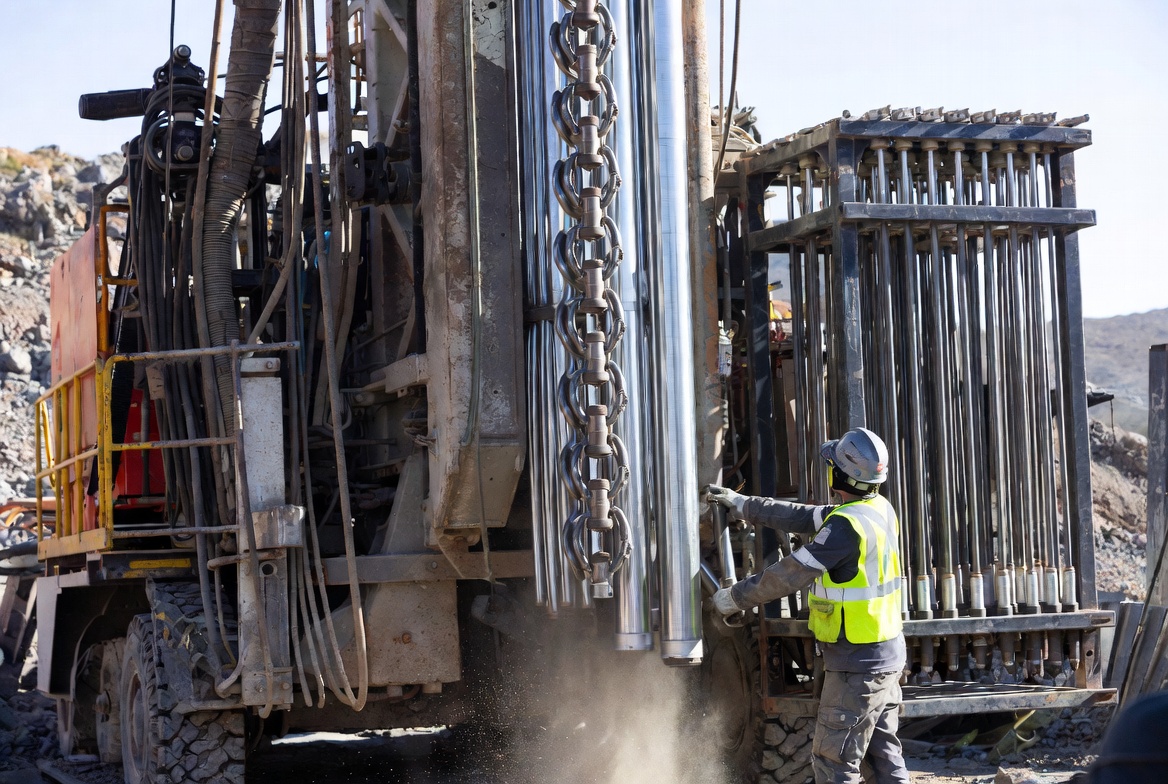

In a typical full hydraulic wireline core drilling rig, the key components include: [afrimart.co]
- Power unit (diesel or electric).
- Hydraulic system and control panel.
- Rotation unit / drill head.
- Mast and feed system.
- Rod holder or foot clamp.
- Wireline winch and core barrel assembly.
- Drill rods and core bit.
The drill rods connect the drill head to the core barrel and bit, transmitting torque and axial load while allowing drilling fluid circulation and wireline retrieval of the inner tube. Any weakness in the rod string will show up as lost cores, dropped rods, or excessive downtime. [hanfagroup]
Even the best‑manufactured drill rods can fail prematurely if they are mishandled. Leading manufacturers and rod care guides recommend several best practices. [tuffrod]
Key field recommendations:
- Store rods on suitable racks or supports, avoid bending and impact damage. [epiroc.scene7]
- Use proper lifting tools and avoid dragging rods across hard surfaces. [epiroc.scene7]
- Clean and lubricate threads before each make‑up, and never force cross‑threaded connections. [tuffrod]
- Rotate rod positions in the string to distribute fatigue evenly. [tuffrod]
- Inspect rods regularly for visual cracks, bent sections, or damaged threads and remove suspect rods from service. [tuffrod]
These small habits, combined with high‑quality manufacturing, can dramatically reduce total cost per meter drilled. [tuffrod]
The table below highlights key differences that buyers should consider when selecting drill rods for core drilling operations.
| Feature | Low‑Cost Drill Rods | High‑Quality Drill Rods (OEM‑grade) |
|---|---|---|
| Steel grade | Generic carbon steel (tuffrod) | Premium alloy steels like AISI 4140/4145H (sinodrills) |
| Heat treatment | Minimal or inconsistent (tuffrod) | Controlled quench and temper, stress relief (sinodrills) |
| Thread accuracy | Loose tolerances, limited inspection (tuffrod) | Precision machined, fully gauged (sinodrills) |
| NDT (crack detection) | Often skipped (tuffrod) | Magnetic particle or ultrasonic inspections (sinodrills) |
| Service life and reliability | Higher breakage risk, shorter life (tuffrod) | Longer fatigue life, fewer failures (sinodrills) |
| Suitability for wireline coring | Short holes, low torque only (tuffrod) | Deep holes, high torque, continuous duty (hardrockdrills) |
As a manufacturer specialized in full hydraulic wireline diamond core drilling rigs and CORE DRILLING TOOL assemblies, we design drill rods to match the demands of modern exploration projects. [sinocoredrill]
Our design priorities typically include:
- System compatibility – Ensuring rods are fully compatible with standard wireline sizes, core barrels, and diamond bits used in exploration. [hardrockdrills]
- Rig‑matched torque and pull rating – Matching rod strength to the rated performance of hydraulic rigs to avoid under‑ or over‑specification. [hanfagroup]
- Optimized connection designs – Selecting thread forms that balance make‑up speed, sealing performance, and fatigue resistance. [boartlongyear]
By controlling both the rig design and the drill rod design within one product ecosystem, we can help users achieve more stable drilling behavior and better core recovery in demanding formations. [sinocoredrill]
Industry case experiences from drillers and OEMs consistently show that premium drill rods reduce total drilling cost even if the initial price per rod is higher. [tuffrod]
For example, manufacturers of HDD and sonic drill rods report that rods produced with one‑piece forged construction and proper stress relief can outlast lower‑cost welded alternatives by a significant margin, especially in high‑vibration or high‑torque applications. Similarly, best‑practice guidelines for drill pipe highlight that correct handling and quality rods drastically cut the rate of mid‑string failures and fishing time. [tuffrod]
For core drilling contractors, the economics are similar: fewer failures, less non‑productive time, better core recovery, and a safer operation. [epiroc.scene7]
When evaluating a drill rod manufacturer for your core drilling projects, use this practical checklist:
- Do they specify exact steel grades and heat treatment procedures? [tuffrod]
- Can they demonstrate NDT and mechanical testing capabilities (e.g., magnetic particle, ultrasonic, tensile)? [boartlongyear]
- Are their rods used with full hydraulic wireline core drilling rigs in similar applications? [sinocoredrill]
- Do they provide handling, storage, and maintenance guidance? [tuffrod]
- Can they offer complete tool strings, including core barrels, drill rods, and diamond bits, engineered as a system? [sinocoredrill]
Working with a specialized CORE DRILLING TOOL manufacturer gives you a partner who understands both the metallurgy of the drill rod and the real‑world demands of your rigs and geology. [sinocoredrill]
If you operate full hydraulic wireline diamond core drilling rigs, your drill rods are one of the most important investments you make. By choosing rods engineered with high‑grade alloy steels, controlled heat treatment, precision machining, and rigorous testing, you protect your people, your equipment, and your exploration budget. [hardrockdrills]
To discuss drill rod specifications, full wireline coring systems, or customized solutions for your next project, contact our technical team and we will help you select or design the most suitable drill rods and CORE DRILLING TOOL assemblies for your rig and geological conditions. [sinocoredrill]
1. What steel is typically used in high‑quality drill rods?
High‑quality drill rods usually use alloy steels such as AISI 4140 or 4145H, which provide high strength, toughness, and good hardenability for demanding drilling conditions. [sinodrills]
2. Why is heat treatment so important for drill rods?
Heat treatment controls hardness, strength, and toughness; properly quenched and tempered rods resist bending, cracking, and premature wear in high‑load applications. [boartlongyear]
3. How do drill rods integrate with wireline core drilling rigs?
Drill rods connect the drill head to the core barrel and bit, transmit torque and axial load, allow drilling fluid circulation, and enable wireline retrieval of core samples. [hanfagroup]
4. What are the most common failure causes in drill rods?
Typical failure causes include poor material quality, inadequate heat treatment, incorrect thread machining, fatigue from repeated make‑and‑break cycles, and improper handling and storage. [epiroc.scene7]
5. How can I extend the service life of my drill rods?
Use premium rods, follow best practices for handling and storage, clean and lubricate threads, rotate rod positions in the string, and remove damaged rods promptly from service. [tuffrod]
