A well-designed self-drilling system – from screws to diamond core drilling tools – can dramatically improve productivity, accuracy, and safety in both construction and rock drilling operations. This guide explains how self-drilling screws work, why diamond core drilling matters, and how full-hydraulic wireline core drills from manufacturers like CORTECH fit into modern projects. [corediamtools]
In my work helping drilling contractors and construction clients improve fastening and drilling efficiency, self-drilling technologies consistently deliver some of the highest returns on investment. Whether we are talking about a small self-drilling screw in a steel frame or a full-hydraulic wireline core drilling rig extracting deep rock cores, the principle is the same: combine drilling and fastening (or sampling) into a single, controlled operation to save time, reduce rework, and improve safety. [a-core]
Self-drilling screws and self-drilling rock anchors eliminate the need for separate pilot holes. Similarly, diamond core drilling systems remove a cylindrical core while preserving surrounding material, ensuring precise holes and high-quality samples for mining, geotechnical, and construction projects. From an engineering and operations perspective, these technologies are no longer "nice-to-have" but essential tools for competitive, modern project delivery. [en.wikipedia]

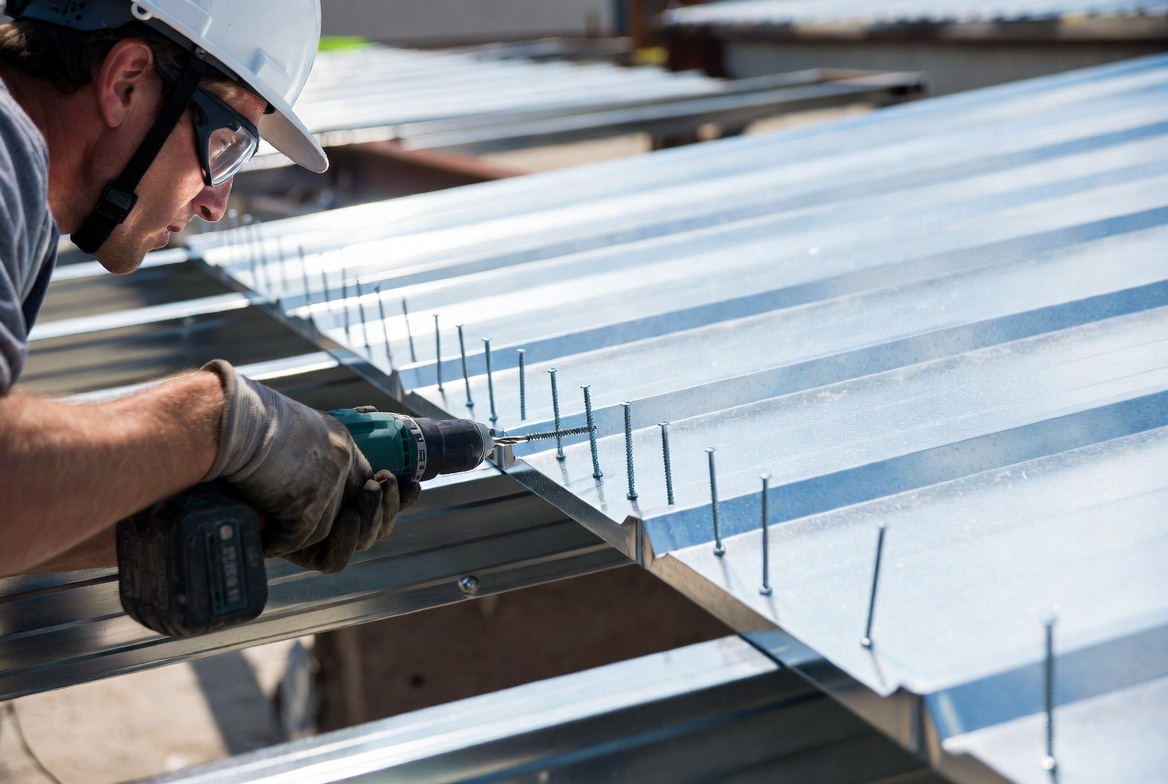

Self-drilling screws (often called TEK screws) are fasteners that integrate a small drill bit at the tip, allowing them to drill their own pilot hole and tap threads in one step. Instead of drilling a hole and then changing tools to insert a screw, the installer drives a single screw that both creates and occupies the hole, significantly simplifying the process. [contractorsdirect]
Self-drilling screws used in structural steel, sheet metal, or wood framing typically share three critical design elements.
- Drill point (self-drilling tip) with cutting flutes that remove material as the screw advances, forming a clean, accurate hole.
- Thread profile engineered to match specific materials (fine threads for thin steel, coarser threads for timber) for maximum holding power and reduced stripping.
- Head and drive style (hex washer, pan head, countersunk, etc.) chosen for required clamping force, corrosion protection, and tool compatibility.
In practice, a properly selected self-drilling screw can cut through layers of steel or steel-to-timber assemblies without wandering, even when operators are working overhead or in tight spaces. [contractorsdirect]
From a mechanical point of view, self-drilling screws and anchors work by synchronizing the action of the drill point and the threads.
1. The drill point cuts into the surface, and the cutting flutes evacuate chips to prevent clogging and overheating.
2. As the pilot hole reaches the thread diameter, the threads start to engage, pulling the screw forward and clamping the materials.
3. Once the head seats firmly, the torque rises sharply, signaling the installer to stop; over‑driving at this stage risks stripping or breaking the screw.
This one-step operation is analogous, at a smaller scale, to the way a diamond core bit both cuts and guides the core barrel in rock drilling: a single tool shapes the hole while controlling direction, alignment, and surface quality. [bladesdirect]
From real project feedback and field audits, the benefits of self-drilling screws are clear when compared with traditional screw plus pilot-hole methods. [contractorsdirect]
Self-drilling screws can cut installation time by up to 50% because they remove the separate drilling step and the tool change. On large-scale cladding, roofing, or mechanical installation projects, this translates to thousands of saved man-hours and lower overall labor costs. [corediamtools]
Because one screw replaces a drill bit plus a conventional screw, self-drilling fasteners reduce consumable inventory and wear on drilling tools. On many lines, contractors can avoid dedicated drill presses or secondary fixtures for repetitive fastening tasks, lowering capital and maintenance costs.
Modern self-drilling screws are available for:
- Thin and thick steel sheets and purlins
- Aluminum profiles and composite panels
- Timber and engineered wood products
- Certain plastics and sandwich panels
This material versatility allows engineers to standardize fastening strategies across building envelopes, prefabricated modules, and mechanical supports. [contractorsdirect]
Because the drill point and threads work together, self-drilling screws are less prone to walking or misalignment, which is a common cause of rework in metal roofing and façade systems. When properly selected, they provide excellent pull‑out strength and resistance to vibration, essential in HVAC ducting, light steel framing, and transportation equipment. [corediamtools]
In rock drilling, the "self-drilling" concept scales up from millimeter-sized screws to full-hydraulic wireline core drilling systems equipped with diamond core bits, core barrels, and drill rods. Here the goal is not just fastening but extracting continuous rock cores for exploration, geotechnical assessment, and structural monitoring. [intelmarketresearch]
Diamond core bits use a cylindrical steel body with industrial diamonds embedded in the cutting crown, grinding the rock to form a neat, circular hole while leaving an intact core inside. Compared with percussive drilling, diamond core drilling produces cleaner holes, less damage to surrounding rock, reduced dust and noise, and higher-quality core recovery, which directly affects resource estimates and design decisions. [leadingtool]
From an engineer's view, a modern hydraulic core drill is a highly integrated system rather than a single machine. [en.wikipedia]
A typical full-hydraulic wireline core drilling setup includes:
- Drill rig and mast providing thrust, rotation, and structural support.
- Hydraulic power unit delivering controlled power to rotation and feed systems.
- Drill rods and wireline connecting surface equipment with downhole tools and enabling core retrieval without tripping the entire rod string.

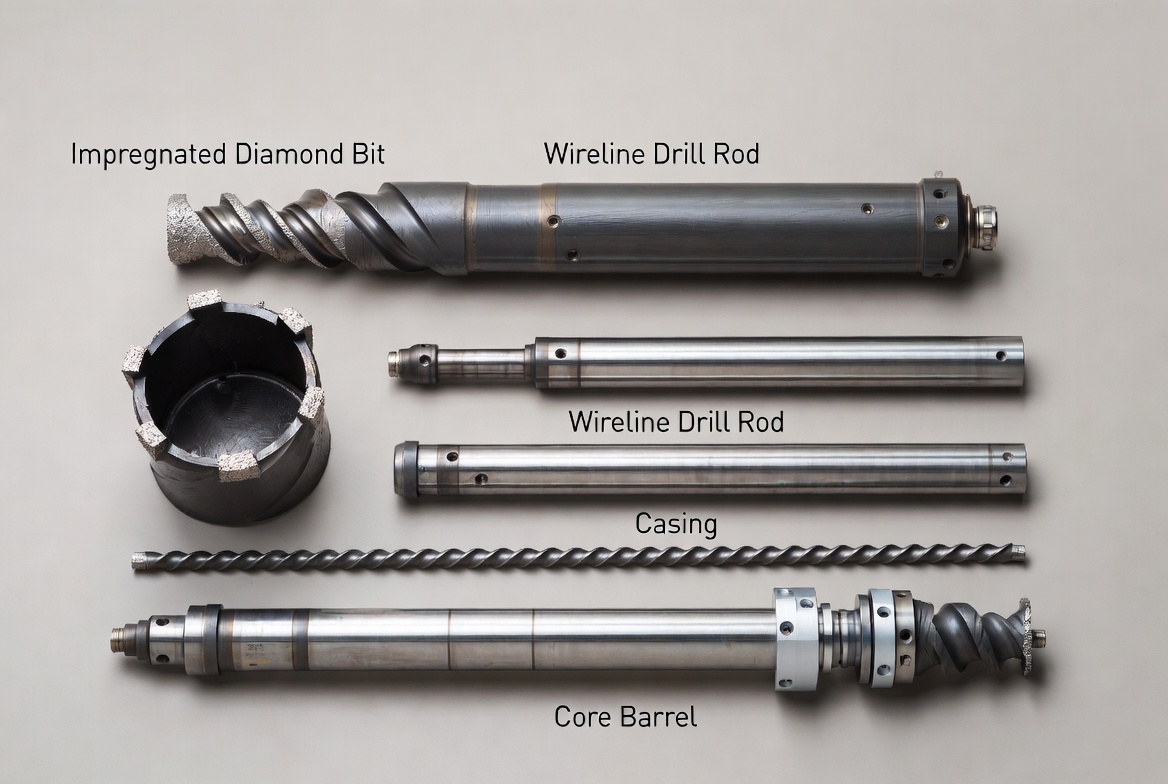

- Core barrel and diamond core bit, the front-end tools that cut and capture the core.
Manufacturers like CORTECH specialize in core drilling tools – including diamond bits, drill rods, casings, and accessories – optimized to work as a complete system for mining and geotechnical contractors. [sinocoredrill]
In a wireline system, the inner core barrel containing the core is retrieved to surface by wireline without removing all the rods, significantly shortening cycle time. This approach increases effective drilling time per shift, reduces operator fatigue, and helps maintain hole stability in complex formations. [linkedin]
Recent market and field data show that full-hydraulic core drills and diamond tools are gaining share across mining, infrastructure, and environmental projects. [intelmarketresearch]
Diamond core drilling enables:
- High-precision hole trajectories and diameters, critical for directional drilling and structural anchors. [a-core]
- Cleaner holes with minimal damage to surrounding rock or concrete, preserving structural integrity. [interstatesawing]
- High core recovery rates, which directly improve ore-body modeling and geotechnical interpretation. [leadingtool]
These characteristics make diamond core systems the preferred choice where decision-making depends on accurate cores rather than just open holes. [diamondcoredrillbit.nicepage]
Full-hydraulic core rigs offer efficient power transmission, higher penetration rates, and smoother control compared with purely mechanical systems. Combined with long‑life diamond bits, this reduces bit changes, downtime, and overall cost per meter drilled, especially in deep exploration programs. [linkedin]
Diamond core drilling generally generates less noise and vibration than traditional percussive methods, improving safety and working conditions in urban, tunnel, and underground environments. Reduced dust and better fluid management also help projects meet increasingly strict environmental and occupational health regulations. [interstatesawing]
Global data indicate that the full-hydraulic core drill market exceeded 1.8 billion USD in 2025 and is set to grow further as infrastructure, mining, and energy projects expand. Drivers include: [intelmarketresearch]
- Large-scale investments in transportation, tunneling, and urban development.
- Continued demand for mineral exploration and battery-energy metals.
- A shift toward safer, digitally monitored drilling equipment.
Analysts expect annual growth in full-hydraulic core drilling equipment driven by performance optimization, durability, and integration of remote operation and IoT-based condition monitoring. Manufacturers that combine robust hardware (rigs, rods, bits) with data-ready systems are best positioned to support owners, EPCs, and drilling contractors over the next decade. [einpresswire]
Over years of reviewing project failures and success stories, a consistent pattern emerges: tool selection and operating parameters matter more than brand or price alone. [corediamtools]
For self-drilling screws in construction:
- Match drill point length and hardness to material thickness (short points for thin sheet, longer points for thicker members).
- Choose thread type and coating based on base material and corrosion environment.
- Use appropriate head style to distribute load and ensure proper sealing in roofing or façade systems.
For rock drilling and self-drilling anchors:
- Select the correct bit type, rod diameter, and anchor length according to rock strength, abrasivity, and design loads.
- Use top hammer tools for shallower, high-productivity production holes; choose down-the-hole or core drilling for deeper, straighter holes in hard rock. [rgctools]
- In ground support, ensure that the anchor system length and capacity match the geotechnical design requirements.
Both screws and rock drilling tools are highly sensitive to operating parameters. [corediamtools]
- For self-drilling screws: control drilling speed and feed pressure to avoid tip overheating, thread stripping, or head snapping.
- For rock drills: adjust rotation speed, impact frequency, and feed pressure according to rock hardness to optimize penetration rate without accelerating bit wear. [corediamtools]
- For diamond core bits: manage rotational speed and flushing to prevent glazing and maintain sharp, exposed diamonds. [leadingtool]
Operators should always follow manufacturer parameter charts and adapt based on real-time feedback (torque, vibration, fluid returns) rather than running at a single "maximum" setting. [corediamtools]
Accurate alignment and positioning directly influence connection strength and borehole quality. [a-core]
- In fastening, keep screws perpendicular to the surface and pre‑mark hole positions to ensure good appearance and full structural engagement.
- In rock drilling, verify rig setup, mast alignment, and collaring angle before starting to avoid deviation and future reaming. [a-core]
- Implement simple quality checks (torque verification for screws, core recovery logging for drilling) to catch issues early. [rgctools]
As a manufacturer dedicated to R&D, manufacturing, and sales of full-hydraulic wireline core drilling rigs and core drilling tools (core bits, drill rods, etc.), CORTECH focuses on system-level performance, not just single components. By designing bits, rods, and accessories to work together under demanding mining and geotechnical conditions, we help contractors achieve higher productivity, better core recovery, and longer tool life. [sinocoredrill]
For buyers, this means:
- One integrated supply source for bits, rods, barrels, and accessories.
- Application support based on real field feedback and test data.
- Continuous improvement of tool designs as geology, project depths, and performance requirements evolve. [linkedin]
If your projects require reliable diamond core drilling – whether for mineral exploration, tunnel alignment, or deep foundation assessment – partnering with a specialized core drilling manufacturer will directly impact schedule, safety, and cost per meter drilled. [intelmarketresearch]
For project managers and site supervisors, a simple pre‑job checklist can prevent many common problems. [corediamtools]
1. Define objective: fastening vs sampling vs structural support.
2. Confirm material: steel/wood/composite vs rock type and strength.
3. Select matching self-drilling screws or diamond core tools based on thickness, depth, and load requirements. [corediamtools]
4. Set operating parameters (speed, torque, feed, impact) according to manufacturer recommendations. [corediamtools]
5. Plan alignment and quality checks: torque tests, sample logs, visual inspection.
6. Brief operators on safety, PPE, and emergency procedures.
If you are planning a new exploration campaign, tunnel project, or geotechnical investigation, integrating the right core drilling tools and self-drilling solutions at the design stage can significantly reduce risk and cost. I recommend speaking directly with a CORTECH application engineer to review your rock conditions, target depths, and productivity goals, and to select a complete package of diamond core bits, drill rods, and full-hydraulic core drilling rigs tailored to your project. [sinocoredrill]
You can then align your drilling plan, tooling choices, and operating parameters before mobilization – rather than troubleshooting expensive problems in the field. [intelmarketresearch]
Q1: Are self-drilling screws suitable for structural connections in steel buildings?
For light-gauge and secondary steelwork (purlins, cladding, decking), properly specified self-drilling screws are commonly used and can provide strong, durable connections when installed correctly. [contractorsdirect]
Q2: When should I choose diamond core drilling instead of percussive drilling?
Diamond core drilling is ideal when you need undisturbed core samples, precise hole geometry, or reduced vibration and noise in sensitive structures or urban environments. [en.wikipedia]
Q3: How do I extend the life of a diamond core bit?
Use correct rotational speed, adequate cooling and flushing, and match bit hardness to rock abrasivity; running too fast, too dry, or in the wrong formation accelerates wear and glazing. [leadingtool]
Q4: What are the advantages of full-hydraulic wireline core drills compared with mechanical rigs?
Full-hydraulic rigs offer smoother control, higher efficiency, easier automation, and faster core retrieval via wireline systems, improving penetration rate and reducing downtime per meter drilled. [linkedin]
Q5: Why work with a specialized core drilling tool manufacturer like CORTECH?
A dedicated core drilling manufacturer provides integrated bits, rods, and rig solutions, application engineering, and continuous innovation focused specifically on exploration and geotechnical drilling challenges. [sinocoredrill]
