Diamond drilling has become the most reliable way to see what really lies beneath the surface of a mine or construction site, and hydraulic wireline rigs have pushed that reliability to a new level of safety, speed, and core quality. Drawing on more than a decade of hands‑on experience with CORE SURFACE DRILL, CORE HELI DRILL, CORE U/G DRILL and complete diamond core drilling tools at CORTECH, this guide explains not just what diamond drilling is, but how modern hydraulic wireline systems deliver better decisions, lower risk, and higher return on every drilled meter. [kerexchina]
Diamond drilling is a precise rotary drilling method that uses industrial diamonds bonded to the cutting face of a bit to grind through very hard rock, concrete, and other abrasive materials while producing clean holes and, in core drilling, intact cylindrical samples. Because diamonds are one of the hardest materials known, they cut by abrasion rather than impact, which reduces vibration, limits damage around the hole, and preserves the in‑situ structure of the rock. [litechtools]
In mining and geotechnical work, diamond core drilling focuses on recovering continuous core for geological interpretation, resource estimation, and engineering design, rather than simply making a hole. This is why diamond drilling is the method of choice when investors, regulators, and technical reviewers need subsurface data that can stand up to scrutiny. [prdrigs]

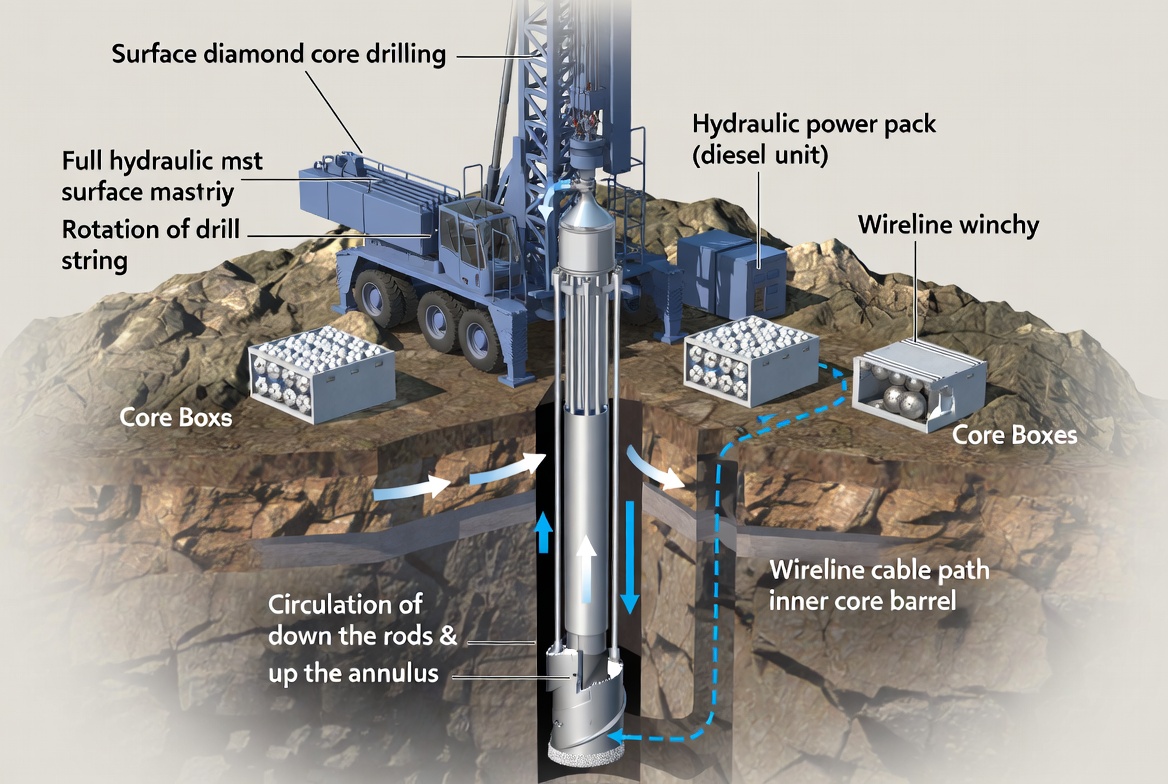

At its core, diamond drilling is a controlled cutting process rather than a brute‑force breaking process. A hollow steel bit with diamond‑impregnated segments rotates at high speed while a carefully managed feed force pushes it into the formation, grinding an annulus and leaving a cylindrical core inside the barrel. [kerexchina]
Key elements of the process include: [kerexchina]
- Rotation and feed control: RPM and weight‑on‑bit must be balanced so the diamonds cut efficiently without glazing or burning.
- Fluid circulation: Water or drilling fluid cools the bit, removes cuttings as slurry, stabilizes the hole, and protects the bit from thermal damage. [tyrolit-construction.com]
- Core retrieval: In wireline systems, an inner core barrel is recovered to surface via an overshot and cable, eliminating the need to trip the entire drill string. [litechtools]
- Data capture: The core is logged, photographed, sampled, and stored, creating a permanent record of lithology, structures, alteration, and mineralization for technical teams. [prdrigs]
On a modern hydraulic rig, this workflow is supported by automated feed systems, precise pressure gauges, and remote controls that help operators keep the bit in its optimal cutting window for penetration rate and core quality. [tyrolit-construction.com]
In mining, diamond core drilling runs through the full project lifecycle, from first scout holes to final pit wall design. Operators rely on the method whenever they need accurate, defensible data about the geometry, quality, and geotechnical character of an ore body. [imarcglobal]
Typical mining applications include: [heicoin]
- Greenfield exploration: Defining mineralized structures, thickness, and continuity in new districts.
- Resource definition and infill: Tight‑spacing drilling to upgrade resources from inferred to indicated or measured categories.
- Geotechnical drilling: Measuring rock quality designation, fracture frequency, and structural controls for pits, portals, shafts, tunnels, and stopes.
- Hydrogeological work: Locating water‑bearing structures and testing permeability for dewatering and slope stability.
- Mine planning and design checks: Confirming assumptions before committing to major development or long‑lead equipment.
Because diamond cores preserve structure, alteration, and veining, they remain the highest‑confidence input for 3D geological models and for investment decisions on large mining projects. [imarcglobal]
Outside mining, diamond drilling has become the default solution wherever engineers must create precise holes in high‑strength materials while protecting surrounding structures. Wet diamond drilling through concrete and masonry, for example, allows contractors to install services and anchors with minimal noise and vibration. [concreteinsight.wordpress]
Common non‑mining uses include: [concreteinsight.wordpress]
- Civil and building construction: Openings for plumbing, electrical conduits, HVAC, and post‑installed anchors in reinforced concrete.
- Bridge and tunnel works: Instrumentation holes, cable penetrations, and structural investigations in critical infrastructure.
- Stone and tile fabrication: Precision holes in granite, marble, and ceramics for architectural and industrial applications.
- Environmental and research programs: Rock, soil, and ice cores for contamination assessments and climate or geological studies.
In all of these, the combination of accurate hole placement, clean cut edges, and controlled slurry or dust management makes diamond drilling a more sustainable and less disruptive technique compared with heavy percussive systems. [tyrolit-construction.com]
Compared with the first generation of mechanical rigs, today's hydraulic wireline core drills deliver more power in a smaller footprint, with far better control over feed and torque. Fully hydraulic systems allow smooth, stepless adjustment of rotation speed and thrust, which translates directly into better bit life and core recovery, especially in broken or highly abrasive formations. [imarcglobal]
Wireline recovery systems further reduce non‑productive time by allowing the crew to retrieve the inner barrel and core without tripping rods. This is particularly important on deep surface holes and in underground headings where rig moves and rod handling are constrained. [litechtools]

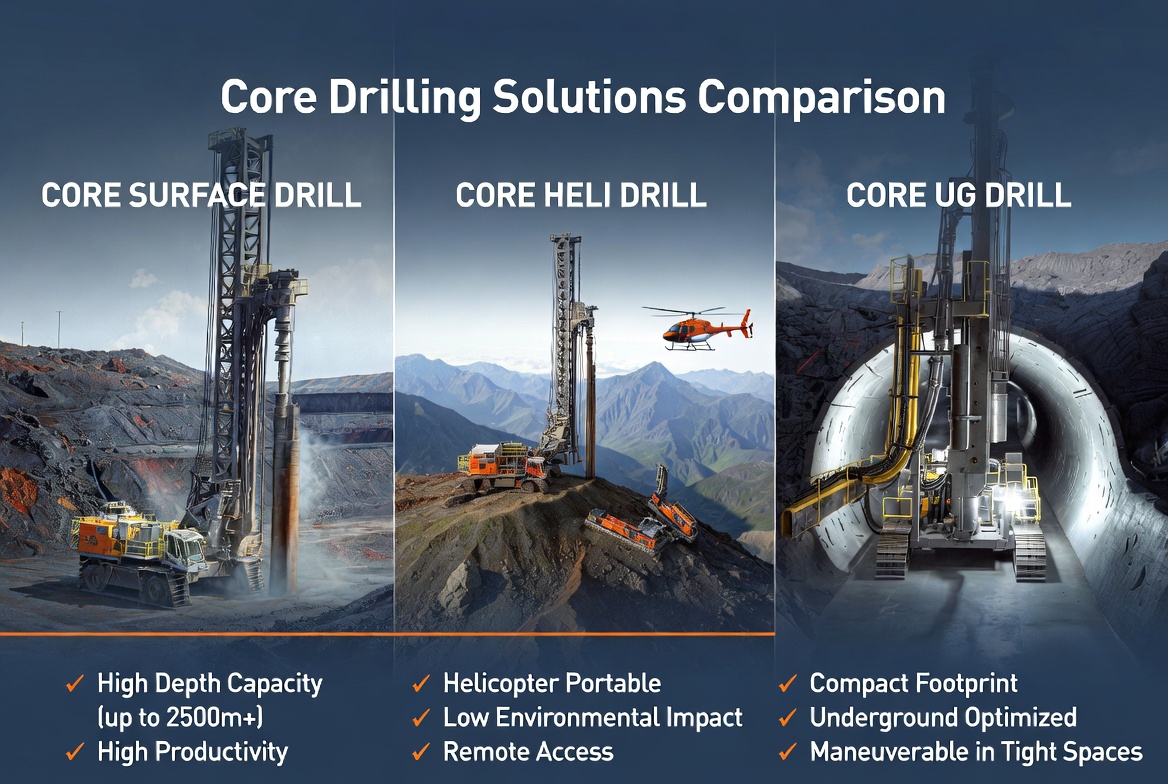

As a specialized manufacturer, we see three configurations dominating modern exploration programs, each optimized for a specific environment: [heicoin]
- CORE SURFACE DRILL (surface core rigs):
Designed for long, high‑capacity programs on accessible sites, these rigs prioritize depth capacity, high pullback force, and stable mast structures to keep deep holes straight while maintaining high penetration rates.
- CORE HELI DRILL (heli‑portable modular rigs):
Lightweight, modular packages break down into flyable loads for remote terrains where there are no roads; they are engineered for rapid mobilization and demobilization with minimal environmental disturbance.
- CORE U/G DRILL (underground core rigs):
Compact rigs with flexible masts and skids fit in headings and drifts, allowing infill and geotechnical drilling close to active workings with fast response to planning needs.
All three benefit from the same core technology: hydraulic power packs, wireline systems, and high‑performance bits, rods, and core barrels matched to ground conditions and program objectives. [heicoin]
Diamond drilling performance depends as much on tooling as on the rig itself. Selecting the right bit, rods, and barrel configuration for your ground can mean the difference between high‑quality, continuous core and days of lost time. [kerexchina]

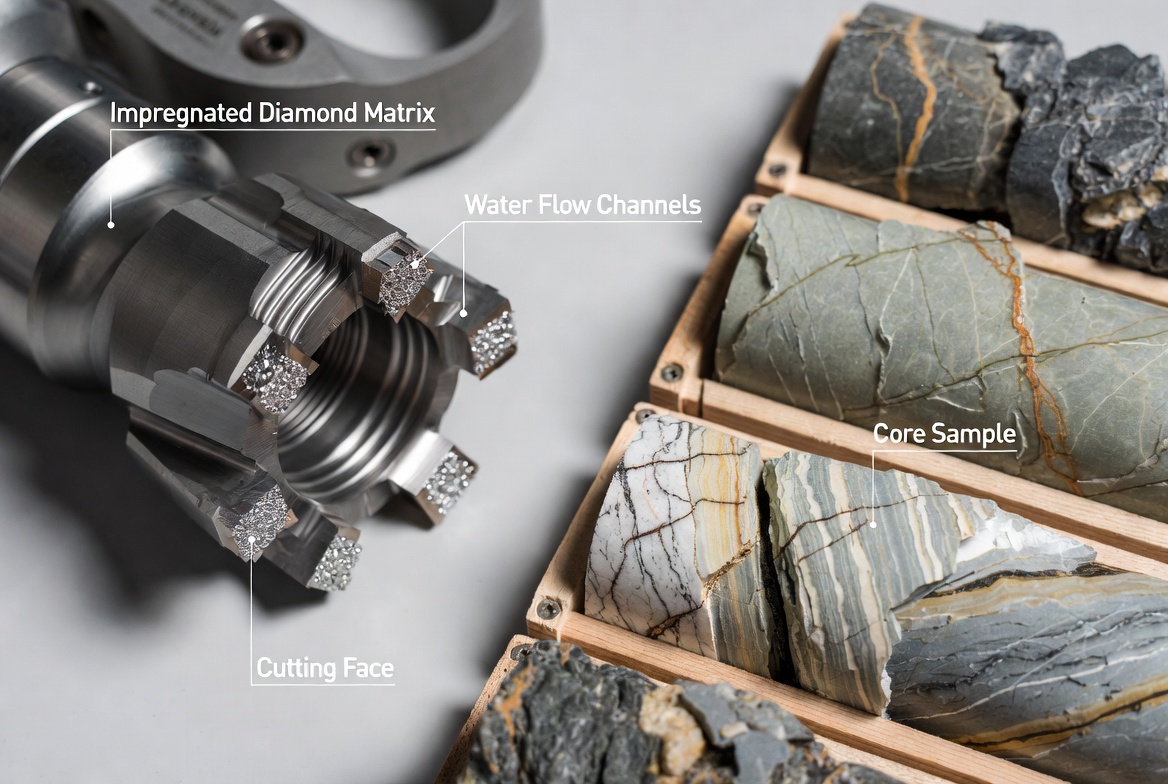

Diamond core bits use industrial diamonds in a metal matrix to cut rock; the type of matrix and crown profile must be tuned to rock hardness, abrasivity, and structure. Softer matrices expose new diamonds quickly in hard, non‑abrasive ground, while harder matrices hold diamonds longer in abrasive conditions. [prdrigs]
In our own field projects, we consistently see that properly matched bits reduce reaming runs, improve hole straightness, and significantly extend average meters per bit before change‑out. This aligns with industry experience that bit selection is one of the highest‑leverage cost factors in a diamond drilling program. [tyrolit-construction.com]
High‑quality drill rods transmit torque and pullback while maintaining thread integrity and minimizing deviation, especially on deep or inclined holes. Wireline core barrel systems (single, double, or triple tube) protect the core and allow retrieval without tripping the entire rod string, which improves safety and productivity for the crew. [litechtools]
For weak or highly fractured formations, triple‑tube barrels are often recommended because they support the core more completely, preserving delicate structures that are critical to geotechnical and structural interpretation. [prdrigs]

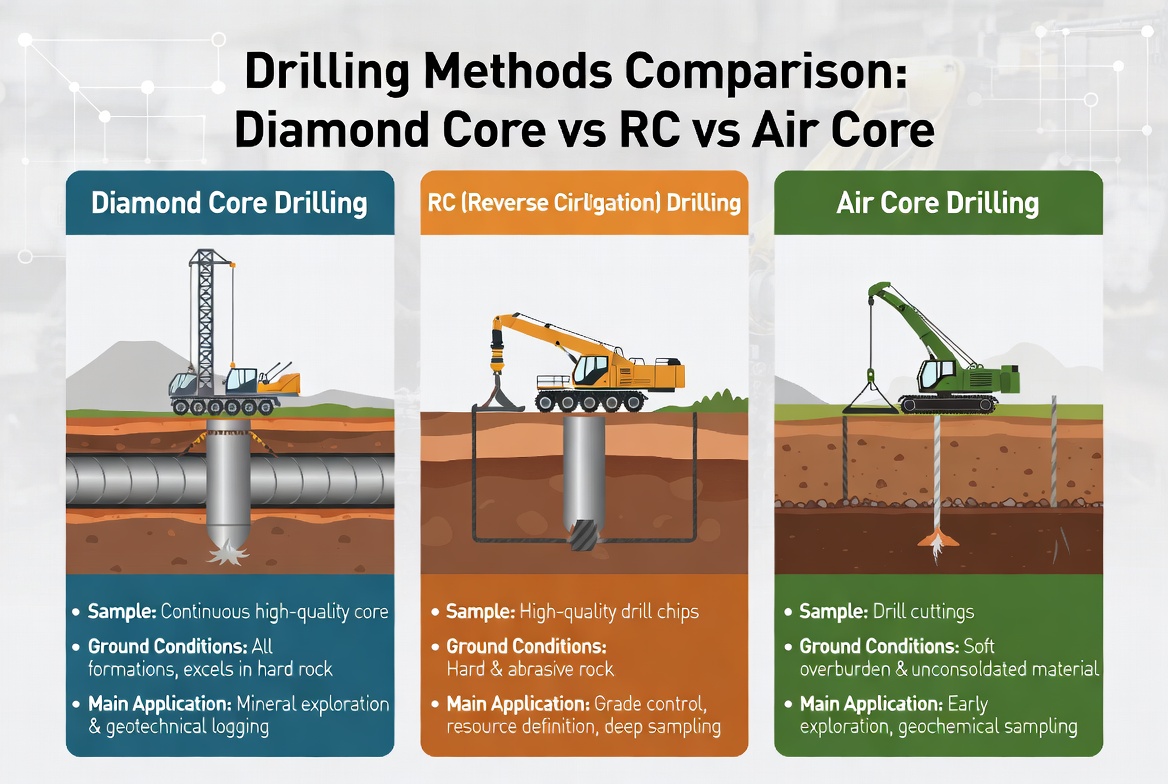

Diamond drilling is not the only exploration method available, and understanding where each technique fits will help you design a cost‑effective drilling strategy. [kerexchina]
Air core drilling uses a rotating, hardened bit and compressed air to lift chips to surface, making it faster and more economical in soft, unconsolidated overburden, but it only provides fragmented samples. Diamond drilling, by contrast, retrieves a solid core that preserves rock structure, which is essential for resource modeling and structural geology. [litechtools]
Reverse circulation (RC) drilling also delivers chips, but with a dual‑wall pipe and an internal sample return that minimizes contamination and works well for rapid grade control and preliminary resource evaluation. It typically drills faster and at lower cost per meter than diamond drilling, but the loss of structural information makes it less suitable for final feasibility‑level work and complex geotechnical tasks. [prdrigs]
| Method | Sample type | Best ground | Typical use case |
|---|---|---|---|
| Diamond core | Solid continuous core | Hard–very hard rock | Detailed geology, resource estimation, geotechnical (kerexchina) |
| RC | Dry rock chips | Hard, competent rock | Fast resource drilling, grade control (kerexchina) |
| Air core | Loose chips, cuttings | Soft, unconsolidated | Reconnaissance and geochemical screening (kerexchina) |
In practice, many mines use a staged approach: air core or RC for early‑stage coverage and diamond core drilling to answer high‑value questions and support final investment decisions. [imarcglobal]
From a UX perspective, the best drilling programs are those that are predictable, safe, and easy for crews to execute consistently. Field experience and industry guidance highlight three pillars for success: preparation, disciplined technique, and equipment care. [concreteinsight.wordpress]
Recommended best practices include: [concreteinsight.wordpress]
1. Stabilize the rig: Set up on level, solid ground or a properly grouted base; fully anchor surface or stand‑mounted rigs to avoid vibration and deviation.
2. Verify locations and utilities: Confirm drill collar position, angle, and any nearby services or hazards before spudding in.
3. Control pressure and RPM: Let the bit do the work; excessive feed causes wandering, overheating, and rapid bit wear.
4. Manage cooling water and slurry: Maintain steady flow to cool the bit and carry cuttings away; use appropriate collection and treatment systems.
5. Inspect equipment frequently: Check rods, threads, hoses, and safety interlocks at the start of every shift.
6. Use proper PPE and training: Enforce hearing, eye, hand, and respiratory protection, and ensure operators are trained in both operation and emergency procedures.
These practices not only extend bit and rig life but also reduce unplanned downtime, reaming runs, and safety incidents over the life of the project. [tyrolit-construction.com]
The drilling industry is evolving quickly, driven by the need for deeper, more complex deposits, tighter ESG expectations, and pressure to improve productivity. Many of these trends directly influence how we design and operate hydraulic wireline rigs and core drilling tools. [futuremarketsinc]
Major trends include: [futuremarketsinc]
- Automation and smart control: Integration of sensors, data loggers, and semi‑autonomous feed controls to optimize penetration, reduce human error, and capture high‑resolution drilling data.
- Improved diamond materials: Advances in synthetic and engineered diamond matrices are extending bit life and enabling better performance in ultra‑abrasive formations.
- Remote and modular operations: Heli‑portable and modular rigs support low‑impact exploration in remote, sensitive environments where building access roads is not acceptable.
- Safety and ESG focus: Quieter, lower‑emission power packs, better slurry handling, and system‑level noise and dust suppression respond to stricter regulatory and community standards.
Manufacturers that invest in these areas are better positioned to support clients through deeper, more complex drilling campaigns while helping them meet global sustainability and reporting requirements. [futuremarketsinc]
From an end‑user's perspective, the difference between a generic rig and a fit‑for‑purpose hydraulic wireline system shows up in total cost per meter, not in the headline purchase price. Field feedback from professional drillers consistently emphasizes four areas where specialized manufacturers create real value: [heicoin]
- Application‑driven design: Surface, heli‑portable, and underground rigs are engineered around actual use cases, including weight limits, access, mast geometry, and footprint constraints.
- Integrated tooling packages: Matching rigs with the right bits, rods, and core barrels simplifies procurement and ensures compatibility in demanding programs.
- Lifecycle support: Fast parts supply, training, and on‑site commissioning reduce ramp‑up time and protect utilization rates.
- Quality and durability: Heavy‑duty structures, high‑spec hydraulics, and robust controls stand up to 24/7 drilling in hostile climates.
When crews report that "the rig just runs" and that bit life is better than expected, that confidence quickly flows through to better plan compliance, fewer schedule overruns, and safer, more predictable operations. [concreteinsight.wordpress]
For project managers and technical leads, selecting the right combination of rig, core drilling tools, and operating parameters begins with a clear understanding of objectives and constraints. [heicoin]
A practical decision checklist includes: [litechtools]
- Define your primary goal: Exploration, resource definition, geotechnical investigation, or construction support.
- Characterize the ground: Hardness, abrasivity, structure, water inflows, and expected depth.
- Assess access conditions: Road access vs helicopter support, surface vs underground, available laydown space.
- Set performance targets: Required depth, daily meterage, core size, and acceptable deviation.
- Evaluate support requirements: Power supply, water and slurry management, safety systems, and crew skill level.
Working with a specialist manufacturer to align these factors with a specific CORE SURFACE DRILL, CORE HELI DRILL, CORE U/G DRILL, and tailored diamond drilling tool package ensures that your drilling system is not just technically compatible, but optimized for your exact business case.
If you are planning a new exploration or geotechnical program and need reliable diamond core data, your choice of rig and tooling will determine how much value you get from every drilled meter. By combining application‑specific CORE SURFACE DRILL, CORE HELI DRILL, and CORE U/G DRILL platforms with high‑performance diamond bits, rods, and core barrels, you can significantly improve safety, core recovery, and cost per meter over the life of your project. [heicoin]
Talk to our engineering team about your geology, access constraints, and performance targets, and we will help you specify a hydraulic wireline core drilling package tailored to your objectives. Whether you are mobilizing to a remote greenfield site or working in a tight underground heading, we can support you from concept through commissioning so your crews can focus on drilling high‑quality core, not fighting the equipment.
Q1. What is the main advantage of diamond core drilling in mining?
A1. The main advantage is that diamond core drilling recovers a continuous, intact core that preserves rock structure, mineralization, and geotechnical features, giving geologists and engineers much higher confidence than chip‑based methods. [kerexchina]
Q2. When should I choose diamond drilling instead of RC or air core?
A2. Choose diamond drilling when you need high‑quality geological, structural, or geotechnical data for resource estimation, mine design, or critical infrastructure, especially in hard rock; use RC or air core for faster, lower‑cost reconnaissance and grade control where structural detail is less critical. [prdrigs]
Q3. Why are hydraulic wireline rigs preferred for deep surface holes?
A3. Hydraulic wireline rigs offer precise control of feed and rotation, high pullback capacity, and rapid core retrieval without tripping rods, which improves safety, reduces non‑productive time, and keeps deep holes straighter. [kerexchina]
Q4. How do I improve bit life in abrasive formations?
A4. Match the bit matrix to ground abrasivity, control weight‑on‑bit and RPM to avoid overheating, maintain consistent cooling water flow, and monitor torque and penetration to adjust parameters before damage occurs. [tyrolit-construction.com]
Q5. What safety measures are essential when operating diamond core rigs?
A5. Critical measures include proper PPE, stable rig setup and anchoring, regular equipment inspections, safe handling of rods and wireline tools, clear procedures for managing water and slurry, and thorough operator training on both normal operations and emergency response. [concreteinsight.wordpress]
