Features

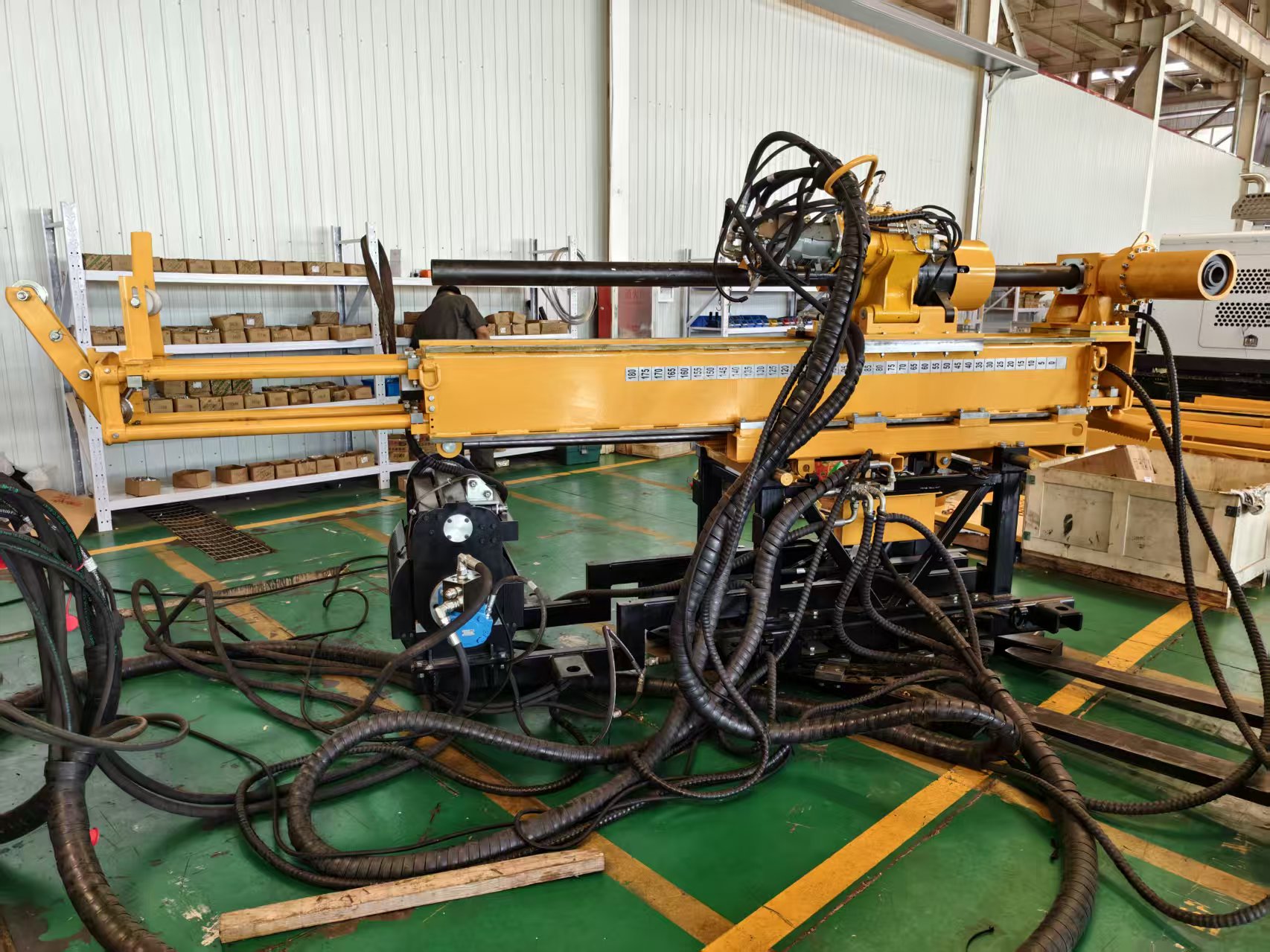

The CUG600 full-hydraulic underground core drilling rig is a high-efficiency solution specifically engineered for core sampling operations underground. Utilizing advanced wireline core drilling technology, it delivers high-precision drilling at any inclination underground, and is equally suited for surface drilling and exploration projects under complex geological conditions.
1. Compact and Modular Design The rig features a compact structure with a minimal footprint, making it ideal for operations in confined underground spaces. Its modular layout simplifies maintenance and servicing, reducing downtime and improving operational efficiency.
2. Exceptional Rigidity and Reliability Engineered for demanding environments, the CUG600 offers outstanding structural integrity and reliability, ensuring stable performance during high-intensity, continuous drilling operations.
3. Advanced Electro-Hydraulic Control System Equipped with automated program control, the system enhances precision and response speed. The simplified design reduces operator workload, streamlines maintenance, and significantly boosts core sampling efficiency and borehole quality.
4. Integrated Drill Head and Chuck Design The synchronized movement between the Drill head and the chuck improves tripping efficiency and reduces manual labor intensity, optimizing overall drilling productivity.
Technical specifications
Drilling Capacity |
Rod Diameter | Downward | Horizontal | Upward |
N | 600m | 500m | 500m |
H | 350m | 300m | 300m |
Hydraulic System |
Rated Pressure | 26MPa |
Cooling Method | Water Cooling |
Electromotor |
Rated Power | 75KW |
Rated RPM | 1485RPM |
Drill Head |
Maximum Torque | 1030Nm |
Maximum RPM | 1140rpm |
Feed Stroke | 1800mm |
Through Hole Diamter | 97mm |
Pull Force/Push Force | 65KN/65KN |
Coring Winch |
Maximum Pull Force | 10KN (Bare Drum) |
Maximum Pulling Speed | 100m/min (Bare Drum) |
Rope Diameter | 6mm |
Rope Volume | 800m |
Mast |
Length | 3.3-5.8m |

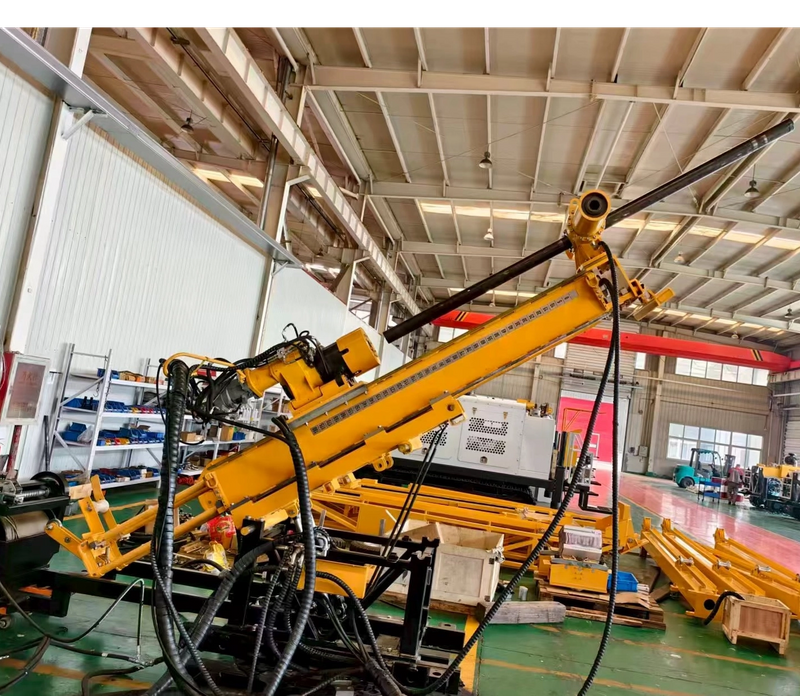

Drilling Angle | -90°-90° |
Damp Stroke | 1.1m |
Foot Clamp |
Applied Rod | N/ H |
Dimensions |
Rig Unit | 3700x1790x2160mm |

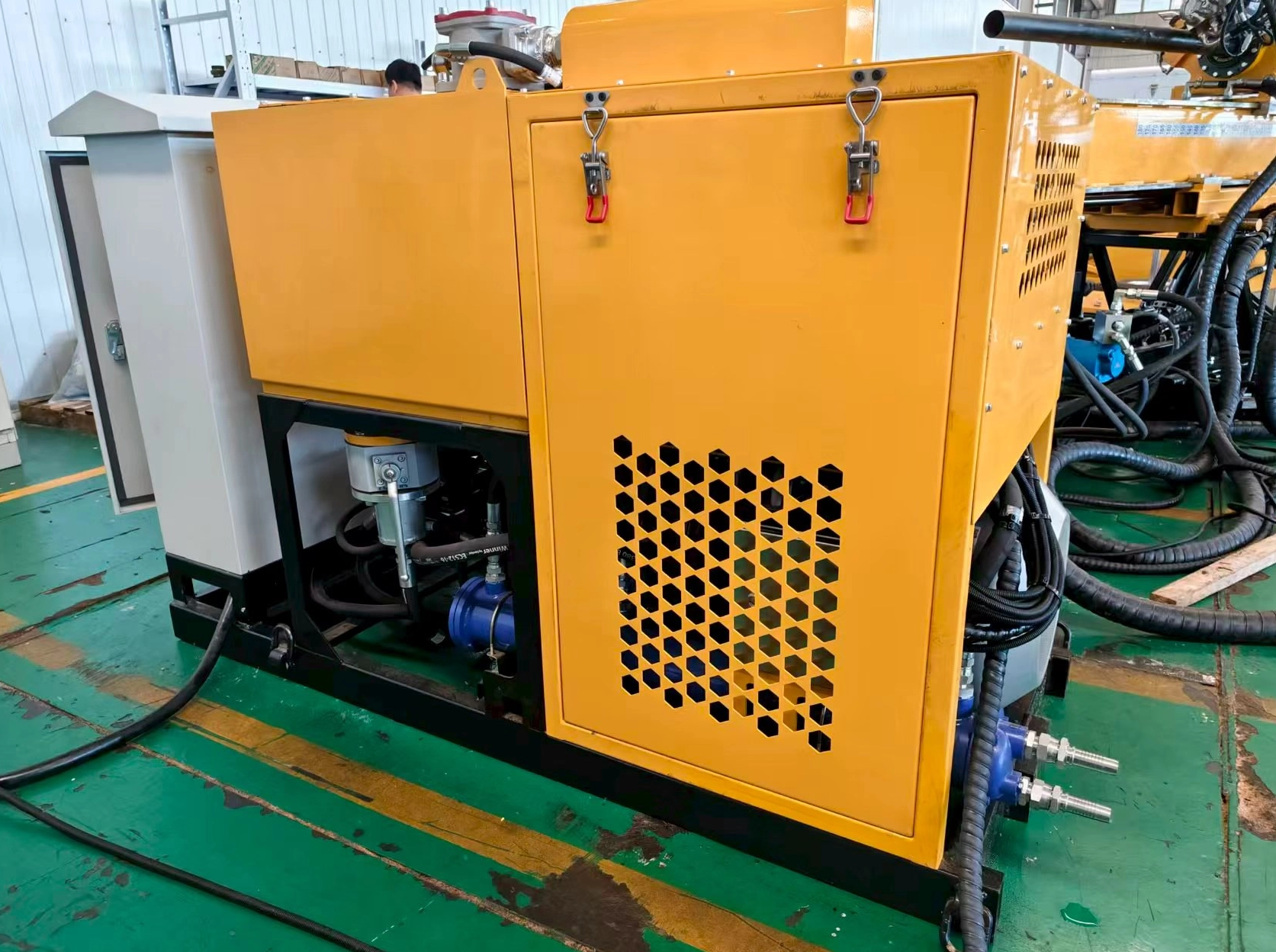

Power Unit | 2980x1210x1560mm |
Control Panel | 785x680x950mm |
Weight |
Rig Unit | 0.2 Tonne |
Power Unit | 1.5 Tonne |
Control Panel | 2.6 Tonne |
