Features

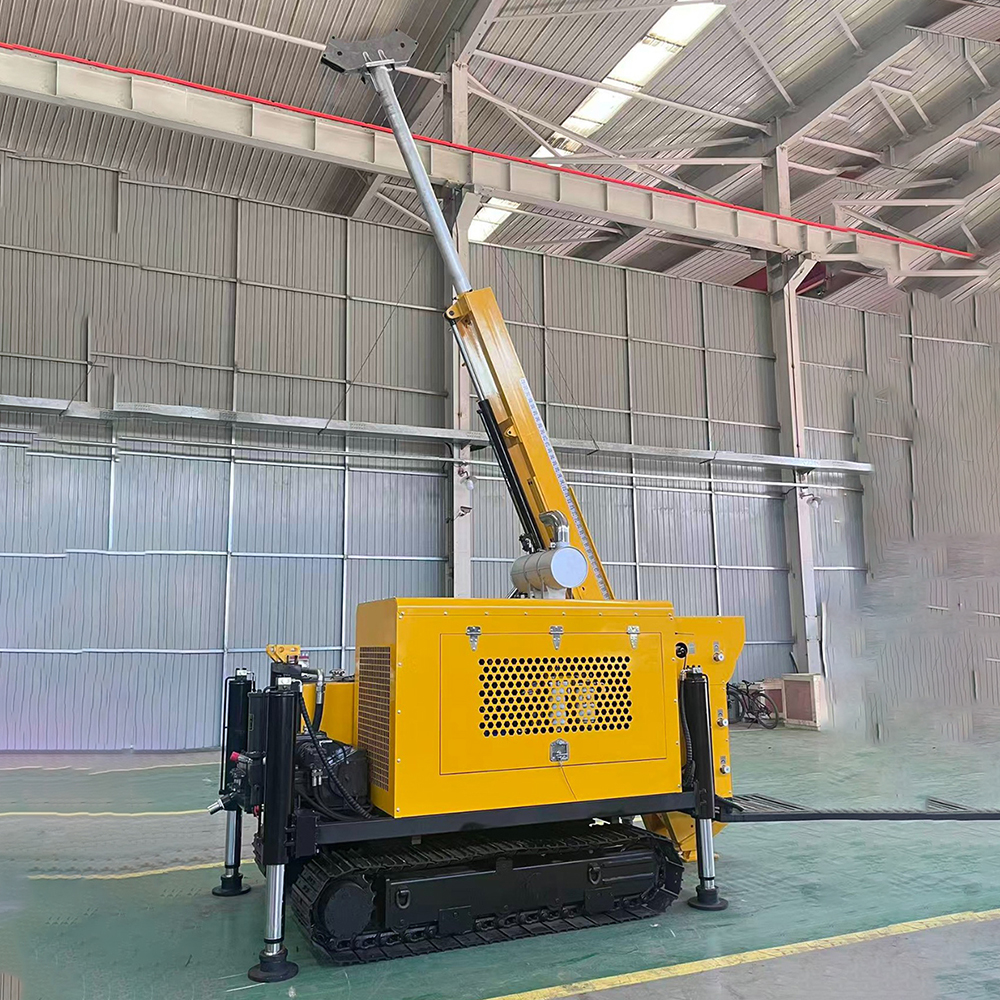

● Crawler design, hydraulic drive for all machine functions, the equipment is operated by remote control and hydraulic handle (pilot controlled electro-hydraulic ratio) for walking, ensure personnel safety during equipment movement.

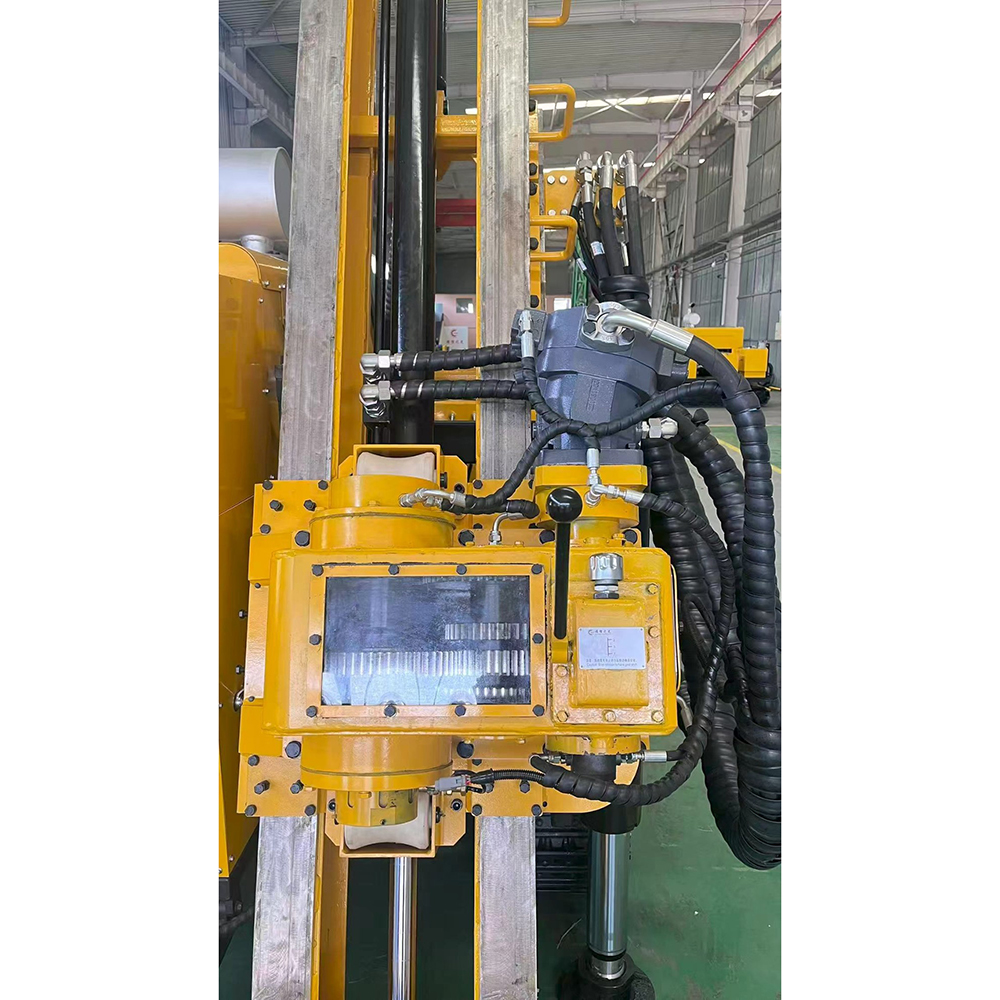

● Side sliding chuck drive drill head, quickly release the hole position for core extraction operation, higher safety and operational efficiency.
● The chuck clamping adopts nitrogen gas spring to ensure long -term release and clamping operation.
● The chain double speed mechanism ensures that the equipment has a travel distance of 3200mm, reducing the weight of the equipment.
● Cummins 4-cylinder diesel engine meets emission standards and reduces air pollution.

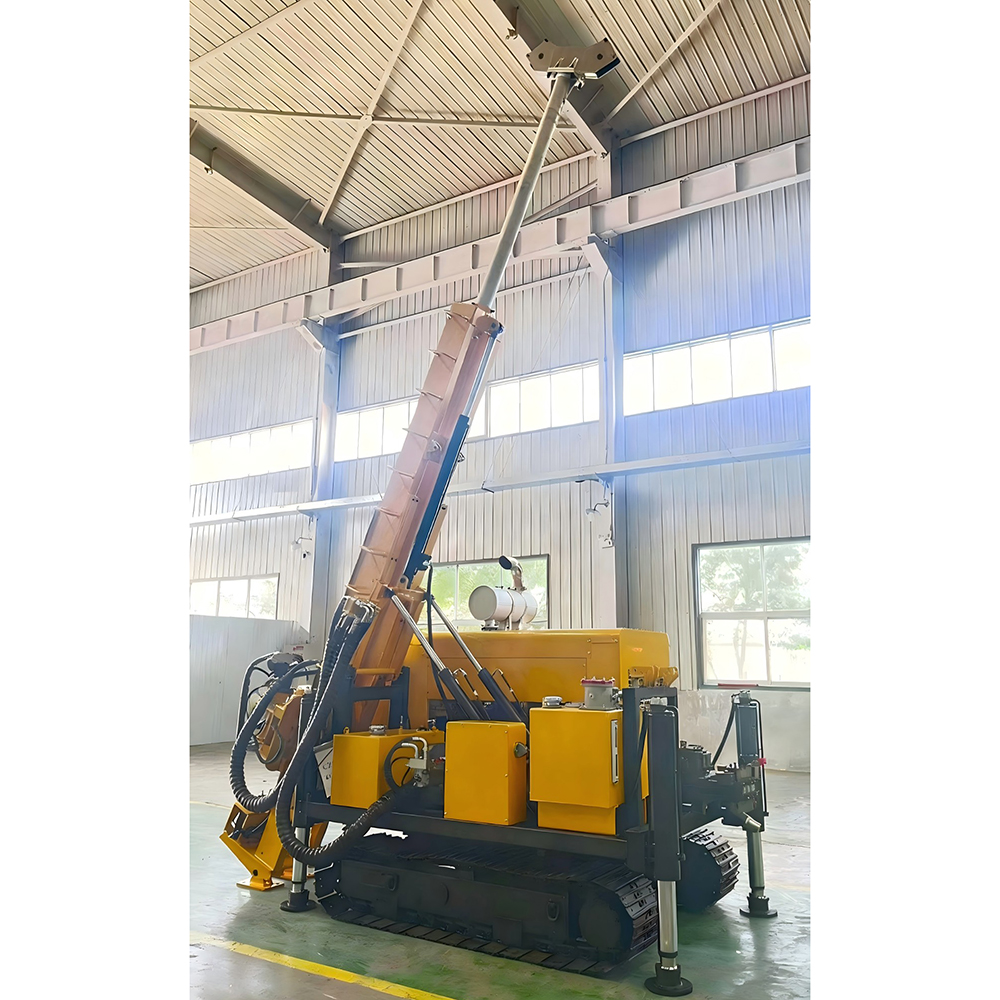

● Aluminum alloy mast, lightweight, easy to install and disassemble.
● The compact body structure facilitates the relocation of equipment on narrow and steep roads.
● The unique design of the hydraulic system adopts load sensitive control for the main and auxiliary systems, and a large number of imported threaded plug-in valve groups are used, with high integration, simple system, and high efficiency.
After Sales Service
Our expert service engineer team is globally available, 24/7.
Note
Rigs are available with different mounting options and diesel or electric drive options. Please contact sales@cortechdrilling.com for more information.
Technical Specifications
Drilling Capacity |
Diameter of Drill Rod | B,N,H,P |
Drilling Depth | 1,000m 800m 500m 300m |
Drill Head |
Drive Mode | Danfoss Hydraulic Motor |
Drill Head Side Sliding | Hydraulic Drive |
Transmission Gear Box Speed | Manual 3rd gear 1100rpm |
Torque | 2500Nm |
Through-Hole Diameter | 95mm |
Engine |
Model | Cummins QSB3.9 |
Rated Power | 93KW@2200rpm |
Control System | ECM |
Hydraulic System |
Rated Working Pressure | 28Mpa |
Cooling Method | Water-Cooling |
Main and Auxiliary Pumps | Danfoss |
Main Hydraulic Valve | Taiwan Oil Power |
Mast |
Lifting Method | Hydraulic Cylinder |
Drilling Angle | 40-90° |
Push Force | 2500kg |
Pull Force | 8000kg |
Feed Stroke | 3200mm |
Total Length | 5.5m |
Core Picking Winch |
Drive Mode | Hydraulic Motor |
Boosting Power | 1100kg (Empty Drum) |
Increase Speed | 110m/min |
Wire Rope | 6mm*850m |
Mud Pump |
Model | BW160/10 |
Maximum Pressure | 10Mpa |
Maximum Flow Rate | 160L/min |
Foot Clamp |
Opening and Closing Form | Hydraulic Clamping, Release |
Maximum Through-Hole Diameter of Gripper | 125mm |
Steel Track |
Climbing Angle | 30° |
Walking Speed | 4.5km/h |

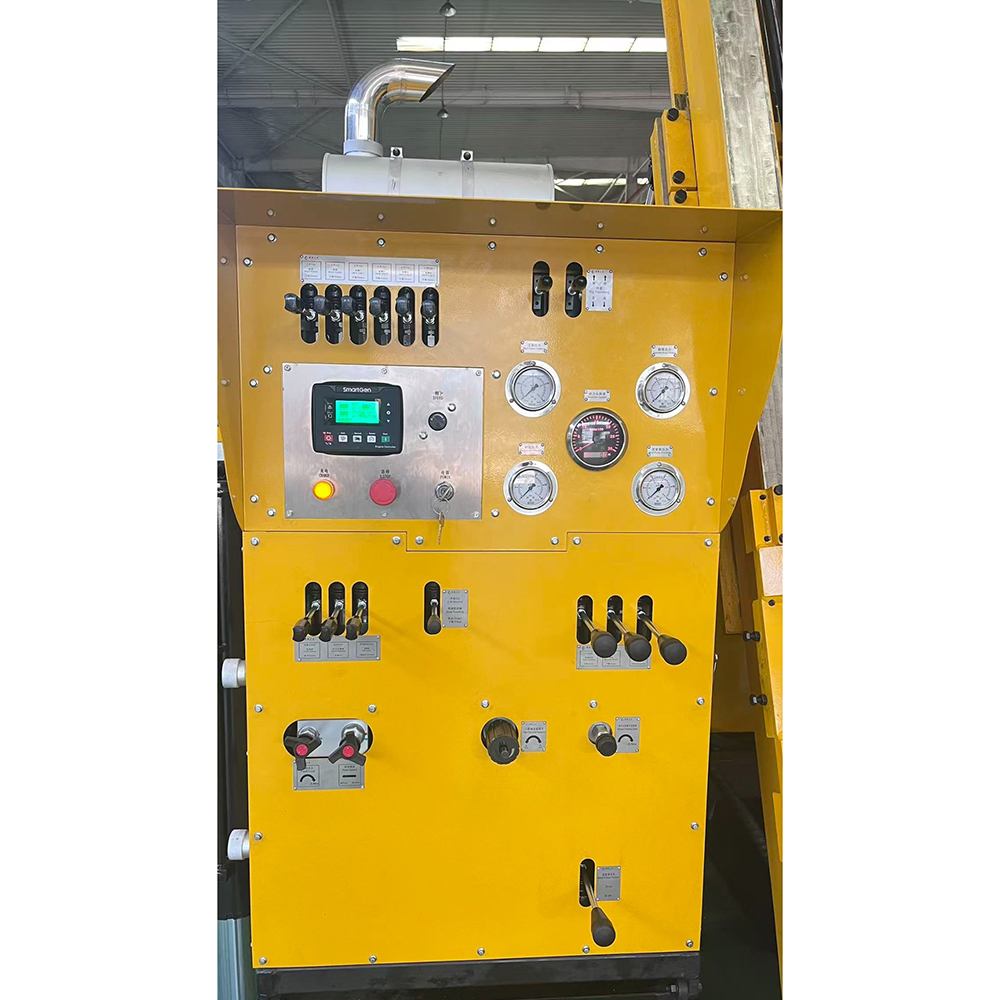

Control Form | Remote Control, Hydraulic Handle Control |
Mud Mixer |
Maximum Torque | 60Nm |
Maximum Speed | 2000rpm |
Dimensions and Weight |
Transport Size | 5500*1800*2400mm |
Gross Weight | 5800kg |
