（former CSD1300L）
Features

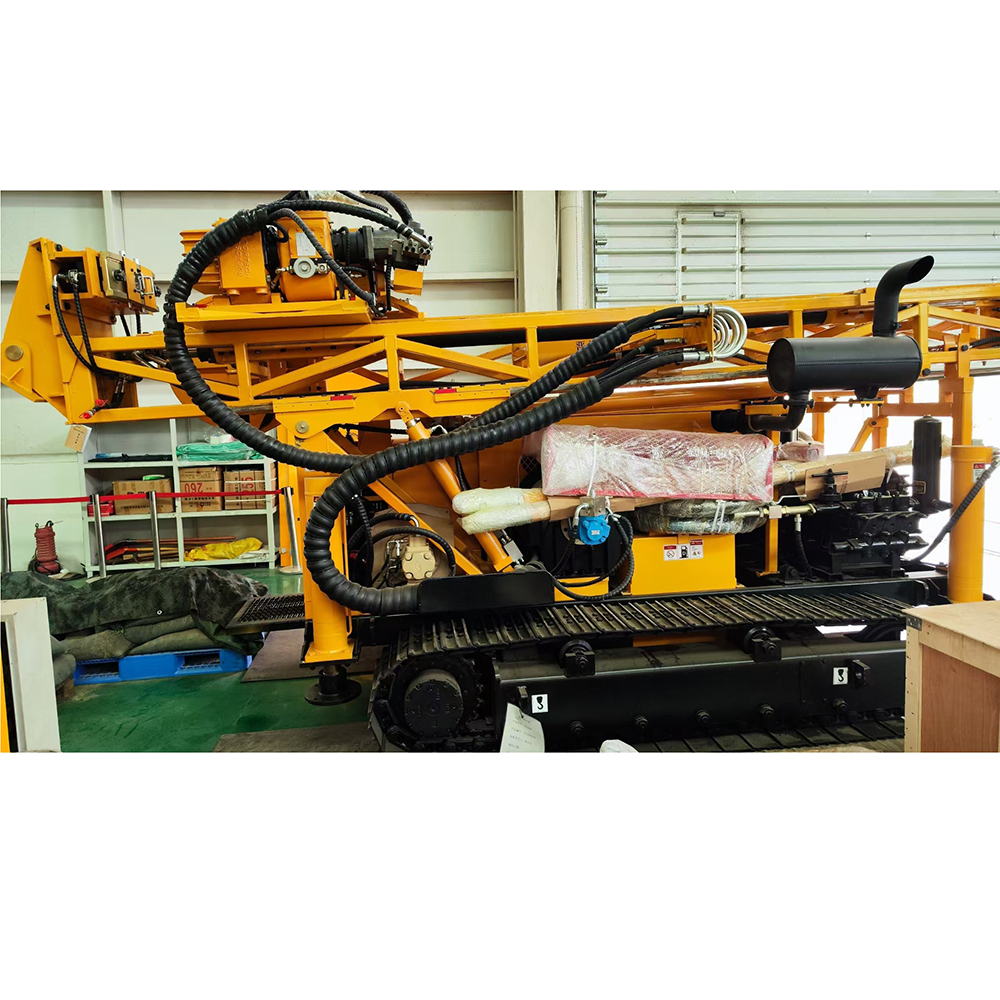

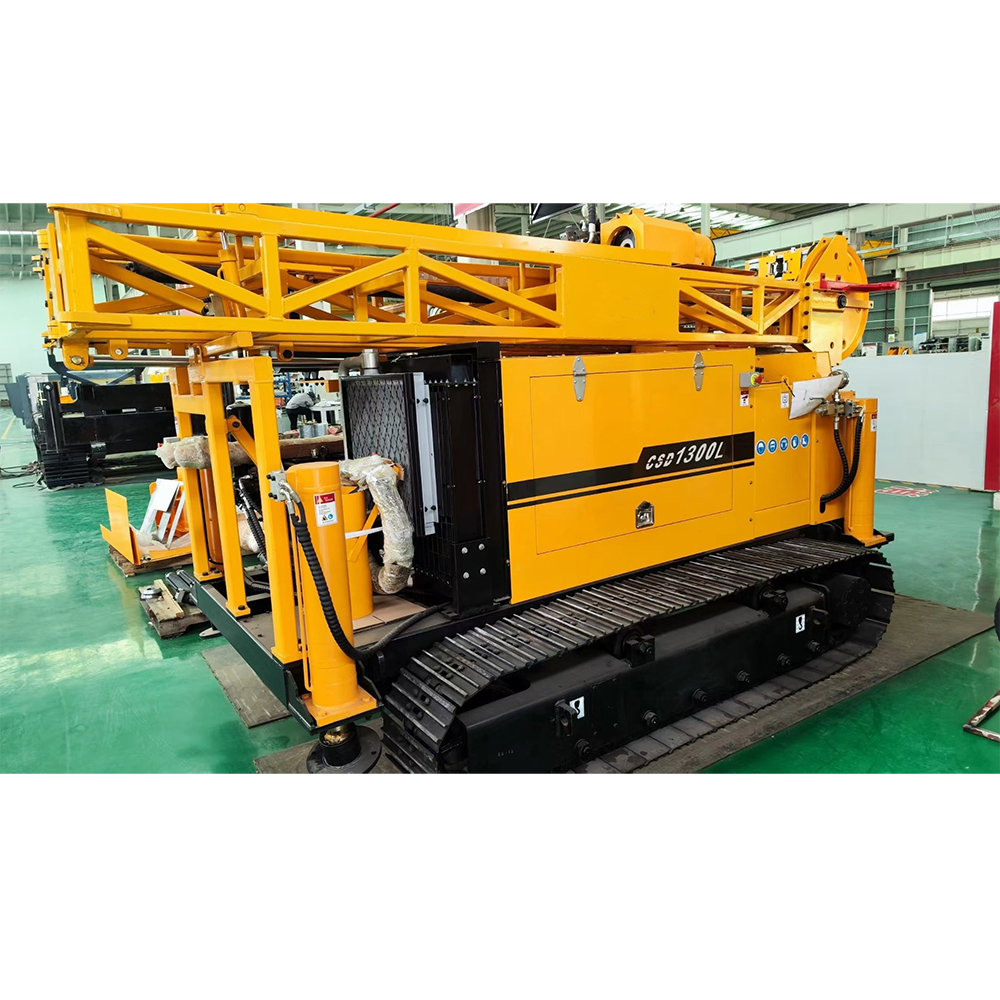

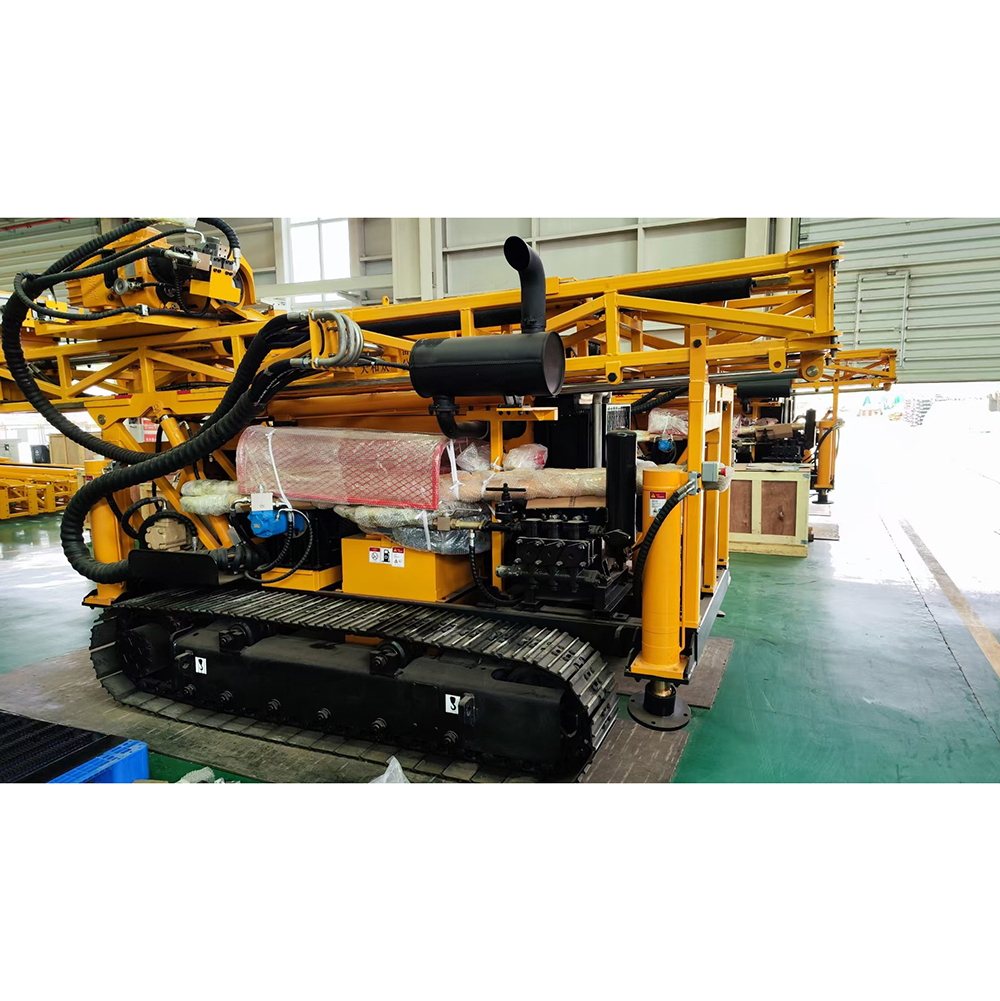

● Crawler track mounted；
● 4 speeds gear box ；
● Big chuck diameter up to 117mm；
● Stroke of drill head 3.5m suitable for 3m length rods；

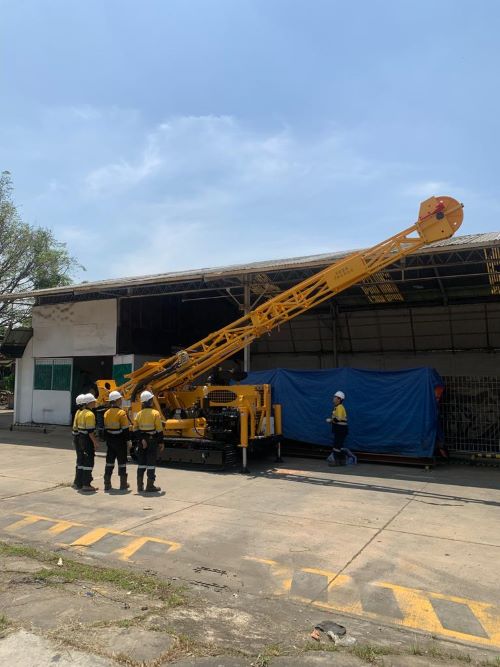

● Mast has dump function；

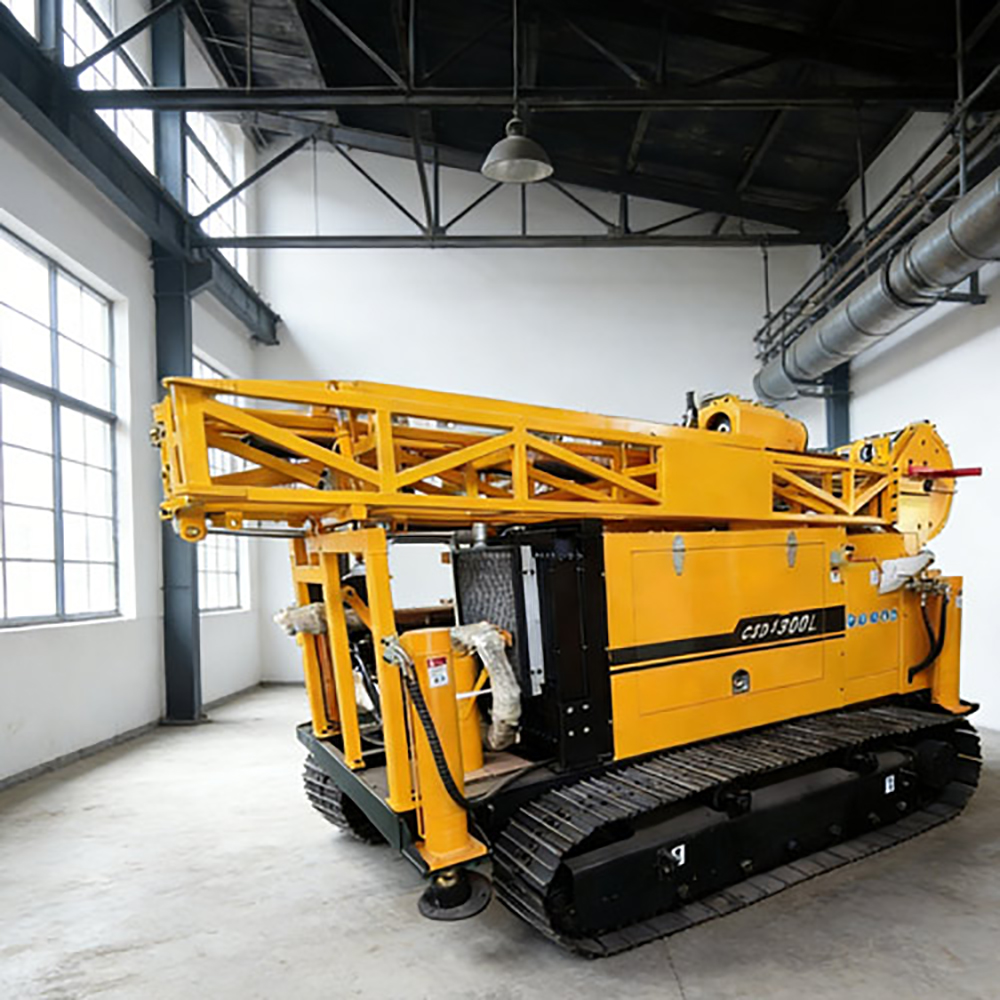

● Mast folding design minimizes transportation dimensions；
● Independent hydraulic leveling jacks;
● Accurate control of feed pressure;
● Floating head protects the rod threads during make up and break out;
● Real time display of drilling data on the control panel gauges;
● Hydraulically controlled mud pump flow at the rig control panel;
● Premium hydraulic components of European/US origin;
● Powerful main winch of US origin；
● Wire line winch with automatic rope spooler.
After sales service
Our expert service engineer team is globally available, 24/7.
Note
Rigs are available with different mounting options and diesel or electric drive options. Please contact sales@cortechdrilling.com for more information.
Technical Parameter
Drilling Capacity | |
Diameter of Drill Rod | B, N, H, P |
Drilling Depth | 1,300m 1,000m 700m 400m |
Engine | |
Model | Cummins 6BTA5.9-C180 |
Type | Turbo Charge |
Power | 132KW |
RPM | 2,500rpm |
Drill Head | |
Max Torque | 4,257Nm |
Max Rotation | 1,182rpm |
Feed Stroke | 3,500mm |
Max Inside Diameter | 117mm |
Pull/Push | 127KN/50KN |
Main Winch | |
Max Pull | 68KN |
Pulling Speed | 28m/min |
Rope Diameter | 16mm |
Rope Length | 30m |
Wireline Winch | |
Max Pull | 11KN(bare drum) |
Pulling Speed | 120m/min |
Rope Diameter | 6.6mm |
Rope Length | 1,000m |
Mast | |
Length | 10m |
Drilling Angle | 45°-90° |
Dump Length | 1.1m |
Foot Clamp | |
Drill Rod | B, N, H, P |
Travelling Capacity | |
Max Climbing Angel | 30° |
Max. Travelling Speed | 2km/h |
Transporting Dimensions | |
L*W*H | 5,100×2,350×2,600mm |
Total Weight | |
Total Weight | 8.5t |
