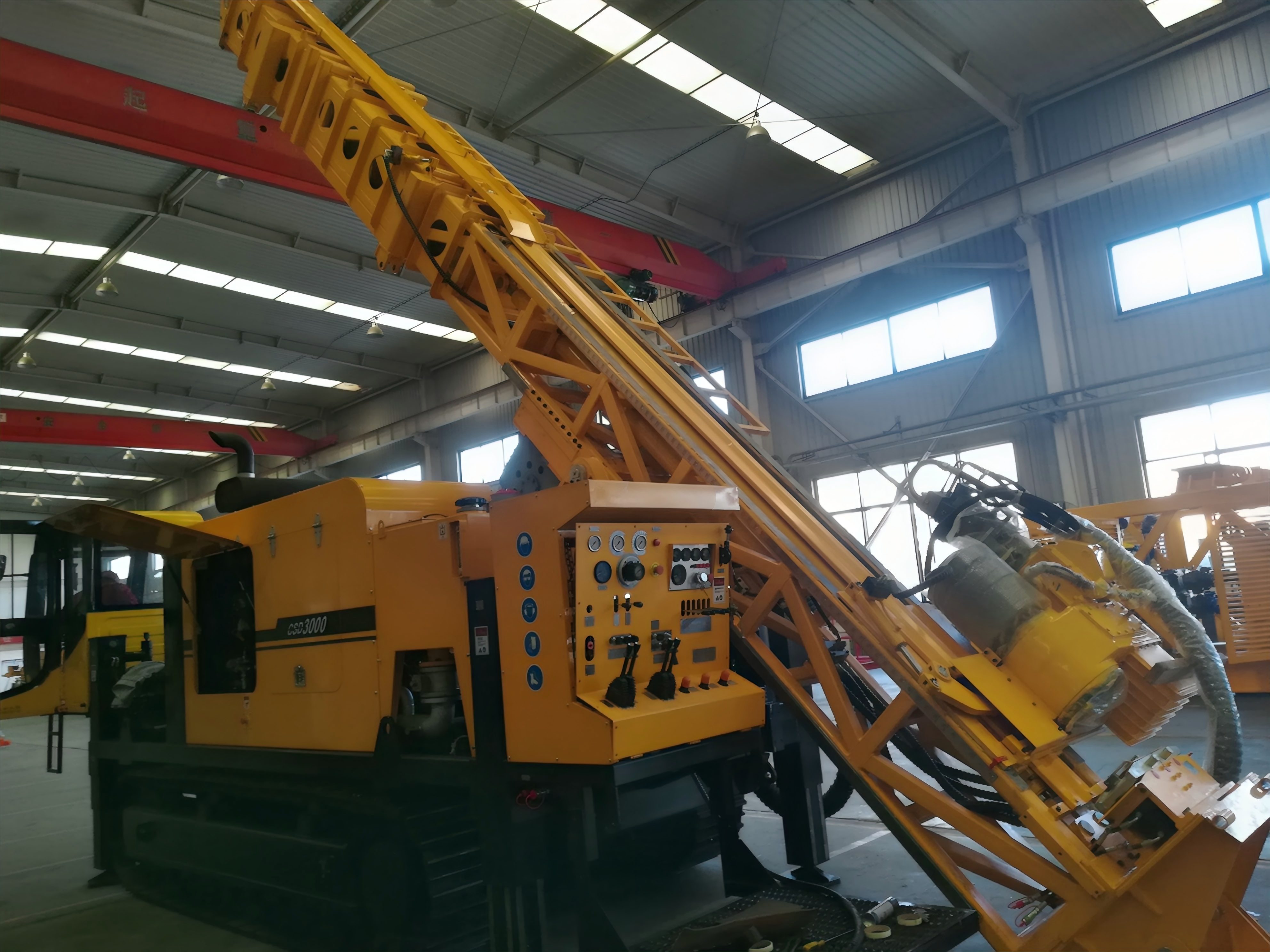

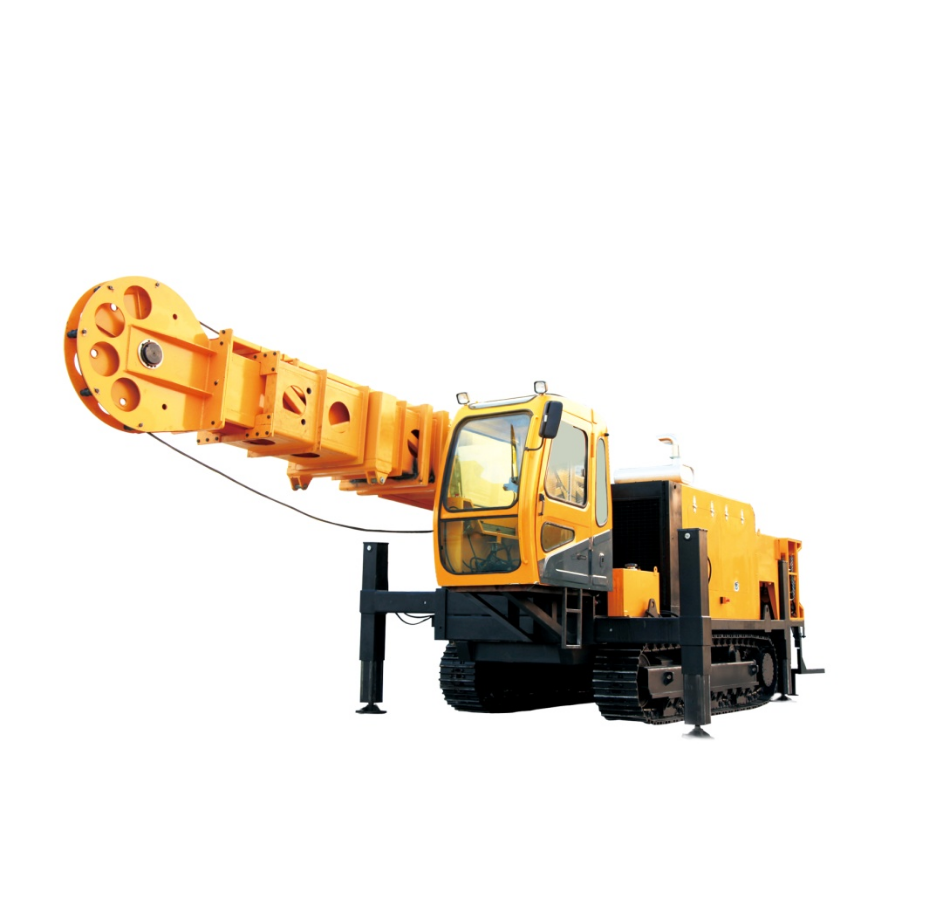

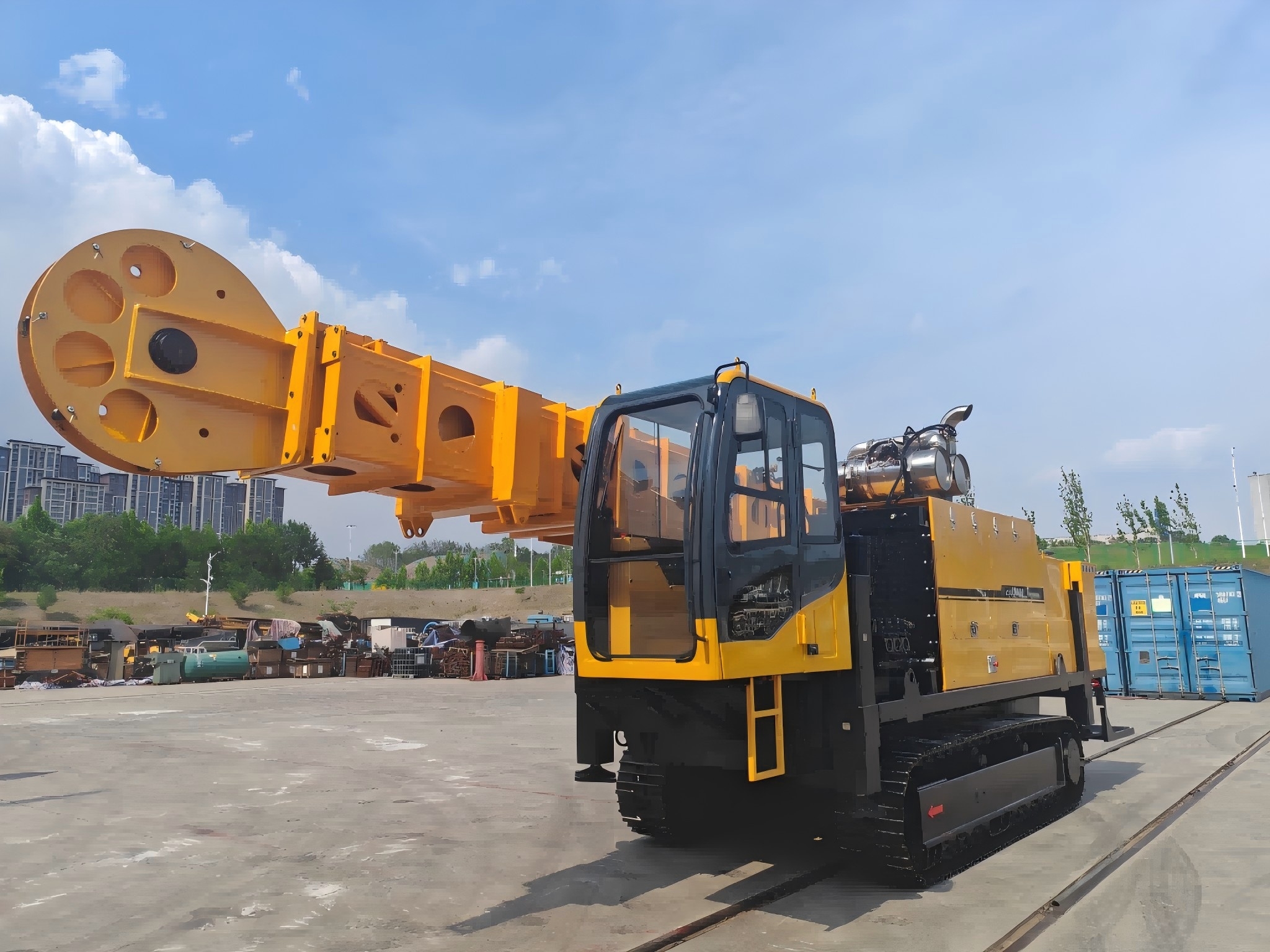

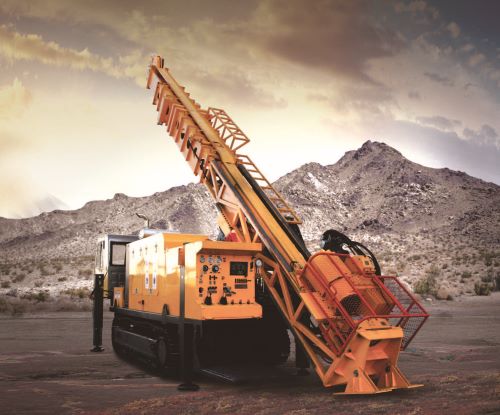

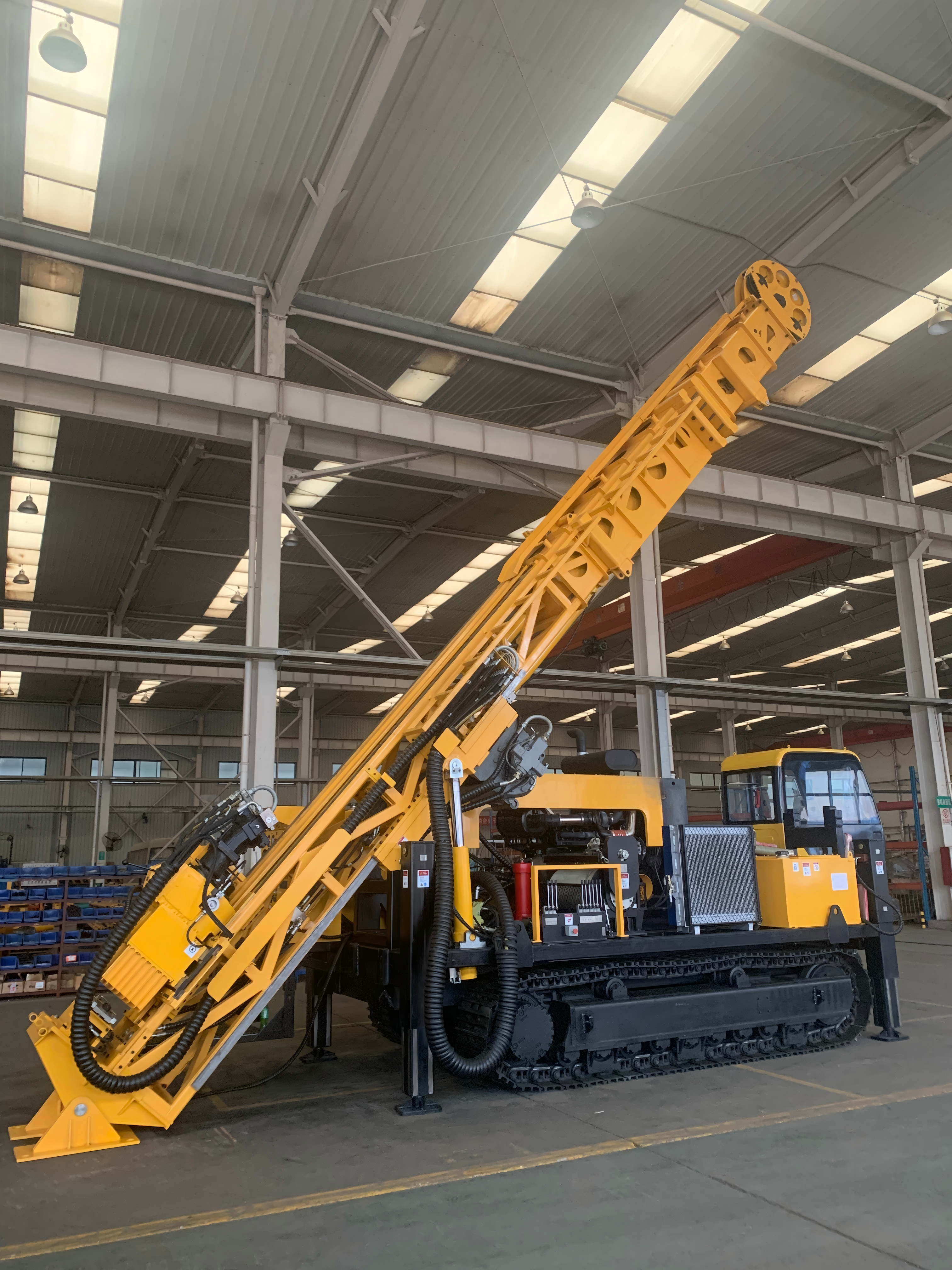

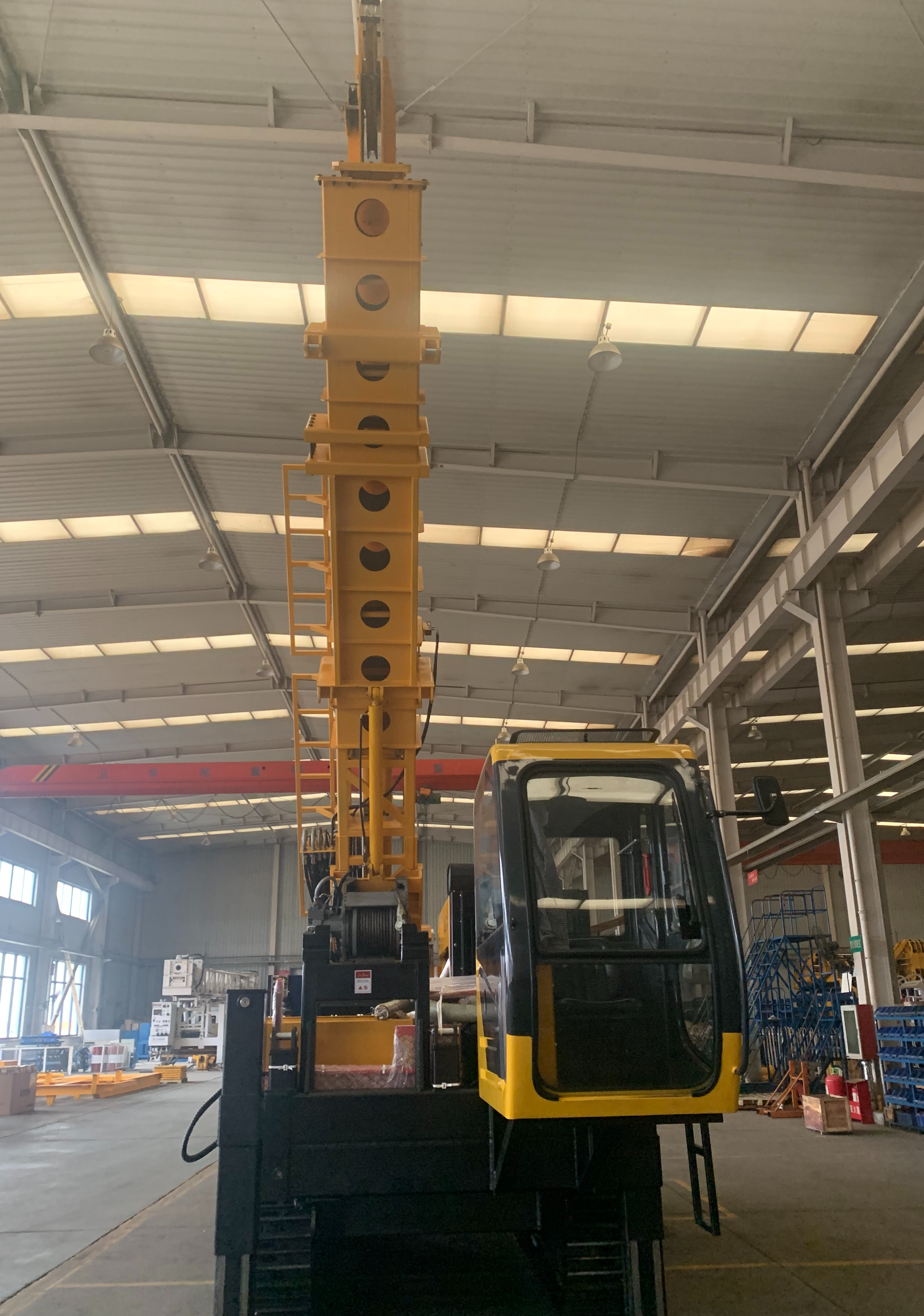

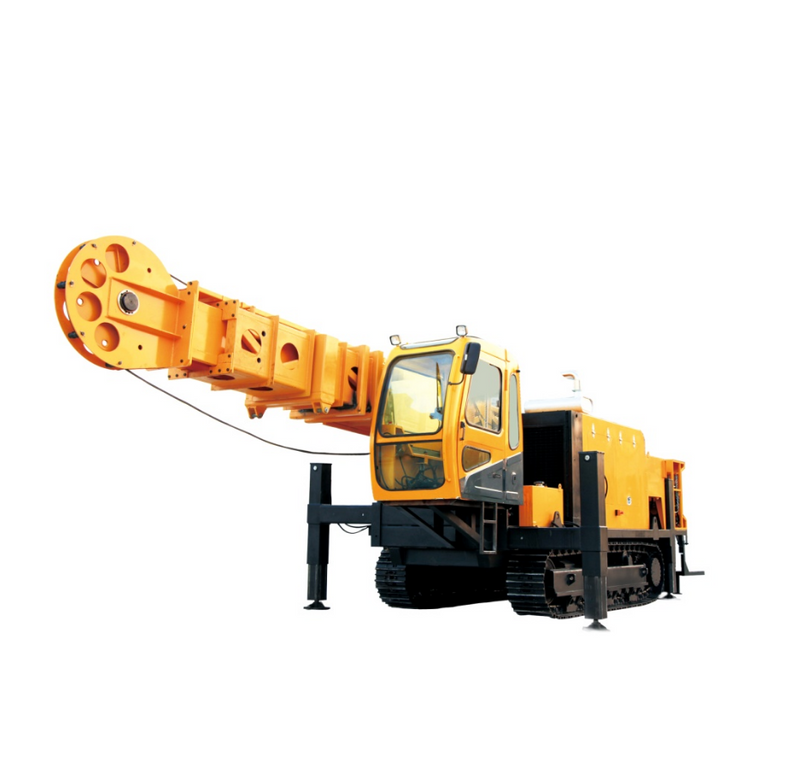

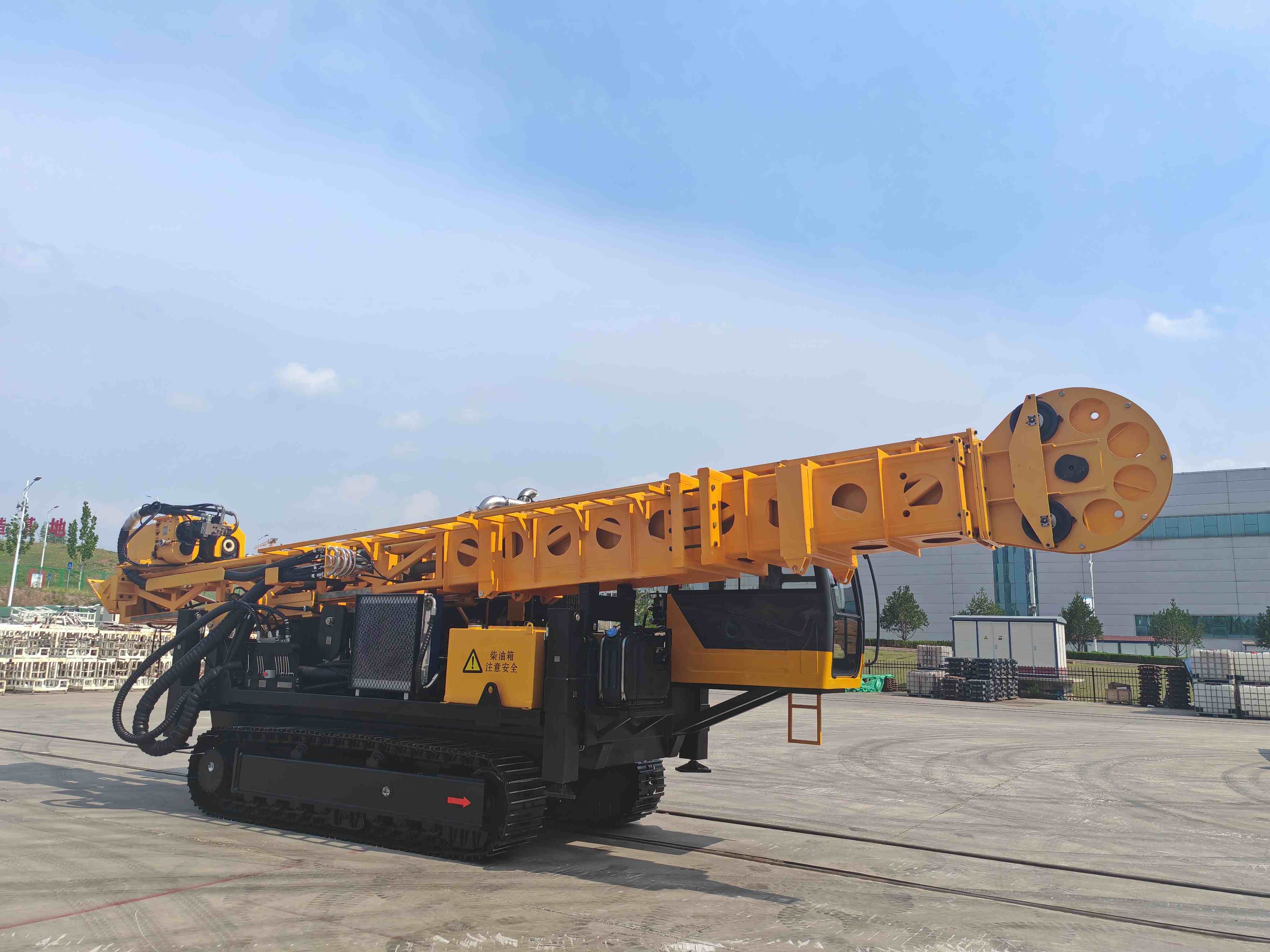

（former CSD3000）
Features
●Crawler mounted design;
●4 speeds gear box ；
●Big chuck diameter up to 117mm；
●Independent hydraulic leveling jacks;
●Drill head has sliding function ;
●Telescopic mast;
●Mast has dump function；
●The rod collection support with capacity of 200x9m(NS rod) in the middle part of the mast；
● Independent hydraulic cooling system；
●Premium hydraulic components of European/US origin。
After Sales Service
Our expert service engineer team is globally available, 24/7.
Note
Rigs are available with different mounting options and diesel or electric drive options. Please contact sales@cortechdrilling.com for more information.
Technical Parameter:
Drilling Capacity | |
Dia of Drill Rod | BS 、NS 、HS 、PS |
Drilling Depth | 3,000m 2,300m 1,600m 1,050m |
Engine | |
Model | Cummins 6LTAA8.9-C325 |
Type | Turbo |
Power | 239KW |
RPM | 2,200rpm |
Drill Head | |
Max Torque | 8,170Nm |
Max Rotation | 1,150rpm |
Feed Stroke | 3,450mm |
Max Inside Diameter | 117mm |
Pull/Push | 250KN/90KN |
Main Winch | |
Max Pull | 185KN |
Pulling Speed | 25m/min(low),60m/min(high) |
Rope Diameter | 24mm |
Rope Length | 40m |
Wireline Winch | |
Max Pull | 18KN（bare drum） |
Pulling Speed | 120m/min（bare drum） |
Rope Diameter | 6.6mm |
Rope Length | 2,500m |
Mast | |
Length | 11.2-13.7m |
Drilling Angle | 45°～90° |
Dump Length | 1.4m |
Foot Clamp | |
Drill Rod | BS, NS, HS, PS |
Travelling Capacity | |
Max. Permissible Gradient | 30° |
Max. Travelling Speed | 2km/h |
Transporting Dimensions | |
L*W*H | 11,240×2,310×3,330mm |
Total Weight | |
Total Weight | 23.5t |
