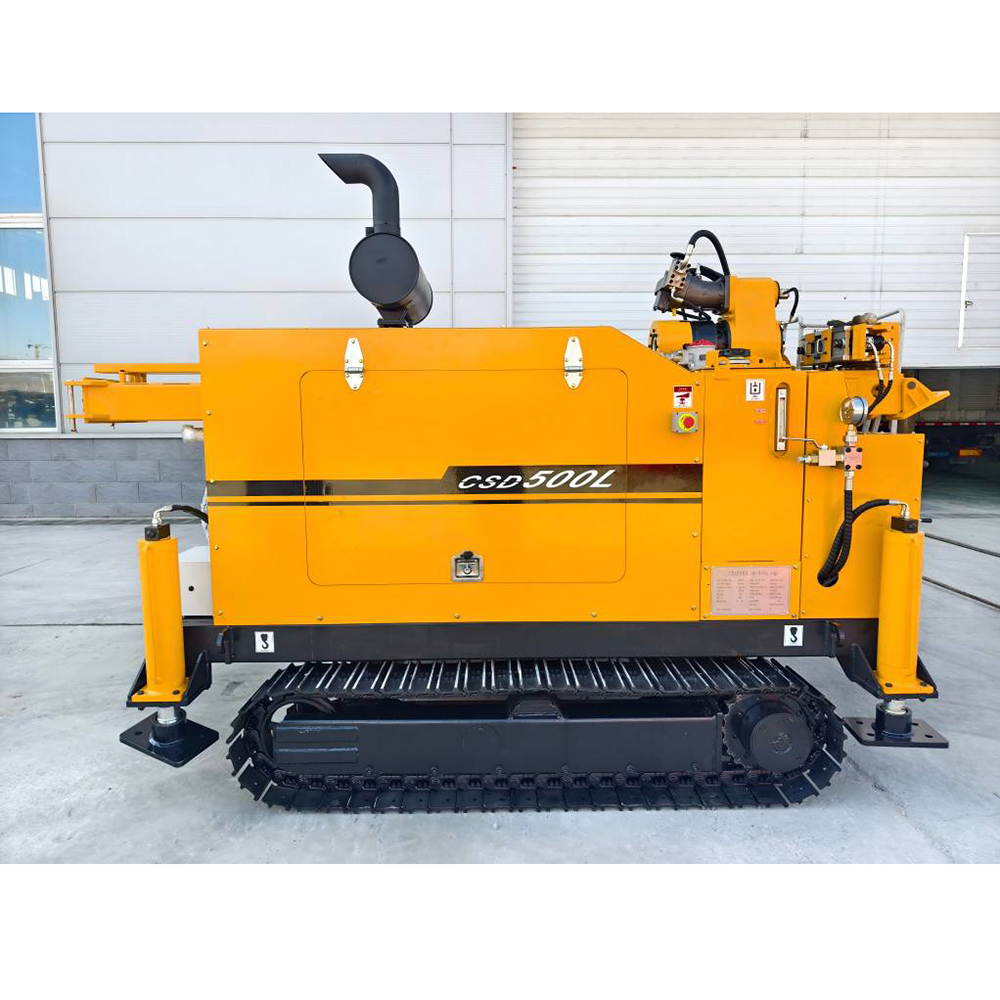

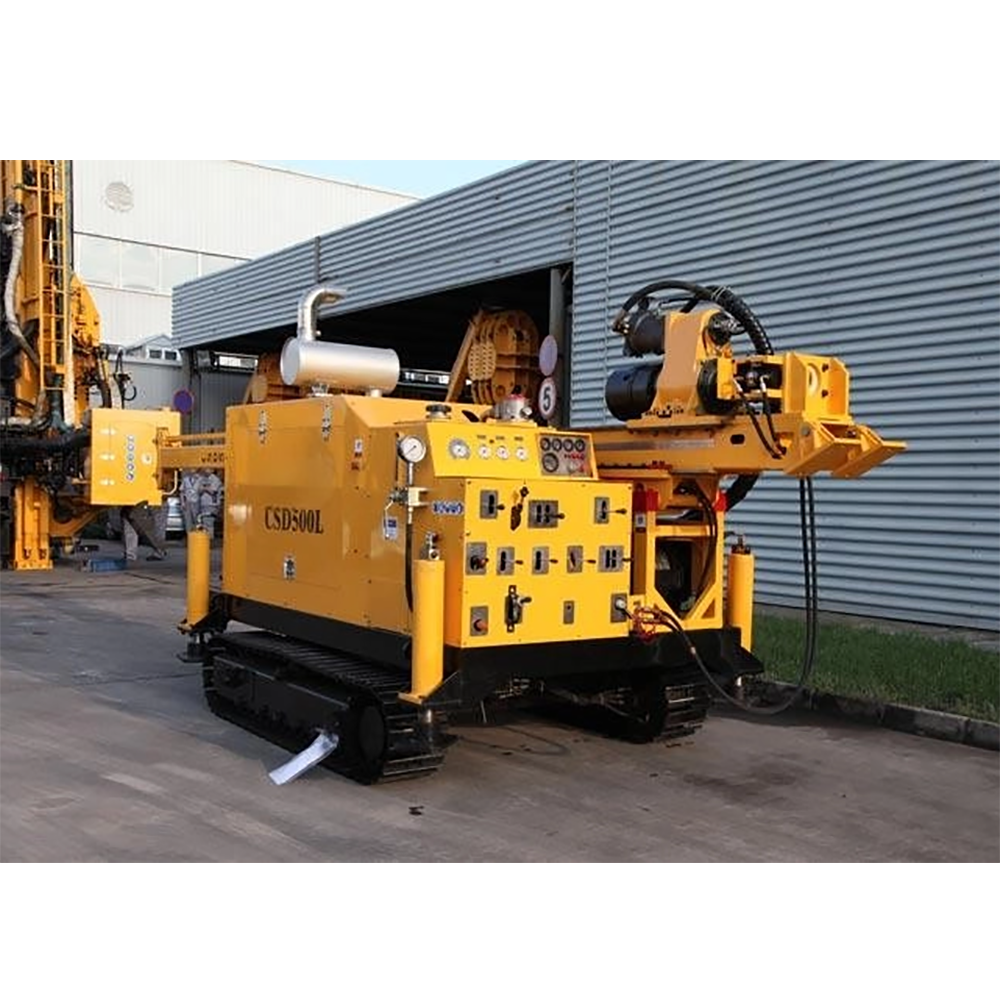

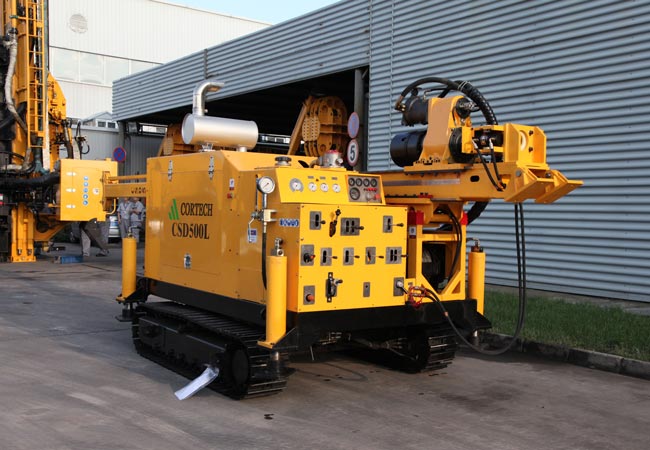

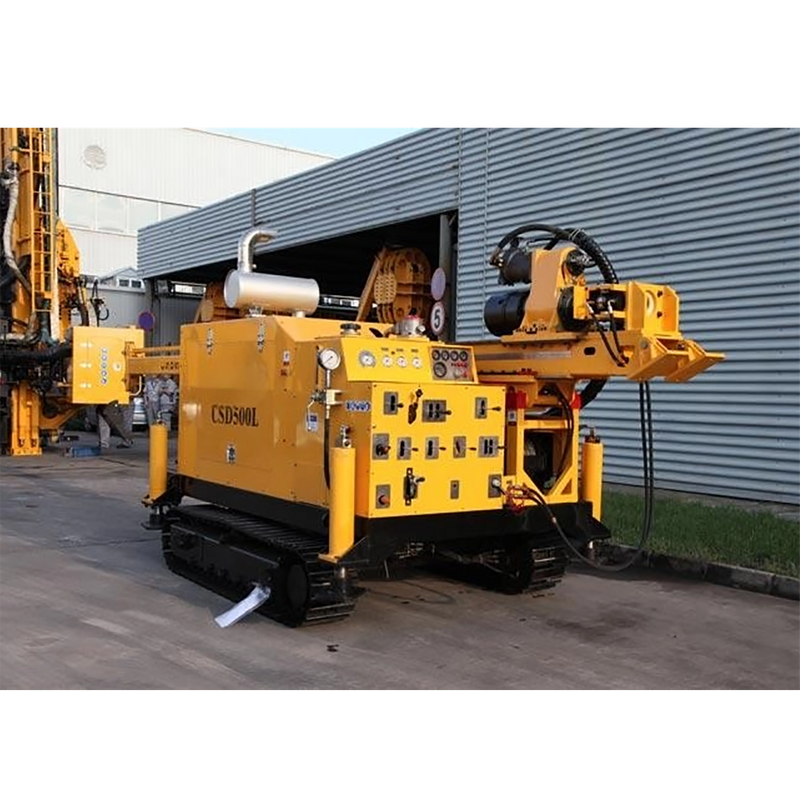

（former CSD500L）
Features
● Crawler track mounted；
● Applicable for drilling in narrow job site；

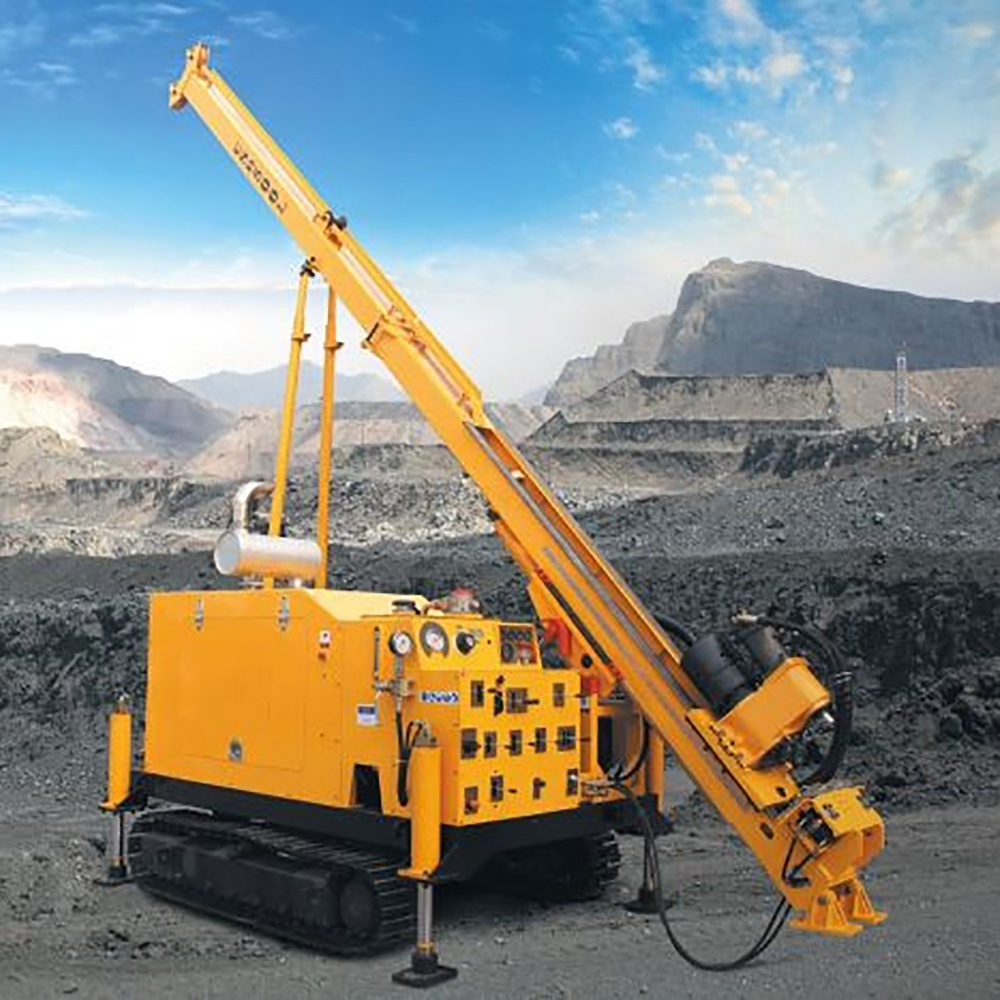

● Mast has dump function；
● Equipped with Main Winch, Wireline Winch, Mud Pump and Mud Mixer；
● Floating head protects the rod threads during make up and break out;
● Equipped with Foot Clamp, with hydraulic open and closed；
● Accurate control of feed pressure;
● Premium hydraulic components of European/US origin;
After sales service
Our expert service engineer team is globally available, 24/7.
Note
Rigs are available with different mounting options and diesel or electric drive options. Please contact sales@cortechdrilling.com for more information.
Technical Specifications
Drilling Capacity | |
Diameter of Drill Rod | B,N,H |
Drilling Depth | 650m 500m 300m |
Engine | |
Model/ Type | Cummins 4BTA3.9-C110 Turbo |
Power | 82KW |
RPM | 2,200rpm |
Drill Head | |
Max. Torque | 1,400Nm |
Max Rotation | 1,000rpm |
Feed Stroke | 1,800mm |
Max Inside Diameter | 97mm |
Pull/Push | 70KN/35KN |
Main Winch | |
Max Pull | 40KN |
Pulling Speed | 35m/min |
Rope Diameter | 14mm |
Rope Length | 30m |
Wireline Winch | |
Max Pull | 10KN(bare drum) |
Pulling Speed | 110m/min(bare drum) |
Rope Diameter | 5mm |
Rope Length | 600m |

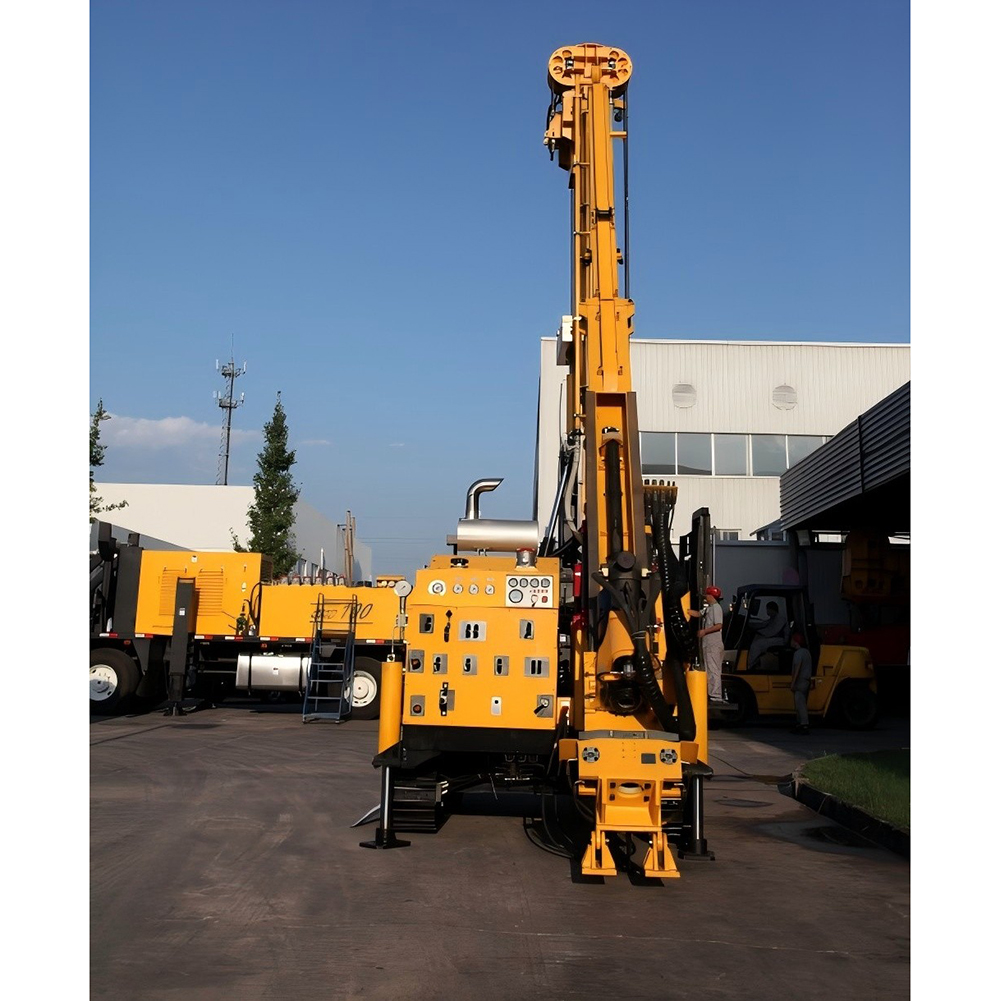

Mast | |
Length | 8.6m |
Drilling Angle | 45°-90° |
Foot Clamp | |
Drill Rod | B, N, H, P |
Travelling Capacity | |
Max Permissible Gradient | 20° |
Max Travelling Speed | 1.7km/h |
Transporting Dimensions | 4,570×2,000×2,425mm(L*W*H) |
Total Weight | |
Total Weight | 5.7t |
