Changing a core drill bit is a small operation that has a big impact on drilling efficiency, bit life, and on‑site safety. As a manufacturer focused on full-hydraulic wireline core drilling rigs and diamond core drilling tools, you want a process that reflects professional standards, minimizes downtime, and protects expensive equipment. [sunnydiamondtools]
This guide explains, step by step, how to change a core drill bit on professional rigs, and adds expert insights on bit inspection, torque control, common failure modes, and maintenance best practices. It is written from the perspective of field engineers and drilling supervisors working with wireline core drilling systems and diamond bits in mining, geotechnical, and exploration applications. [sinodrills]
You will also find practical checklists, visual suggestions, FAQs, and a clear call to action to help your team standardize procedures and extend the life of your core drilling tools. [orbitmedia]
A correctly installed and maintained core drill bit directly affects penetration rate, hole quality, and tool life. Inconsistent changes often lead to wobble, thread damage, unplanned downtime, and even rig failure in demanding rock formations. [canadianmanufacturing]
From a safety standpoint, improperly seated bits can loosen under vibration, causing loss of control, jammed strings, or damaged core barrels. Industry experience shows that operators who follow a structured change procedure, including inspection and final alignment checks, significantly reduce bit-related incidents and unplanned maintenance events. [sunnydiamondtools]
Before you start, prepare the right tools and a safe working area to avoid rushed or unsafe handling. [sinodrills]
Recommended tools and PPE
- Open-end or adjustable wrenches matched to the drill motor flats and bit base flats. [sinodrills]
- Clean cloths or brushes for removing debris from threads and seating surfaces. [sunnydiamondtools]
- Manufacturer-approved thread lubricant or anti-seize compound if specified in your rig's manual. [canadianmanufacturing]
- Appropriate personal protective equipment (PPE): safety glasses, gloves, hearing protection, and safety boots. [canadianmanufacturing]
Work area setup
- Power off the core drill and isolate the power source (electric, hydraulic, or pneumatic) before touching the bit. [sinodrills]
- Ensure the rig is stable, with the mast or feed system locked according to operating procedures. [epiroc]
- Clear the area of loose tools and slurry to prevent slips or accidental contact with moving parts. [sunnydiamondtools]
Removing the worn bit correctly protects threads and avoids bending the spindle or core barrel. [canadianmanufacturing]
1. Power down and secure the rig
Turn off the core drilling machine and lock out the power supply. Wait until all moving parts fully stop before approaching the bit. [sinodrills]
2. Stabilize the drill and bit
Use the rig's feed or clamp system to hold the drill body steady. If the bit is in contact with the rock, retract it fully to free the tool. [sinodrills]
3. Loosen the bit connection
- Place one wrench on the flat section of the drill motor or spindle. [sinodrills]
- Place the other wrench on the flat surfaces at the base of the bit. [sinodrills]
- Apply steady counter‑clockwise torque to the bit while holding the spindle wrench fixed, avoiding sudden jerks that can shock the threads. [canadianmanufacturing]
4. Unthread the bit by hand
Once the connection breaks loose, continue turning the bit by hand. Support the bit's weight to avoid dropping or cross‑loading the threads. [sinodrills]
5. Inspect the bit and threads immediately
After removal, check the old bit for segment wear, cracked crown, or signs of glazing, and inspect spindle threads for damage or deformation. This quick inspection often reveals underlying issues such as misalignment, incorrect feed pressure, or poor flushing. [sunnydiamondtools]
Attaching the new bit correctly is crucial for wobble‑free rotation and long bit life. [sinodrills]
1. Clean and check the spindle
- Use a brush or cloth to remove slurry, rock dust, and old lubricant from the spindle threads. [sinodrills]
- Visually inspect for burrs, flattened threads, or contamination. [sunnydiamondtools]
2. Prepare the new diamond core bit
- Confirm that the bit size, thread type, and crown configuration match your core barrel and application. [epiroc]
- Check that the internal threads are completely clean and undamaged. [sinodrills]

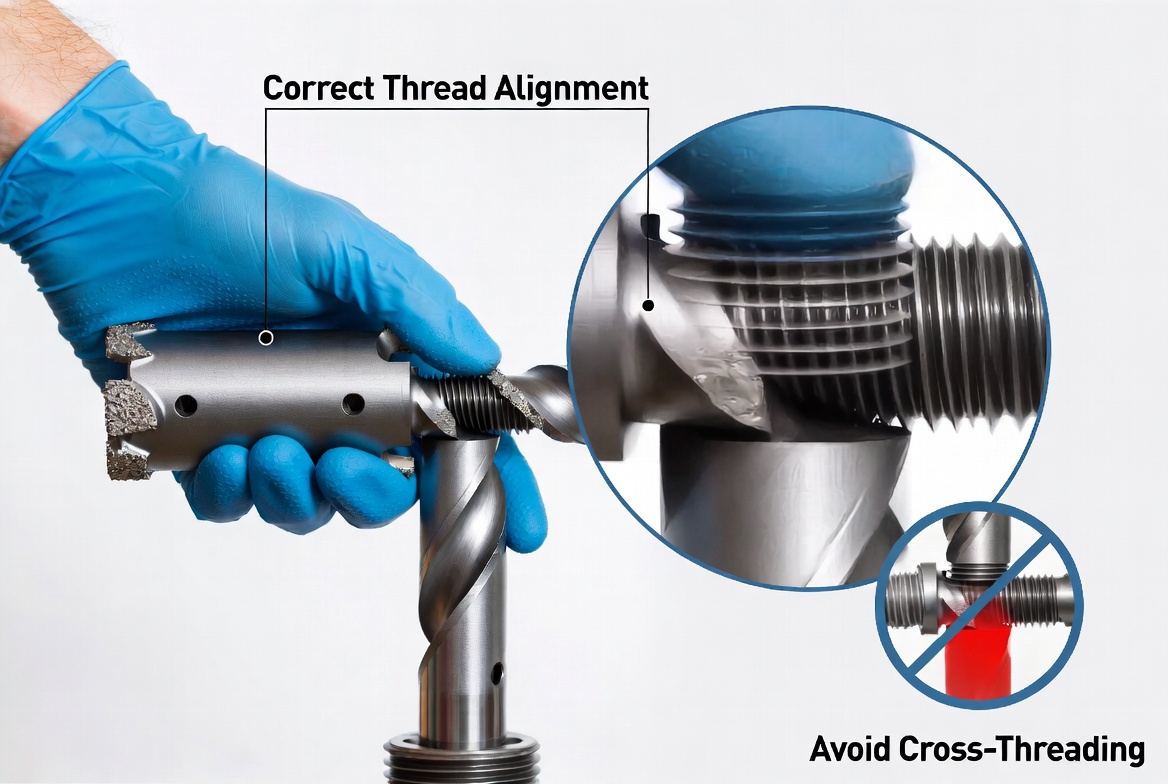

3. Align and hand‑thread the new bit
- Align the bit's threaded connection with the drill motor spindle, keeping both components straight to avoid cross‑threading. [sinodrills]
- Thread the bit by hand, turning clockwise until it sits snugly against the spindle shoulder. [sinodrills]
If you feel resistance early, stop and re-align; forcing the connection is one of the fastest ways to destroy spindle threads. [canadianmanufacturing]
4. Tighten with wrenches to secure
- Place wrenches on the same flat sections used during disassembly. [sinodrills]
- Apply firm clockwise torque on the bit while holding the spindle wrench stationary. [sinodrills]
- Tighten enough so the bit cannot loosen under operating torque, but avoid over‑tightening, which can stretch threads or distort the bit base. [canadianmanufacturing]
5. Perform final alignment checks
- Wiggle the bit gently by hand: the assembly should feel straight and wobble‑free. [sinodrills]
- Rotate the spindle slowly (with power off) and watch the bit crown relative to a fixed reference; any visible runout suggests misalignment or thread damage. [canadianmanufacturing]
Before putting the new bit into production, a quick system check prevents avoidable failures in the first few minutes of drilling. [sinodrills]
- Check coolant / water supply
Verify that the water or drilling fluid system is connected, flowing, and adjusted to the manufacturer's recommended rate for that bit diameter and formation. Adequate cooling reduces overheating and can extend diamond bit life significantly. [sinodrills]
- Verify rotational direction and speed
Ensure the drill rotates in the correct direction for the thread configuration and check that starting RPM is within the recommended range for your bit and rock type. [sinodrills]
- Start slowly and ramp up
Begin drilling at low speed and light feed to let the bit face seat and "dress" into the rock, then gradually increase pressure as the bit establishes a proper kerf. This controlled approach minimizes early‑life segment damage and uneven wear. [sinodrills]
Beyond the basic change procedure, professional operators rely on a few disciplined habits to get maximum value from their bits and rigs. [sunnydiamondtools]
- Check bit wear at every change and record observations (e.g., smooth glazing vs. fractured segments). [sunnydiamondtools]
- Use this data to adjust feed pressure, RPM, and flushing strategies for future runs. [sunnydiamondtools]
Modern core drilling equipment increasingly focuses on reduced vibration and better ergonomics. Lower vibration not only improves bit tracking and hole straightness but also reduces fatigue and handling errors during frequent bit changes. [insights.made-in-china]
Industry reports consistently show that operators using well‑engineered, brand‑name core drilling tools achieve better overall efficiency and lower unplanned downtime. Matching the bit design to the specific rig type and formation often reduces drilling time by up to double‑digit percentages while improving core recovery. [linkedin]
Even experienced teams sometimes repeat small mistakes that shorten bit life or damage equipment. [canadianmanufacturing]
| Mistake during bit change | Risk created | Recommended best practice |
|---|---|---|
| Not fully cleaning threads | Cross‑threading, seized connections | Always wipe and inspect spindle and bit threads before installation. sinodrills |
| Over‑tightening with long cheater bars | Stretched threads, cracked bit base | Tighten firmly but stop once resistance indicates full seating. sinodrills |
| Hand‑starting at an angle | Immediate thread damage | Start threading perfectly straight, and stop if you feel abnormal resistance. sinodrills |
| Skipping wobble/runout check | Vibration, uneven bit wear | Wiggle test and slow rotation visual check after tightening. sinodrills |
| Restarting at full RPM and feed | Early‑life segment failure | Begin with low RPM and feed, then ramp up gradually. sinodrills |
Wireline core drilling systems allow you to retrieve core without pulling the entire drill string, dramatically improving efficiency on medium to ultra‑deep holes. In this context, consistent and professional core drill bit changes are part of a broader performance system that includes optimized core barrels, inner tube assemblies, and rope‑retrieval hardware. [insights.made-in-china]
As drilling projects increase in depth and complexity, more contractors rely on advanced rigs with precise feed control, improved water handling, and digital monitoring, which all amplify the benefits of correct bit selection and change procedures. Standardizing your bit-change workflow across crews ensures predictable performance, safer operation, and better data from core samples. [linkedin]

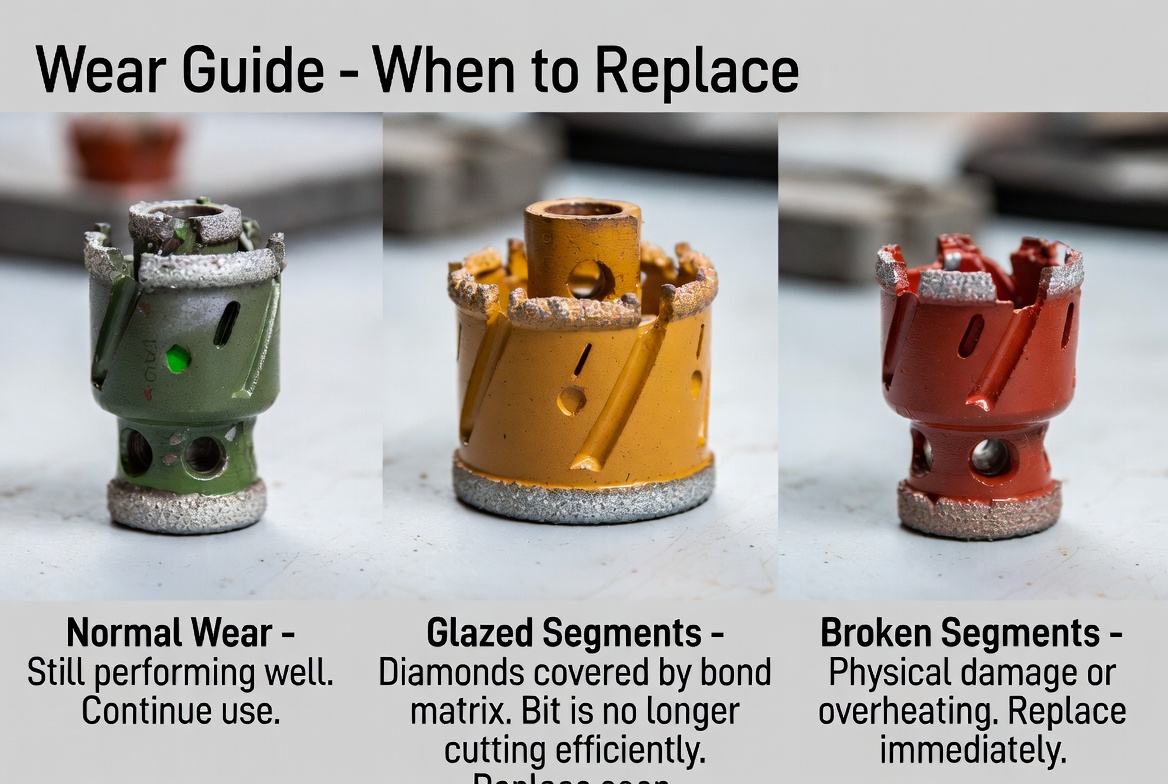

Beyond scheduled changes, experienced drillers look for operational signals that the bit must be replaced. [sunnydiamondtools]
You should consider changing the bit when you notice:
- A sudden or progressive drop in penetration rate despite stable operating parameters. [canadianmanufacturing]
- Increased vibration, noise, or chatter at the bit, especially in formations where drilling was previously smooth. [sunnydiamondtools]
- Signs of overheating, such as discolored segments or excessive steam even with proper coolant flow. [sinodrills]
- Visible crown damage, missing segments, or uneven wear around the bit circumference. [canadianmanufacturing]
In modern operations, combining these field observations with logged data from digital rig systems helps you optimize bit‑change intervals to minimize both wasted bit life and costly downtime. [insights.made-in-china]

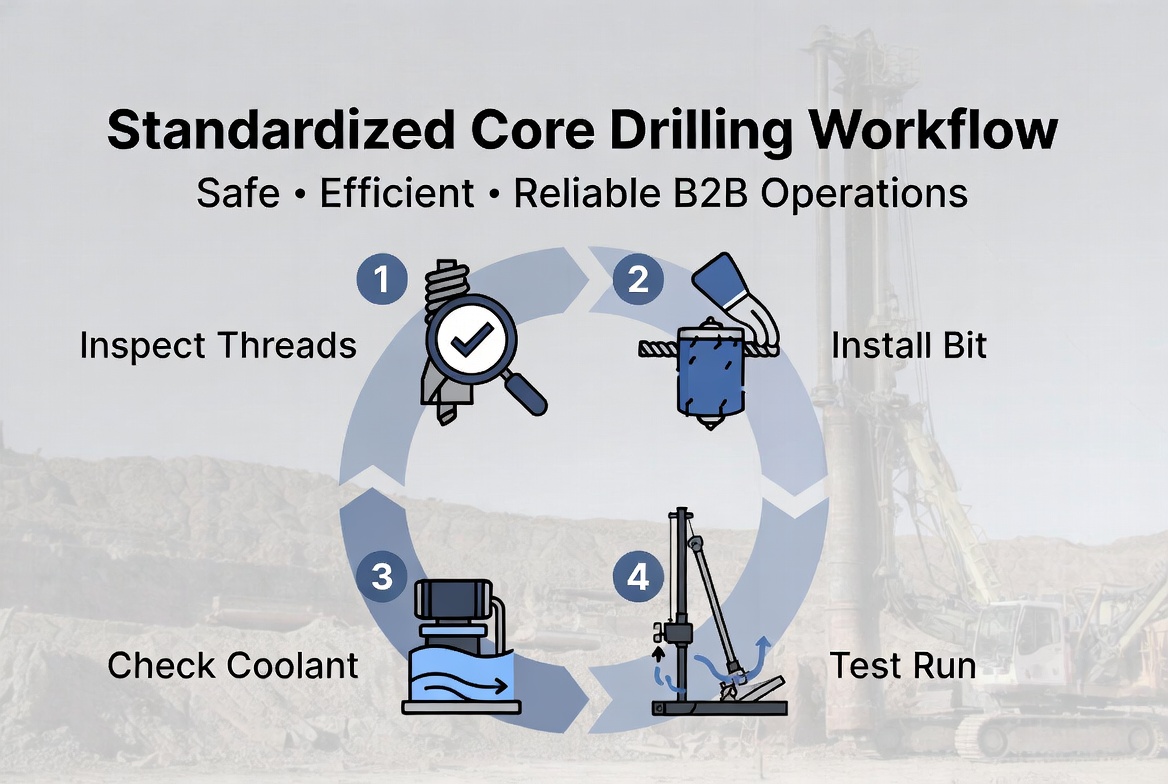

Even the best procedure fails without consistent operator training. For companies running multiple rigs, a standardized core drill bit change protocol is an easy win. [orbitmedia]
Key elements to include in your internal SOP and training:
- A visual, step‑by‑step checklist for removal, inspection, installation, and final checks. [canadianmanufacturing]
- Short video modules demonstrating correct wrench positioning and thread alignment. [sinodrills]
- Periodic refresh sessions where supervisors review real failed bits and discuss root causes. [sunnydiamondtools]
- Clear responsibility assignment (who inspects, who signs off) to avoid missed defects. [canadianmanufacturing]
If you want to improve core recovery, reduce unplanned downtime, and extend the life of your drilling assets, start by standardizing and upgrading your core drill bit change procedures across all rigs. Review your current tools and SOPs, then align them with the best practices outlined above. [semrush]
As a manufacturer specializing in full‑hydraulic wireline core drilling rigs and diamond core drilling tools, you can also work with your technical team to recommend bit designs, torque guidelines, and maintenance intervals tailored to your customers' formations and depth profiles. Encourage your drilling supervisors to document their own field insights and feed them back into your official procedures—this kind of real‑world experience is exactly what modern searchers and industry partners expect from a specialist supplier in 2026. [developers.google]
1. How often should I change a core drill bit?
Change the bit when penetration rate drops significantly, vibration increases, or there is visible segment wear or damage, rather than relying only on a fixed meter count. [sunnydiamondtools]
2. Can I re‑use a bit that shows minor chipping on the segments?
Minor chipping may be acceptable in some formations, but missing or heavily chipped segments can damage the hole and the core barrel; in most professional operations such bits are retired or reconditioned. [sunnydiamondtools]
3. What happens if I over‑tighten the core drill bit?
Over‑tightening can stretch or strip threads, distort the bit base, and make future removal much more difficult, especially after heavy drilling cycles. [canadianmanufacturing]
4. Why does my new core drill bit overheat quickly after installation?
Common causes include insufficient coolant flow, incorrect RPM or feed pressure, or drilling conditions that do not match the bit's design; incorrect seating or wobble can also create localized heat. [sinodrills]
5. Do wireline core drilling systems require a different bit change procedure?
The basic removal and installation principles are the same, but wireline systems place higher emphasis on precise alignment and consistent bit selection because they are designed for deeper, continuous coring operations. [epiroc]
