A drill rod is far more than a simple steel bar; in core drilling and exploration, it is the critical link that safely transfers power from your rig to the diamond bit, determines hole quality, and ultimately protects your project budget and schedule. In this guide, I'll walk you through drill rods from a field engineer's and manufacturer's perspective, so you can choose, use, and maintain them with confidence—and match them with high‑performance full hydraulic wireline diamond core drilling rigs like CORTECH's solutions. [metalsupermarkets]
In industrial drilling, a drill rod is a precision-ground cylindrical bar—typically made from alloy tool steel or high‑strength steel—used as the primary conduit to transmit torque, thrust, flushing fluid, and vibration between the drilling rig and the drill bit. Unlike generic steel pipes, drill rods are engineered to tight dimensional tolerances, high straightness, and controlled mechanical properties, enabling reliable performance in deep, deviated, or high‑load boreholes. [sinodrills]
From an expert's perspective, the drill rod is the "backbone" of the drilling string: if it fails, you risk stuck tools, lost core, and costly fishing operations—especially in mineral exploration and geotechnical core drilling. [idrillio]
Recommended visual insert:
Place a labeled schematic image of a typical core drilling string (rig – swivel – rods – core barrel – bit) here to help new users visualize where drill rods sit in the system. [concreteinsight]
In real projects, drill rods must simultaneously perform several mission‑critical functions. [bestonedrill]
- Transmit rotational torque from the rig to the core bit without torsional failure or excessive twist. [heicoin]
- Carry axial thrust and pullback loads while maintaining straightness and joint integrity. [hardrockdrills]
- Provide an internal passage for drilling fluid (water or mud) to cool the diamond bit, transport cuttings, and stabilize the borehole. [idrillio]
- Maintain strong, leak‑free threaded connections through thousands of make‑and‑break cycles. [huyett]
- Withstand bending and vibration in deviated and directional boreholes without fatigue cracking. [johnsontoolscn]
In core drilling, rods also act as a precise mechanical guide for the inner core barrel assembly, directly affecting core recovery, run length, and sample quality. [sourcifychina]

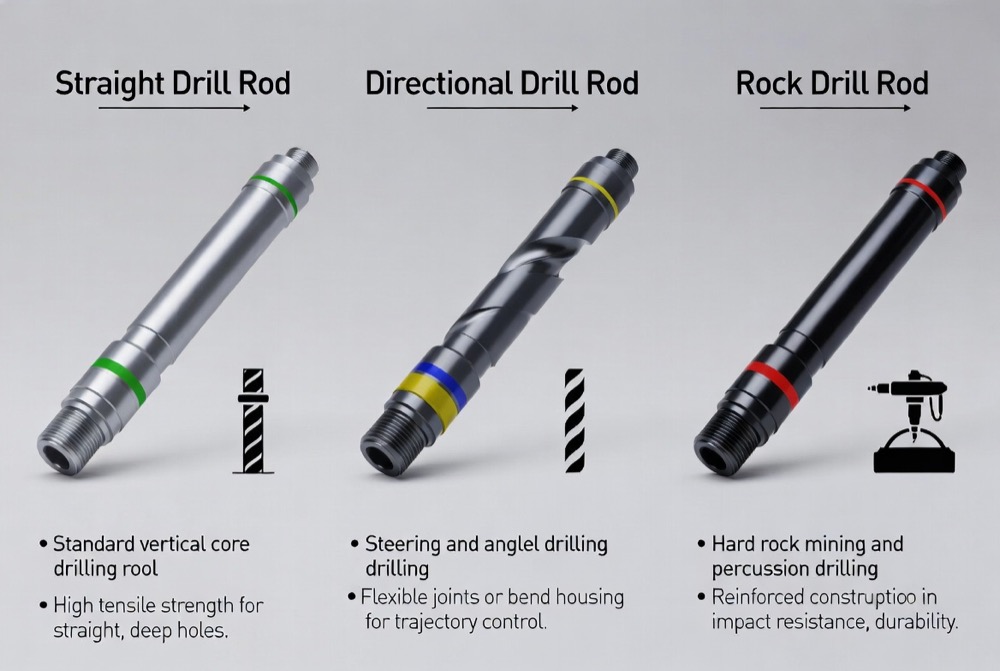

Different drilling applications rely on specialized drill rod designs. [sinodrills]
Straight drill rods are conventional rods used where the borehole follows a largely vertical or straight path—common in water wells, shallow geotechnical holes, and some production drilling. [bestonedrill]
Typical characteristics: [huyett]
- Uniform outside diameter along the length
- Precision‑machined threads at both ends (male–female or with couplings)
- High straightness to minimize vibration and hole deviation
- Available in standard lengths to streamline handling and inventory
Directional drill rods are designed for boreholes that intentionally deviate from vertical, such as when crossing under rivers, roads, or to steer around complex strata. [johnsontoolscn]
Key features: [youtube]
- Optimized metallurgy and heat treatment for fatigue resistance under repeated bending
- High torsional strength with controlled flexibility
- Compatibility with bent subs and steerable tools used in HDD and directional coring
- Enhanced joint design to handle complex load paths
In oil, gas, and advanced HDD work, directional rods enable precise directional control over long subsurface distances while protecting nearby infrastructure. [youtube]
Rock drill rods are specialized for percussive and rotary‑percussive drilling in mining, tunneling, and construction. [bestonedrill]
They are engineered to: [heicoin]
- Transmit high‑frequency impact loads from rock drills or top hammers
- Deliver rotary torque and feed force to break hard formations
- Work with shank adapters, couplings, and various rock drill bits
Full hydraulic wireline diamond core drilling rigs—such as modern mineral exploration rigs—depend on high‑performance drill rod strings for efficiency and safety. [dminingwell]
In a typical wireline system: [m.made-in-china]
1. The rig provides controlled rotation, thrust, and fluid circulation.
2. The drill rod string connects the rig to the core barrel and bit, carrying loads and fluid.
3. The wireline inner core barrel is lowered and retrieved through the rods, allowing core recovery without tripping the entire string.
Fully hydraulic rigs with optimized rods offer smoother torque control, higher penetration rates in hard rock, and better core recovery—critical for resource evaluation and geotechnical design. [dminingwell]
From an expert's standpoint, the steel grade and heat treatment of a drill rod are as important as its dimensional tolerances. [metalsupermarkets]
Key material considerations: [metalsupermarkets]
- High‑strength alloy or tool steels for fatigue resistance and toughness
- Controlled hardness profile to balance wear resistance and ductility
- Precision grinding and polishing for smooth surface finish and reduced stress risers
- Consistent metallurgy across batches to maintain predictable performance
This combination allows rods to be machined, threaded, and then heat‑treated to achieve the necessary surface hardness and core toughness for long‑life service. Field failures often trace back to improper heat treatment or inconsistent steel rather than purely mechanical overload. [sinodrills]

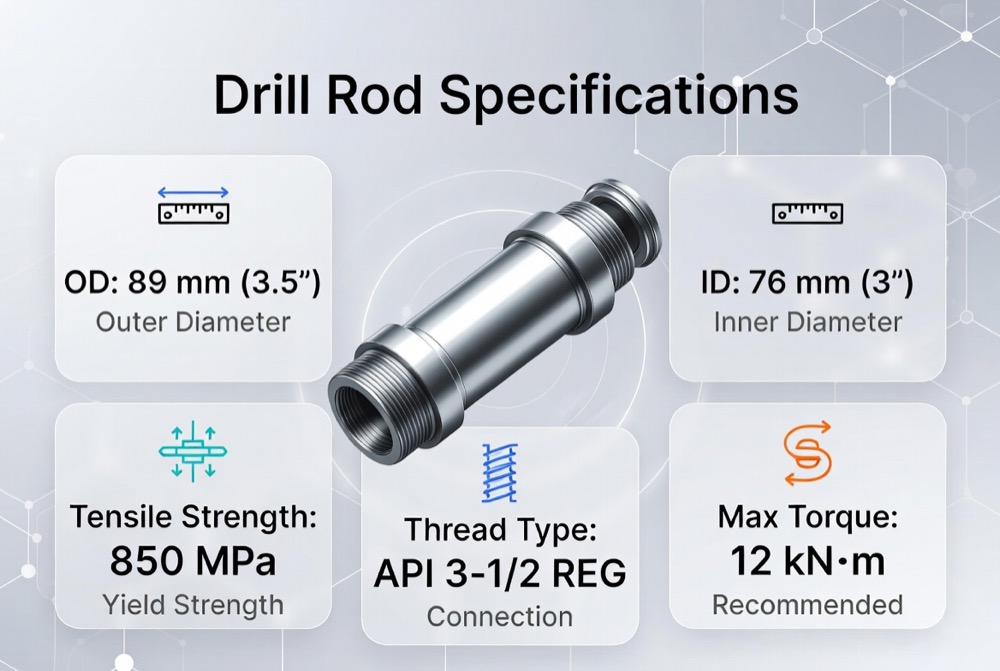

When I review drill rods for a new project, I focus on a few non‑negotiable specifications. [idrillio]
- Outer diameter (OD) and inner diameter (ID) tolerance
- Connection type and thread profile
- Tensile strength, yield strength, and elongation
- Torsional capacity and maximum recommended torque
- Fatigue life and bending performance
- Coating and corrosion protection
You can present typical ranges in a simple table to help users compare options (values are indicative and vary by manufacturer and series). [sinodrills]
| Parameter | Typical Range (Core Rods) |
|---|---|
| Outside diameter | 42–89 mm (sinodrills) |
| Length per rod | 1.5–3.0 m (idrillio) |
| Tensile strength | 700–1,000 MPa (bestonedrill) |
| Maximum torque (series‑dep.) | 2,000–7,000 N·m (idrillio) |
| Thread form | T‑series / custom wireline (sinodrills) |
Providing such reference data, alongside your own CORTECH‑specific specifications, helps engineers quickly shortlist compatible products.
Drill rods are indispensable across a range of drilling markets. [concreteinsight]
- Mineral exploration core drilling (surface and underground)
- Geotechnical investigation and site characterization
- Water well drilling
- Oil and gas directional and pilot holes
- Construction core drilling for concrete and rock
- Tunneling and underground infrastructure projects
In each case, the rod must match hole depth, formation type, target deviation, and rig capability to achieve safe and economical results. [sourcifychina]
This is where many users struggle, so a practical selection framework adds strong unique value.
1. Define your drilling objective
- Mineral exploration, geotechnical investigation, water well, or construction coring. [concreteinsight]
2. Analyze formation and depth
- Hard, abrasive rock vs. soft, unconsolidated ground, expected maximum depth and deviation. [sourcifychina]
3. Match rod type and series
- Straight vs directional rods, rock rods vs wireline core rods, appropriate diameter and thread series for your rig. [idrillio]
4. Confirm mechanical parameters
- Ensure tensile and torsional capacities exceed your rig's maximum torque and pullback with a suitable safety factor. [hardrockdrills]
5. Evaluate logistics and lifecycle cost
- Rod length for handling, availability of spares and couplings, expected fatigue life vs purchase cost. [hardrockdrills]
By guiding users through these steps and mapping them to specific CORTECH product families, you improve both user experience and conversion rates.
Adding grounded field insight helps demonstrate E‑E‑A‑T and differentiates your content from generic definitions.
In mineral exploration projects using full hydraulic wireline diamond rigs, upgrading to higher‑quality rods and optimized rod handling can significantly improve productivity. For example, operators often report smoother tripping, fewer joint failures, and shorter non‑productive time after standardizing on rods with better heat treatment and tighter thread tolerances. [m.made-in-china]
Practically, that can translate into: [concreteinsight]
- Longer average core runs due to stable hole conditions
- Reduced risk of stuck string or lost equipment
- Lower maintenance and replacement frequency for rods and tools
Even if exact numbers vary by site, framing the benefits in terms of safety, cost per meter, and data quality speaks directly to decision‑makers.
From a user‑experience standpoint, this is one of the most valuable additions you can make—turning a static definition into an actionable guide.
- Always clean and lightly lubricate threads before make‑up to prevent galling and premature wear. [huyett]
- Use proper tongs or rod wrenches with specified torque to avoid over‑tightening or damaging connections. [bestonedrill]
- Avoid dropping rods or dragging them on sharp edges; even small nicks can become fatigue cracks at depth. [idrillio]
Regular inspection dramatically extends string life and reduces catastrophic failures. [huyett]
Check rods for:
- Thread damage (rounded crests, cracks, galling)
- Body wear (reduced OD, deep scoring, corrosion pits)
- Straightness (visual roll tests or bench checks)
- Leakage under pressure tests
Rods that fall outside your internal standards should be clearly tagged and removed from primary service, especially in deep or critical holes. [bestonedrill]
Proper storage protects your investment. [huyett]
- Stack rods on racks with adequate support to prevent bending.
- Protect threads with caps and suitable corrosion inhibitors.
- Store under cover, away from standing water and aggressive chemicals.
These simple routines can add thousands of meters of safe drilling to a rod string over its lifetime.
If you are planning a new core drilling project or upgrading your existing fleet, our CORTECH engineering team can help you specify the ideal drill rods and matching full hydraulic wireline diamond core drilling rigs for your geology, depth, and productivity targets. Contact us for a tailored rod string design, technical consultation, or a detailed quotation, and reduce your cost per meter on the very next project. [m.made-in-china]
Q1. What is the main difference between drill rods and ordinary pipes?
Drill rods are manufactured from high‑strength steels with tight tolerances and engineered threads to safely transmit torque, thrust, and fluid under demanding drilling loads, whereas ordinary pipes are not designed for such dynamic stresses. [metalsupermarkets]
Q2. How long do drill rods typically last in core drilling?
Service life depends on formation hardness, drilling parameters, handling, and maintenance, but rods used with proper torque control, thread lubrication, and regular inspection can deliver many thousands of meters of safe drilling. [concreteinsight]
Q3. Can the same drill rods be used for both straight and directional drilling?
Some rod designs can handle moderate deviation, but high‑angle or long directional holes usually require specialized directional drill rods with enhanced fatigue resistance and optimized connections. [johnsontoolscn]
Q4. How do I know if my drill rods are compatible with a full hydraulic wireline diamond rig?
You should match rod diameter, thread series, and pressure rating with the rig's rotation head, torque capacity, and circulation system, following the manufacturer's compatibility recommendations. [dminingwell]
Q5. What are the most important daily checks for drill rods on site?
Operators should visually inspect threads, check for body damage or bending, verify tight, leak‑free joints during circulation, and remove any suspicious rods from high‑risk applications. [bestonedrill]
