For many property owners, farmers, and project managers, a properly drilled borehole is the difference between a reliable, clean water supply and a costly, underperforming well. As a manufacturer specializing in CORE SURFACE DRILL and fully hydraulic wireline diamond core drilling rigs, we have seen projects succeed—or fail—based on the quality of planning, equipment choice, and execution. [intelmarketresearch]
In this guide, I will walk you through how to drill a borehole step by step, how to choose the right drilling method and drill bits, and how to estimate realistic borehole drilling costs in 2026. You will also see practical tips from the field, based on years of experience with core surface drilling equipment in complex geological conditions. [geobella.co]
Borehole drilling is the process of creating a narrow, cylindrical hole in the ground to access underground resources such as water, geothermal energy, or mineral samples. The method you choose—rotary, down‑the‑hole hammer, auger, or wireline diamond core drilling—determines: [aceavant]
- How rock and soil are broken
- How cuttings are removed
- How stable your borehole remains during and after drilling
For water wells, the goal is to intersect a productive aquifer and complete a borehole that stays structurally sound and delivers clean water at a sustainable yield. [egandrilling.com]
Several borehole drilling methods are used in water well and exploration projects, each suited to different ground conditions and project goals. [geobella.co]
- Rotary drilling (air or mud):
Uses a rotating drill bit with drilling fluid (air, foam, or mud) to cut formations and carry cuttings to the surface. Ideal for many water well projects in unconsolidated or mixed formations. [geobella.co]
- Down‑the‑hole (DTH) hammer drilling:
Combines rotation with a pneumatic hammer directly behind the bit to break hard rock efficiently, very popular in deep hard‑rock water boreholes and mining. [geobella.co]
- Auger drilling:
Uses helical augers to bring soil to the surface, most suitable for shallow, soft formations and environmental or geotechnical boreholes. [geobella.co]
- Wireline diamond core drilling:
Uses a diamond‑impregnated core bit and core barrel to cut an annular hole and retrieve continuous core samples. This technique is essential in mineral exploration and high‑value projects where core quality and straightness matter. [kadcoceramics]
Core surface drilling rigs, especially fully hydraulic wireline diamond core drills, are preferred when: [fortunebusinessinsights]
- You need high‑quality geological core for mining or geotechnical analysis
- You are drilling deep boreholes in hard, heterogeneous rock
- You need precise borehole alignment and minimal disturbance to the formation
Modern diamond core drilling equipment is backed by a growing global market, driven by infrastructure and mineral exploration, signaling strong long‑term usage and support. [linkedin]
Before you even move a rig, site assessment is the most important step in drilling a successful borehole. [egandrilling.com]
Key tasks include:
- Hydrogeological survey
- Use methods such as electrical resistivity to map subsurface layers and locate aquifers. [egandrilling.com]
- Review existing nearby wells (depth, yield, water quality) for local trends. [egandrilling.com]
- Risk and contamination analysis
- Maintain safe distances from septic tanks, animal pens, fuel storage, and chemical areas. [egandrilling.com]
- Consider topography: elevated, well‑drained sites reduce contamination from surface runoff. [egandrilling.com]
- Site preparation
- Clear vegetation and debris.
- Level and compact ground to support heavy core drilling rigs and ancillary equipment.
- Provide space for pipe racks, circulation system, water/air supply, and cuttings handling.
From an operator's perspective, the best drilling jobs I have observed share one trait: most of the problems were solved on paper before the rig arrived.
Once the site is ready, the core drilling process or rotary drilling operation begins. [lonestardrills]
Typical sequence:
1. Pilot hole drilling
- Start with a smaller diameter pilot hole to confirm geology and alignment. [lonestardrills]
- Adjust drilling parameters (rotation speed, weight on bit, fluid rate) as formations change. [geobella.co]
2. Hole enlargement to final diameter
- Use reamer bits or larger drill bits to open the hole to the required size for casing.
3. Drilling fluid circulation
- Use compressed air, foam, or water‑based mud to: [geobella.co]
- Cool and lubricate the bit
- Lift cuttings to surface
- Support borehole walls
- Maintain stable circulation and returns; sudden loss or gain of fluid is a red flag. [egandrilling.com]
4. Drilling safety and monitoring
- Inspect drill string connections regularly.
- Continuously log penetration rate, torque, and fluid pressure—these are your early‑warning indicators for problems such as collapse or lost circulation. [ferc]
For core surface drilling rigs, operators also carefully monitor core recovery, barrel blockages, and wireline hoisting systems to avoid non‑productive time. [aceavant]

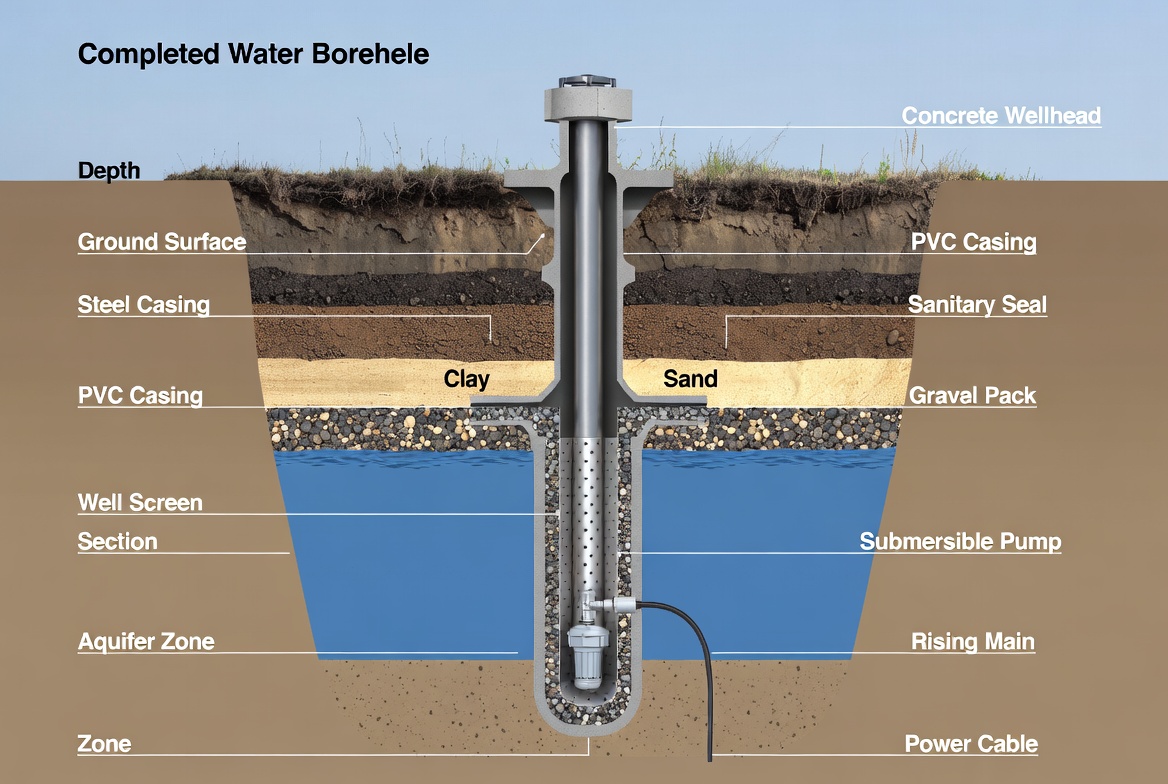

Once you reach the target depth, the next step is stabilizing the borehole and protecting water quality. [egandrilling.com]
Core elements:
- Casing installation
- Use PVC or steel casing to prevent borehole collapse and isolate undesirable strata.
- Centralizers help keep the casing straight and ensure good gravel placement. [egandrilling.com]
- Well screen placement
- Install a screened section at the productive aquifer zone to allow water entry while filtering out sand. [egandrilling.com]
- Select slot size based on grain‑size analysis to balance yield and sand control. [geobella.co]
- Gravel pack and sanitary seal
- Place a graded gravel pack around the screen to enhance natural filtration. [egandrilling.com]
- Apply a sanitary seal (often bentonite) near the surface to block contaminated surface water. [egandrilling.com]
Even a professionally drilled borehole needs development to reach its full potential. [egandrilling.com]
Typical well development actions:
- Remove fine sediments and drilling fluids using: [egandrilling.com]
- Airlifting
- Surging and backwashing
- Pumping at variable rates
- Conduct pump tests to determine: [egandrilling.com]
- Sustainable yield (not just short‑term peak flow)
- Drawdown characteristics
- Long‑term performance
- Select and install the pump system
- Choose pump type and capacity that match well characteristics (submersible vs jet, flow rate, head).
- Integrate pressure tank and control systems for stable delivery.
Finally, restore the site, secure the wellhead, and document all key data (depths, lithology, casing details, test results). This record is invaluable for future maintenance and troubleshooting. [geobella.co]
Borehole depth depends on purpose, geology, and technology. [egandrilling.com]
Typical depth ranges:
| Borehole Type | Typical Depth Range | Notes |
|---|---|---|
| Residential water well | 60–150 m (200–500 ft) | Can be deeper in low water table regions. |
| Geothermal borehole | 100–400 m (330–1,300 ft) | Depends on heating/cooling demand and ground conditions. |
| Environmental monitoring | Shallow to several hundred m | Depth based on target contamination or aquifer. |
| Oil & gas well | 5,000–10,000+ m | Often includes long horizontal sections. |
| Scientific super‑deep hole | Up to 12,262 m | World record set by Kola Superdeep Borehole. |
For most domestic and agricultural water boreholes, the controlling factors are water table depth, aquifer properties, and local regulations, not the maximum mechanical capability of modern drilling rigs. [egandrilling.com]

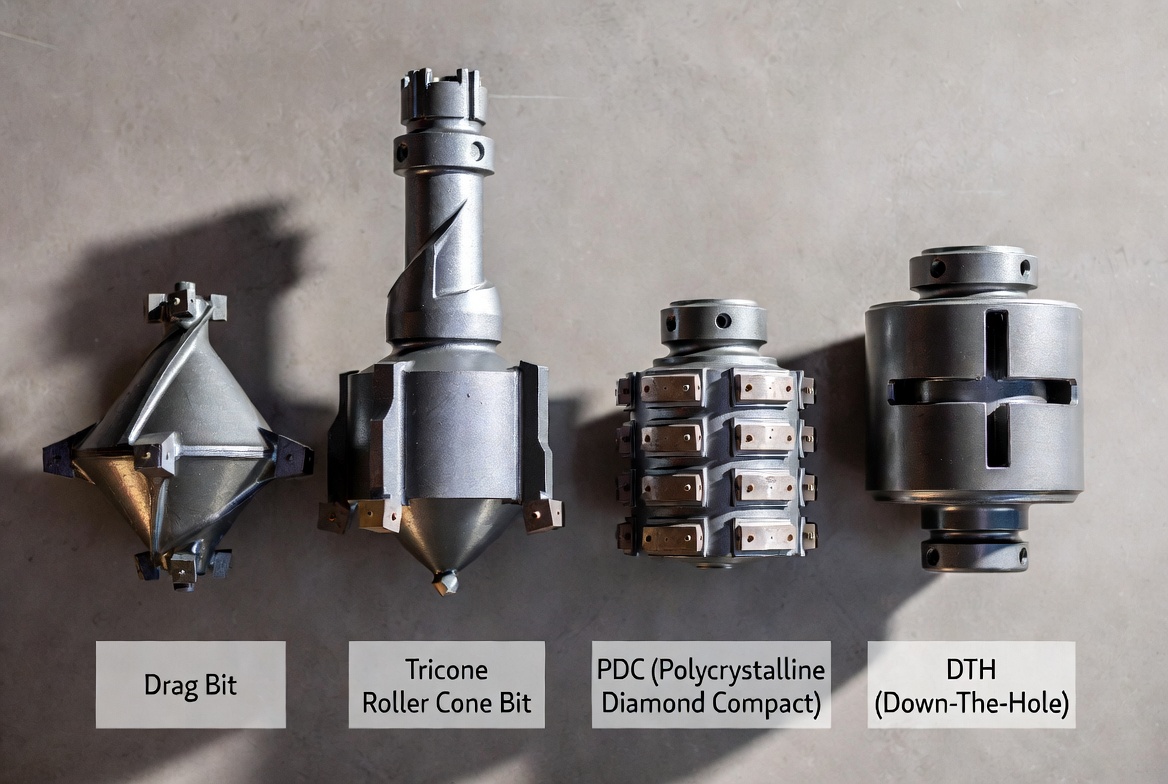

Correct drill bit choice is one of the fastest ways to cut drilling time and reduce overall borehole cost. [aceavant]
- Drag bits
- Best for soft formations such as clay, sand, silt, and weathered rock.
- Work by scraping and shearing, providing fast penetration in non‑abrasive conditions. [geobella.co]
- Roller cone (tricone) bits
- Extremely versatile across medium‑hard formations like limestone and consolidated sedimentary rock. [geobella.co]
- Available with milled steel teeth or tungsten carbide inserts for longer life in abrasive ground. [geobella.co]
- PDC (polycrystalline diamond compact) bits
- Use synthetic diamond cutters for high penetration rates in soft to medium‑hard, abrasive formations. [aceavant]
- Offer long bit life, especially in consistent formations, reducing tripping time. [kadcoceramics]
- DTH hammer bits
- Designed to work with down‑the‑hole hammers that apply percussive energy at the bottom of the hole. [geobella.co]
- Ideal for deep, hard‑rock water boreholes and blast holes where straightness and penetration speed are critical. [geobella.co]
- Reamer bits
- Used to enlarge an existing pilot hole to final diameter.
- Critical in multi‑stage borehole designs or when you need a wider section for casing or screens.
For wireline diamond core drilling, your primary tools are diamond core bits and reaming shells, optimized for the formation hardness and core size, ensuring high recovery and minimal core damage. [finecutusa]
Choosing where to drill is as important as how to drill. Poor siting can result in low yield or contaminated water, no matter how advanced your core surface drill is. [egandrilling.com]
Key siting principles:
- Hydrogeological surveys
- Use geophysical tools and expert interpretation to locate fracture zones and aquifers. [egandrilling.com]
- Use local knowledge
- Analyze data from existing neighbouring wells:
- Depth to water
- Typical yields
- Common water quality issues (iron, hardness, salinity) [egandrilling.com]
- Avoid contamination sources
- Maintain minimum regulatory separation from:
- Septic systems
- Landfills
- Agricultural waste storage
- Fuel and chemical storage [egandrilling.com]
- Check accessibility and logistics
- Rigs, rods, casing, and consumables all require space and safe access.
- Shorter distance to the house or irrigation system lowers pipeline and wiring costs.
- Consider topography and drainage
- Prefer elevated, well‑drained sites to reduce risk from flooding and surface runoff. [egandrilling.com]
In professional practice, a small investment in hydrogeology usually saves far more in avoided dry holes and redrilling.
Practically, no—you cannot drill a borehole just anywhere. Three major constraints apply: [egandrilling.com]
1. Geological feasibility
- You need a viable aquifer at reasonable depth and quality.
- Solid, impermeable bedrock with no fractures or saline water zones can make a location unusable. [egandrilling.com]
2. Regulatory and environmental rules
- Many regions require permits, distance setbacks, and construction standards for water wells. [geobella.co]
- Non‑compliance can lead to fines or forced abandonment.
3. Infrastructure and safety
- You must avoid underground utilities (cables, pipelines) and maintain safe distances from buildings and slopes. [ferc]
Always combine professional hydrogeological assessment with local regulatory advice before starting any borehole drilling project. [egandrilling.com]
Borehole drilling costs vary significantly by country, geology, depth, and specification, but realistic benchmarks help with budgeting. [jeffreymachine]
Indicative cost elements:
| Cost Component | Typical Range (USD) | Notes |
|---|---|---|
| Drilling only (per foot) | 15–40 | Higher in hard rock or complex geology. |
| Well pump system | 300–2,000 | Depends on pump type and capacity. |
| Casing (per foot) | 6 (PVC) – 130 (steel) | Larger diameters and steel cost more. |
| Geological/hydro survey | 500–1,000 | Reduces risk of low‑yield wells. (egandrilling.com) |
| Water quality testing | 100–500+ | Range depends on number of parameters. |
| Permits and fees | Highly variable | Determined by local regulations. (geobella.co) |
| Equipment mobilization | 500–2,000+ | Higher for remote or difficult sites. |
| Water treatment/filtration | 500–5,000+ | Required if water quality is problematic. |
| Electrical wiring and controls | 500–1,500+ | For power, control panels, and safety. |
| Pressure tank | 300–2,500 | Ensures pressure stability. |
| Annual maintenance | 100–500 | Periodic inspection and servicing. |
For context, typical residential water wells in the U.S. can cost around 3,750–15,300 USD for complete systems, while a standard 90‑meter borehole in South Africa is often 2,700–4,000 USD equivalent. [jeffreymachine]
From an industry expert perspective, high‑quality core drilling rigs and bits reduce total cost per productive borehole, not just cost per meter. [intelmarketresearch]
They help by:
- Shortening drilling time in hard formations
- Reducing tool failures and stuck pipe events
- Increasing hole straightness and casing success rate
- Delivering better data (core samples) for future drilling decisions
This is why professional contractors increasingly invest in fully hydraulic core drills and advanced diamond tooling, even in competitive markets. [fortunebusinessinsights]
To go beyond standard guides, here are practical tips based on industry best practices and field experience: [geobella.co]
- Never skip proper well development
- Under‑developed wells often show poor yield and high sand content, even if the aquifer is good.
- Log everything
- Keep detailed, real‑time records of lithology, drilling parameters, depth intervals, and water strikes. This data increases the value of every subsequent borehole.
- Match drilling method to geology
- A DTH hammer in soft, unconsolidated sand is as inefficient as a light auger rig in massive granite. [geobella.co]
- Protect your investment with maintenance
- Periodic inspection of pump, wiring, and wellhead prevents surprises and extends service life.
If you are planning to drill a borehole for water, mining exploration, or geotechnical investigation, choosing the right core surface drill, drilling method, and bit is crucial to your success. [intelmarketresearch]
As a dedicated manufacturer of full hydraulic wireline diamond core drilling rigs and related tooling, we help drilling contractors and project owners: [linkedin]
- Optimize drilling parameters for different formations
- Select the most efficient bit types and core barrels
- Improve safety, reliability, and cost per productive meter
Contact our technical team today to discuss your project's geology and performance targets, and we will help you design the most efficient borehole drilling solution from rig to bit.
1. How long does it take to drill a standard water borehole?
Most residential water boreholes can be drilled and completed in 2–7 days, depending on depth, geology, and site access. Hard rock, deeper wells, or difficult logistics can extend this timeline. [jeffreymachine]
2. Is core drilling necessary for every water borehole?
No. Conventional rotary or DTH drilling is often adequate for domestic water wells. Core drilling is most valuable where geological information or high‑precision drilling is required, such as mining or critical infrastructure projects. [kadcoceramics]
3. How do I know if my borehole is producing "enough" water?
A pump test measures sustainable yield and drawdown over time. If drawdown stabilizes at an acceptable level during the test, the borehole is likely adequate for the intended use. [egandrilling.com]
4. What is the typical lifetime of a properly constructed borehole?
With correct design, construction, and maintenance, many boreholes remain functional for 20–50 years or more, though pumps and electrical components will need periodic replacement. [geobella.co]
5. Can I drill a borehole myself with rental equipment?
For shallow, non‑critical wells in very soft ground, some property owners use small DIY rigs. However, for drinking water or deep hard‑rock boreholes, professional drilling contractors with certified rigs and trained crews are strongly recommended to avoid structural failure and contamination risks. [jeffreymachine]
