If you work with diamond core drilling tools or conventional drill bits, knowing exactly how to measure drill bit size is not optional – it is critical for safety, productivity and equipment life. As a manufacturer of full-hydraulic wireline core drilling rigs and diamond core drilling tools, I have seen how a "small" measurement mistake can lead to lost core, stuck rods, premature bit wear and even project failure. [ukam]
In this guide, I will walk you step by step through how to measure drill bit diameter, length and key dimensions, and then go deeper into core drilling–specific details such as matching bits to core barrels, rods and ground conditions. [sinodrills]
From an engineering and operations standpoint, a drill bit that is even 0.5 mm off spec can cause real problems over the life of a project. [eschsupply]
Key reasons measurement matters:
- Hole size tolerance: Anchors, bolts and core barrels require holes within strict tolerances; an undersized or oversized hole can cause failed anchors or poor core recovery. [coringmagazine]
- Compatibility: Bits must match shank, rod and core barrel sizes; mismatch increases vibration, accelerates thread damage and risks stuck tools. [precisiondrillingaustralia.com]
- Bit life and cost: Running the wrong diameter or crown profile in a given formation often shortens diamond bit life and raises operating cost per meter. [ukam]
- Data quality (for core): In exploration and geotechnical drilling, correct bit and core diameter directly influence the quality of logging, sampling and metallurgical testing. [coringmagazine]
- Safety: Poor fit can overload rig components and create unsafe operating conditions, especially in high‑torque, high‑RPM core drilling. [eschsupply]

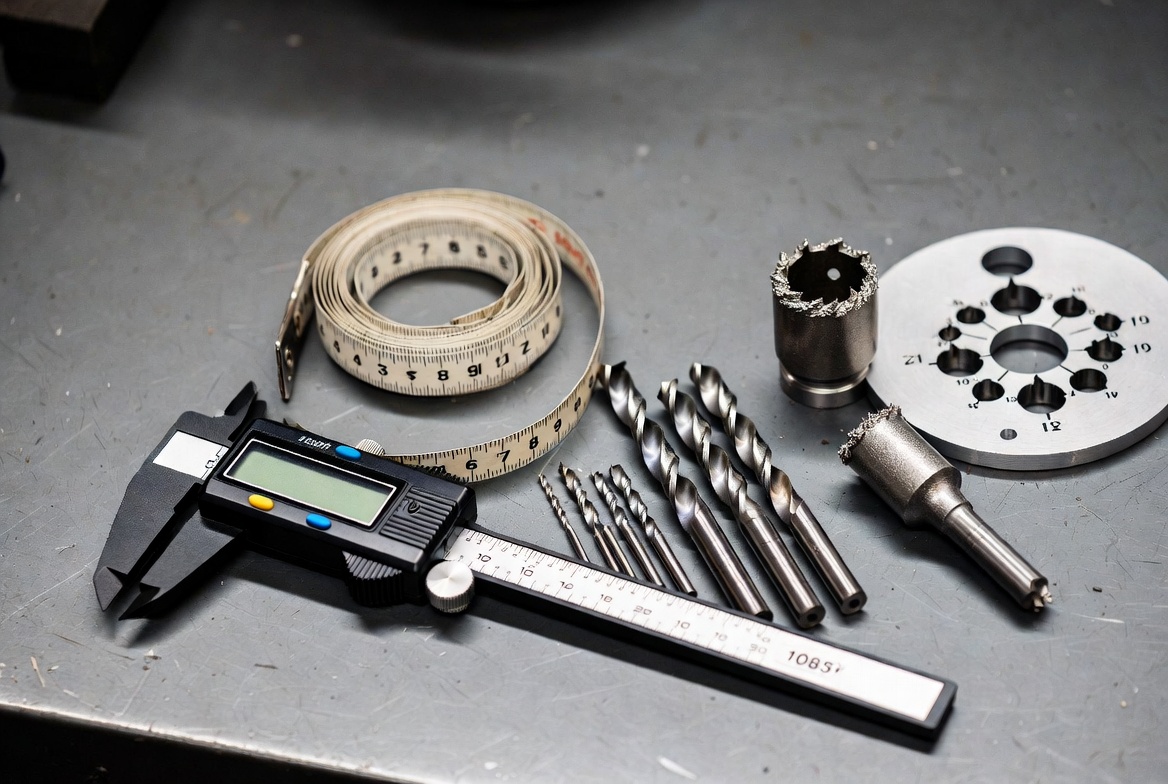

Before we look at specific dimensions, assemble a basic measurement toolkit. [ruwag.co]
Recommended tools:
- Digital caliper (0.01 mm resolution) – for accurate drill bit diameter, shank and shoulder measurements. [sinodrills]
- Steel tape measure – for overall bit length and checking longer surface-set or casing bits. [sinodrills]
- Drill gauge / size plate – quick physical verification of standard diameters. [ruwag.co]
- Straightedge or square – to check face squareness or bevel if needed in QC. [ukam]
- Adjustable wrench (alternative method) – can be used to approximate size when other tools are not available. [ruwag.co]
> Pro tip: For diamond core drilling operations, keep a dedicated, calibrated caliper in the tool container and protect it from mud and impact to maintain accuracy. [eschsupply]
The drill bit diameter is the most important dimension and the one most people mean when they ask "what size drill bit is this?". [ruwag.co]
Before measurement, thoroughly clean the drill bit. [ukam]
- Remove mud, dust and packed cuttings from the cutting edges or crown.
- For diamond bits, clean around the impregnated or surface‑set segments so the metal surface is clearly visible. [ukam]
- Visually check for severe wear, chipped segments or deformation that could distort the reading. [eschsupply]
If a bit is heavily worn, note that the measured diameter may be smaller than the original nominal size. [sinodrills]
A digital caliper is the most precise way to measure drill bit diameter. [sinodrills]
1. Open the caliper jaws slightly wider than the bit.
2. Place the cutting head between the jaws, near the front of the bit.
3. Align the jaws across the widest point of the cutting face – not on a chipped area. [sinodrills]
4. Close the jaws gently until they just touch the bit without compressing anything.
5. Read the measurement on the caliper in mm or inches. [sinodrills]
> For twist drill bits, make sure the caliper crosses the outer edges of the flutes; for core bits, measure across opposite diamond segments. [ukam]
Once you have a caliper reading, you can cross‑check with a drill gauge. [ruwag.co]
- Insert the bit into the gauge holes until you find the snug fit.
- Confirm that the gauge size matches your caliper reading or the closest standard size. [sinodrills]
If you do not have a gauge, an adjustable wrench can be used: tighten the wrench around the bit, then measure the inside distance between the jaws on a ruler as a quick approximation. [ruwag.co]
In core drilling, overall length and shank design are important for stack‑ups with core barrels and extension rods. [precisiondrillingaustralia.com]
To measure total length:
1. Place the bit on a flat surface with the shank or thread down.
2. Use a steel tape or caliper depth rod to measure from the shank end to the highest point of the cutting face. [sinodrills]
3. Record the value as overall bit length.
For long coring bits or casing bits, you may need to measure in segments and add the values. [precisiondrillingaustralia.com]
For rock drill bits and core bits with threads or tapered shanks:
- Measure shank diameter with the caliper on the plain cylindrical portion. [sinodrills]
- For threaded bits, measure across the crest of the threads at several points and check against the matching drill rod specification. [precisiondrillingaustralia.com]
- Measure from the shoulder to the face if your rig or core barrel specification relies on gauge length. [eschsupply]
Documenting these dimensions improves interchangeability and simplifies ordering exact replacements. [precisiondrillingaustralia.com]
For diamond core drilling in mineral exploration and geotechnical projects, drill bit size must match the core barrel series (e.g., NQ, HQ, PQ) and project requirements. [coringmagazine]
Wireline core drilling uses standardized designations: BQ, NQ, HQ, PQ and others. Each letter combination corresponds to specific: [precisiondrillingaustralia.com]
- Hole (bit) diameter
- Core diameter
- Drill rod diameter
For example, in typical mineral exploration practice, an NQ core bit produces a hole around the mid‑70 mm range with a core diameter in the mid‑40 mm range, while PQ produces significantly larger core suited for metallurgical or bulk sampling. Exact values depend on the system standard and manufacturer, so always refer to the latest size chart from your supplier. [precisiondrillingaustralia.com]
> Best practice: Keep a printed or digital core bit size chart in the rig cabin so the driller and supervisor can quickly confirm the correct bit and barrel combination. [coringmagazine]
When measuring a diamond core bit:
- Outer diameter (OD) must match the nominal hole size for the barrel series, with 0.1–0.4 mm tolerance typically acceptable for worn bits depending on site policy. [coringmagazine]
- Inner diameter (ID) determines the core size; an ID that is too small increases friction and risk of jamming, while too large reduces core diameter and total sample volume. [precisiondrillingaustralia.com]
Use a caliper to measure both OD and ID at several points around the circumference and average the readings if wear is uneven. [ukam]
For impregnated and surface‑set diamond bits, measure segment height:
- Place the bit on a flat surface.
- Use the caliper to measure from the bit matrix body to the top of the diamond segment. [ukam]
- Take multiple readings around the bit to identify uneven wear. [ukam]
Many core bits use segment heights between 5 mm and 10 mm, although this varies by design and application. Higher segments generally mean more meters per bit, assuming the matrix and operating parameters match the ground conditions. [ukam]
In real drilling operations, accurate measurement needs a simple, repeatable workflow so it actually happens under field conditions. [coringmagazine]
Recommended workflow:
1. Incoming inspection
- Measure a sample of new bits from each batch (OD, ID, segment height, shank).
- Record data in a simple logbook or digital sheet linked to batch or serial numbers. [precisiondrillingaustralia.com]
2. Pre‑run verification
- Before mounting, confirm the bit size against the planned hole size and core barrel series for that run. [coringmagazine]
- For multi‑rig operations, use color coding or tagging to reduce mix‑ups. [eschsupply]
3. Mid‑life checks
- At each bit change or when pulling rods for other reasons, quickly measure OD and segment height on the used bit. [coringmagazine]
- Correlate wear with meters drilled, penetration rate and ground condition notes. [eschsupply]
4. End‑of‑life analysis
- Measure the final OD and remaining segment height.
- Photograph and label the bit for failure analysis when unusual damage occurs. [ukam]
Over time, this routine builds a practical performance database that helps you choose the best core bit designs and operating parameters for each geology. [eschsupply]
Even experienced drillers and mechanics fall into predictable measurement errors. [ruwag.co]
Frequent mistakes:
- Measuring over worn or chipped edges and assuming the result equals nominal size.
- Holding the caliper skewed, which gives a smaller reading than the true diameter. [sinodrills]
- Ignoring ID on core bits, focusing only on OD and forgetting its impact on core size and jamming risk. [precisiondrillingaustralia.com]
- Not re‑calibrating tools, leading to systematic measurement errors. [ruwag.co]
- Relying only on stamped markings, even when bits have been reground or modified. [ruwag.co]
How to avoid them:
- Measure at multiple points and average the values for critical decisions. [ukam]
- Always document whether you measured a new bit or a used one.
- Calibrate digital calipers regularly and replace damaged tools. [sinodrills]
- Cross‑check with a drill gauge for standard twist bits used in workshop operations. [ruwag.co]
Drawing on field feedback and equipment monitoring from multiple projects, several practical tips stand out. [coringmagazine]
- Define clear tolerances per project. For example, specify maximum allowable bit OD wear before replacing to maintain hole size and core quality. [coringmagazine]
- Align measurement with QA/QC. In exploration and geotechnical programs, combine bit measurement with core recovery statistics and drilling parameters. [coringmagazine]
- Standardize tools. Use the same type and brand of calipers across rigs to reduce variation. [sinodrills]
- Train new rig crews. Incorporate bit measurement into operator training and competency checks to meet safety and quality systems. [eschsupply]
- Integrate with inventory. Use measured data to refine bit consumption forecasts and manage stock, especially for remote sites with long lead times. [precisiondrillingaustralia.com]
For high‑value or technically demanding holes, some operators also implement bit performance scorecards, where dimensions, meters drilled and bit condition are systematically captured. [eschsupply]
Even with a solid understanding of how to measure drill bit size, some situations require direct support from an experienced manufacturer. [eschsupply]
You should contact a specialist when:
- You are switching to a new core size or core barrel system and want to optimize your bit choice. [precisiondrillingaustralia.com]
- You face unusual wear patterns, such as rapid crown loss, heavy glazing or repeated cracking. [ukam]
- You are drilling in complex geology (e.g., alternating hard/soft layers, highly abrasive formations) and need guidance on bit matrix hardness and water / mud parameters. [eschsupply]
- Your project has tight QA/QC requirements for core recovery and orientation, and you need consistent bit performance across multiple rigs. [coringmagazine]

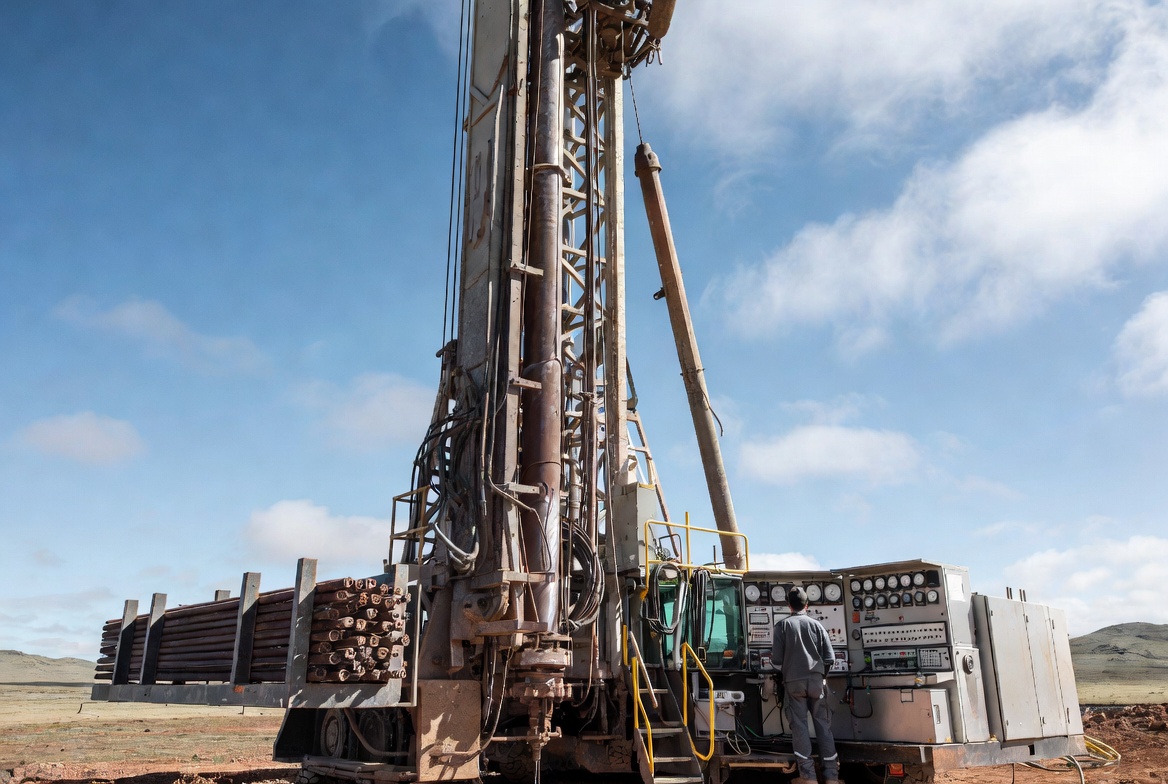

As a manufacturer of full-hydraulic wireline core drilling rigs and diamond core drilling tools, our technical team regularly reviews project specifications, formation data and historical bit performance to recommend the most suitable bit sizes, crown profiles and operating windows. [precisiondrillingaustralia.com]
If you want to:
- Standardize how your team measures drill bit size,
- Improve bit life and cost per meter, and
- Optimize core quality and rig productivity across your projects,
you can reach out to our engineering team with your current bit drawings, core barrel standards and formation data. We can help you confirm correct drill bit dimensions, recommend optimized diamond core bit configurations, and support onsite training so your crews measure and manage drill bits consistently from day one. [ukam]
Q1. How do I know what size drill bit to use for a specific anchor or bolt?
Check the anchor manufacturer's datasheet for the recommended hole size, then select or measure a bit whose diameter matches that value within the specified tolerance. [precisiondrillingaustralia.com]
Q2. Is it enough to rely on the size stamped on the drill bit?
No. Stamped markings can be wrong, worn off or no longer valid after regrinding; always confirm size with a caliper or drill gauge, especially for critical work. [ruwag.co]
Q3. How often should I re‑measure a core bit during a project?
At minimum, measure the bit when new, at mid‑life change‑out and at end of life; high‑value holes or difficult formations may justify more frequent checks. [coringmagazine]
Q4. What is the difference between bit diameter and core diameter in wireline drilling?
Bit diameter is the hole size, while core diameter is the sample size inside the core barrel; both are defined by the core size series (e.g., NQ, HQ, PQ) you are using. [precisiondrillingaustralia.com]
Q5. Can I use the same measurement approach for concrete core bits and mineral exploration core bits?
Yes, the basic principles (cleaning, using a caliper on OD and ID, checking segment height) are the same, but exploration bits require stricter control of dimensions because core data is more sensitive. [eschsupply]
