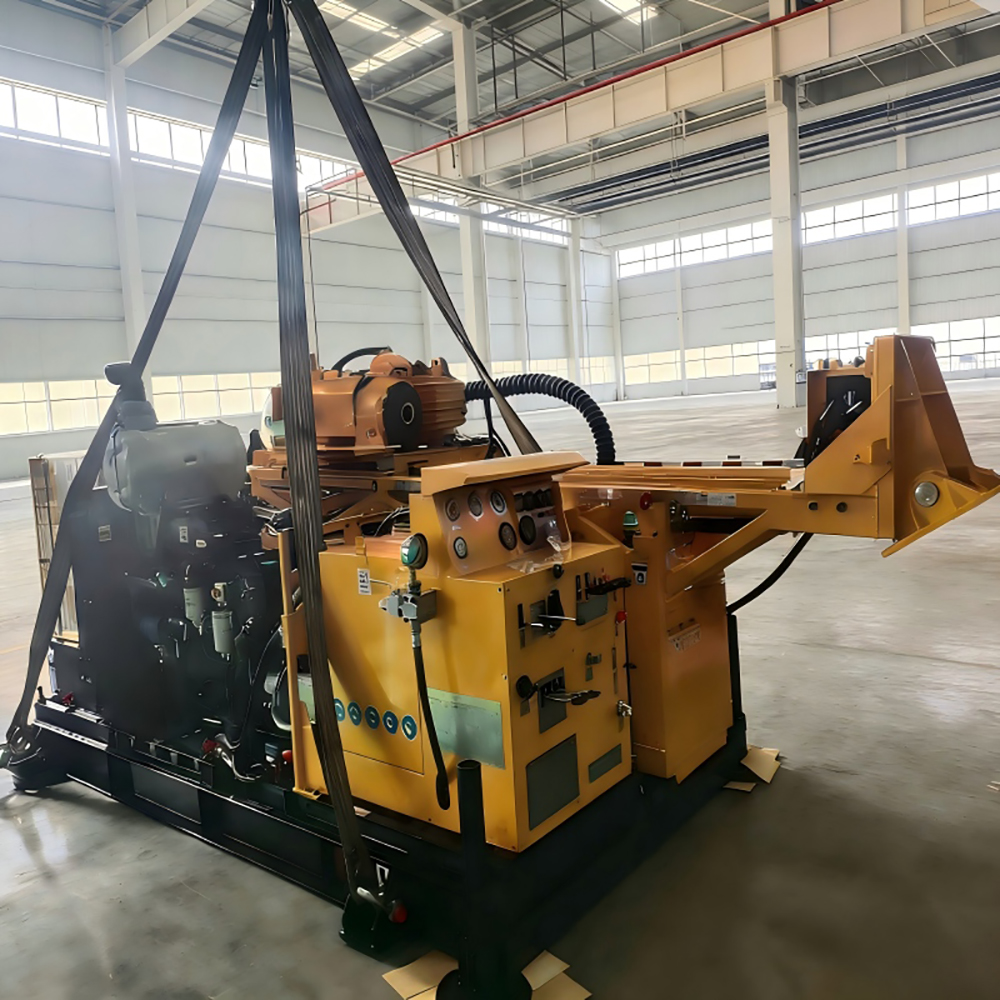

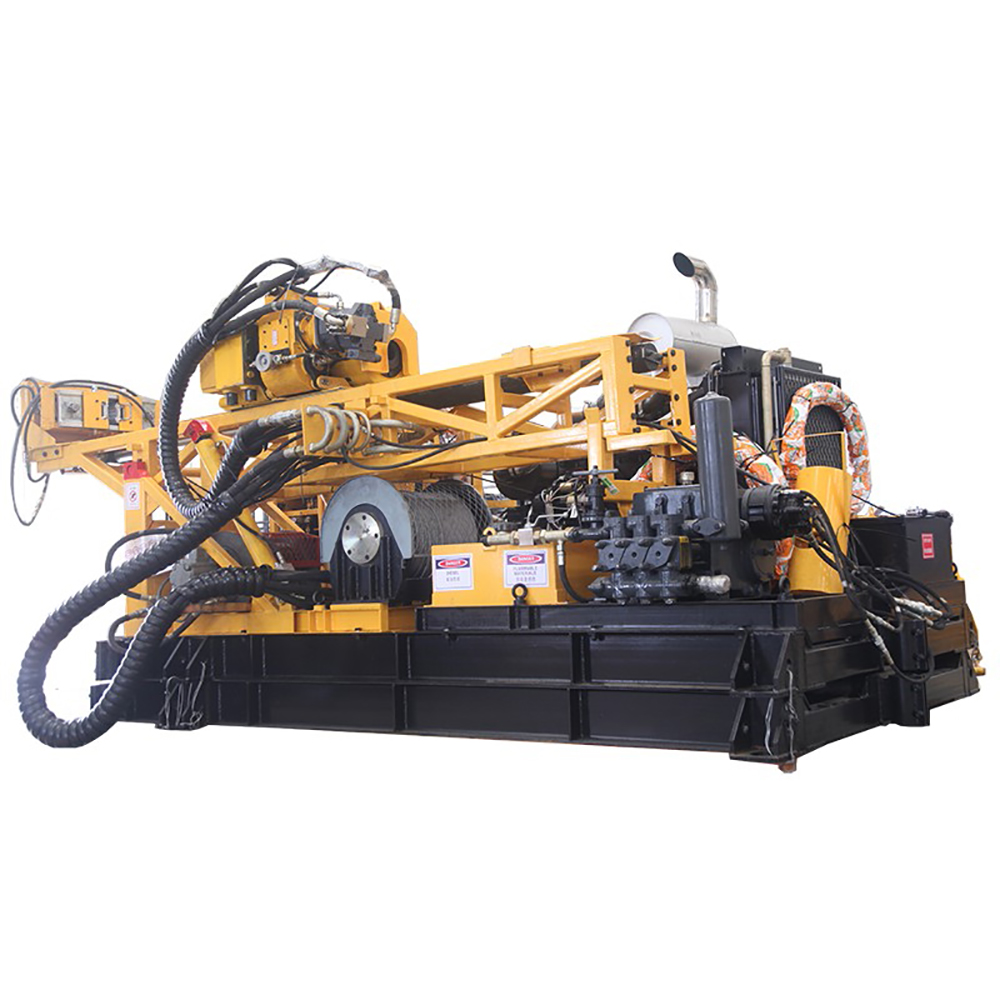

(former CSD1300H)
Features
● Modularized design with maximum unit weight of 700kg;
● A second base frame is supplied which is positioned on the next hole to be drilled, minimizing down time in rig transportation from hole to hole;
● 4 speed transmission;
● Max chuck diameter up to 117mm;
● 2m stroke of drill head suitable for 1.5m rods;
● Independent hydraulic leveling jack legs;
● Precise control of pressure on drill bit;
● Standardized parts and components;
● Real time display of drilling data on the control panel gauges;
● Premium hydraulic components of European/US origin;
After sales service
Our expert service engineer team is globally available, 24/7.
Note
Rigs are available with different mounting options and diesel or electric drive options. Please contact sales@cortechdrilling.com for more information.
Technical Specifications
Drilling Capacity | |
Diameter of Drill Rod | B,N,H,P |
Drilling Depth | 1,300m 1,000m 700m 400m |
Engine | |
Model | Cummins 6BTA-5.9 |
Type | Turbo |
Power | 132KW |
RPM | 2500rpm |
Drill Head | |
Max Torque | 4257Nm |
Max Rotation | 1182rpm |
Feed Stroke | 2000mm |
Max Inside Diameter | 117mm |
Pull/Push | 127KN/50KN |
Main Winch | |
Max Pull | 68KN |
Pulling Speed | 28m/min(low speed), 56m/min(high speed) |
Rope Diameter | 16mm |
Rope Length | 30m |
Wireline Winch | |
Max Pull | 11KN(bare drum) |
Pulling Speed | 120m/min(bare drum) |
Rope Diameter | 6.6mm |
Rope Length | 1,000m |
Mast | |
Length | 10m |
Drilling Angle | 45° |
Foot Clamp | |
Drill Rod | B, N, H, P |
Transporting Dimensions | |
L*W*H | 4,700×2,300×2,000mm |
Total Weight | |
Max Unit Weight | 700kg |
Total Weight | 5900kg |
