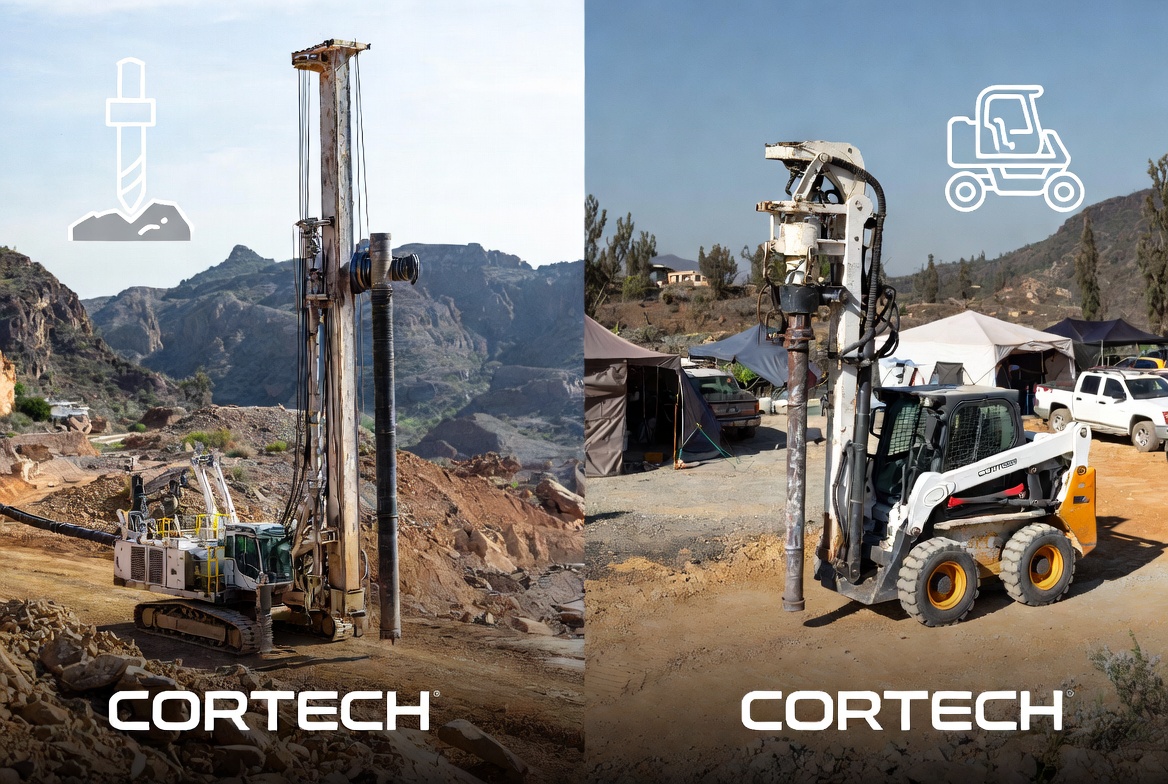

Mobile drilling rigs generally offer better mobility and productivity for remote mining sites, while skid steer well drilling rigs can be a compact, lower‑cost solution for very shallow or ultra‑tight locations. For high‑precision core drilling in hard rock, especially at greater depths, mobile core drill rigs from specialized manufacturers like CORTECH usually deliver superior performance, safety, and lifecycle economics. [drillsource]
A mobile drilling rig in mining and exploration typically refers to a self‑contained, crawler‑ or truck‑mounted rig that carries its own power pack, mast, hydraulic system, and control cabin. These units are designed to move quickly between boreholes across rugged terrain, often using tracks or off‑road chassis. [dminingwell]
A skid steer well drilling rig is essentially a drilling attachment or compact rig built onto a skid steer platform, primarily intended for shallow water wells or light geotechnical work. It leverages the skid steer's mobility and hydraulics, but the base machine was not originally engineered for deep, high‑torque core drilling in hard rock. [smartbuy.alibaba]
Remote mining sites are defined by long distances from infrastructure, harsh climates, and limited access roads. In these environments, every rig move, fuel delivery, and unplanned breakdown significantly impacts cost per meter and project schedule. [prime-rigs]
Exploration and production drilling at such sites often involve hard formations, variable topography, and demanding safety regulations, which all amplify the impact of rig stability, torque, and hydraulic control. For operators and contractors, the rig is not just equipment—it is the core of their business model in the field. [cortechdrilling]

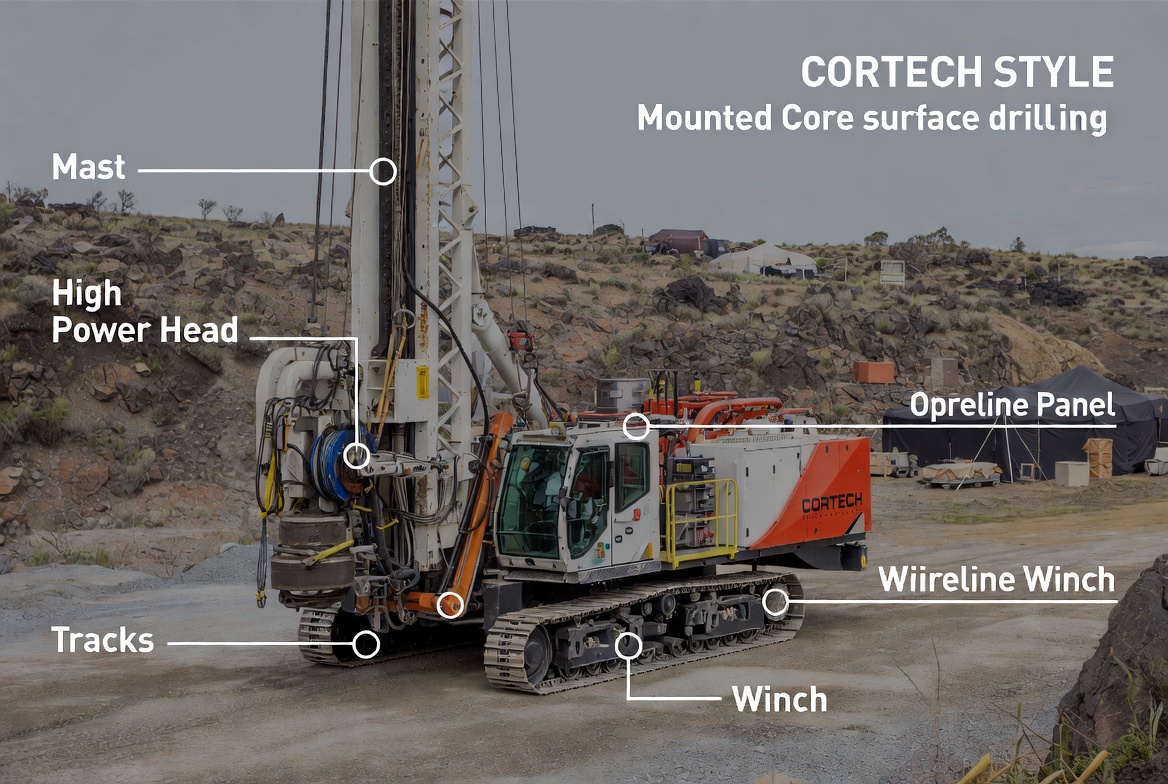

Modern mobile core drilling rigs for mining typically feature: [cortechdrilling]
- Dedicated high‑torque power head (often up to or above 9,700 N·m) for stable rotation in hard rock
- Integrated hydraulic system optimized for continuous coring
- Mast design allowing adjustable drilling angles, usually from 45° to 90°
- Crawler or truck chassis for mobility on uneven surfaces
- Wireline winch and main winch for efficient core retrieval and rod handling
These rigs are built from the ground up for wireline diamond core drilling, enabling deep boreholes in solid deposits with high recovery. [yugongmachinery]
Skid steer drilling systems typically include: [excavatinginsurancepartners]
- Attachment‑type drill head powered by the skid steer's auxiliary hydraulics
- Lightweight mast with limited height and pullback capacity
- Compact footprint, ideal for constrained or semi‑urban sites
- Shallow depth capability, usually oriented to water wells, geotechnical tests, or small‑diameter holes
Because the skid steer frame and hydraulics are multi‑purpose rather than drilling‑specific, there are constraints on torque output, mast height, and continuous operation duty cycles. [smartbuy.alibaba]
Mobile rigs (crawler or truck) are designed for off‑road access and rapid repositioning along drill lines in uneven terrain. Crawler‑type rigs, in particular, combine high off‑road performance with acceptable road mobility, making them well suited for exploration pads distributed across a remote lease area. [scribd]
Skid steer rigs excel where: [dminingwell]
- Access roads are narrow but relatively short
- Working pads are small
- The ground is not extremely uneven
However, skid steers are usually less stable on steep slopes or loose overburden than dedicated crawler drilling rigs designed with a low center of gravity and longer track bases. [drillsource]
For mineral exploration, depth capacity is often a decisive factor. Diamond core rigs used in mineral exploration can reach hundreds to over a thousand meters, depending on configuration and rod size. Some crawler‑type rigs can drill to depths around 1,300 m with BQ–PQ drill rods. [epiroc]
In contrast, skid steer–based drilling solutions tend to be suitable for: [excavatinginsurancepartners]
- Shallow water wells
- Environmental monitoring wells
- Geotechnical investigation boreholes
- Short exploration or blast holes
This makes skid steer rigs less appropriate when your remote mining site requires deep core holes for resource definition, structural geology, or geotechnical studies of pit walls. [jcdrill]
Industry experience and published case studies indicate that mobile core rigs, when properly matched to formation and equipped with wireline systems, deliver higher meters drilled per shift than improvised or low‑capacity solutions. Productivity gains come from: [cortechdrilling]
- Faster rod handling via main and wireline winches [scribd]
- Stable torque and feed control that reduce bit stalling [cortechdrilling]
- Optimized hydraulics for continuous operation [yugongmachinery]

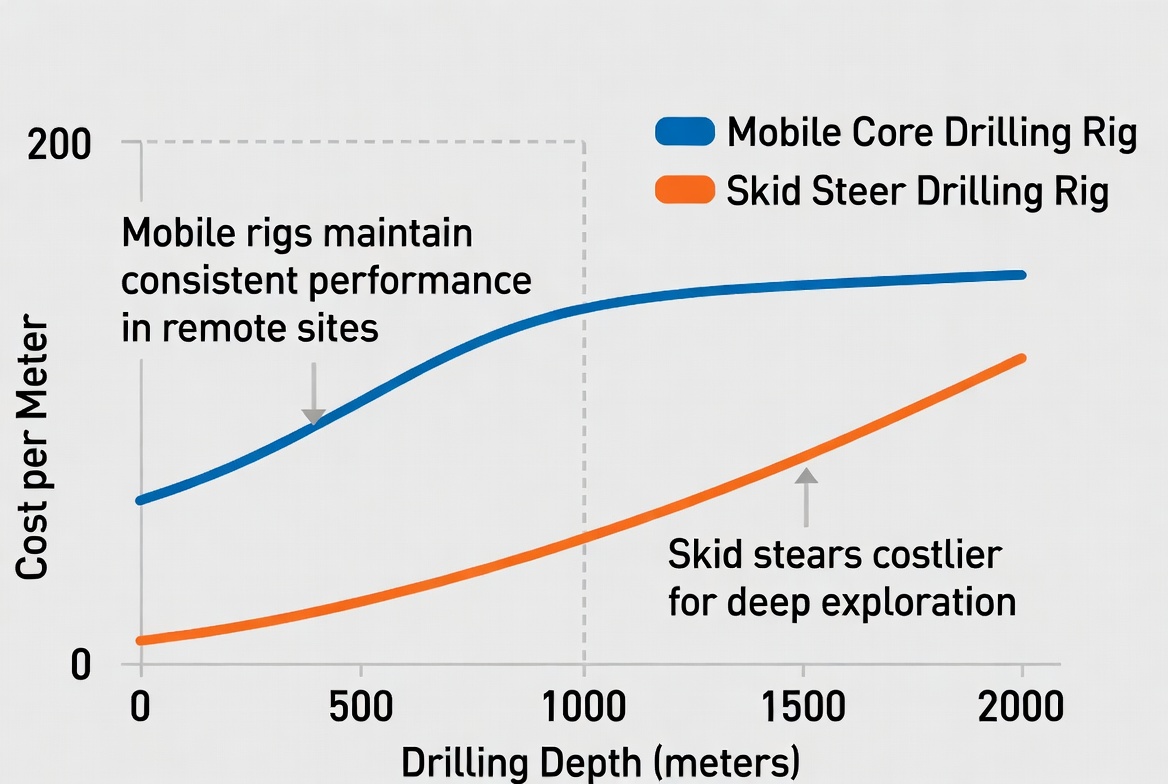

Higher productivity lowers cost per meter, a key metric for remote exploration budgets. [pilebuck]
Skid steer rigs can be economical in terms of initial investment, especially for startups or small contractors. However, limited depth capacity, lower torque, and constraints on continuous duty mean that cost per meter can creep up rapidly on demanding mining projects due to: [prime-rigs]
- Slower penetration in hard rock [smartbuy.alibaba]
- More frequent bit or component wear when pushed beyond their design envelope [pilebuck]
- Additional mobilization and demobilization when multiple passes are needed
High‑precision diamond coring in hard formations demands consistent torque and feed pressure to avoid core loss, deviation, or equipment failure. Full‑hydraulic mobile rigs from specialized manufacturers are engineered with: [epiroc]
- High‑torque power heads (for example, custom designs reaching around 9,700 N·m) [cortechdrilling]
- Independent circuits for rotation, feed, and auxiliary functions [yugongmachinery]
- Fine‑tuned controls for penetration rate, especially in fractured zones [epiroc]
Skid steer rigs, using shared hydraulics, may not provide the same level of control and stability at depth, particularly under fluctuating loads in fractured or abrasive formations. [excavatinginsurancepartners]
Safety is a core concern in remote mining, where emergency response times are slow. Industry guidance emphasizes: [pilebuck]
- Rig stability on uneven ground
- Clear operator sight lines and ergonomics
- Compliant guarding and emergency stop systems
Mobile core rigs integrate these safety considerations into the base design, including robust masts, stabilizers, and engineered load paths. Skid steer rigs, adapted from general‑purpose machines, can be safe when properly engineered and operated, but often require additional site controls and training to meet the same safety benchmarks under heavy loads. [jcdrill]
From an exploration contractor's standpoint, decisions are rarely purely technical—they also reflect contract structure and risk allocation. Industry reports and buyer's guides consistently show that technical decision‑makers favor rigs with well‑documented performance and OEM support for high‑risk projects. Specialized core drilling equipment with proven performance in similar geology reduces both technical and financial uncertainty. [cortechdrilling]
Consultants and insurers assessing drilling startups also look at rig type, maintenance history, and OEM support when evaluating risk. Using a skid steer rig in applications designed for deep core drilling can shift risk back onto the contractor in the form of higher insurance costs or stricter contract terms. [prime-rigs]
For remote mining sites that require high‑precision core drilling in hard rock, mobile diamond core rigs offer clear advantages: [scribd]
- Higher depth capacity for exploration and geotechnical work
- Better torque and feed control for core quality and bit life
- Faster moves between drill pads via crawler or truck mobility
- Integrated safety and ergonomics designed specifically for drilling
- Lower cost per meter over the rig's lifecycle for serious exploration programs [prime-rigs]
This makes them the preferred choice for mid‑ to large‑scale exploration and long‑term resource definition.

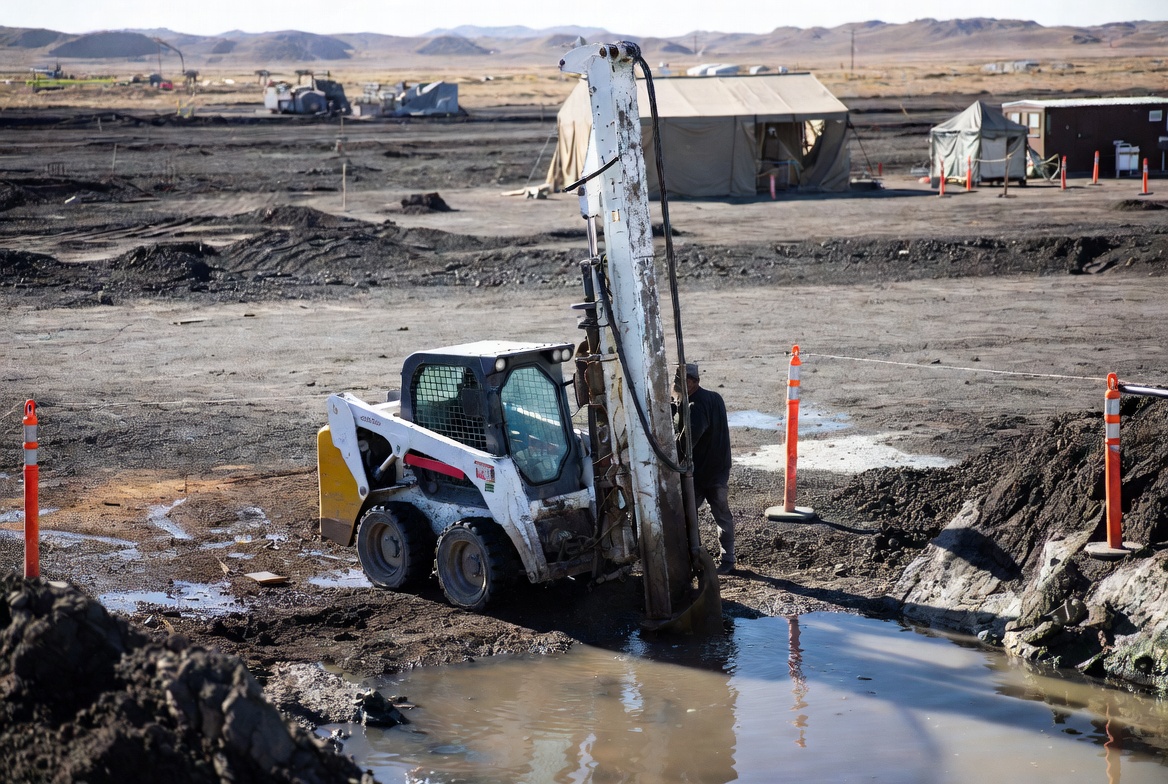

Skid steer well drilling rigs retain a clear niche when: [dminingwell]
- Target depths are shallow
- Ground conditions are relatively soft or mixed
- The project budget is constrained and initial CAPEX must be minimized
- Work includes mixed tasks (light excavation, site prep, shallow wells) where the skid steer's versatility is valuable
In remote mining environments, this often translates to:
- Small camp water wells
- Environmental monitoring wells around facilities
- Temporary services rather than primary exploration drilling
CORTECH, established in 2005 as a high‑tech enterprise focusing on all‑hydraulic diamond core drilling rigs, has positioned its core surface drill rigs for high‑precision projects in exactly these kinds of environments. Product literature highlights: [cortechdrilling]
- Custom high‑torque power heads designed for stability in tough formations [cortechdrilling]
- Hydraulics optimized for wireline coring and multi‑angle drilling [scribd]
- Design features aligned with industry expectations for deep mineral exploration [epiroc]
For an operator choosing between a skid steer solution and a dedicated mobile core rig such as a CORE SURFACE DRILL, the latter aligns better with the long‑term productivity and risk profile of serious exploration programs. [cortechdrilling]

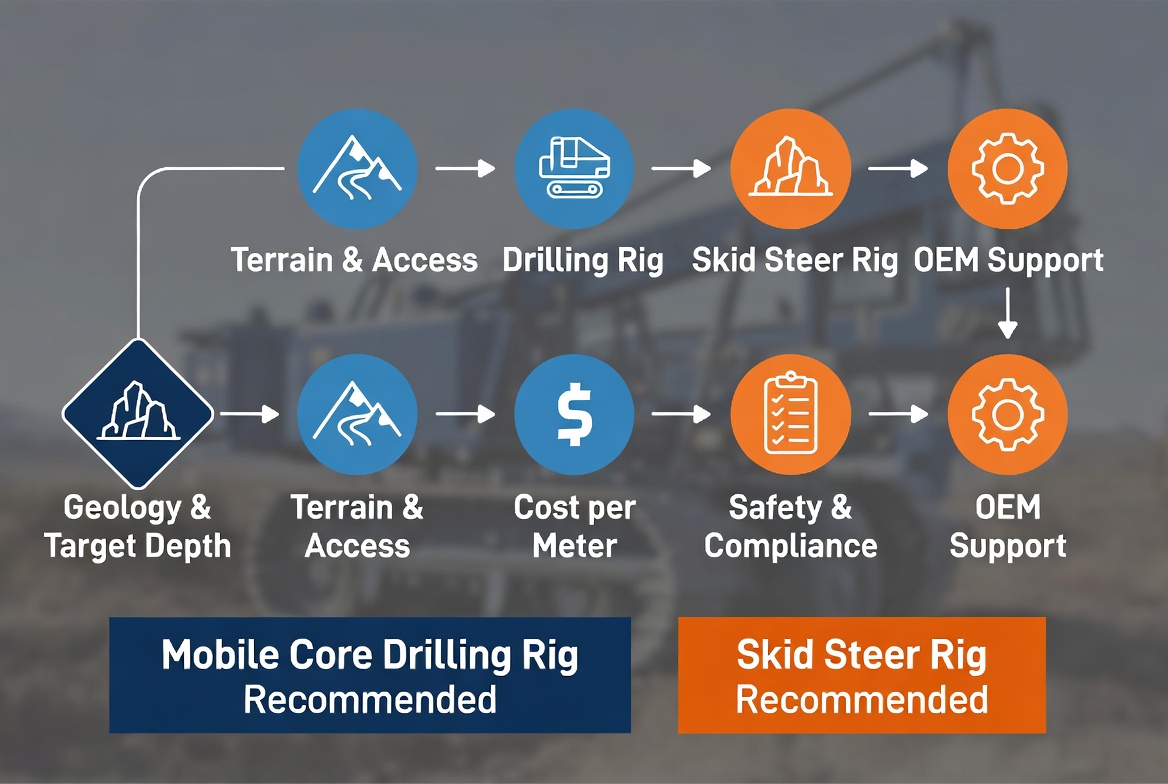

To make a grounded decision, drilling managers can follow a simple five‑step selection process based on industry guidance. [smartbuy.alibaba]
1. Define depth and geology
- Target maximum depth, expected formation hardness, and required core size.
2. Assess access and terrain
- Evaluate pad spacing, slope, and ground bearing capacity to determine whether crawler or truck mounting is needed.
3. Model cost per meter
- Combine expected penetration rates, rig day rates, fuel use, and support logistics. [pilebuck]
4. Evaluate safety and compliance
- Check stability, guarding, and OEM documentation against site and regulatory requirements. [excavatinginsurancepartners]
5. Review support and lifecycle
- Consider OEM track record, parts availability, and service support in your region. [epiroc]
On most remote mining projects where depth and hard rock are central, this process naturally favors a mobile core drilling rig over a skid steer solution.
| Factor | Mobile Drilling Rig (Core) | Skid Steer Well Drilling Rig |
|---|---|---|
| Typical depth range | Up to several hundred to ~1,300 m in hard rock scribd | Shallow wells and short holes smartbuy.alibaba |
| Mobility in rough terrain | High with crawler or off‑road chassis drillsource | Moderate; better on moderate terrain smartbuy.alibaba |
| Torque and hydraulic control | High torque, dedicated circuits cortechdrilling | Limited by skid steer hydraulics smartbuy.alibaba |
| Core quality in hard rock | Optimized for diamond coring yugongmachinery | More constrained in hard rock smartbuy.alibaba |
| CAPEX | Medium to high prime-rigs | Lower initial investment prime-rigs |
| Lifecycle cost per meter | Generally lower for deep projects prime-rigs | Can rise sharply on demanding jobs prime-rigs |
| Best use case | Remote mineral exploration and deep geotech cortechdrilling | Shallow water wells, environmental wells smartbuy.alibaba |
For remote mining sites that depend on reliable core data, deep holes, and consistent productivity, a purpose‑built mobile drilling rig—such as a fully hydraulic CORE SURFACE DRILL from CORTECH—is typically the best strategic choice. Skid steer rigs retain value as a supplementary tool for shallow, low‑risk tasks, but they are seldom the primary solution for high‑value exploration programs in challenging terrain. [jcdrill]
If you want, I can next adapt this article into a fully branded version that directly references your specific CORE SURFACE DRILL models, features, and customer use cases.
In most cases, no. Skid steer rigs are better suited to shallow wells and light tasks, while mobile core rigs are engineered for deeper, high‑torque, and high‑stability operations in hard rock. [dminingwell]
Mobile rigs combine higher depth capacity with better off‑road mobility and integrated safety systems, which together reduce cost per meter and operational risk in remote exploration. [drillsource]
OEM support for parts, service, and technical guidance is critical for maintaining uptime, especially where remote logistics and harsh conditions magnify the impact of even short outages. [cortechdrilling]
Some specialized skid steer attachments can perform limited coring in softer formations or at shallow depths, but they are not typically used for deep diamond core drilling in hard rock deposits. [jcdrill]
Fully hydraulic rigs provide precise control over rotation, feed, and pullback, enabling high‑quality core recovery and reliable performance in variable formations and deep holes. [epiroc]
