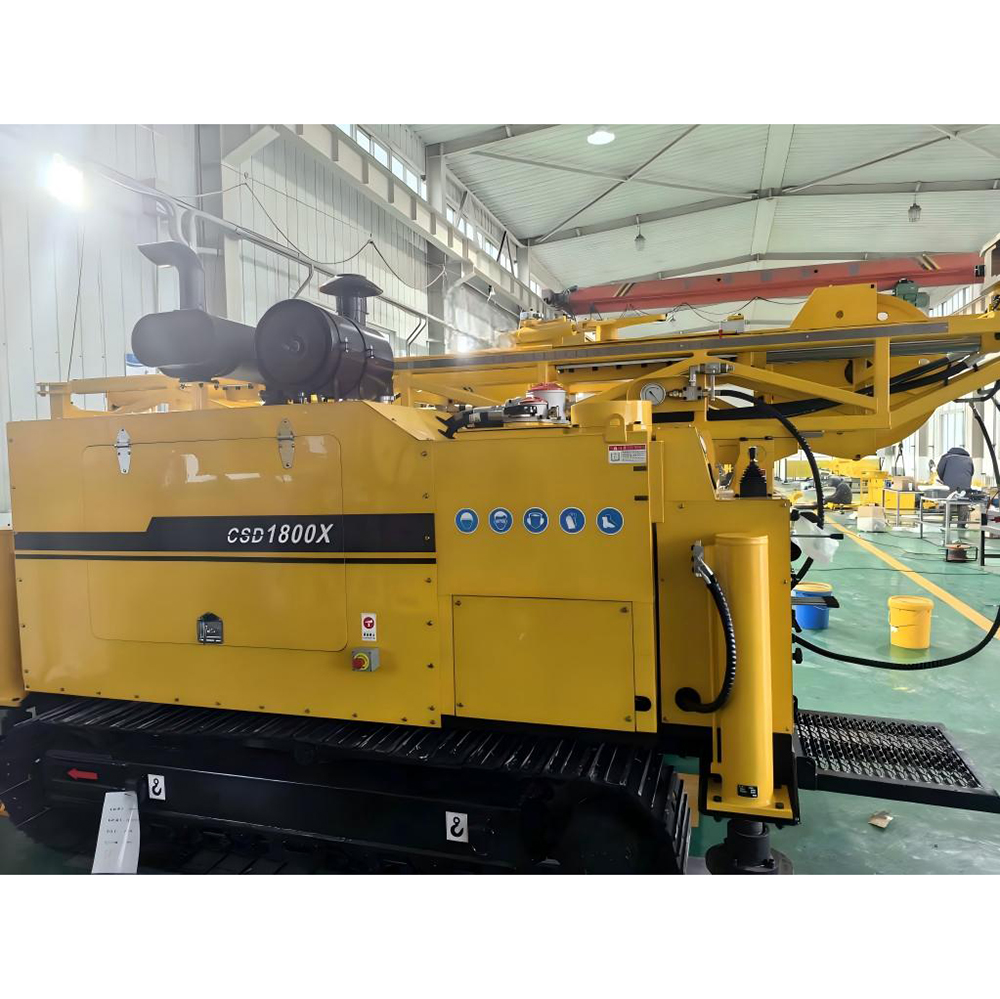

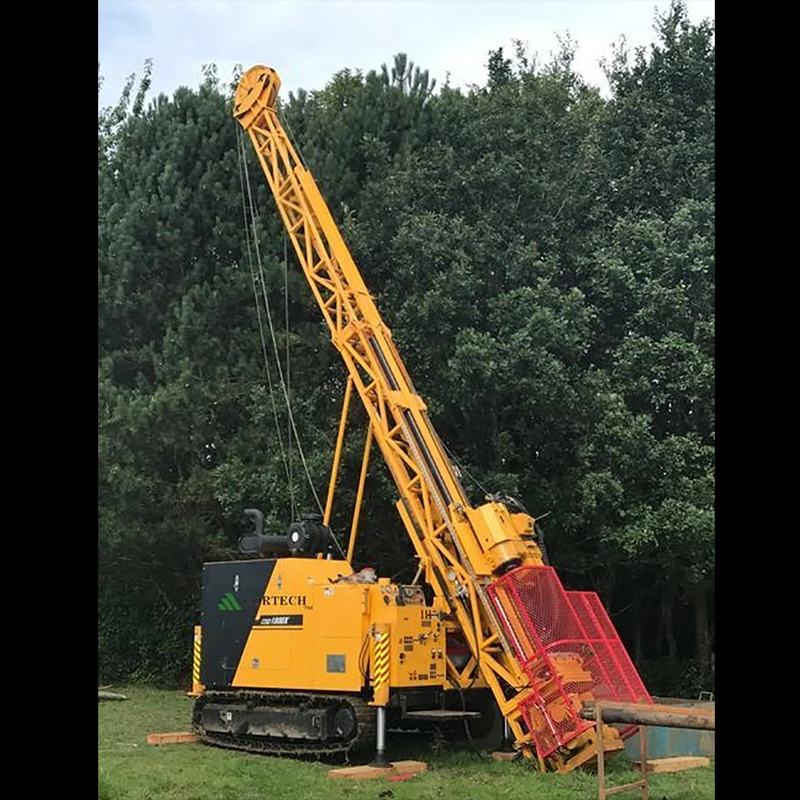

（former CSD1800X）
Features
● 4 speeds gear box
● Big chuck diameter up to 117mm
● Stroke of drill head 3.5m suitable for 3m length rods
● Drill head has sliding function
● Mast has dump function
● Mast folding design minimizes transportation dimensions
● Independent hydraulic leveling jacks
● Accurate control of feed pressure
● Floating head protects the rod threads during make up and break out

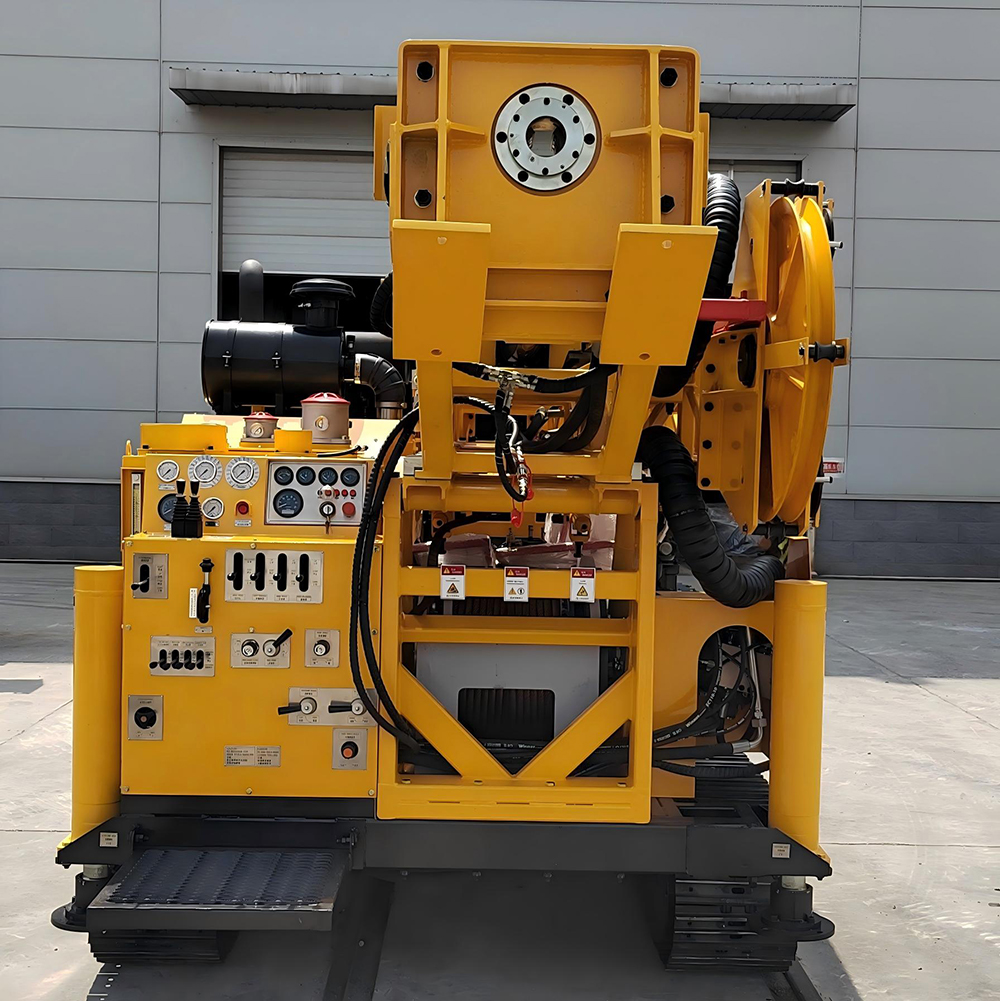

● Real time display of drilling data on the control panel gauges
● Hydraulically controlled mud pump flow at the rig control panel
● Premium hydraulic components of European/US origin
● Wire line winch with automatic rope spooler
After Sales Service
Our expert service engineer team is globally available, 24/7.
Note
Rigs are available with different mounting options and diesel or electric drive options. Please contact sales@cortechdrilling.com for more information.
Technical Specifications
Drilling Capacity | |
Diameter of Drill Rod | B, N, H, P |
Drilling Depth | 2,000m 1,700m 1,200m 700m |
Engine | |
Model | Cummins B6.7CS4 260C |
Type | Turbo |
Power | 194KW |
RPM | 2,200rpm |
Drill Head | |
Max Torque | 5,500Nm |
Max Rotation | 1,050rpm |
Feed Stroke | 3,500mm |
Max Inside Diameter | 117mm |
Pull/Push | 189KN/50KN |
Main Winch | |
Max Pull | 135KN |
Pulling Speed | 33m/min(LOW),49m/min(HIGH) |
Rope Diameter | 22mm |
Rope Length | 35m |
Wireline Winch | |
Max Pull | 11KN(bare drum) |
Pulling Speed | 120m/min |
Rope Diameter | 6.6mm |
Rope Length | 1,500m |
Mast | |
Length | 10m |
Drilling Angle | 45°-90° |
Dump Length | 1.1m |
Foot Clamp | |
Drill Rod | B, N, H, P |
Travelling Capacity | |
Max. Permissible Gradient | 30° |
Max. Travelling Speed | 2km/h |
Transporting Dimensions | |
L*W*H | 5,530×2,350×2,850mm |
Total Weight | |
Total Weight | 11.3t |
