In more than a decade of working around surface and heli‑portable core drills in mining and civil projects, I have learned that rock stabilization is the difference between a clean, productive shift and an expensive safety incident. When you drill into fractured, weathered, or steeply sloping rock without proper stabilization, you risk block falls, hole collapse, equipment damage, and low‑quality core recovery. [sinodrills]
For manufacturers like CORTECH, who design fully hydraulic wireline diamond core drill rigs such as CORE SURFACE DRILL and CORE HELI DRILL, rock stabilization is not just a geotechnical concept—it is a crucial part of how customers actually use the equipment on site. By combining sound stabilization techniques with well‑engineered rope core drilling systems, operators can drill straighter holes, maintain higher penetration rates, and collect reliable core samples for geological and engineering decisions. [coringmagazine]
In this expert guide, we will walk through step‑by‑step rock stabilization practices, highlight mechanical and chemical methods, and show how these solutions integrate with modern wireline core drilling equipment for mining, geotechnical, and civil slope projects. [argentium]
Rock masses rarely behave like solid blocks. In exploration and civil projects, you often have to drill through:
- Highly fractured or jointed rock
- Weathered or altered zones
- Soft clayey layers above hard rock
- Steep natural or cut slopes [sinodrills]
These conditions create several issues:
- Loose blocks and slabs that can detach and fall.
- Progressive sloughing of the hole wall or slope face.
- Water‑sensitive formations that swell or soften when drilling fluids are introduced.
- Uncontrolled hole deviation when the bit follows weak planes instead of the planned trajectory. [epiroc]
From an equipment perspective, unstable rock translates into stuck tools, damaged diamond bits, worn reaming shells, and core barrel jamming—all of which increase non‑productive time and operating cost. [coringmagazine]
Before stabilizing rocks, never skip a structured site assessment. This is where E‑E‑A‑T really starts: you demonstrate that every decision is grounded in data, not guesswork. [sinodrills]
Key elements of an effective assessment:
- Terrain and geometry
- Slope angle and height
- Bench width and access roads
- Nearby infrastructure or exposed workers [sinodrills]
- Rock type and structure
- Lithology (e.g., sandstone, granite, shale)
- Joint spacing, orientation, and persistence
- Faults, bedding planes, and shear zones [argentium]
- Geotechnical properties
- Uniaxial compressive strength (UCS) ranges
- Discontinuity roughness and infill
- Rock mass rating (RMR), Q‑system or similar classification [argentium]
- Hydrogeological conditions
- Groundwater inflow and seepage points
- Seasonal water level changes
- Effects of drilling fluid or flushing water on soft layers [coringmagazine]
- Operational constraints
- Whether you use a surface core drill or heli‑portable modular drill
- Power, water, and consumables availability
- Environmental and regulatory limitations [hysy.shopc.com]
Based on this data, your geotechnical team can select suitable stabilization methods and plan drill pad locations, collar casing, and slope support in a way that complements your core drilling plan. [argentium]
Mechanical reinforcement remains the backbone of rock stabilization in civil, mining, and geotechnical projects. It physically connects unstable rock to more competent ground and reduces the likelihood of block movement. [sinodrills]
- Rock bolts and anchors
Rock bolts, self‑drilling anchors, and grouted bars create a bonded, tensioned system that ties loose rock blocks into the stable rock mass behind them. [argentium]
- Conventional rock bolts and dowels are often used in competent rock with clear discontinuity patterns. [argentium]
- Self‑drilling anchors combine drilling, grouting, and anchoring in a single operation, ideal for fractured or loose ground. [argentium]
- Water‑expandable bolts generate radial pressure, improving contact in irregular holes. [argentium]
- Retaining structures and shotcrete
- Retaining walls (gravity, reinforced, or anchored) help resist sliding or overturning of rock and soil masses at the toe of slopes. [sinodrills]
- Shotcrete (sprayed concrete) adds surface confinement, protects against weathering, and integrates with bolts and mesh. [argentium]
- Mesh, netting, and barriers
- Wire mesh or high‑tensile rockfall netting retains small, loose rock fragments. [sinodrills]
- Rockfall barriers and catch fences provide additional safety where falling blocks may reach roads or work areas. [sinodrills]
For operators using hydraulic rope core drill rigs, proper mechanical stabilization around pads and slopes enables:
- Safe rig setup on steep ground when using compact heli‑portable rigs.
- Stable collars and near‑surface hole conditions, improving core orientation and alignment.
- Reduced vibration and deviation, which is particularly important when using extended reaming shells and diamond locking couplings to stabilize the core barrel. [epiroc]
Mechanical systems handle larger blocks and structural stability, but chemical stabilization addresses micro‑scale weaknesses like cracks, voids, and porous zones. [sinodrills]

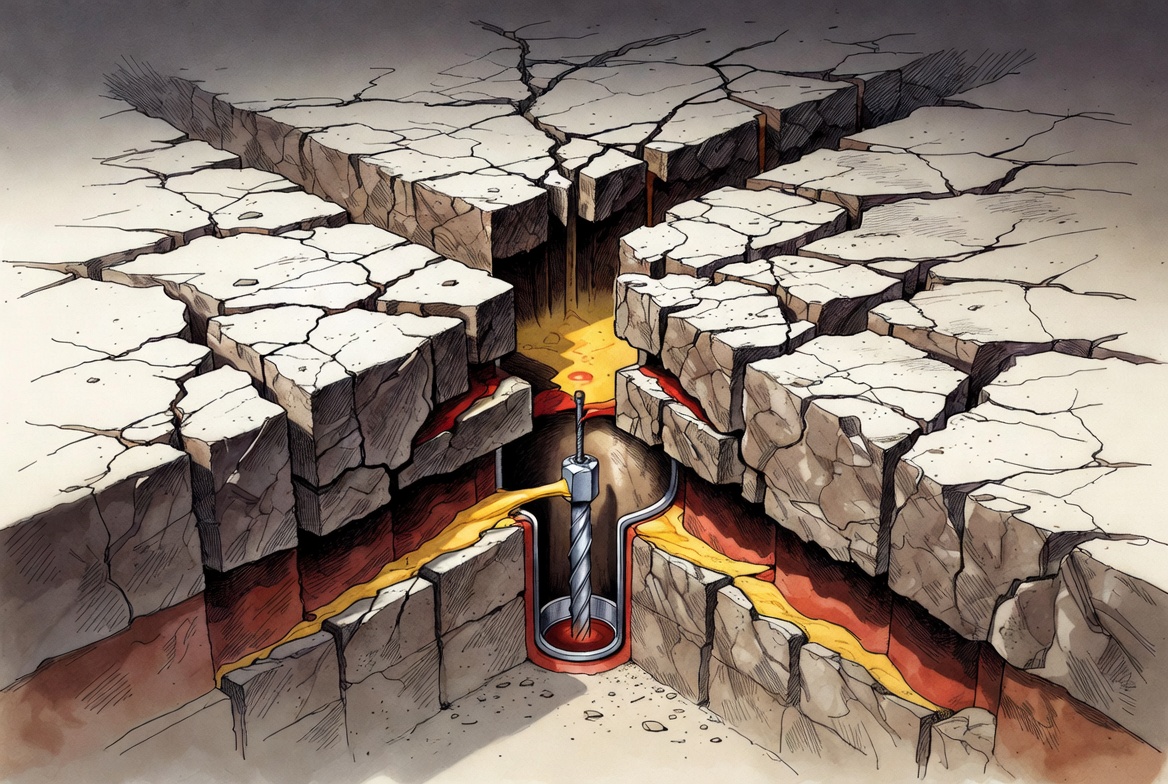

- Grout injection
Cementitious or polyurethane grout is injected into fractures or voids to fill gaps, reduce permeability, and increase overall rock mass stiffness. [sinodrills]
- Resin and adhesive systems
Epoxy or polyester resins can be injected or used with resin cartridges to rapidly bond bolts or consolidate broken rock. Resins cure quickly and are useful in wet or time‑critical situations. [argentium]
- Surface sealers and coatings
Chemical sealers applied to exposed rock faces reduce weathering, block water ingress, and help maintain slope integrity over time. [sinodrills]
Based on industry practice and user feedback from drilling professionals:
- Select the right material based on rock type, moisture, and temperature.
- Control injection pressure to avoid hydraulic fracturing or unintended flow paths.
- Coordinate drilling and grouting so that treated zones are allowed to cure sufficiently before subjecting them to drilling loads. [argentium]
For core drilling operations, chemical stabilization is particularly valuable when drilling through weak interbeds that tend to break up in the core barrel or when casing off problematic zones before proceeding to target depth. [coringmagazine]
When your drilling is part of a road cut, foundation excavation, tunnel portal, or open‑pit slope, rock stabilization is inseparable from broader slope protection. [sinodrills]
Core elements of slope protection:
1. Geometry optimization
- Adjust slope angles and bench heights based on geotechnical analysis.
- Introduce berms and drainage benches to intercept rockfalls and water. [sinodrills]
2. Surface and subsurface drainage
- Install horizontal drains, culverts, and surface channels.
- Prevent water buildup that weakens joints and weathered layers. [sinodrills]
3. Combined systems
- Use a combination of rock bolts + shotcrete + mesh to achieve a robust, redundant support system.
- Integrate with soil nails in transition zones where rock changes into soil or colluvium. [argentium]
For drilling contractors, stabilized slopes mean safer rig access, reduced downtime due to rockfalls, and better conditions for long‑term instrumentation holes or geotechnical monitoring. [argentium]
Beyond slope faces, stabilizing the borehole itself is critical in wireline core drilling. This is where drilling practice meets equipment design. [epiroc]
According to drilling specialists, wellbore stabilization begins with understanding the unique ground conditions in each hole. Simple, low‑cost measures often bring the best results: [coringmagazine]
- Drilling fluid management
- Adjust viscosity and density to support the borehole while minimizing formation damage.
- Use additives where needed to plug micro‑fractures or reduce water‐sensitive shale swelling. [coringmagazine]
- Grouting and cementing weak intervals
- Cement or grout troublesome zones and re‑drill through them after curing.
- In some cases, even pushing bentonite chips into soft zones can stabilize the wall enough to continue coring. [coringmagazine]
- Controlled drilling parameters
- Optimize rotation speed, weight on bit, and pump rate to match rock strength.
- Avoid aggressive parameters in broken or weak rock that can enlarge the hole or wash out support. [coringmagazine]
Equipment manufacturers have introduced specific solutions to improve core barrel stability and control hole deviation:
- Reinforced diamond locking couplings
Using a diamond‑impregnated locking coupling improves wear resistance and helps maintain consistent diameter at the front of the core barrel assembly. [epiroc]
- Extended reaming shells
An extended reaming shell (e.g., 18 inches long with multiple diamond rings) gives more contact length, improving guidance and reducing deviation. [epiroc]
- Front diamond pads help stabilize and steer the assembly.
- Rear diamond pads help maintain hole diameter and reduce tapering. [epiroc]
When combined with rigs that offer precise feed control, rigid mast structures, and reliable hydraulic systems, such as modern CORE SURFACE DRILL and CORE HELI DRILL designs, these components significantly enhance hole stability and core recovery in difficult ground. [hysy.shopc.com]
To make this guide directly actionable, here is a field‑oriented checklist you can adapt to your projects:
1. Assess the site and rock mass
- Perform geological mapping, RMR/Q classification, and slope inspection. [argentium]
2. Define stability requirements
- Identify acceptable risk levels and required factors of safety for slopes and boreholes. [sinodrills]
3. Choose mechanical reinforcement
- Specify rock bolts, anchors, mesh, shotcrete, and retaining structures as required. [argentium]
4. Plan chemical stabilization
- Determine where grout or resin injections will help consolidate fractured zones. [sinodrills]
5. Optimize drilling equipment and tools
- Select appropriate rope core drilling equipment, core barrels, extended reaming shells, and locking couplings for expected conditions. [hysy.shopc.com]
6. Control drilling parameters and fluids
- Tune RPM, feed, and circulation based on ground response and hole behavior. [coringmagazine]
7. Monitor, inspect, and adjust
- Continuously inspect slopes, pads, and boreholes.
- Update stabilization measures when conditions change or unexpected behavior is observed. [coringmagazine]
While stabilization techniques are widely known in the industry, how your core drill behaves in unstable rock determines whether these techniques succeed in practice. [epiroc]
Modern hydraulic wireline diamond core drills, such as surface rigs and modular heli‑portable rigs, are engineered to support rock stabilization goals in several ways:
- Precise feed and rotation control
- Fine‑tuned hydraulic systems allow gentle, controlled drilling through fractured or chemically treated zones, minimizing disturbance to the stabilized rock mass. [hysy.shopc.com]
- Rigid mast and base design
- Stable mast structures and secure base frames reduce vibration that could otherwise loosen bolts or destabilize freshly grouted zones. [hysy.shopc.com]
- Compatibility with advanced barrels and shells
- These rigs are designed to operate with extended reaming shells and reinforced diamond couplings, providing smoother hole walls and better barrel stability in difficult formations. [epiroc]
- Modular, heli‑portable designs for remote slopes
- CORE HELI DRILL‑type rigs can be broken down into air‑portable modules, making it feasible to bring professional stabilization and core drilling capability to steep, remote locations where large rigs cannot operate. [hysy.shopc.com]
As a manufacturer, you can highlight field cases where your rigs operated in complex ground with successful stabilization strategies, emphasizing reduced downtime, higher core recovery, and better safety outcomes. [hysy.shopc.com]
| Aspect | Mechanical methods example | Chemical methods example |
|---|---|---|
| Primary function | Tie loose blocks to stable rock, support slopes (sinodrills) | Fill cracks, bond particles, reduce permeability (sinodrills) |
| Typical solutions | Rock bolts, self‑drilling anchors, mesh, shotcrete (sinodrills) | Grout injection, resin cartridges, sealers (sinodrills) |
| Scale of effect | Structural blocks and slope faces (sinodrills) | Fractures, voids, porous zones (sinodrills) |
| Time to effectiveness | Often immediate after installation (argentium) | Depends on curing time of grout/resin (sinodrills) |
| Integration with drilling | Stabilizes pads, collars, benches (sinodrills) | Conditions weak intervals in the borehole (sinodrills) |
Stabilizing rocks for core drilling is not a one‑step product, but a complete workflow that runs from geological assessment and mechanical/chemical reinforcement to drilling practice and equipment optimization. By combining proven slope and borehole stabilization techniques with well‑designed hydraulic wireline core rigs, operators can work safer, drill straighter, and recover higher‑quality core in even the most challenging formations. [epiroc]
If you are planning a new exploration or geotechnical program in complex rock conditions and want to pair professional rock stabilization with reliable CORE SURFACE or CORE HELI DRILL‑type equipment, contact our engineering team. We can help you evaluate your ground conditions, select the right stabilization strategy, and configure a complete wireline diamond core drilling system tailored to your project.
1. Why is rock stabilization essential before core drilling?
Rock stabilization prevents rockfalls, hole collapse, and equipment damage, while improving worker safety and core recovery quality, especially in fractured or steep ground. [coringmagazine]
2. When should I choose mechanical stabilization instead of chemical methods?
Use mechanical stabilization when you need to control large blocks or entire slope faces, such as with rock bolts, mesh, and shotcrete; chemical methods are better for cracks and weak intervals within the rock mass or borehole. [argentium]
3. How does drilling fluid affect rock stability in core drilling?
Drilling fluid supports the borehole wall and removes cuttings, but if not properly formulated, it can erode weak zones or trigger swelling in water‑sensitive formations, leading to instability. [coringmagazine]
4. What equipment features help stabilize the borehole during core drilling?
Extended reaming shells, reinforced diamond locking couplings, rigid masts, and precise hydraulic feed control all improve barrel stability, reduce deviation, and help maintain a clean, uniform hole. [epiroc]
5. Can heli‑portable core drills be used safely on steep, unstable slopes?
Yes, provided you combine them with appropriate slope reinforcement, stable drill pad design, and, where necessary, chemical stabilization of near‑surface rock and weak layers before full‑depth drilling. [hysy.shopc.com]
