Rock drilling is the process of creating boreholes in hard rock formations to install anchors, extract minerals, prepare blast holes, or obtain geological core samples. In real projects, rock drilling connects design on paper with the reality of the ground: it is how tunnels advance, open‑pit benches are blasted, and mineral resources are proven before large capital is committed. [kreo]
From my perspective as a field‑oriented drilling engineer, the quality of rock drilling directly affects safety, productivity, and the reliability of every geological decision that follows. Poor drilling accuracy, unstable equipment, or wrong tool selection quickly show up as hole deviation, tool breakage, or incomplete core samples that put entire projects at risk. [trenchlesstechnology]
For that reason, the industry has been steadily moving toward full hydraulic, wireline diamond core drilling rigs and optimized rock drilling tools to deliver higher precision, deeper holes, and safer daily operation. [epiroc]
Rock drilling is essential in: [revdrill]
- Mining – Creating blast holes, exploration boreholes, and dewatering wells. [revdrill]
- Construction and infrastructure – Drilled shafts, rock anchors, tiebacks, and tunneling. [sinodrills]
- Geological exploration – Diamond core drilling to confirm ore bodies and structural geology. [epiroc]
- Energy and water – Geothermal holes, water wells, and preparation holes for oil and gas wells. [kreo]
In each of these applications, drilling performance is evaluated by penetration rate, hole straightness, tool life, and how consistently the rig can deliver these results over weeks and months. [trenchlesstechnology]
Different rock drilling methods serve different project needs. [sciencedirect]
- Top‑hammer rock drilling – The hammer is outside the hole and transmits impact energy through the drill string, ideal for bench drilling, tunneling, and shorter holes. [sinodrills]
- Down‑the‑hole (DTH) drilling – The hammer is placed at the hole bottom; this improves energy transfer and hole straightness in medium to very hard rock. [sinodrills]
- Rotary and rotary‑percussive drilling – Used for larger‑diameter holes, drilled shafts, and some water well applications. [sciencedirect]
- Diamond core drilling – A rotating, diamond‑impregnated core bit cuts an annulus in the rock, producing a solid core for geological logging and lab testing. [dminingwell]
From an exploration engineer's viewpoint, diamond core drilling is the method of choice whenever core quality, structural information, and precise depth control matter more than raw penetration rate. [dminingwell]
Diamond core drilling is a specialized rock drilling technique that uses a circular bit embedded with synthetic industrial diamonds to cut a cylindrical core from solid rock. The drill string rotates the core bit under controlled weight, and drilling fluid (water‑based or polymer‑enhanced) transports cuttings, cools the bit, and stabilizes the borehole. [trenchlesstechnology]
High‑quality core is the primary data source for many major mining and infrastructure investments. Cores preserve: [epiroc]
- Rock type, alteration, and mineralization style
- Structural features such as fractures, veins, and foliation
- Mechanical properties relevant to support design and blasting
Using reliable diamond core drilling rigs allows geologists and engineers to reduce uncertainty before committing to mine development or complex underground construction. [dminingwell]
Modern wireline diamond core rigs are full hydraulic systems where rotation, feed, hoisting, and auxiliary functions are all driven by hydraulic circuits. This design gives the driller precise, responsive control over key parameters that directly influence safety and core recovery. [epiroc]

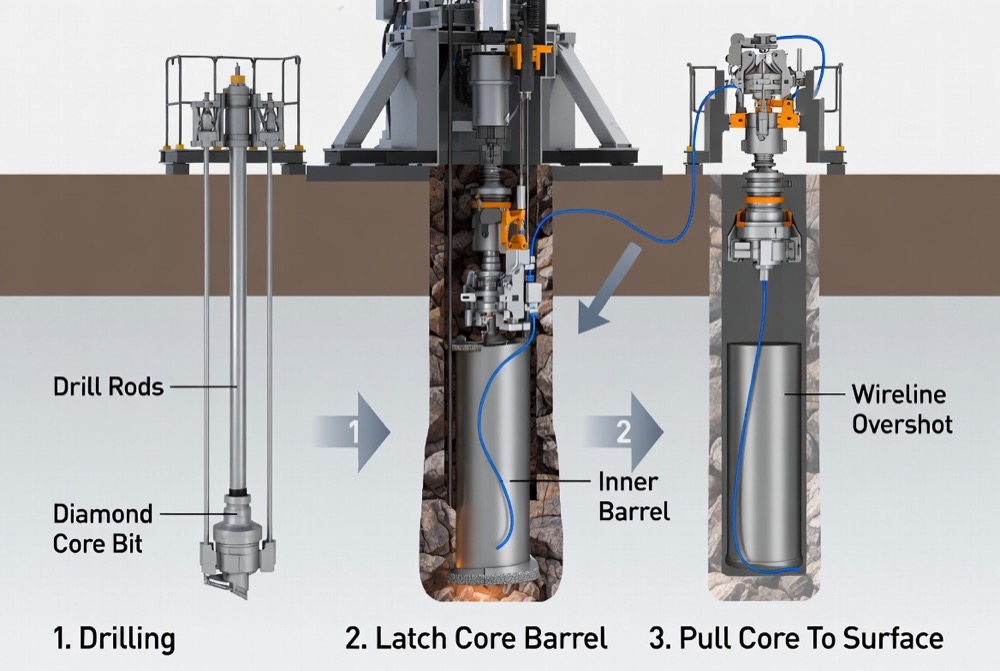

In wireline core drilling, the core is recovered without pulling out the entire drill string. A simplified sequence looks like this: [dminingwell]
1. Drill to target depth with the diamond core bit and core barrel assembly. [epiroc]
2. Stop rotation and circulation, then run a wireline with an overshot down the hole. [dminingwell]
3. Latch onto the inner core barrel, which holds the core, and winch it back to the surface. [epiroc]
4. Unload and mark the core, then lower the inner barrel back down inside the rods and resume drilling. [dminingwell]
This wireline system reduces non‑productive time, especially on deeper holes, and limits manual handling of heavy drill rods at the surface. [epiroc]
Field users consistently highlight several benefits of modern full hydraulic surface core drilling rigs: [sinodrills]
- High stability and smooth torque – Hydraulic power heads deliver consistent rotation, reducing bit stalling and vibration in fractured formations. [runlidrillingrig.en.made-in-china]
- Long feed stroke and precise feed control – Rigs with long, hydraulically controlled feed systems maintain steady weight on bit, improving core recovery and bit life. [runlidrillingrig.en.made-in-china]
- Stepless adjustment of drilling parameters – Operators can continuously optimize rotation speed and feed pressure for each rock layer rather than relying on fixed mechanical steps. [dminingwell]
- Safer, more ergonomic operation – Hydraulic control levers, remote panels, and compact layouts reduce physical strain and improve safety around the rig. [epiroc]
- Efficient mobilization – Crawler‑type or modular rigs are easier to move between pads or along exploration lines in rugged terrain. [runlidrillingrig.en.made-in-china]
As a manufacturer specializing in CORE SURFACE DRILL type rigs, focusing on these advantages in real‑world conditions—cold climates, steep slopes, remote sites—builds both trust and perceived product value. [dminingwell]
Surface diamond core drilling rigs are widely used for: [revdrill]
- Greenfield mineral exploration
- Resource expansion and infill drilling
- Geotechnical drilling for large open pits and dams
For these programs, drilling contractors and mining companies look for rigs that can reach planned depths (often 1,000–1,800 m) while still delivering strong core recovery in variable formations. [runlidrillingrig.en.made-in-china]
Rock drilling tools and rigs also support: [sinodrills]
- Tiebacks and soil–rock anchors for retaining walls
- Drilled shafts and caissons in mixed ground
- Tunnel excavation support and blast hole drilling
- Slope stabilization and rockfall protection
In these projects, contractors value rigs and tools that combine fast penetration with reliable hole straightness and minimal unplanned downtime. [sinodrills]

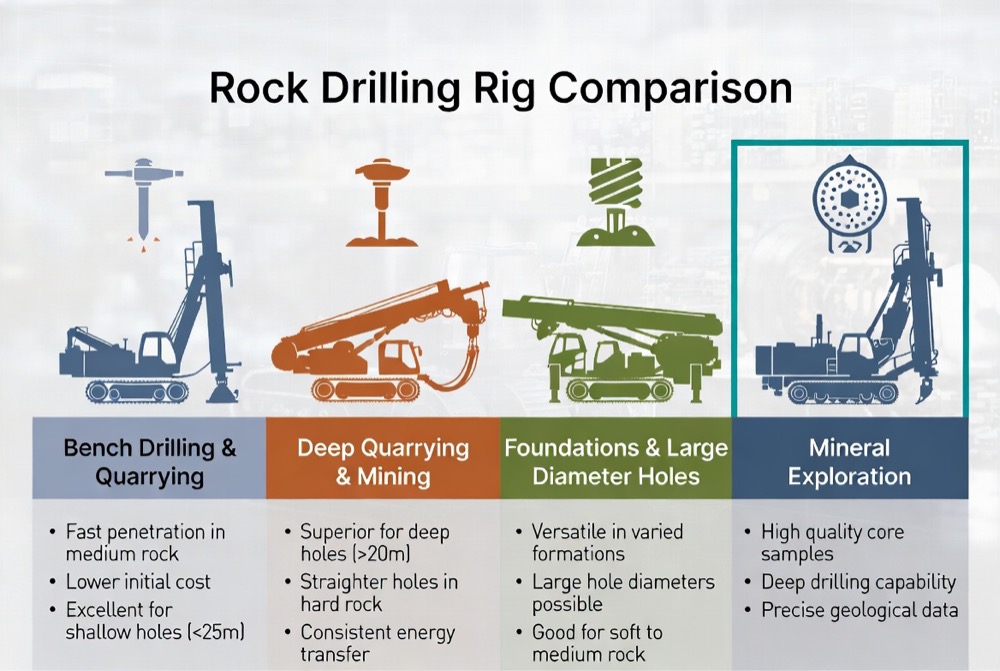

Below is a high‑level view comparing common rock drilling rig types, including diamond core drilling rigs used for exploration. [sinodrills]
| Rock drilling rig type | Typical application | Drilling principle | Key advantages | Limitations |
|---|---|---|---|---|
| Top‑hammer drill rig | Bench drilling, tunneling, production blasting (sinodrills) | External hammer impacts shank, energy travels through rods (sinodrills) | High penetration in medium holes, flexible positioning (sinodrills) | Limited hole depth, more deviation in long holes (sinodrills) |
| DTH rock drilling rig | Production holes, foundation drilling, quarrying (sinodrills) | Hammer located at hole bottom, percussive + rotary (sinodrills) | Good straightness, strong performance in hard rock (sinodrills) | Air consumption, slower in soft formations (sinodrills) |
| Rotary drilling rig | Large‑diameter shafts, water wells, some oil & gas (sciencedirect) | Continuous rotary cutting with weight on bit (sciencedirect) | Handles large diameters, adaptable to mixed ground (sciencedirect) | Lower precision for core, less structural detail (sciencedirect) |
| Diamond core drilling rig | Mineral exploration, geotechnical coring (sinodrills) | Diamond bit cuts annulus and produces solid core (epiroc) | Excellent core quality, high depth capacity, detailed geology (epiroc) | Smaller hole diameters, requires skilled operators (epiroc) |
In practice, drilling managers and end‑users compare rigs based on more than brochure specifications. The following factors repeatedly show up in project evaluations and feedback: [trenchlesstechnology]
- Depth capacity and pullback – Can the rig reach required depth with planned core size? [runlidrillingrig.en.made-in-china]
- Penetration rate – Not just in ideal rock, but through broken zones and transitions. [trenchlesstechnology]
- Core recovery – Consistent, high core recovery percentages reduce geological uncertainty. [epiroc]
- Rig stability and mast design – A stable mast and base reduce vibration and hole deviation. [runlidrillingrig.en.made-in-china]
- Operator environment – Clear control layout, good visibility, and safe access matter over long shifts. [dminingwell]
- Maintenance access – Service points should be reachable without complex disassembly. [trenchlesstechnology]
Experienced users often stress that the value of a rock drilling rig is determined over its entire life cycle. [trenchlesstechnology]
- Availability of critical spares and consumables
- Response time for technical support
- Training materials and on‑site commissioning support
Manufacturers that combine robust design with long‑term technical backing help drilling contractors keep utilization high and unplanned downtime low. [trenchlesstechnology]
Based on established industry best practices, every rock drilling program—whether for mining, tunneling, or geotechnical work—should follow a structured routine. [revdrill]
1. Understand the geology – Review historical data, mapping, and any nearby boreholes. [sciencedirect]
2. Define clear drilling objectives – Exploration, geotechnical parameters, production blasting, or a combination. [sinodrills]
3. Select suitable rig and tools – Match rock drilling rig type, core size, and bit design to the ground conditions and depth. [sinodrills]

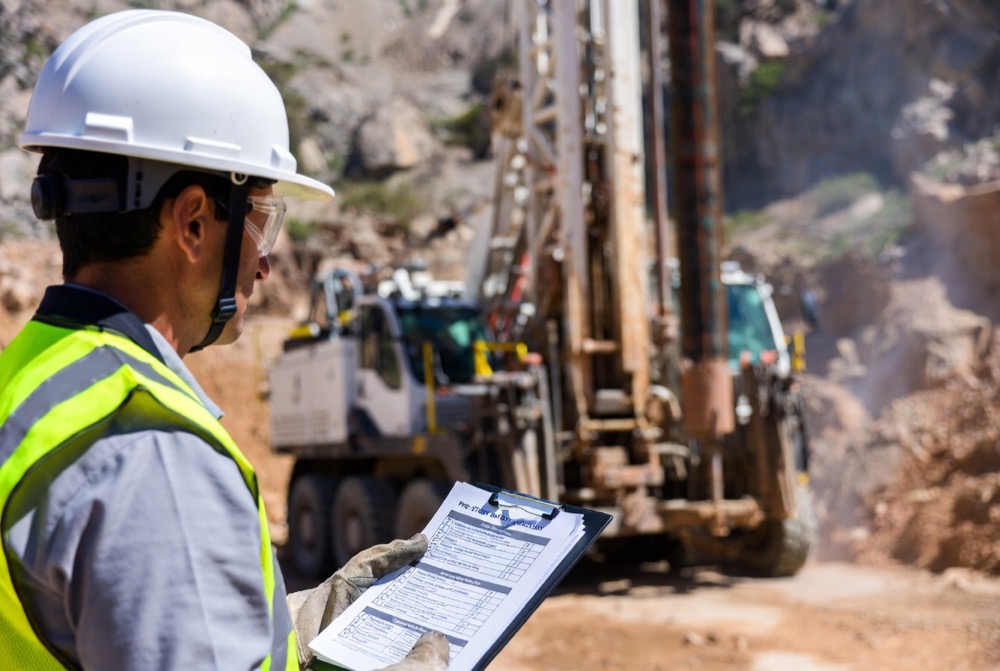

4. Plan safety and access – Ensure stable rig setup, safe walkways, and emergency procedures. [revdrill]
- Maintain steady weight on bit and avoid aggressive overloading that leads to premature bit wear. [trenchlesstechnology]
- Monitor return flow and cuttings to detect changes in formation or potential problems early. [sinodrills]
- Record parameters such as rotation speed, feed pressure, penetration rate, and fluid properties for continuous optimization. [trenchlesstechnology]
- Perform structured daily inspections of hoses, couplings, and mast components to prevent failures. [trenchlesstechnology]

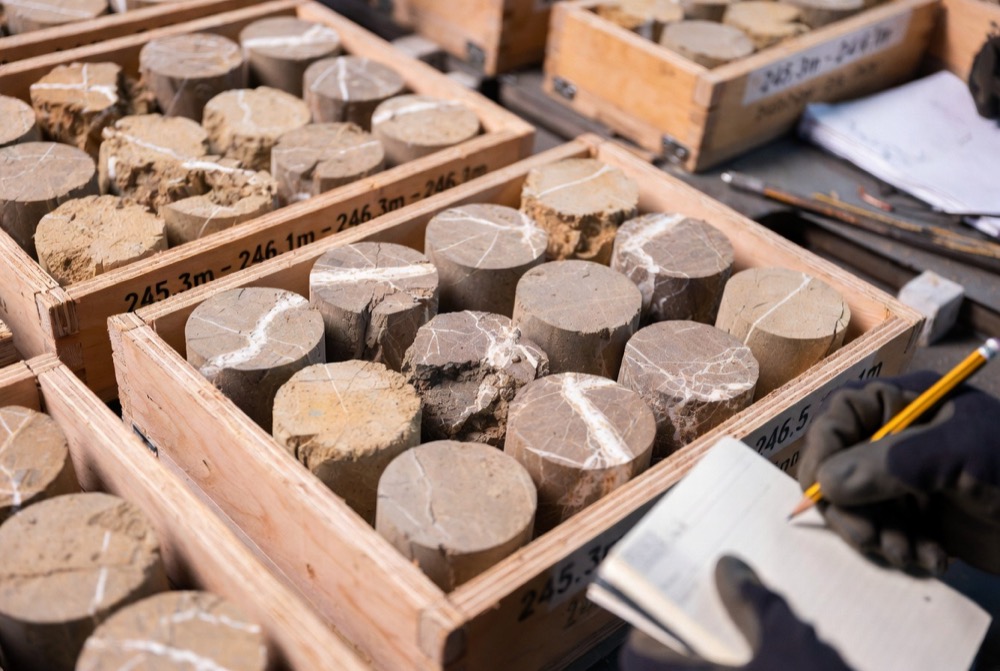

The value of a core drilling program depends on how well the collected data is preserved and interpreted. [epiroc]
- Carefully log and photograph cores before cutting or sampling
- Protect boxes from weather and mislabeling
- Integrate drilling and geophysical data to refine geological models
After learning about rock drilling and core drilling rigs, what should you know exactly what to do next?
Contact our engineering team to match the right rock drilling rig to your geology and depth targets.
Rock drilling is used to create holes in rock for mining, tunneling, foundations, anchors, blasting, and geological exploration. It enables access to resources, stabilizes structures, and provides data for engineering design. [kreo]
Diamond core drilling uses a diamond‑impregnated bit to cut an annulus and recover a solid core, which preserves geological structure and mineralization. Top‑hammer, DTH, and rotary drilling typically focus on creating open holes for blasting, foundations, or wells rather than core recovery. [sciencedirect]
Full hydraulic wireline rigs provide precise control, smooth torque, long feed strokes, and efficient core recovery without repeatedly pulling drill rods. This combination improves productivity, safety, and core quality, particularly in deeper exploration programs. [runlidrillingrig.en.made-in-china]
Surface core drilling rigs are used in mineral exploration, resource definition, geotechnical investigations for open pits and dams, and some infrastructure projects that require high‑quality core samples. They are designed to be mobile and stable on uneven terrain. [revdrill]
You should match the rig type and capacity to your target depth, hole diameter, rock conditions, and whether you need core samples or only open holes. It is also important to evaluate rig stability, safety features, service support, and total life‑cycle cost. [sciencedirect]
