In today's mining, HDD, and geotechnical projects, a back reamer is a critical tool used during the pull‑back phase to enlarge, stabilize, and condition a borehole after the pilot hole has been drilled. Instead of cutting forward, the back reamer works in reverse (on the pull‑back), increasing the hole diameter, improving wall integrity, and preparing a clean, stable path for casing, core barrels, or product pipe. [trenchlesspedia]
From the perspective of a core drilling engineer working with full hydraulic wireline core drilling rigs, back reamers are not optional accessories—they are what make the difference between a smooth, stable hole and a collapsed, high‑risk bore that compromises sample recovery and pipe installation. [jimaimachinery]
In real drilling projects—whether you are pulling back cable, casing, or a core barrel—back reamers deliver three essential outcomes: [thedriller]
- Enlarge the pilot bore to the required final diameter for pipe, casing, or core tools.
- Stabilize borehole walls in fractured, abrasive, or unconsolidated formations.
- Condition the hole by creating a controlled slurry and smooth wall "cake" that prevents collapse and reduces friction.
When deployed correctly, a quality back reamer helps you to:
- Reduce unplanned downtime caused by bore collapse or stuck pipe.
- Lower pull‑back forces and protect the drill string and rig.
- Improve the accuracy of bore path and hole alignment.
- Extend the life of bits, rods, and rig components through smoother loads. [sinodrills]
In both core drilling and horizontal directional drilling (HDD), the back reamer is used after the pilot bore has been successfully drilled along the planned path. The typical sequence is: [trenchlesspedia]
1. Drill the pilot hole with a suitable bit and drill string.
2. Attach the back reamer to the drill string or swivel at the exit point.
3. Connect product pipe, casing, or core barrel assembly behind the reamer where required.
4. Begin controlled pull‑back:
- The reamer cuts and enlarges the bore while rotating.
- Drilling fluid (bentonite and/or polymers) carries cuttings out and supports the hole. [thedriller]
5. Achieve final bore size in a single pass or multiple reaming passes, depending on ground conditions and diameter. [trenchlesspedia]
During this process, you're not just cutting rock. You are engineering the bore environment—the fluid mix, the wall cake, and the hole geometry—all of which are strongly influenced by back reamer design and usage. [sinodrills]
Back reamers are used wherever a drilled hole needs to be:
- Larger than the pilot bore
- Stable enough to accept casing, pipe, or core tools
- Precisely aligned over meaningful distances
Typical applications include: [thedriller]
- Mineral exploration core drilling
- Stabilizing long boreholes for wireline core drilling tools, core barrels, and reaming shells.
- HDD utility projects
- Pulling back water, gas, telecom, and power conduits under roads, rivers, and sensitive infrastructure. [trenchlesspedia]
- Construction and foundation drilling
- Creating enlarged holes for piles, anchors, and structural supports with controlled wall conditions. [sinodrills]
- Water well and geothermal wells
- Ensuring long, straight, stable bores that can accept casing and screens without excessive drag. [thedriller]

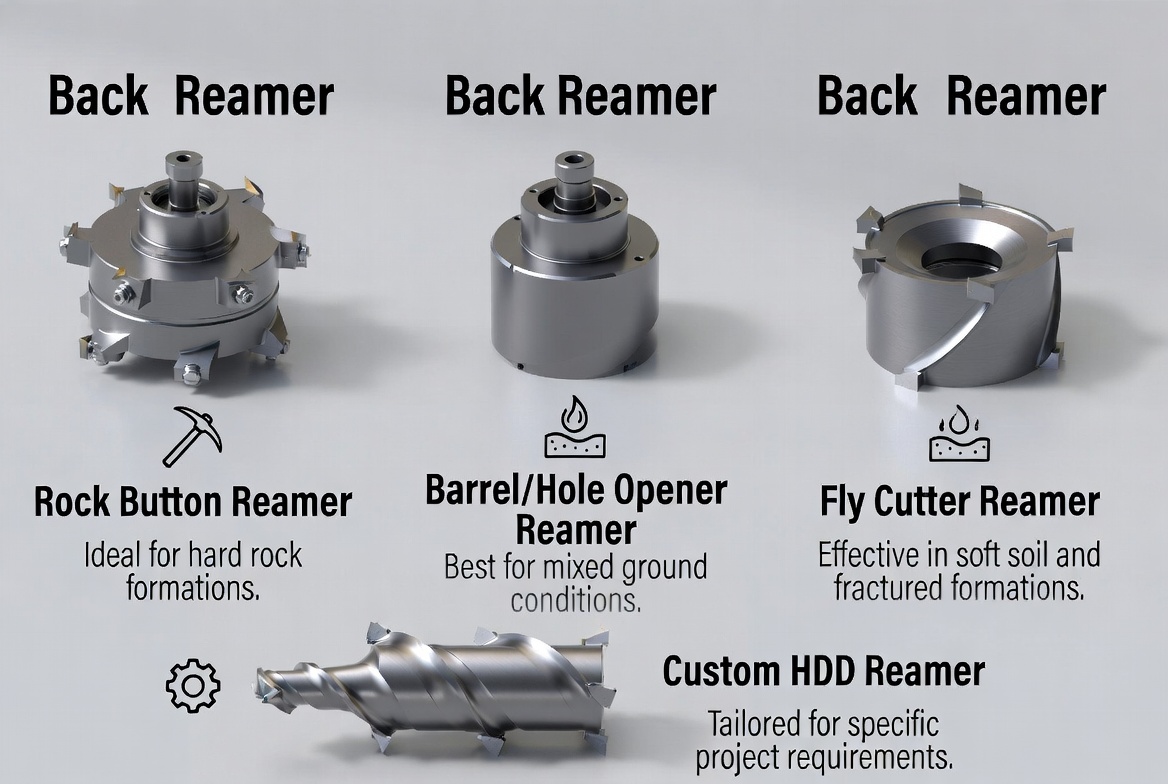

Different formations and drilling methods demand different back reamer designs. Common categories include: [sinodrills]
- Rock reamers with button cutters
- Carbide buttons and robust bodies for hard and abrasive formations.
- Fly‑cutter style reamers
- Aggressive cutting arms suitable for softer soils and mixed ground.
- Barrel or hole‑opener reamers
- Cylindrical bodies with cutting structure for larger diameters and smoother walls.
- Custom HDD back reamers
- Tailored cutting geometry, fluid ports, and shank types to match specific rigs and product pipe. [chinese.alibaba]
From a field engineer's perspective, selecting a back reamer is about matching tool geometry to formation and project demands. Critical criteria include: [trenchlesspedia]
- Rock formation
- Hardness, abrasiveness, fracture pattern, and presence of boulders.
- Choice of button type, cutter layout, and body material is driven by this. [sinodrills]
- Required hole diameter and gauge
- Typically, the reamed hole should be at least 50% larger than the outside diameter of the product pipe to allow for grips, fluid flow, and safe pull forces. [trenchlesspedia]
- Rig capability (torque and pull‑back)
- Back reamer size and cutting aggressiveness must match the rig's torque and thrust ratings. [sinocoredrill]
- Drilling fluid program
- Fluid ports and flow paths in the reamer need to align with your mud program for effective cuttings removal and wall stabilization. [thedriller]

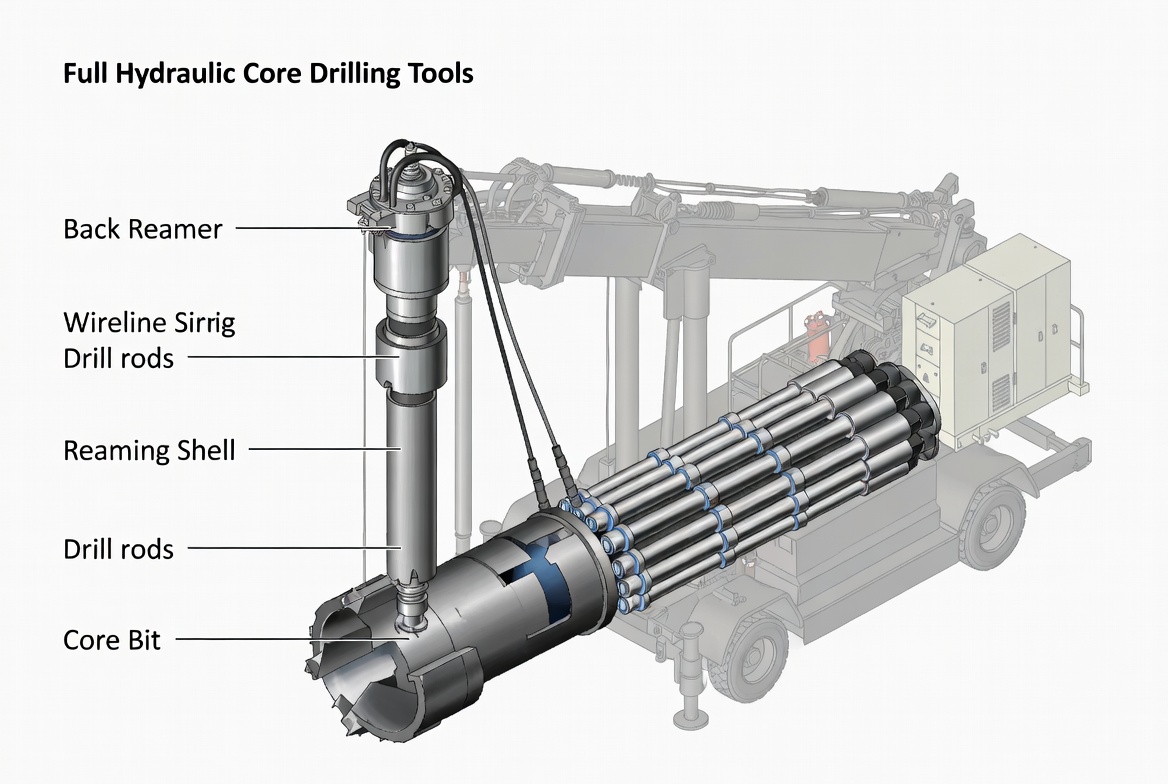

Modern full hydraulic core drilling rigs, especially wireline systems capable of hundreds of meters of depth, rely on a carefully optimized tool string. Typical assemblies include: [jimaimachinery]
- High‑performance core bits for efficient core cutting.
- Reaming shells for maintaining gauge and smoothing the hole.
- Back reamers for enlarging and stabilizing sections of the bore as required. [sinocoredrill]
Hydraulic rigs with advanced control systems allow operators to fine‑tune rotation speed, feed pressure, and fluid flow to support the back reamer's performance. This results in: [jimaimachinery]
- Cleaner, straighter boreholes.
- Better core recovery in fractured or broken ground.
- Lower risk of stuck tools or collapsed intervals. [sinocoredrill]
If your operation specializes in CORE DRILLING TOOL solutions (core bits, drill rods, reaming shells, and back reamers), integrating the right back reamer into the system is part of delivering a complete, technically coherent drilling package rather than a single standalone product. [jimaimachinery]
Recent industry developments are changing how back reamers are designed and used: [vicsawing.com]
- More powerful hydraulic rigs
- Deeper capacity (up to several hundred meters and beyond) and finer hydraulic control allow operators to run larger, more efficient reamers with better load management. [sinocoredrill]
- Increased precision and automation
- Automated or semi‑automated systems can maintain optimal RPM, pull‑back speed, and fluid flow, keeping back reamers in the ideal operating window. [vicsawing.com]
- Optimized cutting structures and materials
- Improved carbide grades, heat treatment, and wear‑resistant steels increase tool life and performance in harsh formations. [chinese.alibaba]
These innovations directly impact field performance: improved rate of penetration, reduced downtime for tool changes, and more consistent bore quality across deep and complex holes. [vicsawing.com]
Experienced drillers and HDD specialists emphasize procedure as much as hardware. To get the most from your back reamer: [inrock]
1. Ease the reamer into cutting
- Allow the tool to cut its own pattern for several feet before increasing pull forces to avoid overloading cutters and the drill string. [inrock]
2. Use the right fluid mix
- Design a bentonite/polymer mixture to both carry cuttings and build a stable wall cake, rather than relying on water alone. [thedriller]
3. Monitor wear and tear
- Track hours, inspect buttons and cutters, and monitor gauge.
- Replace or service the tool before catastrophic failure. [melfredborzall]
4. Clean the reamer thoroughly
- Remove packed debris from cutters and fluid ports to maintain cutting efficiency and prevent imbalance. [melfredborzall]
5. Match reamer size to the job
- Avoid aggressive jumps in hole size.
- Use multiple reaming passes if you need a large enlargement in hard rock. [trenchlesspedia]
These operational details are often what separate a textbook drilling plan from a real‑world success on site.
In everyday drilling, the most costly failures usually occur after the pilot hole has been drilled—when back reaming and pull‑back are underway. Common issues include: [thedriller]
- Hole collapse or sloughing
- Caused by poor wall cake, insufficient fluid support, or inadequate enlargement.
- Excessive pull‑back forces and stuck pipe
- Frequently due to too small a bore relative to product diameter or poor cuttings removal. [trenchlesspedia]
- Misalignment and wandering bores
- Occurring when the reamer is not properly stabilized or the drilling program pushes tools beyond design limits. [sinodrills]
By combining the correct back reamer design with good fluid management and conservative operational parameters, operators can significantly reduce these risks and deliver repeatable, high‑quality bores. [inrock]
From a user‑experience perspective, choosing a back reamer is also about choosing the right technical partner. When evaluating suppliers, consider whether they provide: [jimaimachinery]
- Integrated product families
- Core bits, drill rods, reaming shells, and back reamers engineered to work together on modern hydraulic rigs.
- Formation‑specific engineering support
- Guidance on button type, gauge, and hydraulics for your exact geological profile.
- Customization options
- Shank types, cutting geometry, material hardness, and fluid port configurations customized to your rigs and ground conditions. [chinese.alibaba]
- Application support and troubleshooting
- Real‑world advice on reaming stages, fluid programs, and operating parameters.
For operators focused on high‑performance core drilling and HDD, partnering with a specialist manufacturer of full hydraulic wireline core drilling rigs and related tools helps ensure that every back reamer you deploy is optimized for both your rig and your rock. [sinocoredrill]
You can embed a table like this in the page to improve scannability and decision‑making:
| Formation type | Recommended reamer style | Key benefits |
|---|---|---|
| Hard, abrasive rock | Button rock reamer | High durability, stable gauge in harsh conditions (sinodrills) |
| Mixed rock and soil | Barrel or hybrid reamer | Balanced cutting, smoother walls, good fluid flow (sinodrills) |
| Soft soils and clay | Fly‑cutter style reamer | Fast cutting, efficient spoil removal in soft ground (trenchlesspedia) |
| Fractured formations | Stabilized barrel reamer | Better wall support, reduced collapse risk (sinodrills) |
If you are planning a new core drilling or HDD project and want to reduce risk while maximizing penetration rate and tool life, it is worth reviewing your back reamer selection before the rig mobilizes.
You can:
- Share your formation description, planned bore diameter, and rig specs.
- Ask for a back reamer recommendation tailored to your core bits, rods, and reaming shells.
- Request advice on fluid programs and reaming stages for challenging ground.
A short technical conversation at the planning stage often prevents costly reaming failures later on, and ensures your back reamer is working as part of a fully optimized core drilling tool system. [jimaimachinery]
1. What is the main purpose of a back reamer?
A back reamer enlarges and stabilizes a pilot bore during pull‑back so that casing, product pipe, or core tools can be installed through a clean, correctly sized, and stable hole. [sinodrills]
2. Why does the reamed hole need to be larger than the product pipe?
The reamed hole is typically at least 50% larger than the pipe's outside diameter to provide space for pulling grips, cuttings removal, and drilling fluid, and to keep pull‑back forces within safe limits. [trenchlesspedia]
3. Can I use the same back reamer for all ground conditions?
Using one reamer for everything is risky. Different formations require different cutting structures, materials, and diameters to balance penetration, tool life, and bore stability. [thedriller]
4. How do modern hydraulic rigs improve back reaming performance?
Advanced full hydraulic rigs provide precise control of rotation, feed, and fluid flow, allowing operators to keep the back reamer in its optimal operating window and improve bore quality and tool life. [vicsawing.com]
5. What are the most common mistakes when back reaming?
Common mistakes include starting with too much pull force, using water instead of a proper fluid mix, jumping to a very large final diameter in one pass, and running a worn or undersized reamer. [melfredborzall]
